Newport Corp.    Irvine, CA 92606
Mar 17, 2009 SolaryX(TM) Edge uses pulsed lasers to remove all coatings - amorphous silicon (a-Si), cadmium-telluride (CdTe), copper-indium-diselenide (CIS), copper-indium-gallium-diselenide (CIGS) - around perimeter of thin-film solar panels. Featuring optical design, edge laser processing system is designed for fast takt times and reliability in 24/7 industrial thin-film solar panel manufacturing environments.

Delkin Devices, Inc.    Poway, CA 92064
Mar 17, 2009 VideoPro(TM) Flash memory cards, available in SDHC(TM) (high capacity) format, are optimized for capturing high-definition video at 1080 resolution. Speed, capacity, and reliability are made possible via use of SLC NAND flash products, controller design, and QC guidelines based on ISO:9001 standards. Offered in 4 GB/1 hr, 8 GB/2 hr, 16 GB/4 hr, and 32 GB/8 hr on HD Standard setting for SDHC(TM) format, cards deliver respective HD high, standard, and extended speeds of 13, 9, and 6 Mbps.

Ross, Charles, & Son Co.    Hauppauge, NY 11788 0615
Mar 17, 2009 Available in various materials of construction and up to 48 in. in diameter, LPD Mixing Systems are suited for low viscosity turbulent flow mixing of fluids and for gas-liquid mixing. ISG Mixing Systems, supplied in cast or machined materials for applications through 12 in. dia, include machined elements with passageways that guarantee mixing of any pumpable material. After passing through 10 elements, systems layer materials over 2,000,000 times to provide microscopically layered mixture.

Boschert Precision Machinery    Butler, WI 53007
Mar 17, 2009 Designed for production of copper and aluminum bars for electrical equipment industry, CU-Profi features 45 tons of punching force, thick turret style tooling with punch sizes to 1¼ in. dia, shear station, and parts unloading station. Material clamping system, also included, eliminates end-of-bar waste. Suited for small to midsize producers, machine supports punching of copper bars up to 10 ft long (20 ft long optional) and up to 8 in. wide.

Universal Flow Monitors, Inc.    Hazel Park, MI 48030
Mar 17, 2009 Made with CPVC or PVC wetted parts, P420 Series is suited for use in corrosive fluids, water, brine, and low-viscosity fluids. Vortex shedding flow rate transmitters have no moving parts that can stick, bind, or coat. Models with CPVC body can transmit hot water or other fluid with max operating temperature of 180°F, compared to max of 140°F for PVC models. Available in ½, ¾, 1, 1½, and 2 in. pipe diameters, transmitters offer flow range of 12-200 gpm.

Edmund Optics    Barrington, NJ 08007

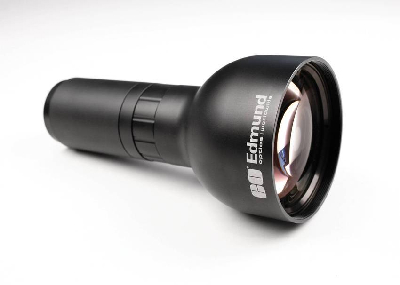

Mar 17, 2009 Designed to eliminate perspective error, TECHSPEC® Large Format Telecentric Lenses can accommodate sensors measuring up to 28.7 mm diagonal. Even with 5 µm sensors, contrast is greater than 20% across entire field, with telecentricity and distortion of less than 0.1%. Available in C-mount, T-mount, and F-mount models, lenses feature adjustable aperture from F/6-F/22 and locking iris, which prevents changes in adjustment in high-vibration environments.

Z-Communications, Inc.    San Diego, CA 92126

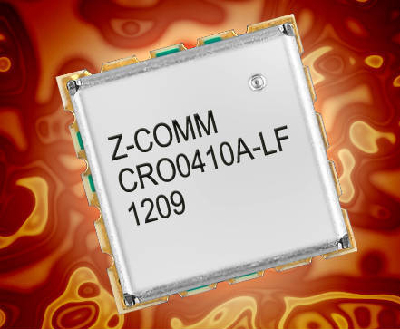

Mar 17, 2009 Operating from 390-430 MHz, Model CRO0410A-LF features tuning voltage range of 0.5-4.5 Vdc, typical phase noise of -117 dBc/Hz at 10 KHz offset, and typical tuning sensitivity of 17 MHz/V. Device delivers typical output power of -4 dBm at 5 Vdc supply while drawing 36 mA over temperature range of -30 to 70°C. Housed in MINI-16 package measuring 0.5 x 0.5 x 0.22 in., RoHS-compliant voltage controlled oscillator features typical 2nd harmonic suppression of -15 dBc.

Tormach LLC    Waunakee, WI 53597

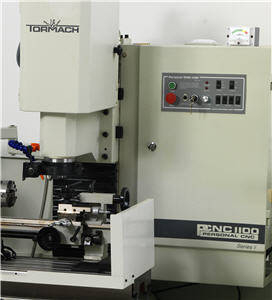

Mar 17, 2009 Model PCNC 1100 mill is available with PN 31101 Load Meter, which will display real-time spindle load to enable operator to visually monitor cutting performance. Specifically, meter can be used to monitor tool wear as well as troubleshoot both programming and drive performance. Ability to monitor spindle load lets operators and programmers tune speed, feed, cut depth, and other factors, optimizing mill performance while minimizing tool wear and controlling spindle load.

Harodite Industries, Inc.    Taunton, MA 02780
Mar 17, 2009 Available in 9 x 9 in. sheets, single-use Dustinator(TM)3000 is safe to use on all dry surfaces and is suited for cleaning dust from computer screens, desk and counter tops, picture frames, and auto interiors. Soft nature of product does not scratch or mar surfaces or require any sprays to make it effective. Target markets include home cleaning and maid services, hotel chains, furniture stores, auto detailers as well as retailers and janitorial supply companies.

Maplesoft    Waterloo, Ontario   Canada
Mar 17, 2009 With MapleSim Connectivity Toolbox, MapleSim models are automatically converted to S-Function blocks for seamless inclusion in Simulink diagrams. Models created this way are efficient due to MapleSim's symbolic preprocessing and optimized code generation. With help of MapleSim's analysis tools and design documentation abilities, toolbox enables engineers to better understand and reuse their models.

Watlow    St. Louis, MO 63146
Mar 17, 2009 Providing indirect heating, CAST-X 3000 consists of 2 helical coiled tubes and tubular elements cast into aluminum body, which serves as heat transfer media between tubular element and heavy-wall 316L process tubes. Fluid path is independent of heater sheath, preventing fluid contamination. Integrated thermostat housing allows heater to run dry, while dual tube construction allows water flow rates to 20 gpm when run in parallel. Explosion-proof enclosure is optional.

Crouzet    San Diego, CA 92154
Mar 17, 2009 Through proportional control of gas flow, Linear Motor Series encourages energy-efficient gas heating control. Modulation of dispensed gas enables fuel to be burned at slower/faster rate as needed, promoting burning efficiency while minimizing expenditure and pollution. Packaged as integrated assembly with motor and valve, series also integrates dual safety system that lets motor switch off valve and stop gas flow in less than 10 ms and also spring back to close if power is lost.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Mar 17, 2009 DATEL DMS-20RM voltmeters measure true-rms value of complex AC voltages and triangle waves, square waves, or other irregularly shaped waveforms with ±0.4% accuracy. Independent power supply is fully isolated, up to 2 kV, from input AC signal and 1.38 x 0.88 x 1.00 in., 4-wire device includes rugged polycarbonate housing and 3½-digit, 0.37 in. LED display. Operating temperature range is -25 to +60ºC and measurement range is up to 12 ft. Input ranges of 20, 200, and 300 Vac are available.

Renishaw, Inc.    Hoffman Estates, IL 60192
Mar 17, 2009 Consisting of readhead and separate self-adhesive scale, LM13 Series produces digital, square-wave signal output to RS422. Units offer selectable resolution from 1-250 µm, with velocities to 4 m/sec at 1 µm resolution. At 14 mm tall, encoders are suitable for tight spaces and measuring lengths to 100 m. They handle operating temperatures from -10 to 85°C, providing waterproof sealing to IP68 as well as resistance to shock, vibration, and pressure.

Piab AB      Sweden
Mar 17, 2009 Made of polyurethane, DURAFLEX® Friction Cups feature rough cleat surface and sharp cleat edges and channels, providing secure grip on oily and wet surfaces. Cups will not break or crack after exposure to UV light, heat, or ozone. To prevent damage to surface of thin metal sheets common in automotive and large appliance applications, cups have dual-hardness design with soft cup body and soft lip that molds to curved surfaces for minimized vacuum leakage.

Zero-Max, Inc.    Minneapolis, MN 55441 5537

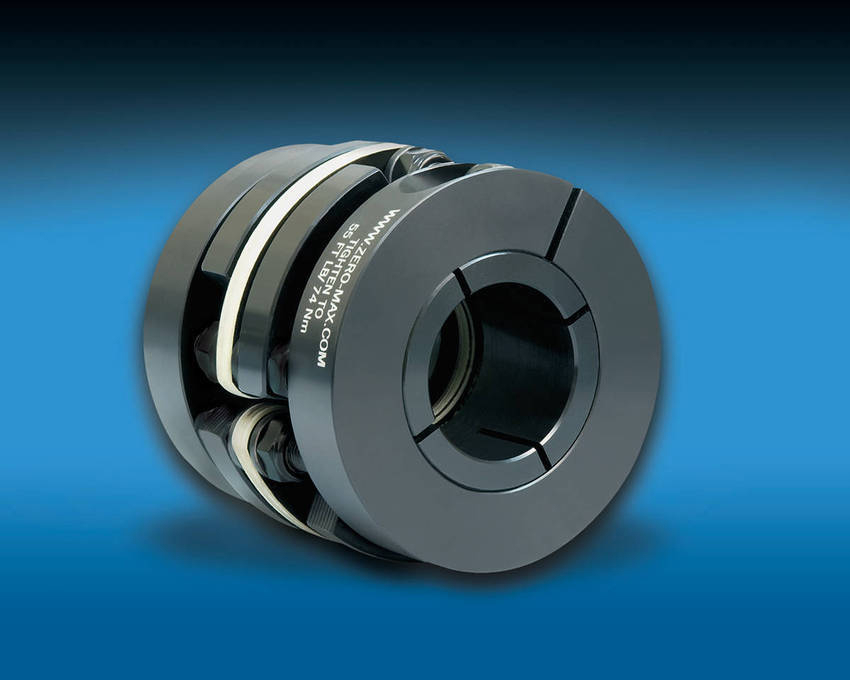

Mar 17, 2009 Available in single and double flex aluminum hub models with or without keyways, CD Couplings® are designed for use with fixed displacement hydraulic pumps driven by servo motors. Single flex models have torque capacity range from 40-1,436 Nm and beyond with speed ratings from 4,400-17,000 rpm. Able to perform well in test lab environments as well as production floor, composite disc designed product withstands stress of servo motor.

Hawco    Surrey GU7 2QN  United Kingdom
Mar 17, 2009 Incorporating energy-efficient hermetic compressors and condenser coils with energy-efficient Zeil-EBM fan, Hawco Extra Cold is available for R404a refrigerant across high, medium, and low temperature ranges. It can be directly balanced with Lu-Ve Contardo SHC and SHA evaporators. Customizable unit is fabricated from galvanized steel to ensure rugged, weatherproof module that can be flat roof, wall, or ground mounted, and provides low operating noise level of 33-47 dBA.

Highland Technology, Inc.    San Francisco, CA 94103
Mar 17, 2009 Housed in compact extruded aluminum enclosure, J740 performs wideband analog conversion of fast fiber-coupled signals from DC to greater than 1 GHz. It features calibrated conversion gain of 1 V/mW (0.5 V/mW into 50W) and is compatible with single and multi-mode fiber. Available in 850, 1,310, and 1,550 nm wavelengths, unit suits applications including high-speed data links, fiberoptic test and measurement, and modulated analog and digital communications systems.

Southworth Products Corp.    Portland, ME 04104 1380
Mar 17, 2009 Adjustable-height Elevation Station allows users to raise or lower tabletop to any height from 24-40 in. via foot pedal at each end of base. Reversible 23½ x 40 in. platform insert is smooth plastic laminate on one side and textured, non-slip surface on other, and no tools are needed to flip it. Workstation has 200 lb capacity, plugs into standard 115 V wall outlet, and is suited for electronics assembly, inspection, packing, and shipping.

FUTEK Advanced Sensor Technology, Inc    Irvine, CA 92618
Mar 17, 2009 Designed for automotive industry, LAU220 pedal force load cell features removable mounting plates, strain relief, and machined slip-resistant top surface. Plug-and-play design allows monitoring of output of sensor, while spike resistance makes sensor resistant to impact loads and provide accurate readings without causing any damage. Metal foil strain gauge technology based unit has 17-4PH SS one piece construction and off-center loading error of less than 1%.
