Lumex Inc.    Carol Stream, IL 60188

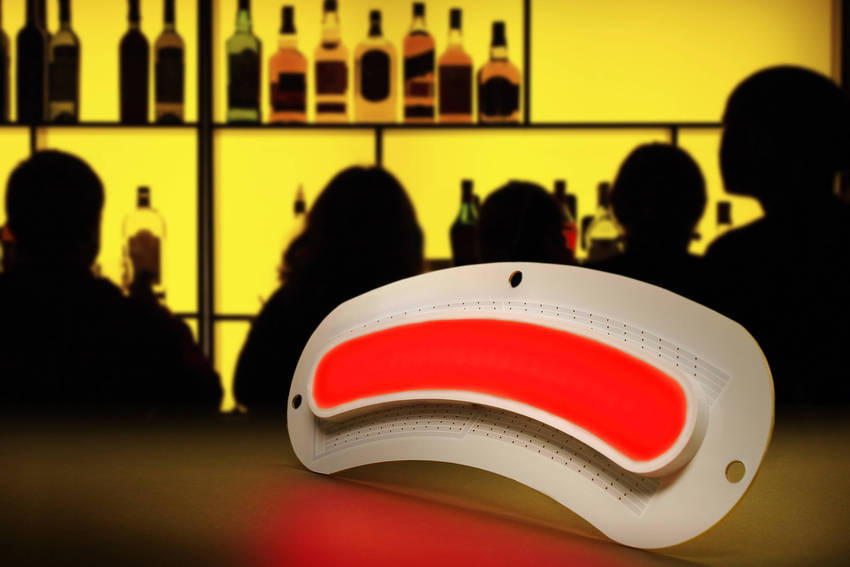

Mar 19, 2009 QuantumBrite(TM) LED backlights provide high-intensity brightness, in particular, white version provides up to 10,000 nits for full daylight visibility. They are able to withstand both shock and vibration in demanding applications and have average lifespan of 100,000 hr. Ranging in size from 1 x 1 to 10 x 10 in., RoHS-compliant units are available in edge-lit and chip-on-board formats in white and vivid color options and with- and without-reflector formats.

Z-Communications, Inc.    San Diego, CA 92126

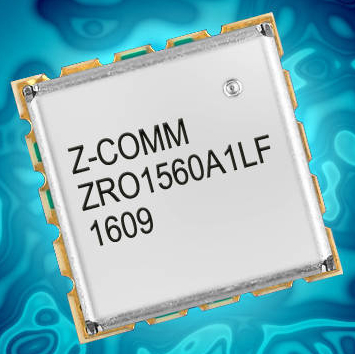

Mar 19, 2009 Operating at 1,560 MHz with tuning voltage from 0-5 Vdc, ZRO1560A1LF features typical phase noise of -121 dBc/Hz @ 10 kHz offset and typical tuning sensitivity of 0.7 MHz/V. RoHS-compliant VCO delivers typical output power of 0 dBm at 5 Vdc supply while drawing 18 mA (typ) over -40 to +85ºC range. Supplied in 0.5 x 0.5 x 0.22 in. MINI-16 package, product offers typical second harmonic suppression of -30 dBc.

Miller Electric Mfg. Co.    Appleton, WI 54912 1079

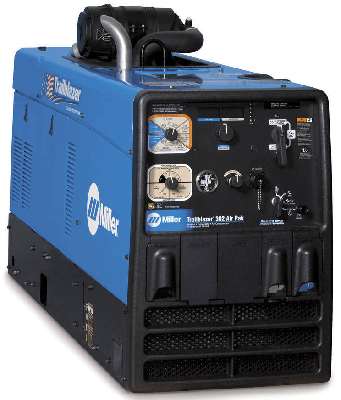

Mar 19, 2009 Designed to meet jobsite reliability standards, multifunctional Trailblazer® 302 Air Pak(TM) is gasoline engine-driven welder, generator, and air compressor. This self-contained power source welds at up to 350 A and provides 13,000 W of Accu-Rated(TM) generator power as well as 26 cfm at 100% duty cycle. Rotary screw air compressor delivers 70-160 psi of air, with no storage tank required, while 30 hp Kohler gas engine weighs 771 lb and measures 59½ x 20 x 34¼ in.

Hotsy    Camas, WA 98607

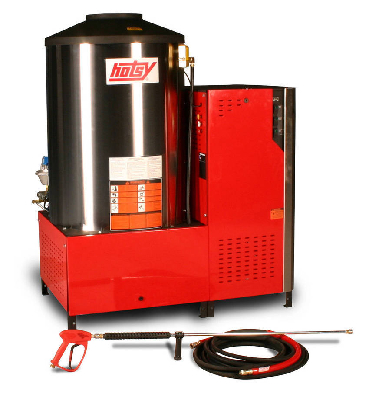

Mar 19, 2009 Suited for wash bay installations, stationary 5700 Series is equipped with 20 hp Baldor electric motor and available in 208, 230, 460, or 575 V, 3-phase. Upright coil maintains constant temperature using oil, natural gas, or liquid propane, while Smart Relay System lets user control run time, auto start/stop, and time delay shutdown functionality. Additional features include belt-drive pump with NESTechnology(TM) and U-Seals, and 10 gal polyethylene float tank with cool-down pump bypass loop.

GAO FiberOptics Inc.    Toronto   Canada
Mar 19, 2009 Designed for Gigabit Ethernet applications, GBIC Series units provide IEEE-802.3 compliant link at data rates of 1.25 GB/sec. Housed in stainless steel package and operating from +3.3 V supply, hot-pluggable units are also compliant with ANSI specifications for fiber channel applications at 1.06 GB/sec. Receiver section incorporates 1,550 nm DFB for single-mode operation with temperature compensation and automatic power control circuit and InGaAs/InP PIN photodiode.

L-Com, Inc.    North Andover, MA 01845

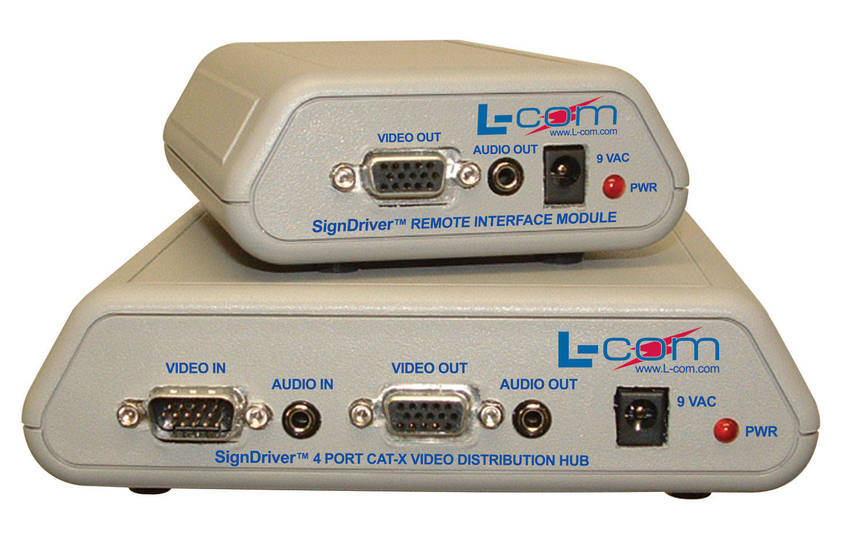

Mar 19, 2009 Consisting of 4 port video distribution hub that connects via CAT-X cabling to remote interface units, SignDriver(TM) system can extend up to maximum of 1,000 ft away from source. Device supports video resolutions of up to 1,600 x 1,280 at 60 Hz. Options include audio support as well as several off the shelf kits that include single distribution hub and 1 remote unit, with or without audio.

Metalcraft, Inc.    Mason City, IA 50401 1468
Mar 19, 2009 Available in 2 sizes, Bar Code Cable Labels feature digital subsurface printing that withstands chemicals and abrasion. Polypropylene construction allows them to conform to tight radius without unwinding, thick adhesive grips to plastic and uneven surfaces, and they tolerate temperatures up to 200°F. Customizable labels help simplify marking wires and cables, facilitating traceability, maintenance, and security of cables and wires used for audio, video, computing, industrial applications.

Cole-Parmer Instrument Co.    Vernon Hills, IL 60061

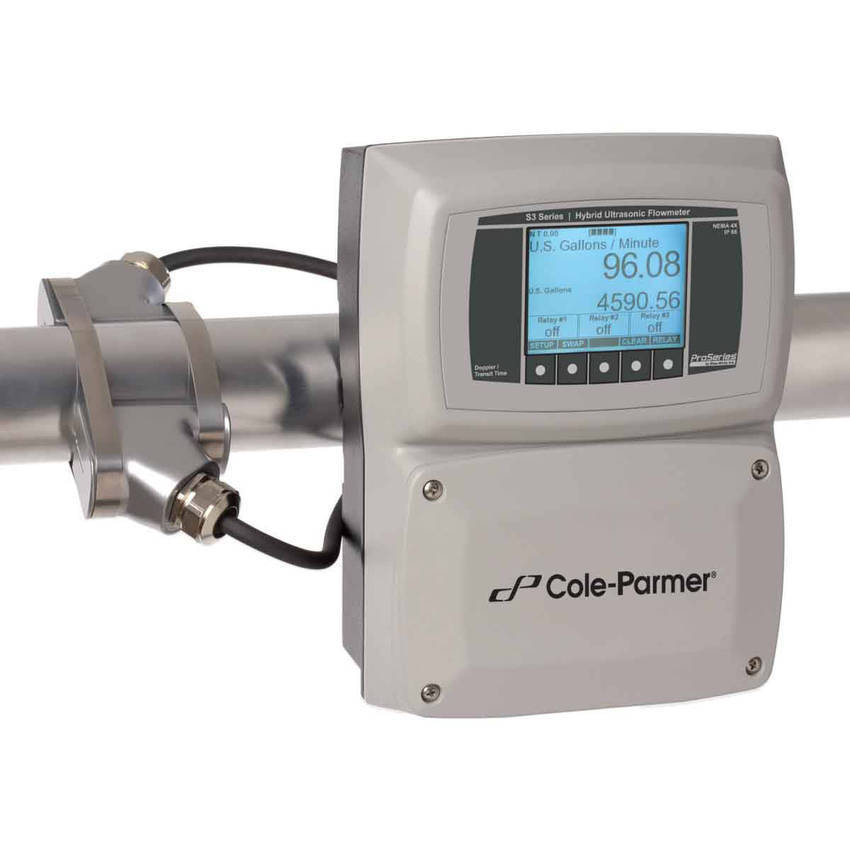

Mar 19, 2009 Ultrasonic Hybrid Flowmeter measures fluid flow using either doppler or transit time method, making it suitable for use with any fluid that can conduct sound waves. Utilizing DSP, cross-correlation signal analysis, and goodness-of-measurement algorithm to ensure accurate measurements, flowmeter features RS-232, RS-485, Ethernet, and USB real-time communications connections. It also incorporates 500,000 event datalogging capability and can write to removable SD 32 MB memory card.

DeFelsko Corp.    Ogdensburg, NY 13669

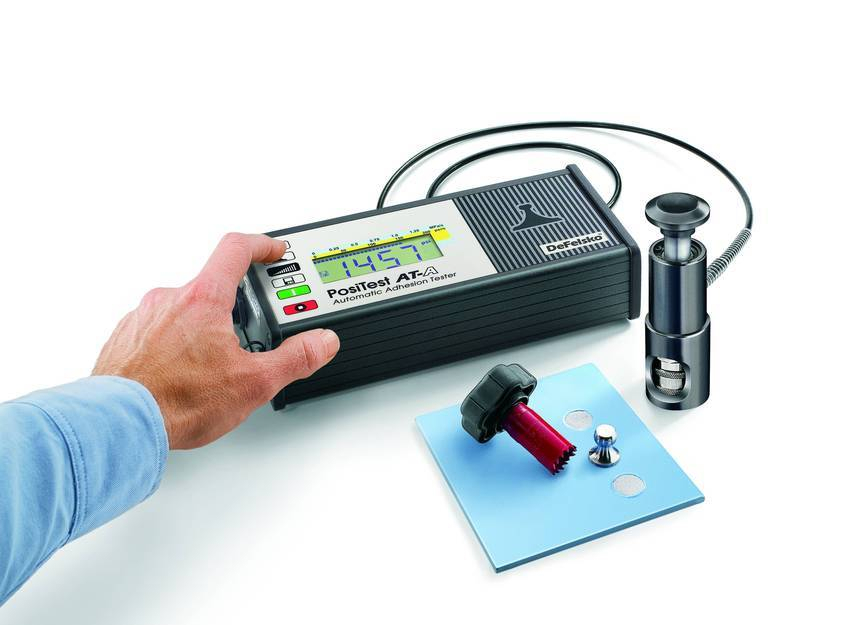

Mar 19, 2009 Capable of measuring adhesion of coatings to metal, wood, concrete, and rigid substrates, PosiTest AT-A incorporates electronically controlled hydraulic pump to apply continuous pull-off pressure at user-selectable rates. Other features include rechargeable batteries, shoulder strap, AC power, and digital keypad to select dolly sizes, specify pull rate, and change measurement units or store readings.

Spectronics Corp.    Westbury, NY 11590
Mar 19, 2009 GAS-GLO(TM) 32 is formulated to detect gasoline and diesel fuel leaks in any enclosed circulatory system. Added to system to circulate, it remains at site of each leak, where it glows bright yellow when scanned with Spectroline® high-intensity ultraviolet or blue light inspection lamp. GAS-GLO 32 remains safely in system as part of diagnostic/maintenance program.

Schneider Electric    Palatine, IL 60067-7399

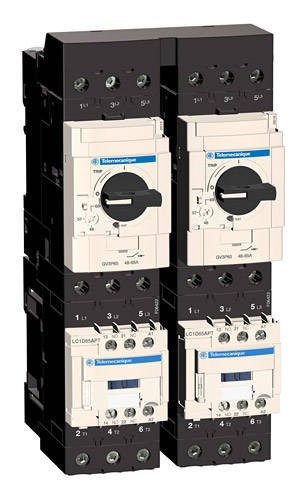

Mar 19, 2009 Everlink® technology allows TeSys® D 40A, 50A and 65A contactors to connect to TeSys D overload relays and TeSys GV3P manual motor protectors without requiring interconnect block. This spring termination technology also moves with wire as it relaxes over time, reducing need to retighten. At 55 mm in width and with optional S-shaped busbar component for side-by-side mounting that allows assembly of contactor and manual motor protector on the same DIN rail, contactors save space.

Advantech Technologies, Inc.    Irvine, CA 92618

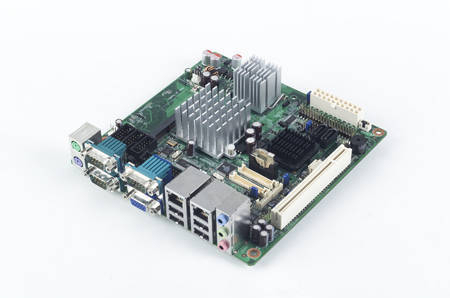

Mar 19, 2009 Equipped with Intel® 945GSE chipset and Intel® Atom(TM) 45 nm processor (N270 1.6 GHz CPU with TDP only 2.5 W), AIMB-210 provides connectivity with up to 8 USB 2.0 and 6 COM ports integrated in standard 170 x 170 mm form factor. With integrated Extreme Graphics 2 controller, unit features integrated 3D graphics and video capability with up to 224 MB of graphics memory. It supports dual display for LVDS, CRT and TV-out, and has 533 MHz Front Side Bus and up to 2 GB of DDR2 533 SDRAM.

Richco, Inc.    Morton Grove, IL 60053

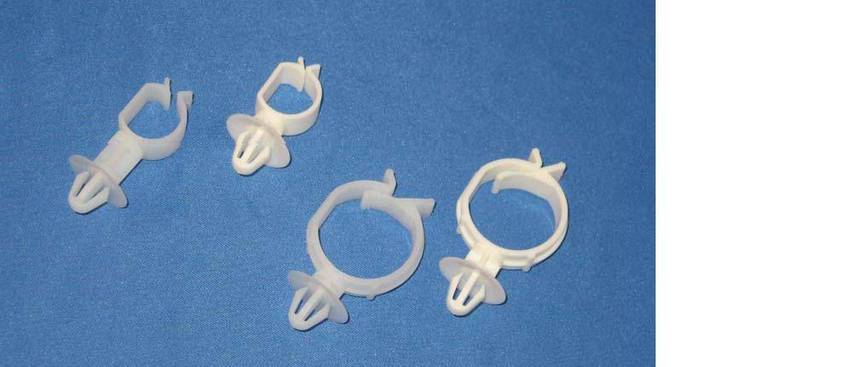

Mar 19, 2009 SCCA and SCCB Series standoff cable clamps feature press-through cable entry design, which provides smooth entry into clamp as well as minor locking feature on SCCB. Cupped base provides coverage of hole and prevents contaminants from entering hole, while providing added stability to panel.

Richco, Inc.    Morton Grove, IL 60053
Mar 19, 2009 RoHS compliant hinged-twist lock TLSE allows for cables to be mounted with clips in 2 different positions; above crowded boards and panels using standoff feature, or to side of mounting device and board in hinged position. Hinge device minimizes volume of parts during transportation and optional use of anti-rotation pin prevents parts from twisting on board. Cables can be locked and unlocked by twisting hinged lock's ends together.

United Electric Controls    Watertown, MA 02472
Mar 19, 2009 Designed to withstand harsh and hazardous environments, One Series electronic pressure and temperature switches are available in explosion-proof models for Division 1 and 2 areas. They feature up to 2 adjustable set points and deadbands, 4-20 mA analog output, no moving parts, and variety of power options. Suited for wide range of applications, units feature integral digital display, tamper-resistance, intuitive programming, and fast set-up.

Telco Intercontinental Corp.    Houston, TX 77095
Mar 19, 2009 DPA series are suitable for use in circuits with operating voltage range from 24-600 V, 50/60 Hz, and rated current up to 50 A, for making, breaking, frequently starting, and controlling AC motor. Featuring fast on terminals for convenient installation, units are available in 1, 1½, and 2 pole versions with 20-40 A, and 3 pole version with 20-50 A. Additionally 3 pole version comes with interchangeable screw and box lug terminals and maximum of 3 auxiliary contact blocks.

Aeroflex/Weinschel, Inc.    Frederick, MD 21703
Mar 19, 2009 Designed for testing digital radio technologies, 3920 radio test set provides extensive range of test functions for NXDN, including digital modulation analysis, bit error rate testing, and power and frequency error measurements. It supports technologies such as Analog, P25, TETRA, DMR, and other test capabilities. Designed as software defined radio test solution, device is field upgradeable to support new radio technologies.

Standard & Poor's    New York, NY 10004
Mar 19, 2009 Offering financial market intelligence, Compustat® includes industry-specific data sets, which enable analysts to quantify information and analyze statistics in order to assess health and profitability of company, as well as identify trends specific to that industry. With fundamental and market data on 89,000 global securities, Compustat provides vital company, index, and industry information that supports financial models and proprietary company and industry analysis.

Optical Zonu Corporation    Van Nuys, CA 91411
Mar 19, 2009 Series OZ516WMX Direct Modulation RF over Fiber Optics Links make it possible to centralize RF signal processing functions in one shared location and use fiber optics to distribute RF signals to remote antennas. This simplifies remote antennas, because they only need to perform basic optoelectronic conversion and amplification functions. Band support covers VHF, UHF, L-Band, S-Band, and WiMAX 2.3/2.5/3.5 GHz as well as U-NII and MMDS.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Mar 19, 2009 Designed to meet UL international safety standards, TLP109 and TLP116A are supplied in SO6 package with 0.4 mm thick (min) internal insulation that provides isolation voltage of 3,750 Vrms (min) as well as clearance and creepage distances of 5 mm (min). Transistor-transistor logic (TTL)-compatible TLP109 is 30 V (max), 1 Mbps general-purpose photocoupler with open-collector output, while TLP116A is 6 V (max), 20 Mbps device with high-speed totem-pole output.
