Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346
Mar 23, 2009 Capable of viscosity, yield stress, and creep measurements, RS Portable Rotational Rheometer can operate in lab, on production floor with 115 or 230 V, or in field with rechargeable battery. Built-in battery pack can be recharged by plugging instrument into power receptacle. Equipped with heavy-duty lab stand and handle, rheometer offers both controlled stress and controlled rate test modes. Cone/Plate Accessory is available for measuring small sample volumes.

Raymond Corporation, The    Greene, NY 13778 0130
Mar 23, 2009 CHEP® Blue Guardian® lift truck accessory minimizes damage to palletized products and packaging by redirecting impact force from lift truck to center block of pallet. Main housing frame is manufactured from impact-resistant carbon steel and is designed to maximize visibility during operation. Suited for mounting to ITA Class II fork carriages, unit also incorporates energy-absorbing polyurethane bumper that prevents contact with load.

PPG TrueFinish (R) Industrial Coatings    Pittsburgh, PA 15272
Mar 23, 2009 Spectracron 320 2-component, high-solids enamel can be sprayed as low-gloss smooth coat or textured/spattered to provide custom finish that hides various surface imperfections. It contains no hazardous air pollutants and less than or equal to 2.8 lb/gal VOC output when applied. Enamel also features optimized mar, abrasion, and chemical resistance as well as hardness and flexibility.

Fargo Controls, Inc.    Eatontown, NJ 07724
Mar 23, 2009 Contained in rectangular plastic housing, Diffused Photoelectric Proximity Sensors include sensitivity adjustment, NO and NC outputs, and 2 m cable. Including NPN or PNP outputs and reverse polarity protection, CE-compliant, IP65-rated units operate on 10-30 Vdc. Applications include control/detection/position/inspection/automation of machine tools and manufacturing systems, and can be used in various types of machinery.

Microtips Technology    Orlando, FL 32817
Mar 23, 2009 With outer dimensions of 144.0 x 104.6 x 12.8 mm, Model MTF-TQ57SN741-AV measures 5.7 in. on diagonal and has active area dimensions of 115.2 x 86.4 mm. QVGA TFT active matrix display features Intel 80 series high-speed 16-bit bus interface and operates in CPU mode. Equipped with built-in frame buffer, RAM functionality, and 500 nit white LED backlighting, display is suited for industrial, wall mount, test and measurement, and medical applications.

LEVITON    Melville, NY 11747
Mar 23, 2009 SmartLockPro®Combination GFCI Receptacle includes power indication pilot light to show device is powered without user needing to move equipment to test device's circuit. It incorporates line/load reversal diagnostics, end-of-life indicator, and surge protection as well as energy-efficient LEDs with 20-yr life expectancy. Constructed of impact-resistant thermoplastic nylon cover and polycarbonate body, it also features triple-wipe contacts and plated-steel terminal screws.

Ideal Industries, Inc.    Sycamore, IL 60178
Mar 23, 2009 Offering alternative to knockouts or bi-metal hole saws, TKO(TM) Hole Cutters incorporate SmoothStart(TM) pilot drill that guides TKO into sheet metal to yield smooth, burr-free holes while preventing damage to precision-ground carbide teeth. Integral arbor assures control, while built-in flange avoids over-drilling beyond sheet metal, and ejection spring cleanly ejects slugs. Designed to fit any standard drill, cutters come in range of sizes from ¾-2½ in.

Meltric Corporation    Franklin, WI 53132
Mar 23, 2009 UL approved for use as motor circuit disconnect switch and as branch circuit disconnect switch, Safety Plugs and Receptacles feature integral switching mechanism that ensures safe make or break of live connections and that contacts are dead before plug can be removed. Safety shutter prevents unintentional finger, tool, or wire access to live parts, while lockout provision, consisting of 5/16 in. hole in plug shroud for padlock, prevents plug from being inserted into receptacle.

RMT Inc.    Tempe, AZ 85283
Mar 23, 2009 Suited for warehouse and shipping environments, Duros 1214 is powered by Celeron® M 1.0 GHz processor. Featuring 12.1 in. SVGA resistive touchscreen polysilicon display, all-in-one aluminum housing eliminates need for corded peripherals, and unit is sealed to IP65 and meets MIL-STD-810F standard for drop, vibration, shock, and altitude. While primary power source is tapped from vehicle to which it is mounted, Duros 1214 also features built-in backup battery.

Electro Standards Laboratories    Cranston, RI 02921 3403
Mar 23, 2009 Rackmount Switching System facilitates passing connection of voice/data lines, both copper and fiber media, from designated set of equipment to existing building network, or disconnects them from building network, isolating all equipment in designated room or area. It comprises of Secure/NonSecure indicator unit, and data pass/off-line switches including fiber optic SC, 16-channel Ethernet, 16-channel Telco, and 6-channel ISDN. All systems are switched via front panel keylock actuator.

WIN Enterprises    North Andover, MA 01845
Mar 23, 2009 Featuring onboard Intel® EP80579 integrated processor at 600 MHz or 1.2 GHz, 1U rackmount platform PL-8000 provides single channel DDRII SODIMM support up to 2 GB. It includes 3.5 in. SATA HDD and CompactFlash(TM), one PCIe x 4 expansion slot, and supports one segment of LAN bypass function. Front panel features USB 2.0 port, RJ-45 console port and LED indicators to monitor power and storage activities. Product is RoHS, FCC, and CE compliant.

Shuttlewagon    Grandview, MO 64030
Mar 23, 2009 C-series Commander is equipped with AAR type sliding coupler with urethane impact cushioning, which reduces coupling impact shock loads as well as rail movement vibration from being passed into vehicle. Coupler knuckle slides from side to side along lubricated plate, increasing lateral range of movement of coupling mechanism. Air activated for release, coupler is hydraulically positionable from side to side for engaging and auto locking.

Men Micro Inc.    Lago Vista, TX 78645-4160

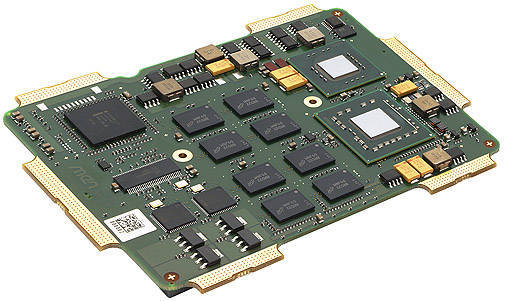

Mar 23, 2009 Equipped with Intel Core 2 Duo SP9300 with clock frequency of up to 2.26 GHz and graphics controller GS45, XM2 suits visualization applications. It has power consumption of 40 W, operates in temperature range of 0 to +60°C, and offers 4 x 1 or 1 x 4 PCI Express links, 2 Gigabit Ethernet, 8 USB ports, 3 SATA interfaces, and HD audio. Other features included are 4 Gb DDR3 DRAM memory, and Board Management Controller for monitoring board functions.

GAO RFID Inc.    Toronto   Canada
Mar 23, 2009 Containing extended 96-bit EPC number, a 64-bit identifier, and 224 bits of user programmable memory, UHF Gen 2 passive RFID tag GAO116032 suits tracking of medium-sized livestock such as pigs. Capable of operating in dense reader environments, tag features operating frequencies of 860-960 MHz, anti-collision tolerance, and IP67 enclosure. Water and dust proof tag is suited for use in harsh environments.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416

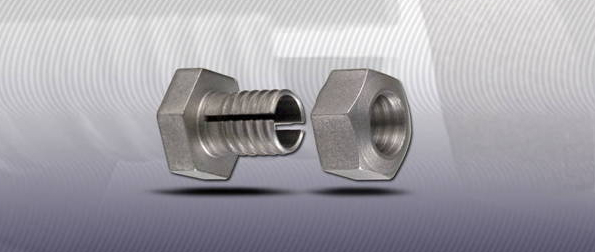

Mar 23, 2009 Featuring infinite radial and axial adjustments and quick lock and release action, M-Type Shaftloc® provides locking solution for rigidly mounting hubless gears, sprockets, pulleys, cams, or thin-walled components onto an inch or metric shaft. Asymmetric thread geometry of stainless steel unit produces radial clamping force when nut is tightened. Available from stock to fit .375, .500, and .625 in.; 10, 14, and 16 mm shafts, Shaftloc® system installs with standard tools and is reusable.

Wire Belt Company Of America    Londonderry, NH 03053-7449
Mar 23, 2009 Accepted by USDA NSF/ANSI/3-A hygiene standards, CompactGrid® is hygienically designed to protect food processing products from contamination by deadly pathogens such as salmonella. Made of stainless steel with 70% open area, conveyor belt is designed to replace balanced weave belts and hard to clean plastic modular belts.

MicroCentric    Plainview, NY 11803-2303

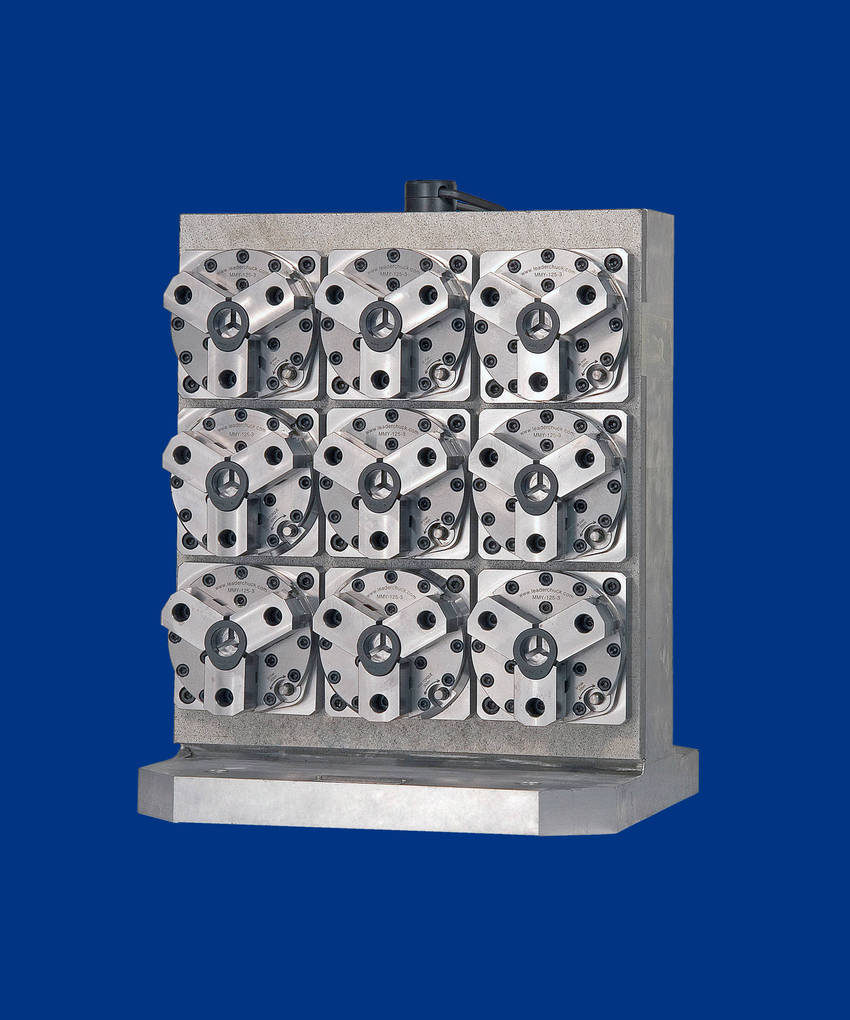

Mar 23, 2009 Available in 3, 4, 5, and 6 in. sizes for OD and ID clamping applications, manually actuated Production Milling Chucks integrate with tombstones and pallets for machining centers, milling machines, and grinders. They are clamped and unclamped on top face, enabling more chucks to be ganged together. Chucks feature 2 stage clamping; fast initial jaw stroke for large opening and primary stage to provide high clamping force.

GAO RFID Inc.    Toronto   Canada
Mar 23, 2009 With operating frequency 13.56 MHz and read range of 2-4 cm, GAO113014 enables automatic jewelry tracking in retail, wholesale, or secured storage environments. Contactless read/write tag, which measures 25 x 15 mm, is made of PVC plastic and will not affect any pieces of jewelry or aesthetics of box carrying it. With support for Manchester, Biphase, and PSK data coding types, tag offers 512 bits read/write capacity for use in asset tracking, access control, and inventory management.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Mar 23, 2009 Offering alternative to mechanical vibration switches, Model 686B01 requires only 2 wires for operation and includes Remote Reset Anywhere(TM) functionality. Embedded piezoelectric accelerometer provides accurate vibration measurement and monitors velocity. Operating from 24-240 Vac or Vdc, switch features programmable delays to avoid false trips, is hermetically sealed for use in harsh environments, mounts using single stud, and is suited for hazardous locations.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Mar 23, 2009 Consisting of IEC-compliant condenser microphone and preamplifier system, ½ in. Model HT378B02 measures sound amplitude in Pascals and Decibels and performs frequency analysis. Low-noise, high-temperature system is suited for obtaining measurements in and around vehicle's engine, manifold, underhood, exhaust pipe, and other hot spots associated with powertrain and vehicle systems NVH testing.
