CyberResearch, Inc.    Branford, CT 06405 2932

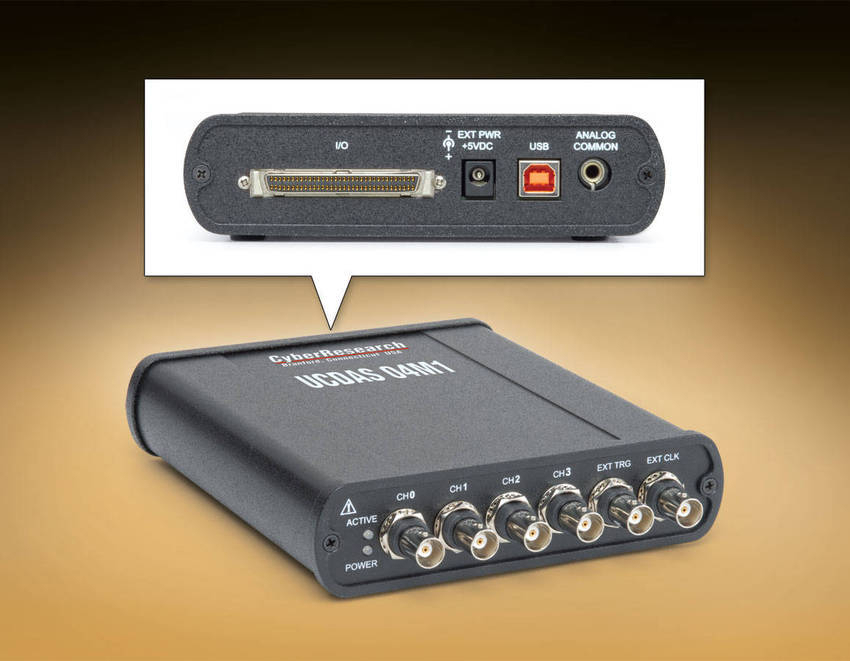

Mar 24, 2009 CyberResearch® multifunction UCDAS 04M1 modules feature 4 differential analog inputs running at speeds up to 1.3 MHz, while UCDAS 02M2 units have 2 inputs running at up to 2 MHz. Both USB DAQ modules include 32 DIO lines and 2 x 32-bit counters running at up to 20 MHz. If more than 4 inputs are needed, multiple modules can be synchronized via external trigger or clock connectors. Rugged, compact modules provide 2 ns skew and suit transient analysis and other high-frequency applications.

In2connect Inc    Cullman, AL 35055

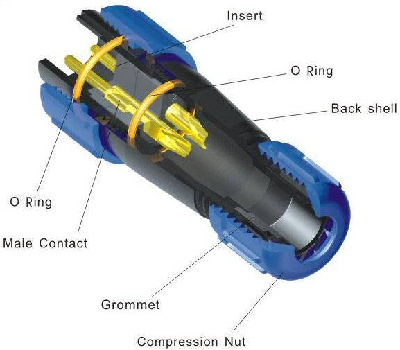

Mar 24, 2009 Pintail RoHS-compliant indoor/outdoor interconnect system, able to accommodate 3-12 mm cable dia, is commonly used for safe control and power connections between equipment. With respective panel mounting hole sizes of 13 and 21 mm, SP13 and SP21 Series multi-pin, threaded coupling connectors feature insulator and contact areas fully sealed against environmental elements via dual O ring sealing, high-temperature PPS inserts, grommets, and compression nuts.

Meyda Tiffany    Yorkville, NY 13495
Mar 24, 2009 Lava V Sconce 108291 offers abstract fused glass design with bas relief highlighted with strips of iridescent red, smoke amber, and clear iridescent fused art glass. Penna Di Pavone V Sconce 108071 includes iridescent purple and iridescent green, amber, and gray fused glass in bas relief motif, while Marina V Sconce 107884 features amber, beige, smoke, and clear iridescent fused glass. All custom-crafted sconces are 8 in. wide x 16 in. tall.

PPG TrueFinish (R) Industrial Coatings    Pittsburgh, PA 15272
Mar 24, 2009 Spectracron 315 primer surfacer fills scratches and minor surface imperfections in substrates such as fiberglass, plastic, sanded or blast cold-rolled steel, and treated aluminum. Containing no heavy metals, 2-component, high-solids, high-build primer can be applied with Exempt Blend TFS321-50 reducer for VOC output of 2.1 lb/gal. Corrosion- and humidity-resistant compound can be sanded after 90 min and be top-coated with 2-component polyurethane enamels.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 24, 2009 Measuring 4.7 x 4.5 x 1.65 mm, FSM3MS is available in 2 versions, featuring SMD or SMD-up terminals, with or without location pins. Version with location pins is suited for fixing switch on PCB during soldering process, but both switches have contact rating of 50 mA @ 12 Vdc, mechanical life of 100,000 operations min, actuation force of 2.2 N, and travel of 0.3 mm ±0.1 mm. Applications include mobile phones, Bluetooth headsets, and other portable handheld devices.

Omnetics Connector Corp.    Minneapolis, MN 55432

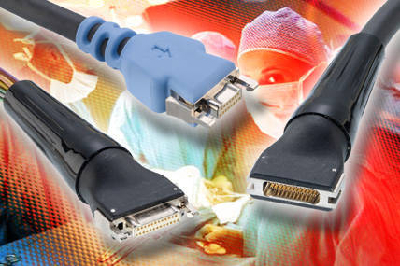

Mar 24, 2009 Available with overmolded cables or incorporated into equipment housings, 0.025 in. pitch Bi-Lobe Connectors are protected against contamination in medical applications. Devices pass shock and vibration requirements of MIL-DTL-32139, yet connector halves push together without tools or complicated procedures. Wide range of materials, from soft silicones to hard glossy shells, can be used for overmolding.

MAG IAS, LLC    Erlanger, KY 41018

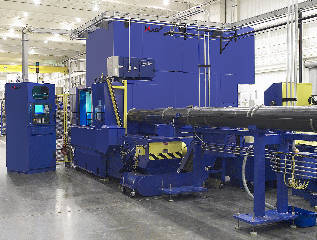

Mar 24, 2009 Able to handle composites, titanium, and aluminum, E Mill is designed for machining small cross-section parts up to 39.4 ft long in aerospace, construction, shipbuilding, and wind power industries. It comes with 16,000 or 24,000 rpm spindle and performs contour machining/routing/drilling/tapping to produce finished, complex, 3D-geometry parts in one setup. Along with 5 axes of motion, design supports 360° infinite positioning with V-axis linear travel for pull-through part feed.

Staco Energy Products Co.    Dayton, OH 45403 1314

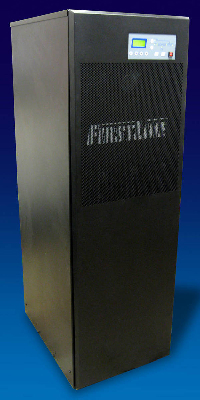

Mar 24, 2009 Delivering computer-grade power quality, FirstLine® 37.5 kVA online UPS offers standard battery run-time of over 6 min; optional batteries enable virtually unlimited run time. Transformerless power technology provides blackout protection and power conditioning, while front-end harmonic correction eliminates need for additional filtering. Double-conversion technology protects connected load from sags, swells, harmonics, noise, and voltage imbalances without going to battery operation.

Schober USA, Inc.    Fairfield, OH 45014

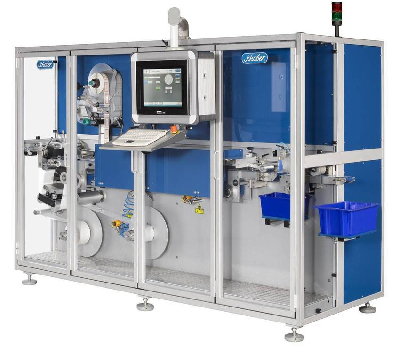

Mar 24, 2009 Featuring tag dispenser with web tension relief, Model RFID-CP inserts UHF and HF inlays under die-cut blank or pre-printed labels and validates finished product. Control and monitoring is accomplished through pendant station which houses industrial PC. System works with transponders in accordance with ISO specifications, in widths from 20-80 mm. With inserter, pre-printed labels ranging from 101.6-203.6 mm wide can be applied at rates from 5,000-20,000 labels/hr.

Northfield Precision Instrument Corp.    Island Park, NY 11558
Mar 24, 2009 Designed for manufacturers of electronic and mechanical indicators, Model DPH-600 is 6 in., 10,000 rpm, totally sealed, TIR diaphragm chuck with special jaws, stop, and changeable fixtures. It enhances and increases production of machining 2 bores that guide indicator rod. Once side is machined, fixture is turned over, and second side is machined; alignment of 1/10,000 TIR is achieved bore to bore. Accuracies of 0.001-0.00001 in. is ensured.

GrayGlass    Queens Village, NY 11429
Mar 24, 2009 With touch of switch, glass changes from transparent to opaque, blocking UV light and providing privacy and security, while eliminating need for blinds or curtains. Degree of transparency can be controlled. Glass engraving applications include storefronts, displays, skylights, windows, office partitions, conference rooms, and interior partitions. Waterjet precision machining and cutting services are available for all glass fabrications.

Royal Products, Div. Curran Mfg. Corp.    Hauppauge, NY 11788
Mar 24, 2009 Offering gripping capacities from 1/64-4 in. diameter, Pullback CNC Collet Chucks are guaranteed to run within 0.0003 in. TIR. All chuck components, except drawtube connector, are hardened to Rc 61-63 for rigidity. Available in special and quick-change styles, low-profile chucks are balanced for high-speed operation and are suitable for lathe, milling machine, grinding, and mill turning applications.

Phoenix Contact    Harrisburg, PA 17111 0100
Mar 24, 2009 Suited for power generation, utilities, and semiconductor manufacturing industries, ME Series Test Disconnect Terminal Blocks provide safe disconnect capability between measuring transducers and safety equipment in current transformer shorting applications. Available with screw, spring-cage, and push-in connection technologies, each block has set of 3 bridging channels on either side of screw-free disconnect lever. Pluggable shorting component can lock into one bridging channel.

Men Micro Inc.    Lago Vista, TX 78645-4160
Mar 24, 2009 Based on MPC8548 with clock frequencies between 800 MHz and 1.5 GHz, F50C supports rear I/O and comes with CCA frame, which allows SBC to be used in conductive cooling housing in temperature range of -40 to +85°C. It has 2 GB ECC DDR2 SDRAM main memory, 16 GB solid state Flash disk (SSD) for application data, and industrial FRAM and SRAM. SBC also supports up to 3 Gigabit Ethernet channels, 4 USB ports, up to 2 SATA interfaces, as well as user-definable functions inside its FPGA.

Men Micro Inc.    Lago Vista, TX 78645-4160

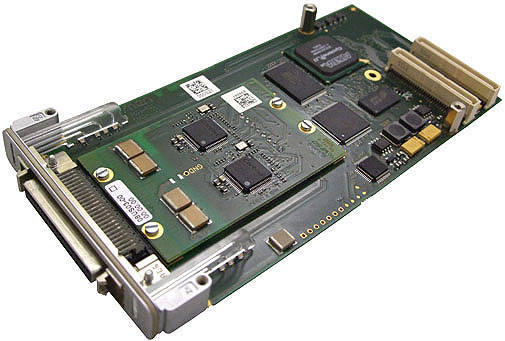

Mar 24, 2009 Equipped with 2 full or half-duplex channels via RJ45, P511 is 32bit/33 MHz PMC module supporting 10Base-T and 100Base-TX. Based on Universal Submodules concept, it features -40 to +85°C operating temperature, and 1,500 Vac isolation voltage. IEEE802.3 compliant product offers possibility to buffer all receive and transmit Ethernet frames either in local or in external data buffer to provide traceability and error analysis.

Men Micro Inc.    Lago Vista, TX 78645-4160
Mar 24, 2009 PMC module P512 is equipped with Reflective Memory for redundant memory structures in safety-critical applications. Reflective Memory allows user to access different memory components simultaneously to read from them or write on them in parallel. Featuring 32 Mb DDR2 DRAM of memory and operating temperature between -40 to +85°C, module offers LVDS channel with connection speed of 230 MHz and 86 Mb/s.

Tharo Systems Inc.    Brunswick, OH 44212 0798
Mar 24, 2009 Suited for high volume printing, H-427 and H-436 Series printers feature full backlit LCD display; ink in or ink out ribbons with 450 m capacity; serial, parallel, PS/2, and USB interfaces; and stripper sensor for strip-and-peel or tear-off applications. With internal memory for storing downloaded label formats, graphics, and fonts, printers can be operated without being connected to computer. They come with EASYLABEL® Start software for custom designing and printing bar code labels.

GAO RFID Inc.    Toronto   Canada
Mar 24, 2009 Battery-assisted semi-passive tag GAO136001 offers reading range of up to 100 m in free space at operating frequencies of 860-960 MHz. It provides amplitude modulated forward link from reader to tag at 8.32 or 48 Kbit/sec data rate, and frequency modulated reverse link from tag to reader at 2.8 or 32 Kbit/sec data rate. Measuring 54.4 x 56.38 x 5 mm, tag offers 64 Kbits of memory, 3-5 yr of battery life, and is suited for management of assets, yards, and vehicles.

Power Sources Unlimited, Inc.    Wrentham, MA 02093-2210
Mar 24, 2009 Featuring universal 90-264 Vac input with C14 type inlet, TRG45 series come in regulated, single output models ranging from 12-48 Vdc. They provide 45 W of power, standby power consumption of less than 0.5 W, and typical efficiency of 85%. Product has operating temperature of 0-40°C, with derated power through 60°C. RoHS compliant units are approved to worldwide EN60950 safety standards, and provide Class B radiated and conducted EMI performance.

Omega Engineering, Inc.    Stamford, CT 06907
Mar 24, 2009 RoHS compliant FSW-9000 Series flow switch monitor measures velocity of flow and features chain of 8 LEDs that gives visual indication of flow rate as well as set-point status, and one di-chromatic LED that indicates switch point status. Sensing element and connection are made with 316 SS and standard enclosure is glass-filled nylon. Product can be made with variety of process connections such as threaded, flange, or sanitary clamp fitting and is also available in aluminum enclosure.
