McCrometer, Inc.    Hemet, CA 92545

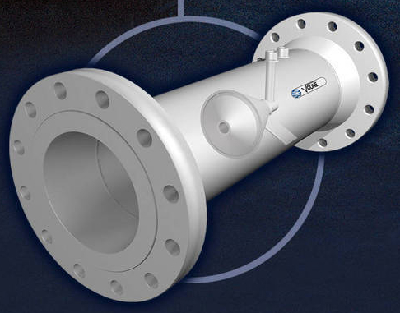

Mar 24, 2009 V-Cone® FPSO Flow Meter employs differential pressure (DP) flow measurement technology with built-in flow conditioning that reduces upstream/downstream straight pipe run requirements. Maintaining accuracy of +0.5% and repeatability of +0.1% over entire range, this product is suited for top-side and sub-sea FPSO applications measuring liquid, steam, or gas. It supports line sizes from 0.5-120 in., features 10:1 turndown ratio, and has no moving parts.

Weidmuller, Inc.    Richmond, VA 23236
Mar 24, 2009 Models CTIN CM 1.6/2.5 and CTIN CM 3.6 are designed to crimp 6 types of turned/machined contacts, including HD, HE, HX, M3, M5, and M10. Along with ergonomic design, tools feature built-in stop for exact positioning of contacts as well as digital crimp setting that provides accuracy to within 0.1 mm. While CTIN CM 1.6/2.5 crimps contacts for wire sizes from 26-9 AWG, CTIN CM 3.6 does the same for wire sizes from 16-7 AWG.

Bosch Power Tools & Accessories    Mt. Prospect, IL 60056
Mar 24, 2009 Both 11264EVS and 11265EVS 1 5/8 in. rotary hammers and 11321EVS 12 lb demolition hammer employ Vibration Control(TM) technology that reduces vibration at point of impact and increases impact energy. Also, shock-absorbent main handle features rubber damping elements to isolate user from vibration. Models 11264EVS/11265EVS deliver 8.1 lb-ft impact energy and have 170-340 rpm and 1,700-2,900 bpm operating range. Offering 9.6 lb-ft impact force, 11321EVS has 1,300-2,900 bpm operating range.

DW GLOBAL GROUP    Florence, KY 41042

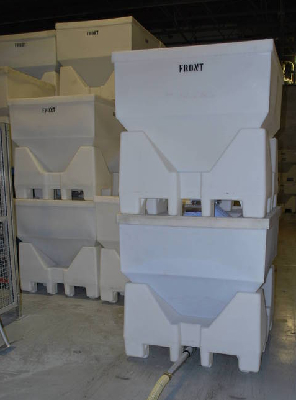

Mar 24, 2009 Comprised of one or more reusable containers, dry bulk hopper mini silo system helps companies that handle dry bulk materials initiate Go Green programs. Each translucent plastic container can serve as all-in-one shipping, storage, and dispensing system. Provided with secure lids, they can be stacked up to 3 high for total of 2,400 lb. Weighing and batch system, along with vacuum system, ensure material availability, while valve promotes flow of material from hoppers.

NKK Switches    Scottsdale, AZ 85260-3420

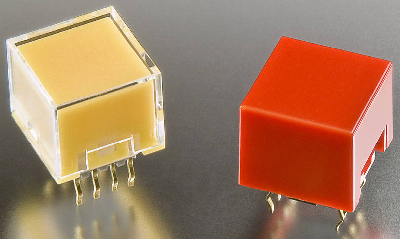

Mar 24, 2009 Offered in illuminated and non-illuminated versions, NP01 Series has mechanical silicon rubber structure, 1.5 mm stroke, and gold-plated contacts. Products, which measure 12.5 mm from PCB to top of cap, are available in SPST momentary circuit and may be ordered with high (2.5 N) or standard (1.5 N) operating force. Single-LED options for illuminated versions include red, green, amber, or bicolor (R/G). Non-illuminated models have 12 mm² caps available in black, white, red, and gray.

Franklin International    Columbus, OH 43207
Mar 24, 2009 Suited for applications that require moisture- and blush-resistance, Covinax® 462 permanent pressure sensitive adhesive withstands UV, weather, and outside exposure without yellowing or water damage. Clear, styrene-acrylic copolymer supports direct coating and transfer processes as well as temperatures to 150°C. Characteristics include 2.50 lb peel adhesion strength (180° peel adhesion testing), 1,251 min shear strength (178° shear adhesion test), and 2.10 lb loop tack.

Lanner Electronics Inc.    Sijhih City Taipei 221  Taiwan

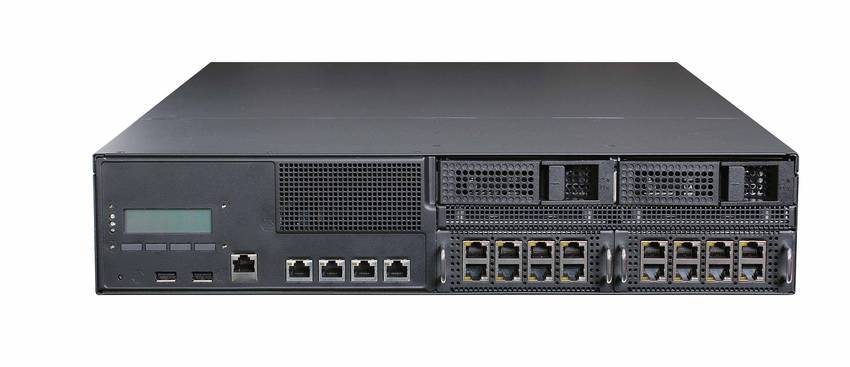

Mar 24, 2009 Xeon FW-8881, built on Intel 5100 chipset, and FW-8891, with Intel 5000 chipset, are contained in 2U rackmount, modular chassis. Units feature 4 GbE network ports, 2 customizable network modules, redundant power supplies, and 2 hot-swappable 3.5 in. hard drive trays. Providing gateway antivirus, firewall, unified threat management, and intrusion detection/prevention, models feature software configurable fail-over and fail-through bypass options.

ACE Production Technologies, Inc.    Spokane Valley, WA 99216

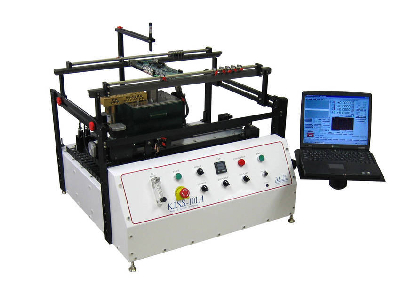

Mar 24, 2009 Featuring analog controls, bench-top KISS 101A is programmable in X, Y, and Z axes and utilizes ACE Laser Point teach and align process. System accommodates PCBs from 2 x 2 in. up to 12 x 12 in. as well as connectors up to 10 in. long. Variety of standard and custom nozzles is available, from 3 mm bullet nozzle to 3 in. wide wave. Offered with optional lead-free compatible solder pot, KISS 101A is suited for assembly, prototyping, rework, and post-reflow offline assembly.

Avalue Technology Inc.    Chung Ho City, Taipei   Taiwan

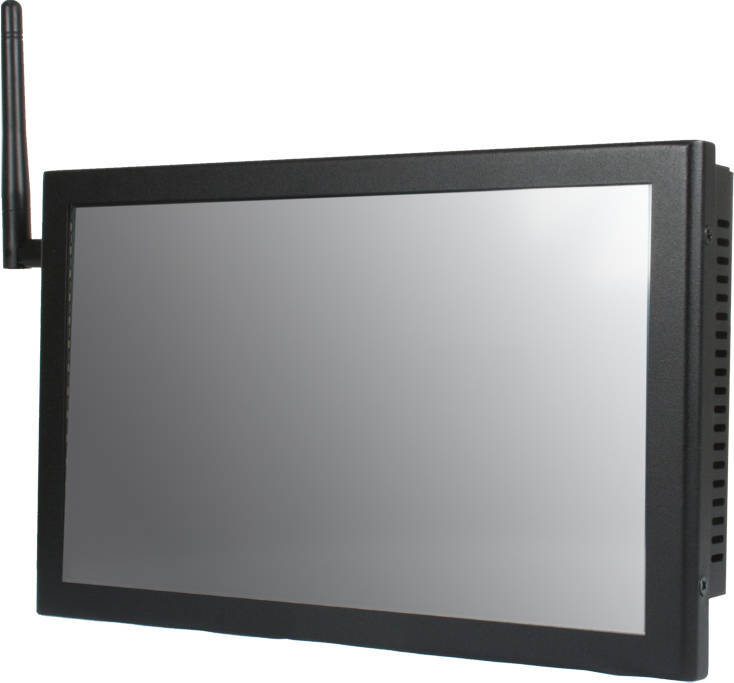

Mar 24, 2009 Consuming 12 W power, FPC-08W series multimedia interactive touch panel PC operates from 10-28 Vdc in temperatures from -10 to +60°C. System is 22.5 x 13.9 x 3.9 cm and includes water and dustproof front panel and 16:9 widescreen with up to 1,024 x 600 pixel resolution. In addition to 5-wire resistive touchpanel, 8.9 in. unit also includes CF card with 512 MB memory, dual Ethernet, 2 sets of COM ports, 2-4 sets of USB 2.0 ports, and 1 set of VGA and mic-in/line-out.

Bosch Security Systems    Fairport, NY 14450 9199

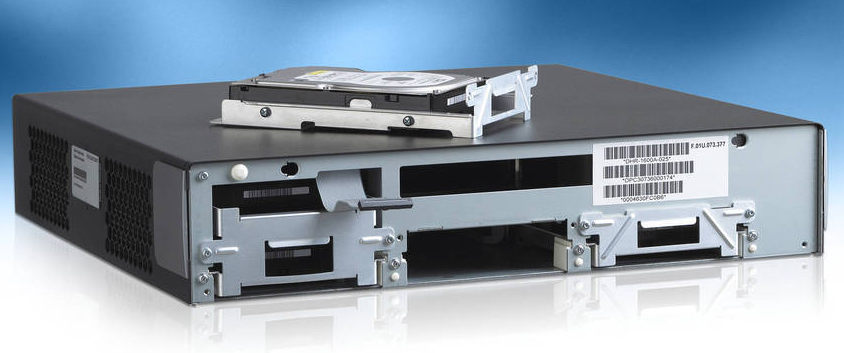

Mar 24, 2009 Targeting Divar XF DVRs, 500 GB and 1 TB storage expansion kits allow incremental expansion on-site up to maximum capacity. Kits include Bosch digitally-signed Divar XF hard disk, mounting screws, ESD wrist band, and installation guide. Discs are front accessible, allowing storage expansion and service without uninstalling recorder, and support Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.).

CyberResearch, Inc.    Branford, CT 06405 2932
Mar 24, 2009 CyberResearch® multifunction UCDAS 04M1 modules feature 4 differential analog inputs running at speeds up to 1.3 MHz, while UCDAS 02M2 units have 2 inputs running at up to 2 MHz. Both USB DAQ modules include 32 DIO lines and 2 x 32-bit counters running at up to 20 MHz. If more than 4 inputs are needed, multiple modules can be synchronized via external trigger or clock connectors. Rugged, compact modules provide 2 ns skew and suit transient analysis and other high-frequency applications.

In2connect Inc    Cullman, AL 35055
Mar 24, 2009 Pintail RoHS-compliant indoor/outdoor interconnect system, able to accommodate 3-12 mm cable dia, is commonly used for safe control and power connections between equipment. With respective panel mounting hole sizes of 13 and 21 mm, SP13 and SP21 Series multi-pin, threaded coupling connectors feature insulator and contact areas fully sealed against environmental elements via dual O ring sealing, high-temperature PPS inserts, grommets, and compression nuts.

Meyda Tiffany    Yorkville, NY 13495
Mar 24, 2009 Lava V Sconce 108291 offers abstract fused glass design with bas relief highlighted with strips of iridescent red, smoke amber, and clear iridescent fused art glass. Penna Di Pavone V Sconce 108071 includes iridescent purple and iridescent green, amber, and gray fused glass in bas relief motif, while Marina V Sconce 107884 features amber, beige, smoke, and clear iridescent fused glass. All custom-crafted sconces are 8 in. wide x 16 in. tall.

PPG TrueFinish (R) Industrial Coatings    Pittsburgh, PA 15272
Mar 24, 2009 Spectracron 315 primer surfacer fills scratches and minor surface imperfections in substrates such as fiberglass, plastic, sanded or blast cold-rolled steel, and treated aluminum. Containing no heavy metals, 2-component, high-solids, high-build primer can be applied with Exempt Blend TFS321-50 reducer for VOC output of 2.1 lb/gal. Corrosion- and humidity-resistant compound can be sanded after 90 min and be top-coated with 2-component polyurethane enamels.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 24, 2009 Measuring 4.7 x 4.5 x 1.65 mm, FSM3MS is available in 2 versions, featuring SMD or SMD-up terminals, with or without location pins. Version with location pins is suited for fixing switch on PCB during soldering process, but both switches have contact rating of 50 mA @ 12 Vdc, mechanical life of 100,000 operations min, actuation force of 2.2 N, and travel of 0.3 mm ±0.1 mm. Applications include mobile phones, Bluetooth headsets, and other portable handheld devices.

Omnetics Connector Corp.    Minneapolis, MN 55432
Mar 24, 2009 Available with overmolded cables or incorporated into equipment housings, 0.025 in. pitch Bi-Lobe Connectors are protected against contamination in medical applications. Devices pass shock and vibration requirements of MIL-DTL-32139, yet connector halves push together without tools or complicated procedures. Wide range of materials, from soft silicones to hard glossy shells, can be used for overmolding.

MAG IAS, LLC    Erlanger, KY 41018
Mar 24, 2009 Able to handle composites, titanium, and aluminum, E Mill is designed for machining small cross-section parts up to 39.4 ft long in aerospace, construction, shipbuilding, and wind power industries. It comes with 16,000 or 24,000 rpm spindle and performs contour machining/routing/drilling/tapping to produce finished, complex, 3D-geometry parts in one setup. Along with 5 axes of motion, design supports 360° infinite positioning with V-axis linear travel for pull-through part feed.

Staco Energy Products Co.    Dayton, OH 45403 1314
Mar 24, 2009 Delivering computer-grade power quality, FirstLine® 37.5 kVA online UPS offers standard battery run-time of over 6 min; optional batteries enable virtually unlimited run time. Transformerless power technology provides blackout protection and power conditioning, while front-end harmonic correction eliminates need for additional filtering. Double-conversion technology protects connected load from sags, swells, harmonics, noise, and voltage imbalances without going to battery operation.

Schober USA, Inc.    Fairfield, OH 45014
Mar 24, 2009 Featuring tag dispenser with web tension relief, Model RFID-CP inserts UHF and HF inlays under die-cut blank or pre-printed labels and validates finished product. Control and monitoring is accomplished through pendant station which houses industrial PC. System works with transponders in accordance with ISO specifications, in widths from 20-80 mm. With inserter, pre-printed labels ranging from 101.6-203.6 mm wide can be applied at rates from 5,000-20,000 labels/hr.

Northfield Precision Instrument Corp.    Island Park, NY 11558
Mar 24, 2009 Designed for manufacturers of electronic and mechanical indicators, Model DPH-600 is 6 in., 10,000 rpm, totally sealed, TIR diaphragm chuck with special jaws, stop, and changeable fixtures. It enhances and increases production of machining 2 bores that guide indicator rod. Once side is machined, fixture is turned over, and second side is machined; alignment of 1/10,000 TIR is achieved bore to bore. Accuracies of 0.001-0.00001 in. is ensured.
