AVX Corp.    Myrtle Beach, SC 29578

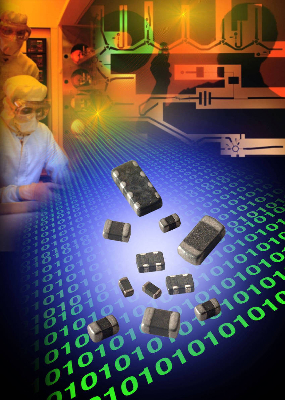

Mar 31, 2009 With low leakage current of 2 µA, Zinc Oxide-based UltraGuard Series features non-linear, bi-directional voltage current characteristics and EMC capacitor in parallel. Available in models from 40-3,000 pF, multilayer ceramic varistors are suited for high clock-speed ICs, battery-operated devices, backlit displays, and power supervisory chip sets. Series comes in 0402, 0603, and 0805 sizes as well as 2-element packages in 0405 and 0508 sizes, and 4-element 0612 packages.

Applied Power Systems, Inc.    Hicksville, NY 11801
Mar 31, 2009 Incorporating isolated power supplies and protection features required for safe operation of power stages, IGBT and SCR Gate Drivers include isolated analog feedback of critical power stage parameters, DC bus voltage, output current, and device temperature. IGBT gate drivers control 2-6 IGBTs at currents in excess of 1,400 A, while SCR gate drivers control up to 12 SCRs, making them suited for ac and dc inverter, converter, and power supply applications.

Rosco, Inc.    Jamaica, NY 11435
Mar 31, 2009 With design that facilitates OEM installation as well as aftermarket retrofit, AccuStyle® rear vision mirrors can be mounted on traditional arm or loop (two point mount) or be used as single point overhang or upright mount. Mirror head can be mounted on mirror arms that are ¾-1 1/8 in. OD tube via removable clamp cover on back of mirror shell. While suited for use in various vehicles, mirrors can also be used in surveillance, security, and traffic monitoring applications.

Kontron    Poway, CA 92064

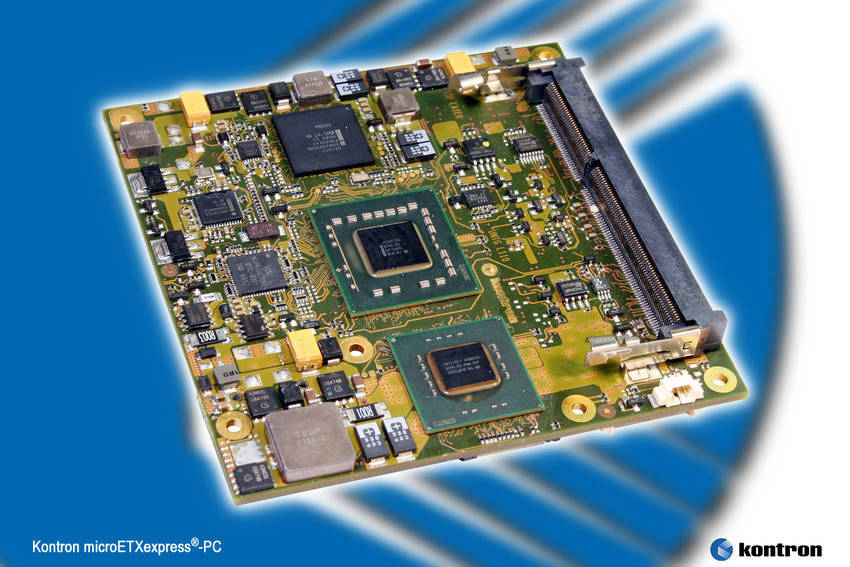

Mar 31, 2009 Kontron microETXexpress-PC is based on 45 nm small form factor Intel Core 2 Duo processor up to 1.86 GHz and integrated Intel mobile GS45 express chipset for SFF platforms. Compatible with COM Express specification, following Type 2 pin-out in terms of assignment and physical location, unit suits embedded applications. Device features 4 GB of DDR3 SO-DIMM with FSB of up to 1,066 MHz and 6 MB of L2 cache. Supported operating systems are Linux, VxWORKS, and Windows Vista/XP/XP embedded/CE.

Electro Standards Laboratories    Cranston, RI 02921 3403

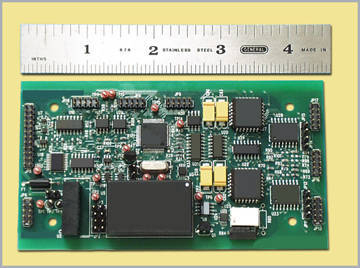

Mar 31, 2009 Connecting directly to 2 standard AC LVDT transducers, CellMite® Model 4331-200 simultaneously generates serial output for PC connection and ±10 V analog output. It has on board storage for up to 3 calibrated LVDTs, each with integrated 6-point calibration that can be used to linearize LVDT outputs. Features include multidrop RS232/RS485 serial port, nonvolatile memory for parameter and calibration storage, automatic LVDT identification, and multi-point and mV/V calibration.

C&K Components    Newton, MA 02458
Mar 31, 2009 Available in right and left actuation configurations, HDS series micro-miniature, side-actuated, surface mount detect switch features minimum total travel of 1.07 mm, and low actuation force of 30 g. Contact rating is 1 mA at 5 Vdc, with maximum initial contact resistance of 500 mW and minimum insulation resistance of 100 mW between adjacent contacts. RoHS compliant product has operating temperature range of -40 to +80°C and footprint of only 3 x 3.5 mm.

Flexaust    Warsaw, IN 46580
Mar 31, 2009 Designed for use with high velocity, high capacity cyclone dust collection systems used in bridge cleaning, filtering, and painting operations, FSP Bridge Hose provides 4:1 compressibility for storage and portability. Double-ply, PVC vinyl coated polyester fabric hose is reinforced with spring steel wire helix and external PVC wear-strip. UL94V0 rated, hose is weather-resistant and operates from -20 to 180°F, and is offered in 12-24 in. ID sizes, 25 ft long with plain end.

ELCA Srl    Mussolente 36065  Italy

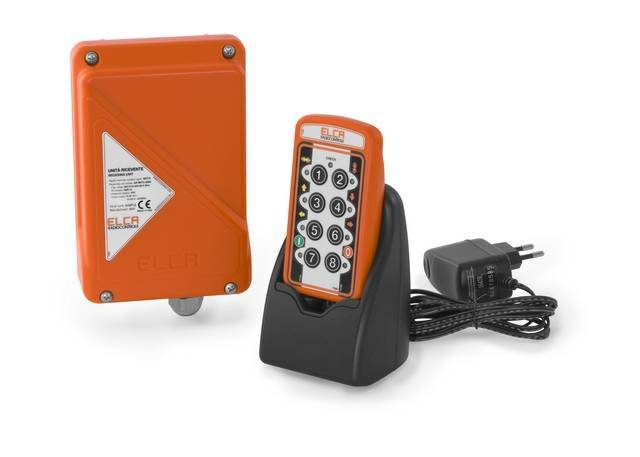

Mar 31, 2009 Offering frequency band of 868.0125-869.9875 MHz with up to 24 different possibilities, MITO is designed to work with recovery vehicles, winches, small cranes, and other industrial applications. System consists of IP67 protected transmitter and receiver, internal lithium battery, and battery charger. Listen Before Transmit feature allows unit to automatically scan, find, and lock onto clear and available frequency by pressing start button.

DAILY RFID CO.,LIMITED    Guangzhou, 510403  China

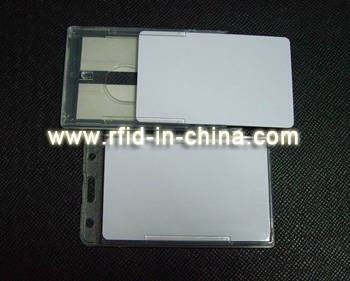

Mar 31, 2009 Complying with EPC Gen 2 and ISO 18000-6B standards, passive UHF RFID Tag for car access control can be customized from 860-960 MHz. It is suited for tracking and managing vehicles in parking areas or gated communities, as well as easy in and out for drivers. Product incorporates UHF identification card in ABS housing, with 3M glue on one side.

Heyco Products    Toms River, NJ 08753

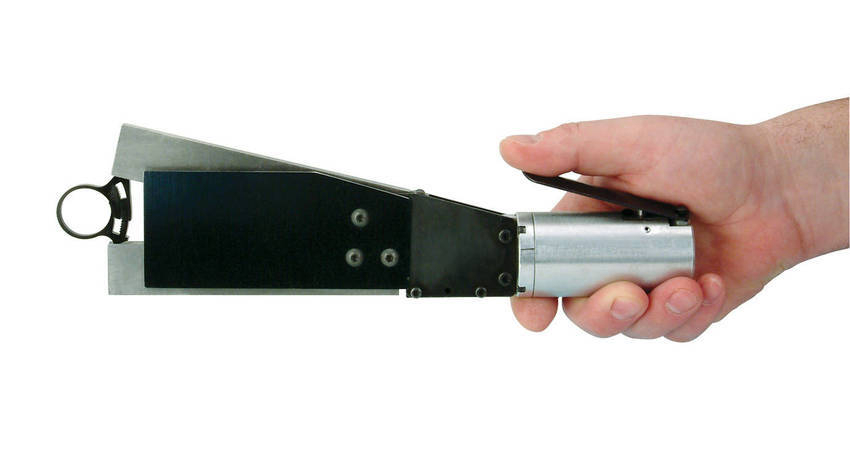

Mar 31, 2009 Suited for use with 6/6 or glass filled nylon hose clamps from .250-2.375 in., pneumatic hand air tool features adjustable jaws to accommodate variety of Heyco hose clamps. It operates on standard shop air when its lever is depressed, and is activated through use of integrated hand lever reducing hand stress and risk of carpal tunnel syndrome. Reusable hose clamps resist corrosion, salt water, weak acids, greases, and common solvents.

Edmund Optics    Barrington, NJ 08007

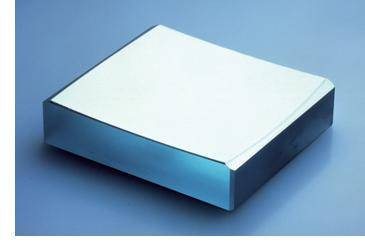

Mar 31, 2009 Suited for UV and visible-spectra applications, High Performance Off-Axis Parabolic Mirrors are available in sizes ranging from 40-65 mm². Units come with parent focal lengths of 125, 200, or 275 mm with y-offsets ranging from 53-85 mm. Fabricated from soda-lime glass substrate and with aspheric optical profile holographically recorded on substrate, they offer either ½ l or ¼ l surface accuracy. Parent focal length tolerance is ±0.15 mm and y-offset tolerance is ±2 mm.

Sempermed USA, Inc.    Clearwater, FL 33762
Mar 31, 2009 Utilizing fusion bonding as co-polymer manufacturing process, SemperGuard® Nitrile powder-free industrial glove have less amount of chlorine to prevent cracking, peeling and discoloration with normal use. FDA 21 CFR Guidelines and Agriculture, and Agri-Foods Canada Requirements compliant units suit food handling and processing, pharmaceutical and laboratory applications.

Cooper Crouse-Hinds Molded Products    La Grange, NC 28551

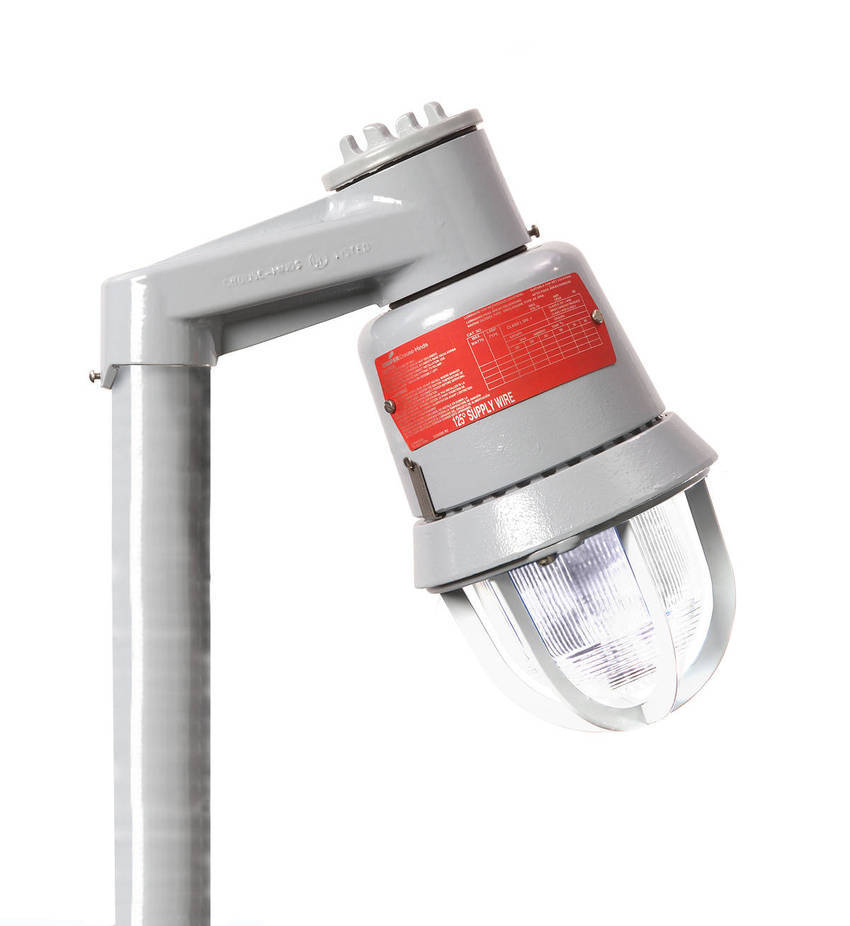

Mar 31, 2009 Class I, Division 1 factory-sealed EV LED luminaire is designed for general illumination. They offer instant illumination and restrike, white light, and no-lights-out feature which allows for continuous light output, even if single LED fails. Expected operating life of product ranges from 50,000 hr to more than 100,000 hr.

Seco-Larm    Irvine, CA 92606-5012

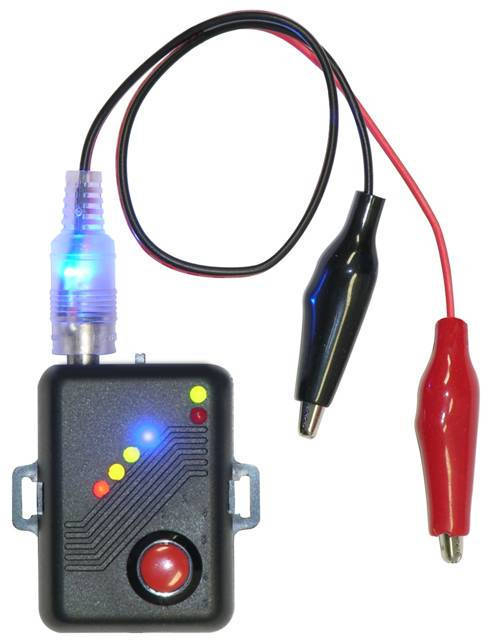

Mar 31, 2009 Featuring DC jack input for directly plugging into DC power sources, ST-BT01Q 12 Vdc tester performs voltage, load, polarity, voltage drop, and PTC fuse tests. It features overheat protection, 6 LEDs and illuminated power connector to clearly show results of each test, and uneven-length alligator clip test leads to prevent them from touching while tests are being performed. Testing voltage on-site without multimeter, unit can check voltages under 1 A or 500 mA loads.

ITT    Clifton, NJ 07014

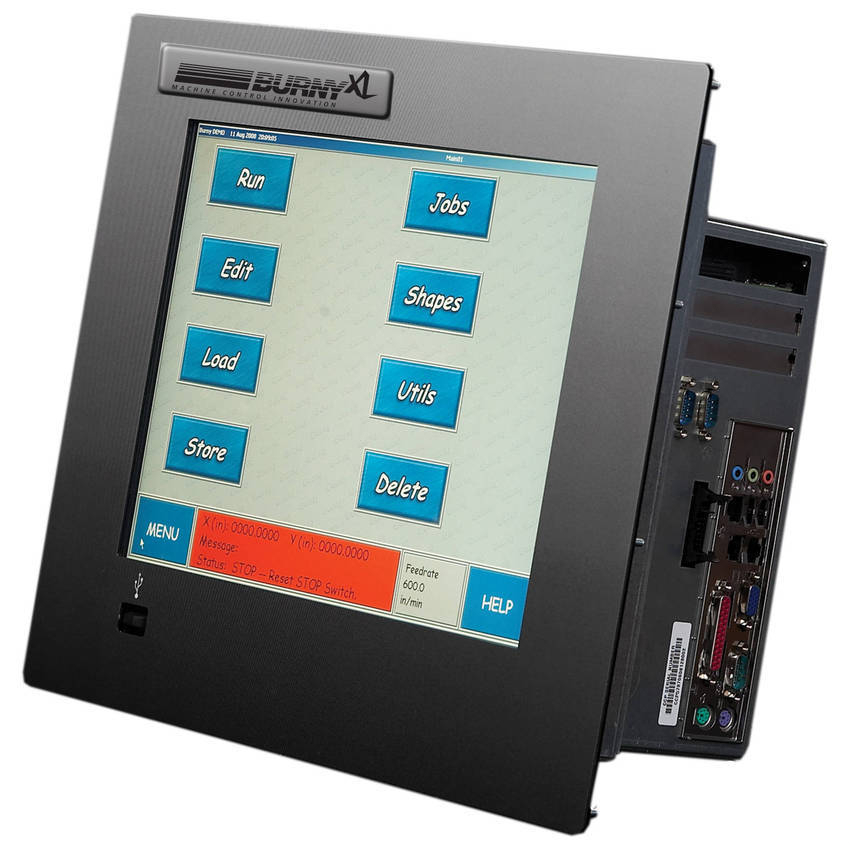

Mar 31, 2009 Offered in remote or integrated versions with 10.4, 15, and 19 in. screens, Burny XL PC can operate any cutting machine and interfaces with processes including oxyfuel, plasma, waterjet, drills, and markers. It features beveling software for up to 22 axes of coordinated or independent motion control, Intel Mobile technology, and screen customization with Embedded Soft PLC Custom Application Program. Unit has low profile front end for seamless integration.

Casella USA    Amherst, NH 03031
Mar 31, 2009 Microtherm® calculates Wet Bulb Globe Temperature (WBGT) index by means of 3 sensors that measure natural wet bulb temperature, globe temperature, and air temperature. Sensors are manufactured to BS 1904 and DIN 43760 accuracy standards and can be mounted on instrument or remotely positioned by cable up to 30 ft away. WBGT data is compared to reference values defined by ISO 7243 standard, and in event of WBGT reaching dangerous levels, unit issues audible and visual alarms.

Quadro Engineering Corp.    Waterloo N2V1A1  Canada

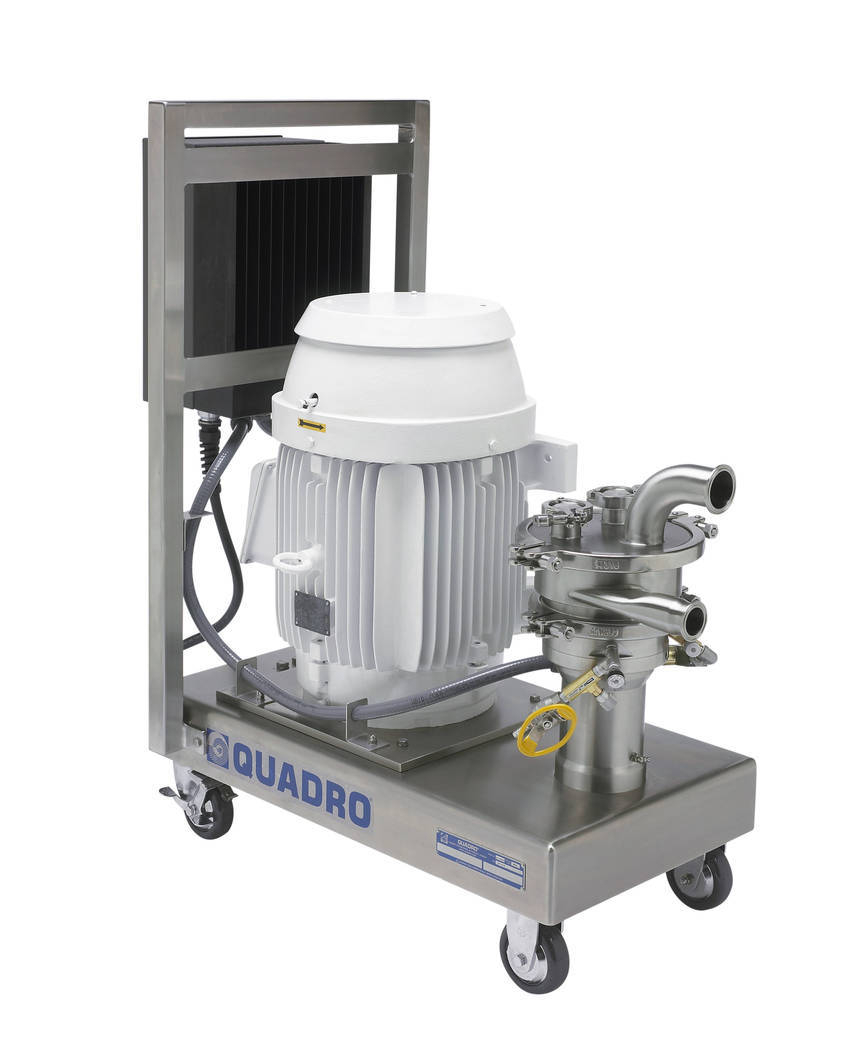

Mar 31, 2009 Quadro® HV-Emulsifier Series features 3 different models ranging from 20-125 hp depending on desired capacity, up to maximum of 250 gpm. All models utilize energy optimized tooling that operates at tip speeds up to 60 m/sec with low power consumption. Sanitary high-speed mechanical seal eliminates potential trap areas around rotor shaft for optimal CIP results. Various other equipment options are available including selection of motors, controls, and portable bases.

Phoenix Contact    Harrisburg, PA 17111 0100

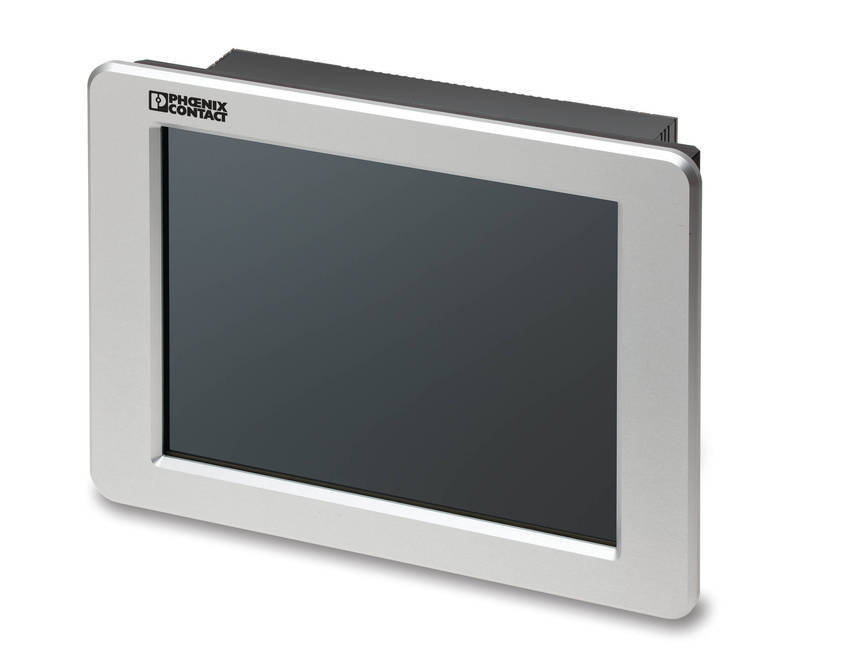

Mar 31, 2009 ValueLine PCs are available in wide range of models, screen sizes, and CPU choices to match automation, process visualization, and control applications. Select features include fanless design, 15 or 17 in. TFT touch screens, Core2Duo 1.5 GHz or Celeron M1.0 GHz CPUs, up to 4 GB DDR-RAM, and rugged 64 GB solid-state hard drive option. Dual 10/100/1000 Ethernet ports provide connectivity, and extended temperature range models are available. Optional PCI slots can be added for I/O fieldbus.

PolyCore Software, Inc.    Burlingame, CA 94010
Mar 31, 2009 Poly-Mapper(TM) provides developers with Eclipse GUI-based, flexible tool for creation of validated multicore communications topologies. Functionality accelerates rate at which multicore application developers can create, configure, and reconfigure multicore communications topologies, enabling them to focus on how to partition and distribute application across multiple cores. Model-based Topology-Map is validated and scalable from simple to complex multicore systems.

Siperian, Inc.    San Mateo, CA 94404
Mar 31, 2009 Offering configurable data governance application for Siperian MDM Hub(TM), Siperian Business Data Director enables business users and data stewards to create, consume, manage, and monitor master data. Program ensures that correct and complete data is created from outset, minimizing downstream data management issues. Organizations gain immediate efficiencies within business processes by enabling rapid adoption of master data solutions while enforcing strict data governance procedures and policies.
