BASF Corp.    Wyandotte, MI 48192
Apr 21, 2009 Joncryl® 2350 styrene-acrylic, non-film forming emulsion imparts high gloss, clarity, and holdout in inks for high-end corrugated, folding carton, gift-wrap, and other paper packaging applications. This non-filming emulsion enables ink manufacturers to formulate clean printing, low HAPS, and low VOC inks.

Advantech Automation Corp.    Cincinnati, OH 45240
Apr 21, 2009 Compliant with IEC61850-3 standards, EKI-4654R ensures environmental and EMI immunity of network devices used in substations. It features 24 10/100Base-T Ethernet ports and 2 1000Base-T SFP slots, and has wide range of redundant power inputs (2x 100-240 Vac and Vdc), allowing connection to 2 separate power supplies. EKI-4654R has advanced features such as: IP security, VLAN, QoS, Port Mirroring, MAC security, IGMP Snooping, Port Trunking, CoS/TOS, email warnings, SNMP Trap, and SMTP.

ADLINK Technology Inc.    Irvine, CA 92618

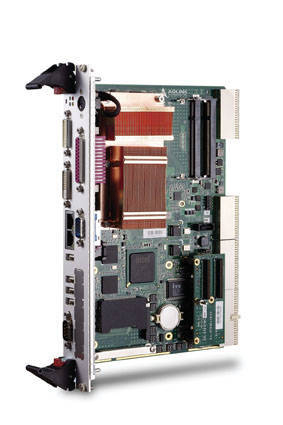

Apr 20, 2009 Model cPCI-3965 3U blade with VGA and DVI ports and cPCI-6965 6U unit with 2 front panel DVI ports feature Mobile Intel® GME965 Express chipset, Intel® Core(TM)2 Duo up to 2.2 GHz, and up to 4 GB dual-channel capable DDR2 RAM. They provide up to QXGA resolution and 3 Gbps SATA bandwidth. Integrating Mobile Intel® Graphics Media Accelerator X3100 with 32-bit 3D graphics engine, devices can also hold 2.5 in. SATA hard drive and include SATA signal connectors for external drives.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506

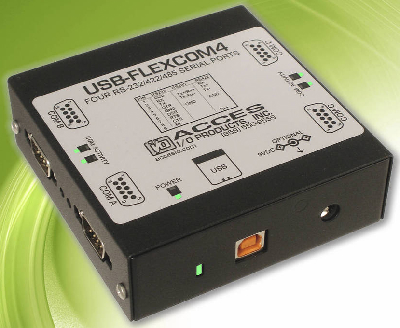

Apr 20, 2009 Offering choice of 4 field-selectable RS-232/422/485 protocols per port, USB-FLEXCOM4 is designed for use in systems where there are not enough serial ports to communicate with legacy devices. It conforms to USB/104 form factor for flexible mounting in PC/104 or USB/104 stacks and is suited for adding portable serial ports to any PC or embedded system with 1.1- or 2.0-compatible USB port. This 4-port serial communications adapter features hot-plug functionality.

Technosoft S.A.      Switzerland
Apr 20, 2009 Measuring 65 x 58 x 19 mm, Model IBL3605 embeds motion controller, drive, and PLC in one unit and can control brushless, step, DC, or linear motors up to 180 W. Unit can be used as network drive in distributed motion systems using CAN/CANopen interface, or as standalone motion controller for single-axis control. Motion programming is done from CANopen master via PC/PLC using appropriate motion library, or at drive level using built-in motion controller and EasyMotion Studio platform.

Tohnichi America Corp.    Northbrook, IL 60062-2420

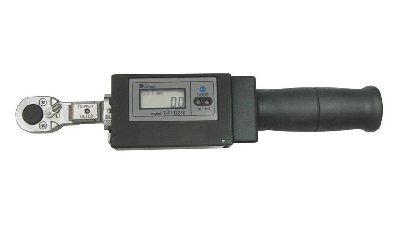

Apr 20, 2009 Designed to verify proper fastening, click-type Models FHDS and FHD capture actual applied torque data and send it to R-FHD receiver unit, which transfers information to PC or PLC. Units are suited for tracking hand tightening processes to avoid missed tightening and to manage applied torque data against possible product claims. Judgment parameters alert user if applied torque is OK or NG with light confirmation. Over torque and missed fasteners can be tracked and identified.

Novacel    DEVILLE LES ROUEN 76250  France
Apr 20, 2009 Used to protect showroom carpeting (polypropylene or needle punched fibers) and textiles, NOVACEL 9357 is designed to resist traffic and soiling during booth setup. Formulated with solvent-free adhesive mass, this 30 µm thick, transparent, and colorless polyethylene film can be printed with logo, trademark or any advertising message or technical advisory. It can be safely incinerated or recycled if it has not been soiled during use, and all packaging/cores are recyclable/reusable.

Daimer Industries Inc    Woburn, MA 01801

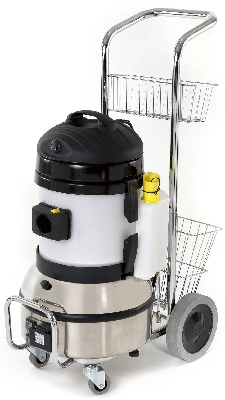

Apr 20, 2009 Supporting continuous use, KleenJet® Mega 1000CV/1000CVP feature HEPA filtration, wet/dry vacuums, and 12+ cleaning tools. They provide up to 89 psi of pressure and steam temperatures up to 320°F. Each is equipped with 5 L boiler, 5 L extraction chamber, and 3 L continuous refill tank. During refill, neither water temperature nor pressure levels decline, and replaceable heating element technology eliminates boiler replacement. KleenJet Mega 1000CVP adds antibacterial technology.

Bobcat Company    West Fargo, ND 58078

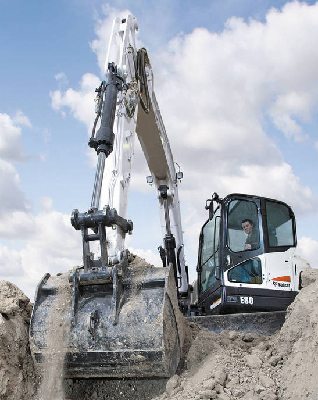

Apr 20, 2009 Powered by 54.2 hp Tier-compliant engine subject to auto-idle feature for reduced fuel consumption, E80 features in-track swing frame that keeps boom within width of tracks for working in constricted areas. Greasing of bushings at boom, arm, and bucket pivot have service interval of 250 hr, and cab has heating and A/C system as well as operator seat that adjusts 6 ways to promote operator comfort. Dig depth is 15 ft 6 in., and operating weight is 18,880 lb with rubber tracks.

Cognex Corp.    Natick, MA 01760 2059
Apr 20, 2009 Entry-level In-Sight® Micro 1100C provides 640 x 480 resolution, while In-Sight 1400C double processor performance for demanding applications, and 2 megapixel In-Sight 1403C offers 1,600 x 1,200 resolution for inspection of variety of color applications. Part of In-Sight Explorer v4.3 software, Color Match sortation tool delivers 24-bit color resolution, while Color Extract tool allows users to train highly complex color models for analysis.

Hollywood Banners    Copiague, NY 11726
Apr 20, 2009 Roll banners for outdoor events can feature repeated logos that can be cut at any length. Repeat or step and repeat roll banners are available in satin, nylon, poplin, and canvas and can be printed on any textile, including polyethylene. Indoor and outdoor banners in any size, style, or shape include full service finishing, wood inserts, braided cords, picture hangers, grommets, and double stitched edges. Banner stands are available in retractable and telescopic styles.

GKS Inspection Services, Inc    Plymouth, MI 48170
Apr 20, 2009 Daily, weekly, and monthly rentals of FARO portable measurement equipment, including Faro LS and Photon systems, is available, along with consulting, training, and data processing. Raw cloud point data can be exported into ASCII, DXF, DWG, IGES, and STEP and scan data files can also be post-processed into AutoCAD, SolidWorks, Pro/E, CATIA, UG, and IDEAS. If needed, experienced personnel can run equipment or train others in operations.

Molex Inc.    Lisle, IL 60532-1682
Apr 20, 2009 EXTreme Ten60Power(TM) modular, high-current power and signal connector offers coplanar and right-angle board-to-board orientation and 10 mm tall housing. High-current contact blades, in 5.50 mm dc and 7.50 mm ac spacing, are rated up to 60.0 A/blade at 30º T-rise, providing up to 260.0 A/linear in. It is available in 1-10 power blade modules and 6-36 signal modules, with either end-mount or top-mount guidance. Wire-to-board options are available as well.

Precision Alliance, The    Fort Mill, SC 29708
Apr 20, 2009 EXCEL-A-BELT miniature drive belt system incorporates arched tooth profile that provides rolling action between belt and drive sprocket, allowing for high-accuracy positioning and precise rotation transmission. Sprockets have bore sizes ranging from 3-25 mm and PD of 17-54 mm. Belt widths of 3, 4, 6, and 9 mm are available and system is suited for use with motors of 10-1,000 W.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Apr 20, 2009 Installed by being pressed into mounting holes, PEM® C.A.P.S.(TM) products incorporate captive screw and plastic colored cap into spring-loaded assembly. Anticross-threading screw technology corrects off-angle installations and ensures proper alignment. Units are designed to remain attached even when machinery guards are removed. Offered in self-clinching, flaring, and floating mounting styles, they are available in 8 colors and in multiple lengths and thread sizes.

Elscint Automation    Pune 411026  India
Apr 20, 2009 Ensuring lightweight plastic pen caps are fed in correct orientation, Vibratory Bowl Feeder provides high speeds of more than 100 pieces/min for 40 mm length caps. Unit features gravity chute designed to maintain clip orientation. Bowl is made of cast aluminum with Elscinthane PU coating in green color, while tooling is made in stainless steel with full argon welding.

Birchwood Casey    Eden Prairie, MN 55344 2138
Apr 20, 2009 Available in integrated programmable hoist and 110 gal tank line to automatically process iron and steel components with high quality black oxide finish, TRU TEMP® finishing system produces 4,000-6,000 lb of finished parts/8 hr shift. System can be programmed to process up to 3 part loads concurrently, for maximum throughput of 5 loads/hr. TRU TEMP finish produces durable satin-black magnetite coating of 0.5 microns in thickness, with no effect on material hardness.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
Apr 20, 2009 Weighing only 2.3 lb, portable M12 Cordless Impact Wrench model 2451-22 features 3/8 in. square friction ring and delivers up to 1,000 in.-lb of torque. Compact wrench measures up to 6½ in. in length and offers 2,000 rpm and 3,000 ipm.

Waldmann Lighting Co.    Wheeling, IL 60090-6051
Apr 20, 2009 Energy efficient FLAT TEC fluorescent flood light is available in built-up (at 1.65 in. in height) or flush versions, and attaches directly onto machine wall, incorporating itself into components of machinery. It is waterproof, utilizes T5HO technology to produce high luminous flux rate, and is IP69K rated. Available in high- or low-voltage versions, product can be sprayed, splattered, and submerged in most volatile machine environments.

Techno Sommer Automatic    New Hyde Park, NY 11040
Apr 20, 2009 With up to 4 mm stroke/jaw, and 0.5 Nm of torque for rotation, DGP404 Series of parallel grip and rotate modules are designed for high-load automation applications that require parts to be sorted and rotated 90 or 180°. Separate pneumatic connections for grip and rotate cylinders allow grip function to operate independently from rotate function. Offered in 6 different models for inside and outside gripping, each unit has magnetic position sensor slots built into housing.
