Aalborg Instruments    Orangeburg, NY 10962
Apr 01, 2009 Built with one moving part, multi-parameter Paddle Wheel Meters employ sapphire jewel bearings for near friction-free impeller wheel rotations and resulting linear low-flow metering. Flow accuracy is ±1% FS, and readings are visible via transparent acrylic cover. Models constructed of polypropylene or chemically resistant PVDF can be mounted horizontally or vertically and offer square wave flow output signal. Temperature output from Platinum RTD, 0.00385 TCR, meets EN 60751, Class B.

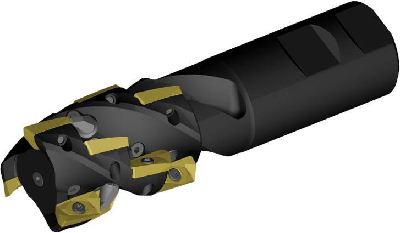

Kennametal, Inc.    Latrobe, PA 15650-0231
Apr 01, 2009 With correct choice of inserts, Mill 1-14(TM) Helical Cutters can be used for medium to heavy roughing and semi-finishing in applications such as contour profiling, slotting, ramping, and plunge milling. Load-Optimized Insert Spacing technology helps optimize performance by finding sweet spot of insert spacing relative to torque and horsepower of machine tool, minimizing vibration. Up to 9 different coolant nozzle sizes are possible for consistent, focused coolant flow.

Aeroflex    Irvine, CA 92618
Apr 01, 2009 Comprised of 4 models with RF frequency ranges from 1 kHz to 3, 8, 13.2, and 26.6 GHz, 3250 Series runs Windows® XP OS and offers built-in functions for evaluation of common measurements. Connectivity is fostered via remote control capabilities (LAN, GPIB, RS-232C), and control is further facilitated by 7 in. touch-panel screen. Also, digital demodulation capabilities are included for analysis of 802.11a/b/g wireless networks. Other measurement personalities may also be accommodated.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Apr 01, 2009 Consisting of IEC-compliant microphone and preamplifier system, ½ in. Model HT378B02 can be used by test engineers to measure sound amplitude in Pascals or Decibels and perform frequency analysis. Low-noise acoustic measurement system is suited for obtaining measurements in and around vehicle's engine, manifold, underhood, exhaust pipe, and other hot spots associated with powertrain and vehicle systems NVH testing.

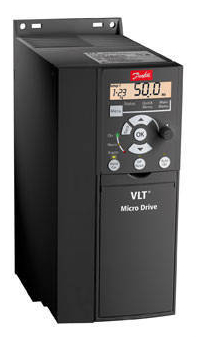

Danfoss VLT Drives    Loves Park, IL 61111
Apr 01, 2009 Available in 250 x 125 x 241 mm M4 frame size covering 3-phase, 380-480 Vac, 15-20 hp range, VLT® Micro Drive features conformal coated PCBs per IEC 60721-3-3, class 3C3; serial communication via RS-485 Modbus RTU and FC protocols; as well as detachable Local Control Panel (LCP) with or without potentiometer. LCP copy function and panel-front mounting kit for LCP are also included. As many as 100 parameters can be set to optimize energy efficiency and operation.

Auralex Acoustics    Indianapolis, IN 46256
Apr 01, 2009 Comprised of Behringer ECM8000 omni-directional measurement microphone and USB drive featuring swept sine signals, in-store Room Analysis Kit provides all tools needed to analyze acoustics. Users can record sweep in location of room in question, and all files can be sent via e-mail, along with Personalized Room Analysis Form, to Auralex for examination by its acoustical engineering staff. Written report will be presented back to user outlining acoustical issues and how to solve them.

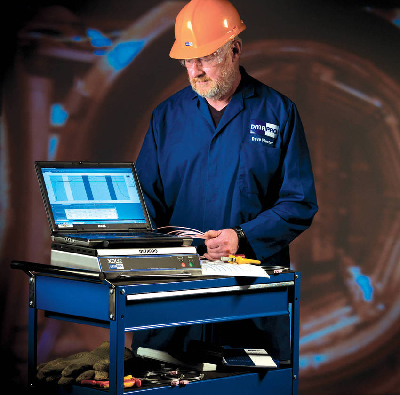

Datapaq Inc.    Wilmington, MA 01887
Apr 01, 2009 Available in 12 channels with combination of up to 3 thermocouple types, XDL12 Furnace Survey System performs temperature uniformity surveys in batch and vacuum furnaces where external data collection is required. Standard size thermocouple sockets are fitted to logger, and are color-coded to IEEE specification to eliminate mistakes during setup. System uses rechargeable battery that lasts up to 60 hours and is available with optional laptop stand.

Sugatsune America, Inc.    Carson, CA 90746
Apr 01, 2009 Offered in plate type or threaded bolt type, MX-125 Series features Swivel Only or Wheel and Swivel brake function. Units operate as rigid type when in Swivel Locked Only position. With load capacity of approximately 264 lb each, casters ensure stability in medical, automotive, marine, electronic, entertainment, and food equipment applications.

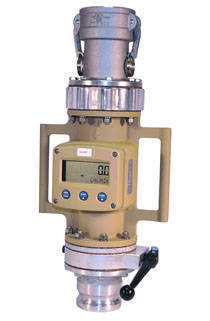

Emerson Process Management    Pleasanton, CA 94566
Apr 01, 2009 Offered in 3 and 4 in. line sizes for flow measurement in tanker truck off-loading, Daniel® Series 500 features flow ranges of 65-650 gpm and 100-1,000 gpm, respectively. Accuracy is achieved by using bladed rotor that turns at speed proportional to rate of flow. Rotation of rotor is sensed by electrical pickoffs mounted on meter body, and resultant signal is used as input to intrinsically safe electronic totalizer, which displays flow rate and total volume.

Kontron    Poway, CA 92064
Apr 01, 2009 Equipped with dual Intel® Xeon® 5518 quad-core processors, Model KTC5520-EATX provides 1 dual port GbE controller for external connectivity, support for iSCSI storage technology and boot-up via iSCSI, and expansions via 2 USB headers. Memory options include up to 48 Gb DDR3 800/1,066/1,333 MHz on 3 channels of 2 DIMM sockets per CPU, for total of 12 DDR3 ECC Registered DIMMs. Able to be remotely managed, board also features 6 SATA II connectors, 4 USB 2.0 ports, and 7 fan headers.

Kontron    Poway, CA 92064
Apr 01, 2009 Designed with 45 nm Intel® Xeon® L5518 quad-core processor with 60 W power envelope, Kontron AT8050 lets TEMs upgrade existing systems with quad-core performance and stay within 200 W power envelope. This AdvancedTCA® 10 Gigabit node blade enables clients to utilize one available AdvancedMC(TM) slot for feature extensions; maximize available memory at 24 Gb DDR3 Registered ECC VLP SDRAM and up to 48 Gb DDR3; and upgrade existing node blades without upgrading their chassis platforms.

Taiyo Yuden (USA), Inc.    Schaumburg, IL 60173
Apr 01, 2009 Designed to drive CCFLs in 12-17 in. LCD back-lighting applications, Model LS6Q-1612A-RH features dual LCD panel capability, brightness/backlight on-off control, and 5 V alarm output. Driver provides input of 12 Vdc and output current of 3.3-6 Arms/lamp. CCFL driving circuit includes self-oscillating DC-to-AC converter, which minimizes EMI. Measuring 5.91 x 1.97 x 0.39 in., RoHS-compliant inverter delivers 4 W/lamp or 16 W total with 1,500 Vrms start-up voltage.

Alliance Plastics    Erie, PA 16510
Apr 01, 2009 Featuring hollow center and pull tab to facilitate insertion/removal, reusable masking plugs mask off threaded holes while providing protection for first thread with integrated flange. Products are molded from natural silicone rubber and come in sizes that fit standard imperial threads from ¼-20 to ½-13 and metric threads from M6-M20. While nominally able to handle temperatures to 600°F, EPDM Rubber versions are also available for applications where cure temperature is at/below 425°F.

Alliance Plastics    Erie, PA 16510
Apr 01, 2009 Available in rubber, PVC, and TPR, Grommets are suitable for protecting wires, cables, and hoses that pass through standard sheet metal panels. Units fit standard panel holes from 3/16-2 ½ in. in diameter by snapping into holes without need for tools. PVC and TRP versions are suited for areas where chemicals or high temperature exposure are concerns.

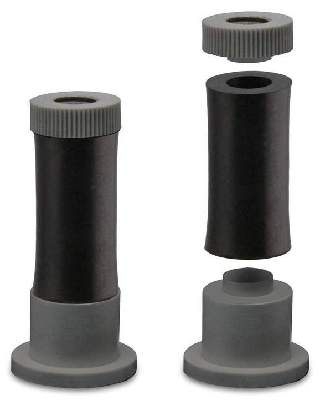

Colson Caster Corp.    Jonesboro, AR 72401
Apr 01, 2009 Shipped fully preassembled, Single Assembly Integrated Expanding Adapter incorporates 3 interlocking pieces into one solid configuration to facilitate installation. It is crafted with glass-filled nylon knurled nut and flange bushing and rubber expansion tube which fit over caster stem. When single-piece adapter unit is placed over stem and nut is tightened, unit expands to ensure tight and secure fit. It may be used on all Colson 1 and 2 Series casters and various Colson wheels.

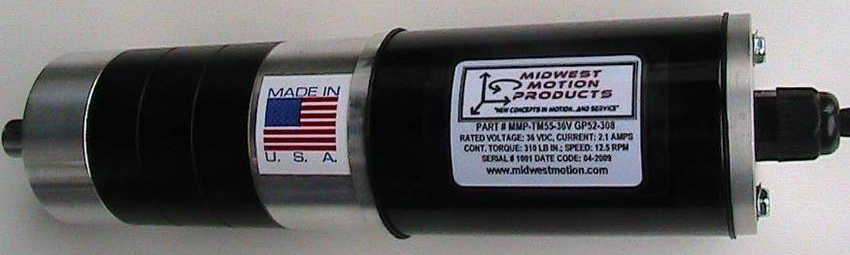

Midwest Motion Products    Watertown, MN 55388
Apr 01, 2009 Accepting any 36 Vdc power source, including battery power, Model MMP-TM55-36VGP52-308 measures 2.14 in. dia x 7.75 in. long and has keyed output shaft of 12 mm dia x 25 mm long. Output of this reversible gearmotor is rated for 308 lb-in. continuous torque at 13 rpm and 443 lb-in. peak. Requiring 2.1 A @ 36 Vdc to generate full load torque, 4 lb gearmotor helps extend battery life and produces minimal noise. Motor windings for 12, 24, 48, 60, and 90 V are available.

MAG IAS, LLC    Erlanger, KY 41018
Apr 01, 2009 Delivering repeatable process control as automated blade molding facility, CNC-controlled Rapid Material Placement System (RMPS) offers integrated manufacturing capable of spraying in-mold coatings, dispensing/lay-up of glass and carbon fiber materials, and dispensing/application of adhesive. Also available, quick-cure molding system produces molds using customer CAD data, yielding finished blade to spec with each cycle. It can be infused with resin in 1 hr and followed by 2 hr cure.

InnoviaFilms Inc.    Tecumseh, KS 66542
Apr 01, 2009 Propaream(TM) T710P transparent filmic wrap for cut-size paper allows packs to be opened without being destroyed and also allows them to be reclosed when used in combination with resealable label. Material does not require glues for closure, enabling clean packing operation, while wide sealing range allows for large operating window and high speed packaging.

DAILY RFID CO.,LIMITED    Guangzhou, 510403  China
Apr 01, 2009 Designed for industrial applications, RFID Inlay is engineered to provide read range from 3 cm to 10 m on normal LF or HF RFID reader. Made from PET and pressure sensitive material, it can operate well in harsh environments and resist against abrasion, anti-collision, and anti-corrosion. Available with IC chips such as EM4001, Mifare Family, I-Code, and TI 256, inlay suits applications such as tags for clothing, library management, logistics, and asset management.

Alarm Lock Systems, Inc.    Amityville, NY 11701-2801
Apr 01, 2009 Programmed driectly from dedicated PC, Trilogy Networx have 802.11b/g wireless range of 200 feet and support up to 5,000 HID Prox ID card or fobs. No access panel is required, and locks have Grade 1 BHMA certification, provide 5 yr of battery-life, and enable emergency priority global lockdown or unlock in just seconds. Locks communicate to single gateway, which controls up to 2,000 locks.
