Helwig Carbon Products, Inc.    Milwaukee, WI 53224 9008
May 01, 2009 Available for manufacturing of graphite vanes for OEM and aftermarket dry running vane pumps, self-lubricating and dimensionally stable grade MH1 can be molded to near net shape and machined to tolerances of 0.0005 in. Impact-resistant, resin bonded graphite design contributes to extended vane life in non-lubricated vacuum pumps and compressors. It will not damage bore of housing, exhibits low wear rate, and is specifically designed for use in dry-running applications.

E-Z Flow    San Diego, CA 92111
May 01, 2009 Comprised of Green 33, Green 40, and Green 100, Botanithane® Packaging Foams feature densities of .33, .4, and 1 lb/cu-ft, respectively. Products are made from renewable resources with minimum amount of petrochemicals. Polyol resin mixes in E-Z Flow cartridges, rises and cures in 30 seconds, and provides same level of cushioning as petroleum-based chemicals.

Rieker Inc.    Aston, PA 19014
May 01, 2009 Model H4PD sensor provides ±22° dual axis inclination sensing in rugged IP66 environmentally protected die-cast zinc housing. Unit incorporates MEMS sensing element referenced to gravity with integrated temperature compensation over industrial operating range of -40º to +85ºC. PWM output is linear with respect to input angle directly. OEM-ready device is EMC protected, vibration and shock resistant, and offers mechanical zero adjustment.

IBT    Merriam, KS 66203
May 01, 2009 Web-based comprehensive service Virtual Safety Manager enables subscribing companies to develop programs that bundle preparation of safety manuals, training programs, reporting and tracking of individual workers, into one intuitive package. Service offers thorough and effective safety management and administration program.

DVEO division of Computer Modules, Inc    San Diego, CA 92127
Apr 30, 2009 Measuring 3.3 x 3.3 x 1.6 in., VideoTank HD(TM) system is comprised of H.264 video recorder that offers removable storage capabilities via compact flash cards. Unit specifically supports up to 32 Gb cards, which enable recording of up to 2 hr of 1080i content. Offering full control via LCD panel and on-board pushbuttons, system is designed for encoding/decoding and rugged mobile applications where small HD cameras are deployed.

Magna-Power Electronics    Flemington, NJ 08822
Apr 30, 2009 Housed in 2U package, XR Series includes 54 programmable models that accept input voltage of 208-480 Vac at 50, 60, and 400 Hz. Units offer power ratings of 2, 4, and 6 kW and current ratings up to 375 Adc. Utilizing additional power processing stage to deliver current-fed power processing technology, devices can operate under short-circuit and open-circuit conditions. All include 37-pin isolated 0-10 V external I/O to monitor and control all functions.

Parker Hannifin Corp.    Oxford, MI 48371
Apr 30, 2009 Axial piston pumps of 45cc/rev P1/PD Series are optimized for medium-pressure open-circuit mobile (P1) and industrial (PD) applications. Available with optional torque limiter or as full power through-drive version, series is rated for continuous operation at pressures to 280 bar. Operating efficiency lowers electricity demands, while noise output level can reduce or eliminate need for insulation and help comply with OSHA hearing conservation standards.

austriamicrosystems AG    Premstatten   Austria
Apr 30, 2009 For linear motion sensing, AS5311 utilizes 2 mm multipole magnetic strip and provides 1.95 µm resolution signal at incremental output and 488 nm signal at serial output. It uses multipole magnetic ring for rotary motion sensing, with incremental output resolution of 10 bit/pole pair and traveling speed of up to 650 mm/sec. Operated with 3.3 or 5 V supply voltage, unit operates in temperatures from -40 to +125°C. Onboard diagnostics monitor placement of magnet above device.

Power Integrations, Inc.    San Jose, CA 95138
Apr 30, 2009 Reference Design Kit, RDK-203, offers dual-rail power supply with high loop bandwidth and peak power for 5.1-channel home audio systems with up to 650 W audio power rating. Using this solution, developers can meet new and emerging standby power usage regulations for consumer A/V equipment. Kit is based on PeakSwitch PKS607YN, and circuit consumes less than 0.9 W at 240 Vrms input. This exceeds power efficiency regulations established by ENERGY STAR, CEC, EISA, EC EuP, and EC CoC.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039
Apr 30, 2009 Comprised of TASKMASTER® grinder, stainless steel shaftless screw screen, and control system, SPIRALIFT SL fine screens, washes, transports, and compacts channel-borne wastewater solids while leaving essential organics in flow. PLC-based control system uses flow level data to cycle screw to minimize power and wear. SPIRALIFT can be supplied with choice of electric or hydraulic drives and variety of channel widths, flow, and lift requirements.

Beckhoff Automation LLC    Minneapolis, MN 55337
Apr 30, 2009 Based on 100 Mbit/s Ethernet and IP protocol, CP-Link 3 enables users to connect up to 255 Ethernet panels or panel PCs with one industrial PC. Display contents are captured by virtual graphic adapter in host PC and sent using Ethernet to one or more Ethernet panels with Windows OS. For display communication, TCP/IP or UDP/IP can be configured, depending on operating mode. Networking can be done using standard CAT 5 cables, which are suitable for drag chains.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 30, 2009 Offered in Split and Solid Core configurations, Series SCS are suited for monitoring whether fans, pumps, or motors are operating. Current flowing through core of device powers circuit, and all models have built-in, solid-state output. Featuring UL and CE approvals, series is designed to facilitate installation and comes in ABS plastic enclosure with UL, V-O flammability rating. Optional LEDs and 10 A relay modules are available.

Permabond    Somerset, NJ 08873
Apr 30, 2009 Appropriate for all Permabond cyanoacrylate adhesives, Permabond CSA-NF speeds cure on very dry or acidic surfaces and on porous surfaces to cause cure prior to adhesive wicking into substrate. It can also quicken surface cure to clear non-tacky finish with no white residue. Since Permabond CSA-NF is non-flammable, it eliminates shipping and safety concerns related to flammable solvents.

Label-Aire Inc.    Fullerton, CA 92833
Apr 30, 2009 Equipped with vacuumized wrap transport belt and single 3015-ND Wipe-On label applicator, stainless steel/cabinet-based Inline Series 5100 Vacuum Wrap labeling system is designed to apply front and back labels to round bottles without needing second label applicator. It can apply labels to spinning bottles at speeds of up to 60 products/min, with placement accuracy of ±1/32 in., maintaining proper orientation.

Meese Orbitron Dunne Co.    Ashtabula, OH 44004
Apr 30, 2009 Developed to support worker safety, 39 Series Nesting Trucks help promote compliance with OSHA's general duty clause 29 USC 654 covering work positioning. They come with ergonomic, spring loaded platform that rises as goods are removed to provide workers with access to materials or products while maintaining consistent height that minimizes bending and reaching. When empty, carts can be nested in stacks several carts high for space-saving storage.

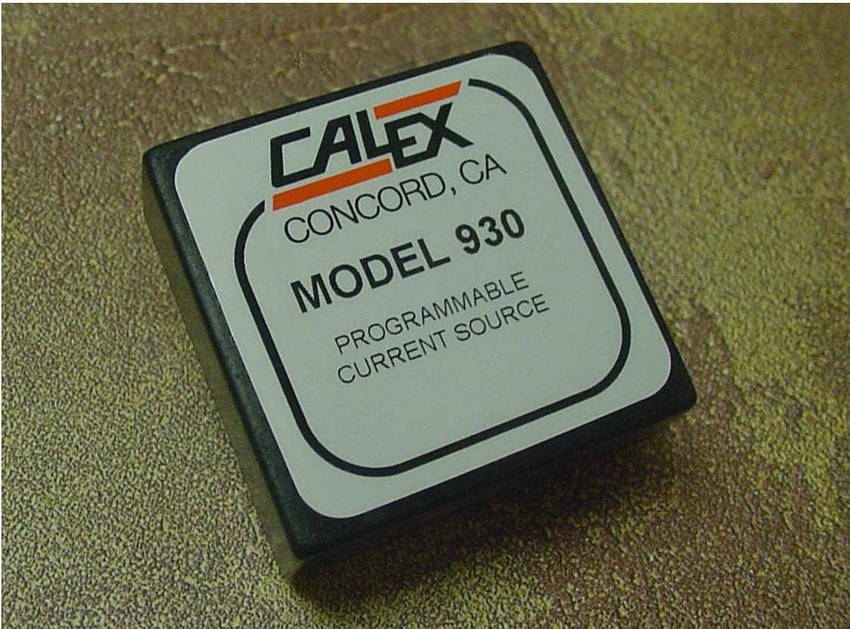

Calex Mfg. Co., Inc.    Concord, CA 94520
Apr 30, 2009 Featuring internal regulator and reference circuit to make output current independent of power supply variations, Model 930 accepts unregulated supply voltage from 12-32 V. Output current can be programmed by 1,000 W potentiometer or by voltage input, providing linear adjustment of output current from 0.5-50 mA. Extended range of 5-500 mA is available with use of MK 296 and MK 296HP mounting kits, which are for resistive or voltage programming of unit.

ERICO    Solon, OH 44139-2631
Apr 30, 2009 Compliant with NFPA® 13 standards, CADDY® range of products are suited for use with service pipe up to 10 in. and facilitate quick installation. They feature long-lasting, corrosion-resistant finish. Structural attachments include bar joist adaptor, I-Beam adaptor, and universal structural attachment/multi attachment. Sway braces are available in lateral or longitudinal and lateral versions.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346
Apr 30, 2009 Designed for use by multiple operators, rugged RS Portable Rheometer can operate in lab, on production floor using 115 or 230 V, or in field using built-in rechargeable battery pack. Coaxial cylinder rheometer is capable of viscosity, yield stress, and creep measurements and offers both controlled stress and controlled rate test modes. Unit comes with heavy duty lab stand and has convenient handle for moving instrument whenever necessary.

Hirschmann Automation & Control, Inc.    Chambersburg, PA 17201
Apr 30, 2009 Available with 8 or 9 Fast Ethernet ports, 4 of which supporting PoE, Fast/Gigabit Ethernet Switch allows for adjusting power supply for each port, individually. RJ45 or SFP ports (10/100/1000 Base TX) are provided for Gigabit uplinks and can be equipped with SFP fiber modules (1000 Base FX/SX/LX/LH). Switch status can be locally retrieved through signaling contacts, with detailed information accessible for display using standard web browser.

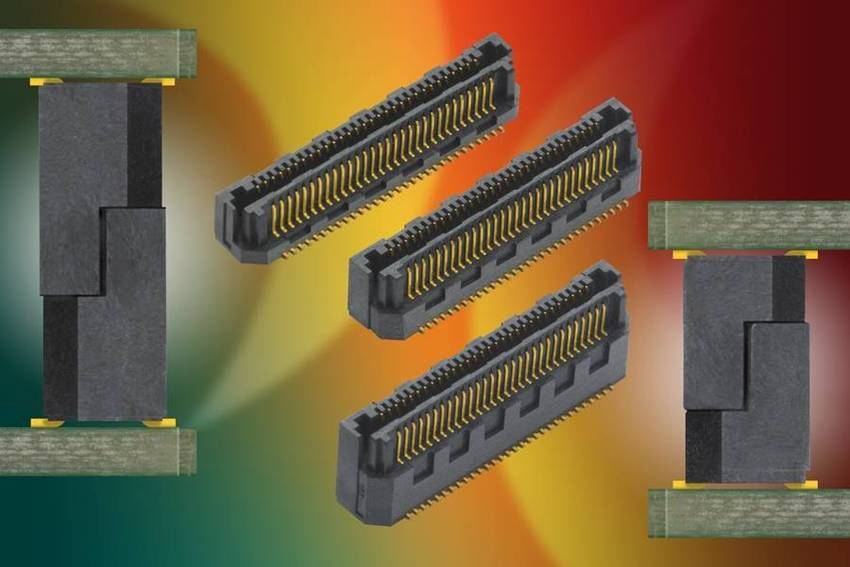

Samtec, Inc.    New Albany, IN 47151 1147
Apr 30, 2009 Rated 9 GHz DP, high density .635 mm hermaphroditic terminal/socket strip connector LSS Series is available with up to 50 pins/row in double-row design and with mated stack heights ranging from 6-12 mm. Self mating connector system offers insertion depth of 2.36 mm, contact wipe of 1.78 mm, and includes standard friction lock for increased normal force and shroud with audible click when properly mated. Application specific locking clip is also available.
