VICI Valco Instrument Co., Inc.    Houston, TX 77255

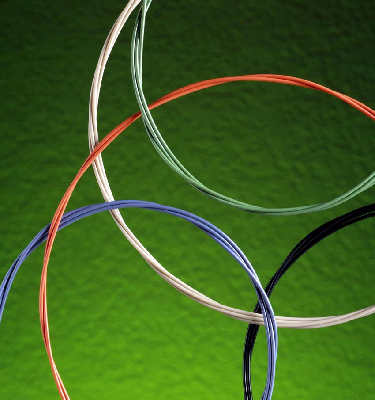

Sep 02, 2008 Available in OD sizes of 360 micron, 1/32, 1/16, and 1/8 in. with IDs as small as .002 in., PEEK® Tubing comes in variety of natural PEEK, solid color coded, dual layer color coded, striped, and dash-stripe coded. Pigmented layer of dual layer color-coded tubing features separate but integrally-bonded inner layer of natural PEEK to eliminate contamination of sample stream by pigments. Tolerance is ±.0005 in. for IDs up to .010 in., and ±.001 in. for larger IDs.

Lochinvar Corp.    Lebanon, TN 37090
Sep 02, 2008 Offered in models producing 1.0, 1.3, and 1.5 million BTU/hr inputs and 10:1 turndown, SYNC Boiler combines ASME stainless steel heat exchanger with modulating/condensing combustion for thermal efficiencies to 98%. Touchscreen control promotes setup/synchronization and access to onboard database of real-time operations data and performance history. With built-in cascading sequencer for up to 8 boilers, control system allows these direct-vent boilers to deliver up to 12 million BTU/hr.

Amada Wasino America, Inc.    Rolling Meadows, IL 60008
Sep 02, 2008 Featuring B-axis with 270° range of motion and capable of 5-face machining in one set-up, Mi8 is suited for manufacturing complex and multi-operation work pieces for industries that demand precision parts. Components include fixed station tools for turning, 20-station tool changer for rotary tools, as well as 8,000 rpm main turning and 20,000 rpm milling spindles. With integration of robot, machine can also perform unattended small production runs of carbon and copper electrodes.

Gigahertz-Optik Inc.    Newburyport, MA 01950 4009

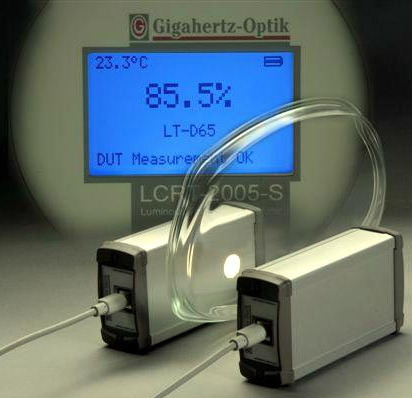

Sep 02, 2008 Comprised of receiver, controller, and uniform light source featuring white LED and pulse modulation, handheld LCRT-2005-S measures in-line transmission of windows and glasses with and without reflection-reducing coatings. Receiver is designed as luminance meter and offers achromatic corrected viewing angle of 0.4°, while built-in CCD camera facilitates alignment to light source. Controller supports measurement setup, measurement itself, and documentation employing 4-button operation.

Wright Tool Co.    Barberton, OH 44203
Sep 02, 2008 Offered in 8 lengths from 4-24 in. with chrome or black oxide finish as well as laser-etched inch and metric gradient scales, wide-opening adjustable wrench accommodates bigger nuts and bolts via extra-wide jaw opening standard on lengths 6-12 in. Jaw design is optimized for grip, preventing slippage or nut round off, while creep feed ground parallel face ensures smooth, tight operation. Four-thread knurl and non-protruding jaw promote performance in confined spaces.

Extech Instruments Corp.    Nashua, NH 03063

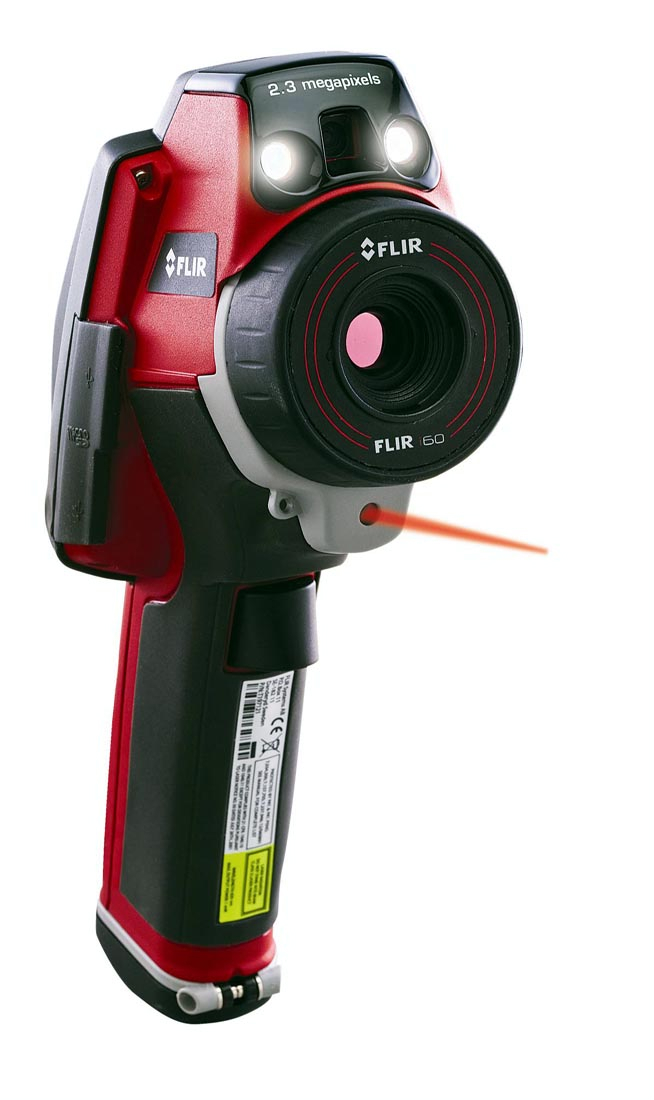

Sep 02, 2008 Including models i40, i50, and i60, i-Series thermal imaging cameras provide up to 2.3 megapixel resolution coupled with built-in illuminator lamp to ensure quality images even in poorly lit sites. Units feature 2% accuracy and thermal sensitivity of less than 0.1°C at 25°C, 1 Gb micro SD Card that stores up to 1,000 radiometric JPEGs which require no special software for viewing, and QuickReport software with USB cable. Powered by 5 hr swappable Li-Ion battery, they weigh 1.3 lb.

Bulgin Components PLc    Barking Essex IG11 0AZ  United Kingdom

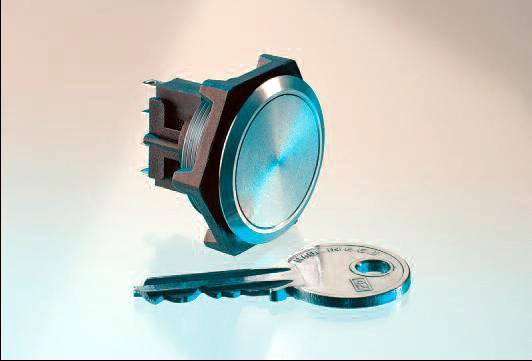

Sep 02, 2008 Manufactured from stainless steel, Model MP0050 large diameter vandal resistant switch is available with flush or protruding buttons. Rated at 5 A, 250 Vac, with single pole changeover contacts and momentary switching, it is designed with minimum life expectancy of 1,000,000 mechanical operations and 35,000 electrical. With front panel sealing to IP68 and temperature rating of -20 to +70°C, switch is suited for external, door entry, and access control applications.

SICK, Inc.    Minneapolis, MN 55438

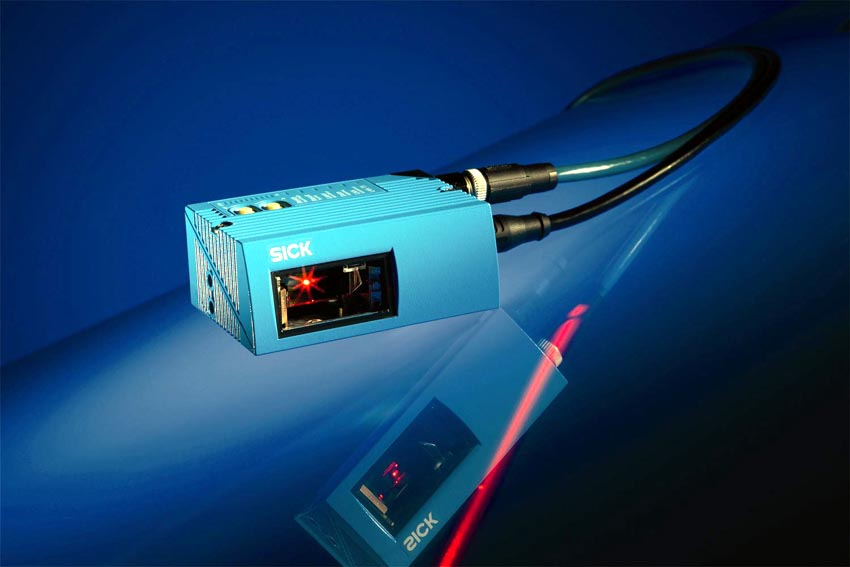

Sep 02, 2008 Models CLV620 and CLV630 are suited for logistics applications such as distribution warehouses, high-speed packaging, and parcel/postal operations. Along with processing capabilities that result in real-time 1,200 Hz scanning, features include ability to track packages with encoder input and an IP65 enclosure rating. Offered in onboard serial and Ethernet communication versions, device allows users to program complex sorting, filtering, and output functionality.

Fox Electronics    Fort Myers, FL 33905 5022

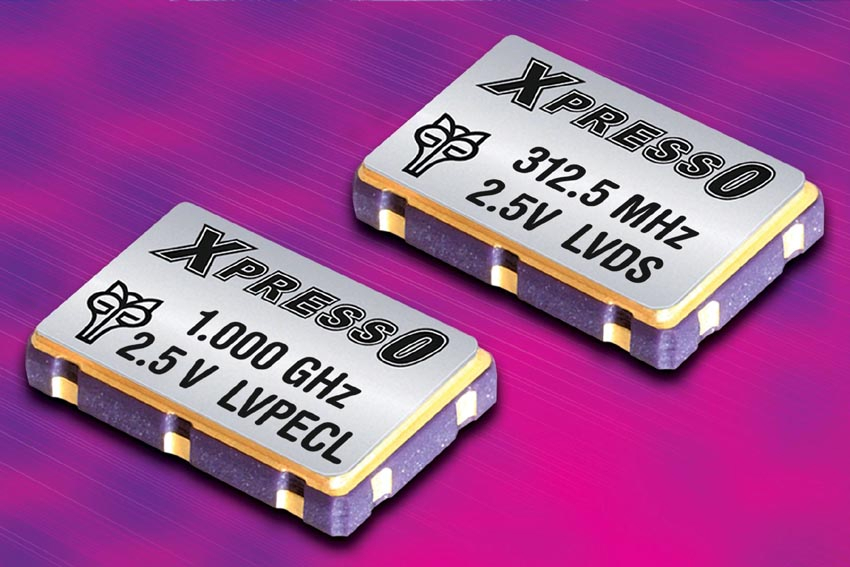

Sep 02, 2008 Employing noise reducing DSM technology and low noise architecture, Models FXO-LC52 and FXO-PC52 2.5 V XpressO LVPECL and LVDS Oscillators offer low levels of jitter and phase noise. They feature ASICs, frequency range of 0.75 MHz to 1.0 GHz, stabilities as tight as ±20 ppm and operate at temperatures of -20 to +70°C or ±25 ppm for -40 to +85°C. Made of gold over nickel termination finish, units have serial identification system with comprehensive traceability to ensure quality control.

GAO Tek Inc.    Toronto M1B2K4  Canada
Sep 02, 2008 Designed and manufactured for CATV system installation and testing, GAO8385 Signal Level Analyzer can test CATV signal levels in both channel and frequency modes. In scan mode, it can scan all channels and store signal levels, and in spectrum mode, it can carry out spectrum display and test for certain frequency ranges. Portable analyzer can measure CATV TILT, C/N, and trunk cable voltage. Large LCD clearly displays all test results.

Aremco Products, Inc.    Valley Cottage, NY 10989
Sep 02, 2008 With low expansion, ceramic-metallic formulation that bonds well to glass and quartz halogen lamps, Quartz-Coat(TM) 845-Silver suits automotive, dental, aircraft, stadium, and fire safety industries. Product is water-based, odorless inorganic system that is silver in appearance and can absorb and evenly diffuse light at high temperatures of up to 2,000°F. It features viscosity range of 400-700 cps, solids content by volume of 42.0%, and dry film thickness of less than 1.0 mil.

Axiomatic Technologies Corp.    Mississauga, ON L4Z1Z8  Canada

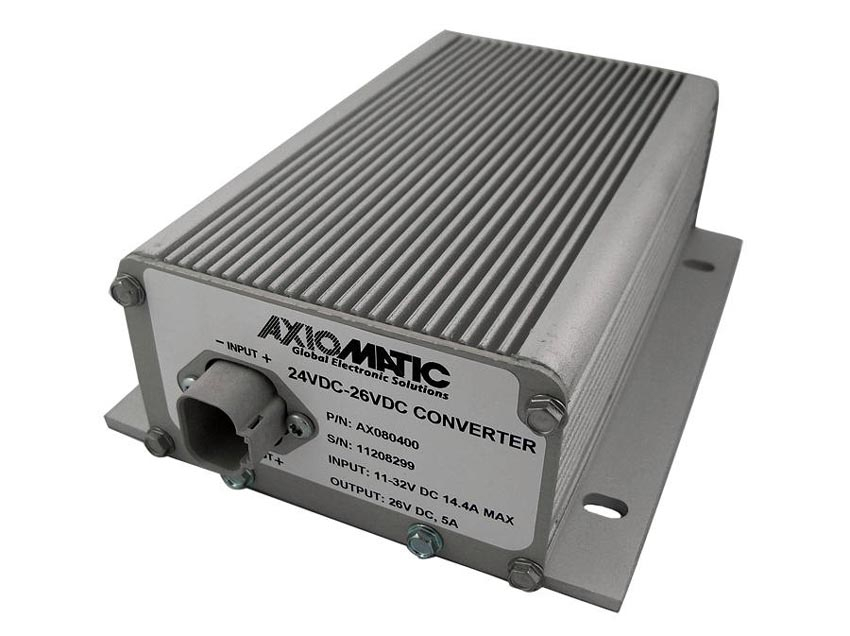

Sep 02, 2008 Suited for moist, high shock, and vibration environments in instrumentation and control networks or process equipment, Model AX080400 has input operating voltage range of 11-32 Vdc, conditioned output of 26 Vdc 1%, 5 A, and 130 W power rating. IP67 protected rugged unit also features compact size for ease of mounting in confined spaces, connects via 4-pin plug with 2 m lead wires, offers switch mode operation, and operates from -40°C to 70°C.

Bosch Rexroth Corp., Linear Motion & Assembly Technologies Div.    Charlotte, NC 28273
Sep 02, 2008 Including electromechanical and pneumatic axes, bolt-together connection technology, and aluminum structural framing, camoLINE Cartesian Motion System provides complete flexibility by allowing users to locate holes as needed, work within broad configuration parameters, select from 3 types of actuators, and change the configuration quickly. It also includes pneumatic, ball screw, and belt-drive actuators to ensure positioning accuracy or fast travel speeds according to system demands.

Fluke Corp.    Everett, WA 98203
Sep 02, 2008 Suited for electricians, facilities managers, and HVAC contractors, Fluke 416D and 411D Laser Distance Meters feature one-hand operation, large LCDs, and automatic shut-off. Fluke 411D measures up to 100 ft with accuracy of ±0.12 in., and provides 3,000 readings from pair of AAA batteries. Measuring up to 200 ft with accuracy of ±0.06 in., Fluke 416D offers 5,000 readings from pair of AAA batteries, 3 line backlit display, memory for saving 10 measurements, and IP54 splash/dust protection.

Hilti Inc.    Tulsa, OK 74121

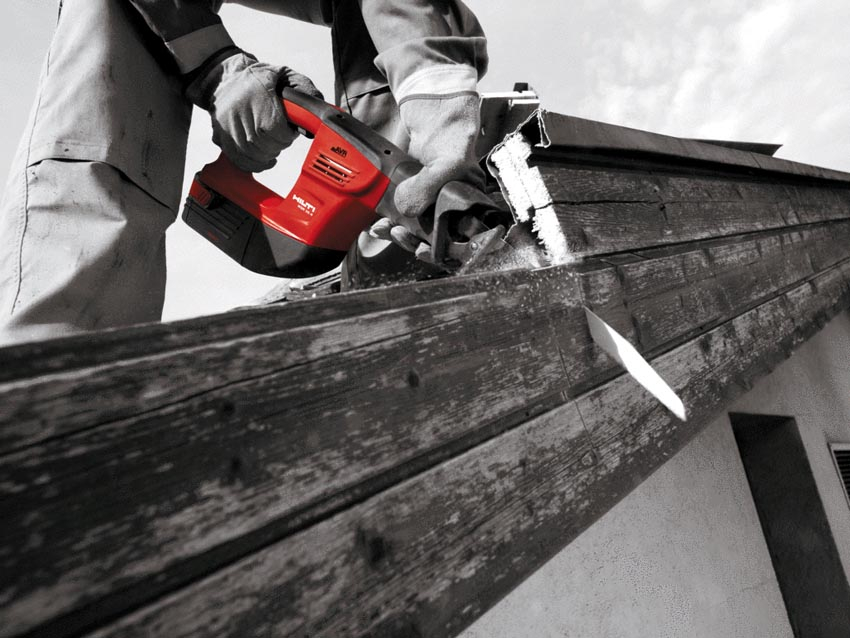

Sep 02, 2008 Suited for cutting pipe, strut, threaded rod, steel studs, and other miscellaneous steel, Hilti WSR 36-A can also be used for cutting wood with nails, wood beams, treated lumber, plywood, wood composites, or plastics. With 36 V 3.3 Ah CPC Li-Ion battery, it features Active Vibration Reduction technology that reduces vibration by up to two-thirds. Including ergonomic operating controls and comfortable handling, it maintains control when cutting overhead and in difficult to reach areas.

E-Switch Inc.    Brooklyn Park, MN 55428 1514

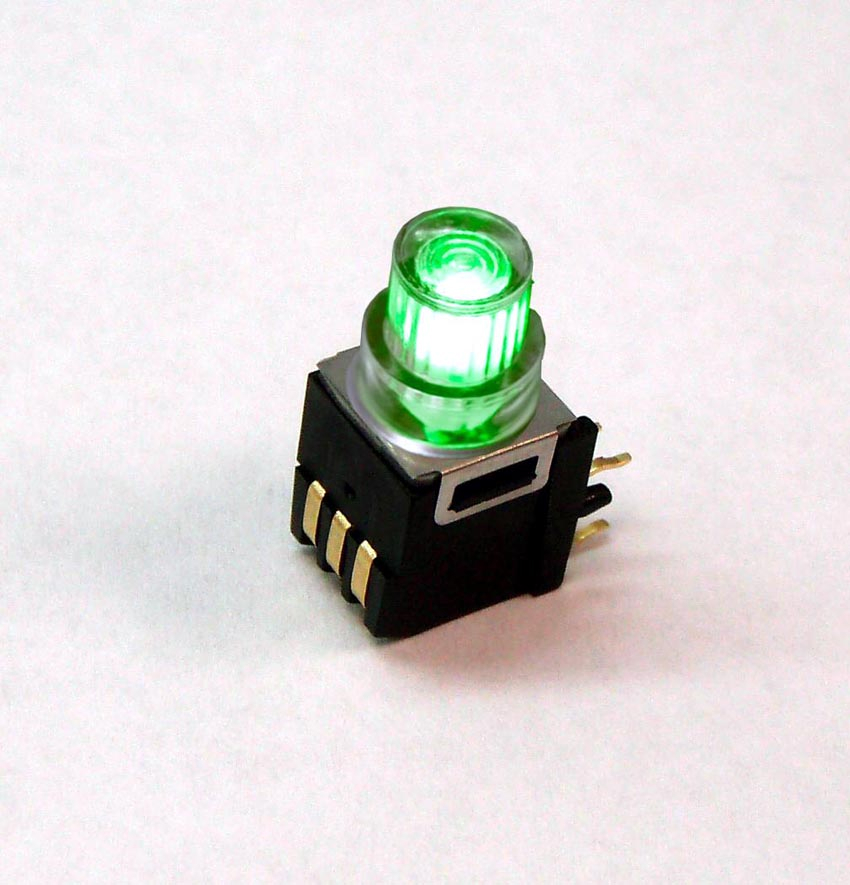

Sep 02, 2008 Manufactured with gold plated contacts, Model TL1290 has through-hole termination and blue, red, green, and yellow LEDs. It features electrical life of 25,000 cycles, 500 ± 125 gf operating force, and contact rating of 100 mA at 32 Vdc. Suited for applications including consumer electronics, medical, and telecommunications, unit also offers contact resistance of 250 mW max, 100 MW insulation resistance, 250 Vac dielectric strength, and operating temperature of -20°C to +70°C.

Videojet Technologies, Inc.    Wood Dale, IL 60191-1073

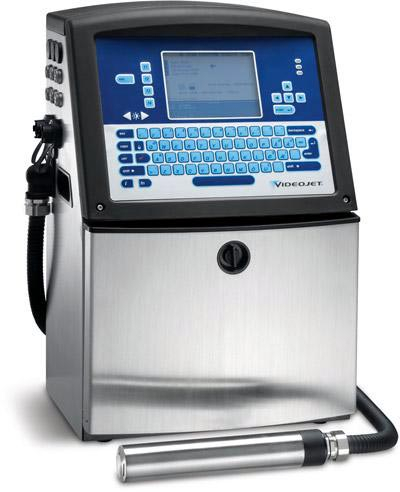

Sep 02, 2008 Designed for medium-duty applications that involve printing codes 16-20 hr/day 6 days/week, Videojet® 1510 features Smart Cartridge(TM) microchip-enabled fluid bottle that identifies whether compatible fluid has been installed to prevent errors in ink types or switching make-up and ink bottles. It has countdown meter that indicates time remaining until core must be changed and needle-and-septum design to eliminate need for operators to pour ink, preventing fluid spillage and waste.

Videx, Inc.    Corvallis, OR 97330
Sep 02, 2008 Housed in metal case, CyberKey features rechargeable lithium-ion polymer battery which has battery life of 3-4 yrs, fully charges in 15 minutes to 2 hr, and provides 500 openings or 1-2 weeks of performance between charges. It records openings and denied entries, providing detailed audit reporting for management. Highly visible red and green LEDs provide feedback to users on access events and key status. Keys can be color-coded to indicate special user groups.

Onset Computer Corp.    Bourne, MA 02532

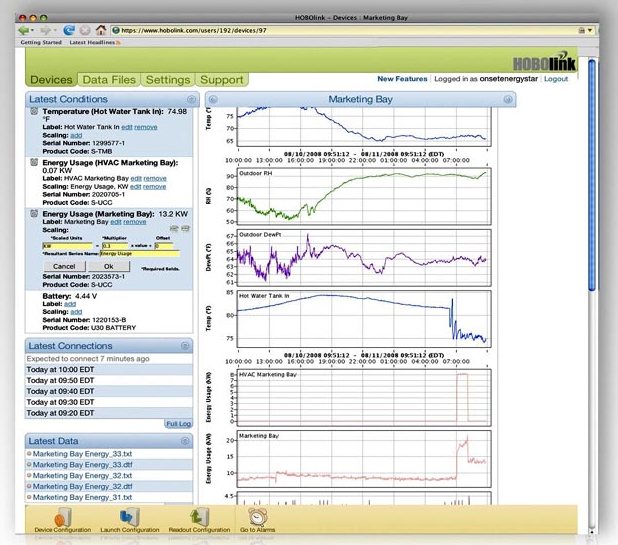

Sep 02, 2008 HOBOlink(TM) is for use with HOBO U30 GSM and Wi-Fi-based Remote Monitoring Systems and enables users to access current and historical data, set alarm notifications and relay activations, and manage and control monitoring systems. Expanded Data Scaling provides users with options for scaling energy and environmental data so it can be viewed in real-world measurement units, and Signal Strength Indicator confirms that U30 systems have strong GSM cellular or Wi-Fi reception.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Sep 02, 2008 E5071C is offered with 20 GHz frequency range option for evaluating 3rd harmonics of passive components in WLAN, WiMAX(TM), UWB, or any 4G technology. Model E5092A test set is used to evaluate multiport devices for front-end modules in cellular handsets or WLAN devices. It provides up to 22 port measurements and can be used with Measurement Wizard Assistant software to simplify complex system setups. Both models feature user interfaces compatible with existing solutions.
