Sensoray    Tigard, OR 97223
Sep 04, 2008 Supporting x1, x4, x8, or x16 PCI Express slots, Model 817 JPEG Frame Grabber captures 16 separate channels of compressed JPEG or uncompressed bitmaps at 480 fps. Internal 16 x 4 analog crosspoint video switch is used to route any combination of 4 input channels to external video monitors. Card has 4 identical video capture and processing units (VCPU), each of which handles 4 input video channels. Each VCPU employs 4-channel video decoder to convert analog video into digital.

Endace Limited    Manukau City   New Zealand
Sep 04, 2008 Able replay speeds reaching 10 Gbps, NinjaProbe allows network operators to replay events, enabling recreation of real network scenarios that help identify cause and effect of alarm conditions, load and test networking and security equipment, and actively study user experiences. It unobtrusively monitors every packet on network links, writes copy of each packet to system memory, and simultaneously adds time stamp with nano-second granularity. On-board storage expandd to 128 TB.

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 04, 2008 Operating over 960-1,215 MHz bandwidth, M/A-COM MAPRST0912-50 is 50 Wpk Class C, silicon bipolar pulse power transistor that has minimum gain of 9.0 dB with 40% minimum collector efficiency on 50 Vdc supply, while M/A-COM MAPRST0912-350 is rated at 350 Wpk with 40 W drive and features minimum gain of 9.4 dB with 45% minimum collector efficiency. With minimum gain of 9 dB with 45% minimum collector efficiency, M/A-COM MAPR-000912-500S00 is rated at 500 Wpk.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217
Sep 04, 2008 Including DLL software, YELLOWFIN(TM)-OEM kit allows developers to control receiver modules for customizable Mobile WiMAX surveys, interference detection, and packet traffic analysis. Calibrated Mobile WiMAX Receiver provides spectrum analysis between 2.0-5.9 GHz covering Wi-Fi, WiMAX, ISM, and Bluetooth wireless bands. Containing Ethernet and mini USB ports for PC connectivity and internal 12-channel/satellite GPS receiver, kit offers demodulation between 2.3-3.8 GHz.

FISERV, Inc.    Brookfield, WI 53045
Sep 04, 2008 International Comprehensive Banking System (ICBS) v9.0 offers Dynamic Product Packaging that enables banks to create suitable product packages to meet customers' needs. Funds Management and Sweeps tool helps financial institutions create revenue by maximizing interest earned on excess available funds. Retail and commercial lending features include semi-monthly loan payments, improved collection of past due payments, extended loan maturities, and flexible credit line management.

Magna-Power Electronics    Flemington, NJ 08822
Sep 04, 2008 With Grade 304 stainless steel enclosure, water-cooled power supplies can deliver 3.3-45 kW of dc power in hazardous environments complete with remote interface capability. They feature voltage ratings from 5-1,000 Vdc, current ratings from 3-2,700 Adc, and input at 50, 60, and 400 Hz. Enclosure allows power supplies to operate in particularly corrosive environments and be isolated from outside environment, providing protection against windblown dust and rain, and splashing water.

Kontron    Poway, CA 92064
Sep 04, 2008 Based around low-power 45 nm Intel® Core(TM) 2 Duo processor SP9300 and Intel® GS45 chipset, ETXexpress®-PC COM Express(TM) offers up to 2.26 GHz core speed, 6 MB L2 cache, and 1,066 MHz FSB. It supports up to 8 GB of dual-channel memory via 2 DDR3 SO DIMM sockets for intensive data-processing applications. Low voltage version with 1.3 GHz Intel® ULV Core(TM) 2 Duo processor (800 MHz FSB) requires TDP of 10 W, making it suited for power-sensitive applications.

LaCie USA    Hillsboro, OR 97124
Sep 04, 2008 Network Space networked attached storage (NAS) and media server has ability to stream multimedia files through DLNA-compatible UPnP(TM) media players. It comes pre-built with 2 separate shares, where one share is public for easy open access from any networked computer, while other is password-protected for secured private use. FTP accessible product enables remote access to upload or download files from abroad through static IP address.

Measurement Computing Corp.    Norton, MA 02766
Sep 04, 2008 PCIe-DIO24 features 24 channels of digital I/O with selectable 3.3 and 5 V logic levels. High-density PCIe-DIO96H offers 96 channels of 5 V compatible digital I/O with 64 mA sink, 15 mA source capability. Both offer software selectable pull-up and pull-down resistor configurations and ship with TracerDAQ®data logging, viewing, and analysis application; InstaCal(TM) installation, calibration, and test utility software; as well as programming libriaries compatible with various languages.

J. W. Winco, Inc.    New Berlin, WI 53151
Sep 04, 2008 Made of aluminum and available in metric and inch sizes, Solid Disk Handwheels feature highly-polished turned rim and matte gray, shot-blasted, satin finish that does not require painting or other surface treatments. They are gravity die-cast with concentric rim that is square to bore. Optional revolving handle is constructed of matte black nylon plastic with zinc-plated steel threaded spindle. Other modifications available include keyways and set screw holes.

National Semiconductor Corp.    Santa Clara, CA 95051-0695

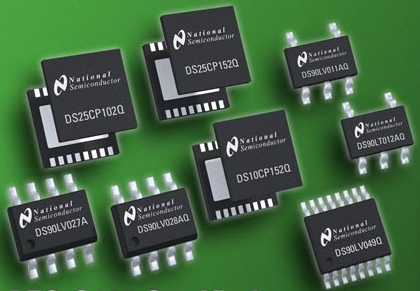

Sep 03, 2008 Automotive-grade PowerWise® products include three 2 x 2 crosspoint switches, one set of single and dual differential drivers and receivers, as well as dual-line driver and receiver pair. Using LVDS common-mode and differential technology, they deliver optimal signal integrity and noise immunity at data transmission rates up to 3.125 Gbps while consuming as little as 105 mW of power per channel. Each product is AEC-Q100 Grade 3 certified and operate up to 85°C.

Adchem Corp.    Riverhead, NY 11901

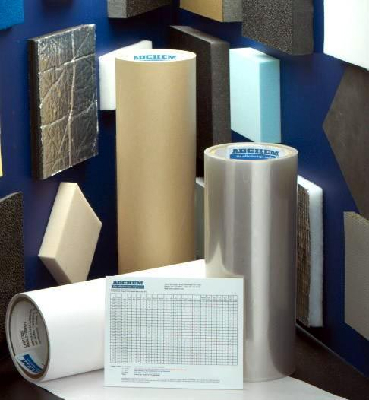

Sep 03, 2008 Measuring 4 mils thick with adhesive thickness of 3.75 mils, Type 7434-74 includes 74 lb liner that can be removed after lamination to fragile low density foams without foam tearing. Aggressive, acrylic-based transfer adhesive offers elevated temperature performance and is suited for bonding to broad spectrum of foam substrates including ether, ester low perm urethane, and melamine foams.

FCI Electronics    Etters, PA 17319 9769

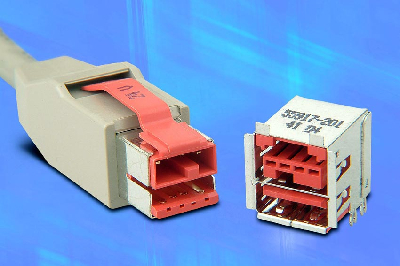

Sep 03, 2008 Designed to address requirements for high power in devices using USB signaling, USB+Power Assemblies add 4 power contacts to interface and provide total of 5 A of additional current-carrying capability. Latch-N-Lok assemblies, offering cable-to-equipment connector interface to connect signals or power, provide optional integral shielding and grounding for controlling EMI/ESD. Active latching on cable plugs provides positive retention, ensuring secure connection.

Warsaw Chemical Co.    Warsaw, IN 46581

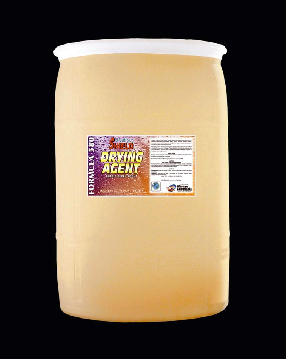

Sep 03, 2008 Formulated with unique polymer to create fast water break, Formula 580 Weather Shield DRYING AGENT boosts drying while providing protection and shine. Product minimizes damage from UV light, acid rain, and rust. Offered in 5 gal plastic tightheads as well as 15, 30, and 55 gal plastic drums, agent does not smear on glass or paint and is biodegradable.

Murata Power Solutions, Inc.    Mansfield, MA 02048

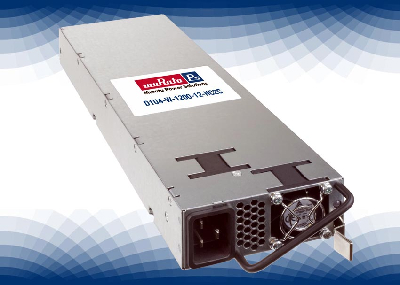

Sep 03, 2008 Housed in 1U package measuring 14.0 x 4.0 x 1.6 in., D1U4-W Series delivers bulk power with efficiency up to 90.9% and power density up to 17.9 W/in.³ Front end power supplies, delivering 12 V, feature active power factor correction and active current sharing on main output. Integrated OR-ing FETs support N+1 operation including hot docking. In addition to main output, standby outputs of 3.3 or 5 V provide up to 20 W. All models are fully RoHS-compliant and EMC class A rated.

EAO Switch Corp.    Milford, CT 06460

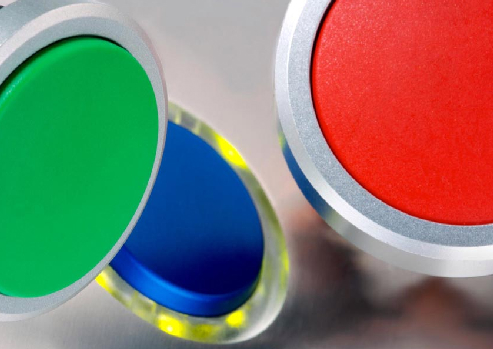

Sep 03, 2008 Available up to IP67 for protection against dirt and moisture ingress, Large-Headed Pushbuttons address hazards associated with industrial tasks, enabling operators to work in safe conditions. Large surface area can be activated by palm or fist and produces tactile feedback even when activated at edge. With flush-mounting, tamper-proof units will resist abusive operation. Models range from 22.5 mm mounted switch with 32 mm dia actuator up to 30.5 mm mounted switch with 40 mm actuator.

Sealevel Systems Inc.    Liberty, SC 29657
Sep 03, 2008 Offering 1 or 2 serial ports which are software configurable for RS-232/422/485, SeaLINK.SC and SeaLINK+2.SC eliminate need to open enclosure to change jumper settings or dipswitches. Devices maintain electrical interface settings locally, allowing host computer to be repaired or upgraded without reconfiguring serial ports. Serial ports on each SeaLINK adapter appear as standard COM ports to host computer, enabling compatibility with legacy software, and support data rates to 921.6 Kbps.

AMETEK Technical & Industrial Products    Kent, OH 44240

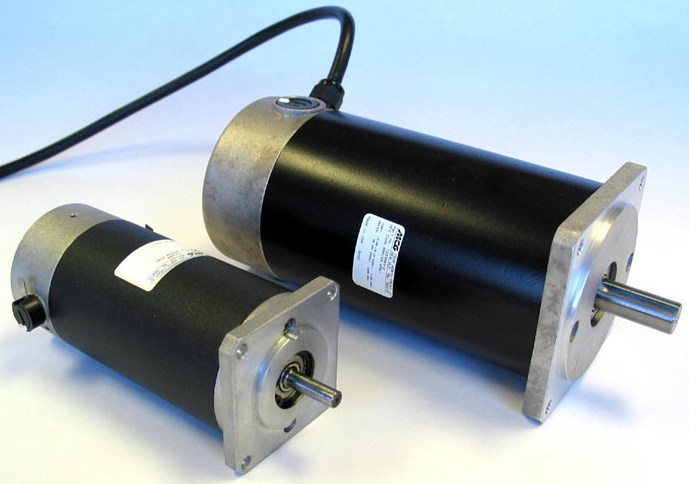

Sep 03, 2008 Along with motor-to-load inertia matching capabilities for medium to high reflected load inertias, ID23000/ID33000 series provide cogging torque and brush commutation technology that contribute to smooth operation at all speeds. Products are offered in NEMA 23/34 frame sizes with IP42 construction and support customization with gearboxes, optical encoders, and other options. Depending on model, 0.12-0.60 hp motors can generate 1.88-14 lb-in. continuous torque and speeds to 6,000 rpm.

EBM - Papst, Inc.    Farmington, CT 06034
Sep 03, 2008 Available in 7 different sizes, EC Series K3G310-K3G630 deliver airflows of 1,100-7,000 cfm with voltage input of 200/240 V or 380/480 V at 50/60 Hz. Units feature modular design consisting of noise-optimized motorized impeller and mounted square inlet nozzle with integrated pressure extraction point. Applications include commercial air conditioning, air handling units, packaged and split air conditioning systems, and fan coil units.

Clark-Reliance Corp., The    Strongsville, OH 44136

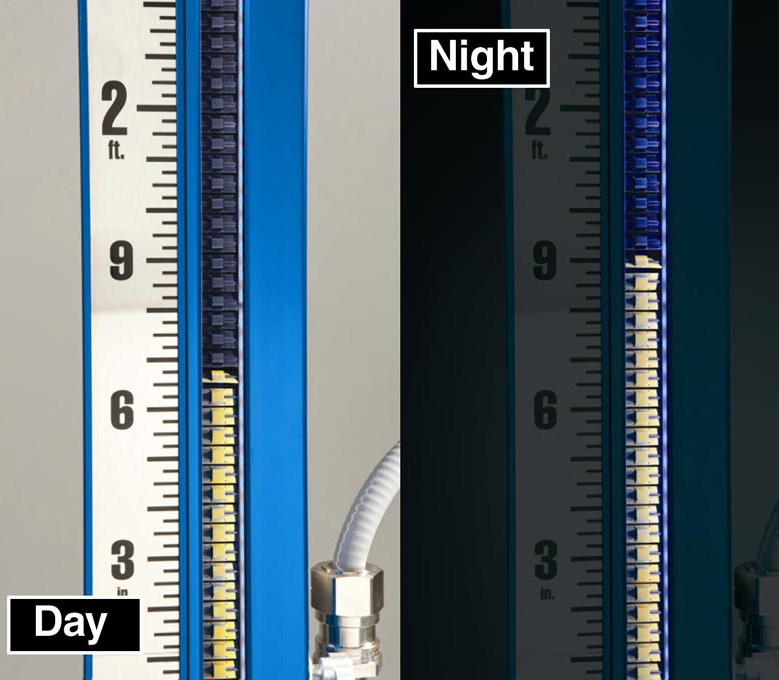

Sep 03, 2008 Designed to help increase safety, Jerguson® NightStar illuminators use array of bright LEDs to continually shine on liquid level gage's magnetic flag indicators. This provides high-contrast, 24-hr visibility with which to verify liquid levels in no- or low-light environments. Illuminators can be field-upgraded on any Jerguson Magnicator II® magnetic liquid level gage and can also serve to upgrade other manufacturers' gages.
