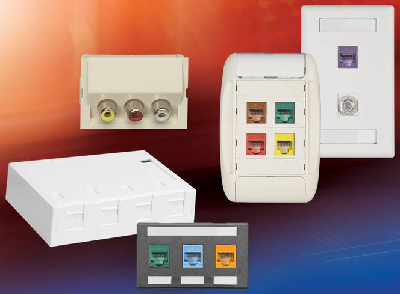

Belden    Richmond, IN 47375
Apr 16, 2009 Optimizing density for high-performance copper, fiber, and multimedia applications at work area outlet, KeyConnect Workstation Outlet System is comprised of faceplates, adapters, boxes, and modules that seamlessly fit together. Range of UTP, coax, fiber, and A/V modules, which can accommodate any data, voice, video, or multimedia application, also support modular furniture and surface mount applications.

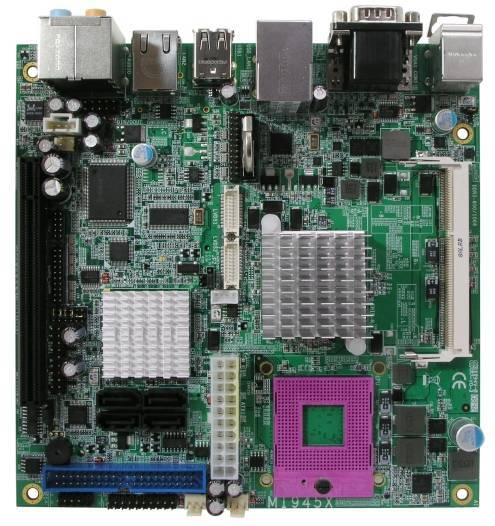

IBASE Technology Inc.    Taipei   Taiwan
Apr 16, 2009 Based on Mobile Intel® GM45 chipset and Intel® Core(TM)2 Duo processors, MI945X Mini-ITX board enables data transfers required in computing environments such as interactive gaming, security surveillance, POS, kiosk, industrial automation, and medical imaging. It comes with up to 1,066 MHz front side bus, DDR3 memory technology support, and integrated VGA for CRT and 2CH 24-bit LVDS. Measuring 170 x 170 mm, device features 8 USB 2.0 and 4 SATA II ports, and 2x DDR3 SO-DIMM up to 4 Gb.

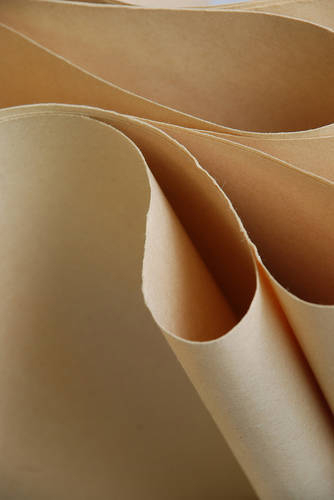

Hollingsworth & Vose Co.    East Walpole, MA 02032
Apr 16, 2009 Featuring extreme surface smoothness for uniform resin application and low coefficient of thermal expansion (CTE) for dimensional stability, ViaMat(TM) is nonwoven organic reinforcement material for electronic packaging. It can be processed on most existing glass resin saturation lines and exhibits laser/plasma ablation and drillability, allowing for high interconnect densities. Paper is suited for applications such as avionics, medical devices, and high capacity servers.

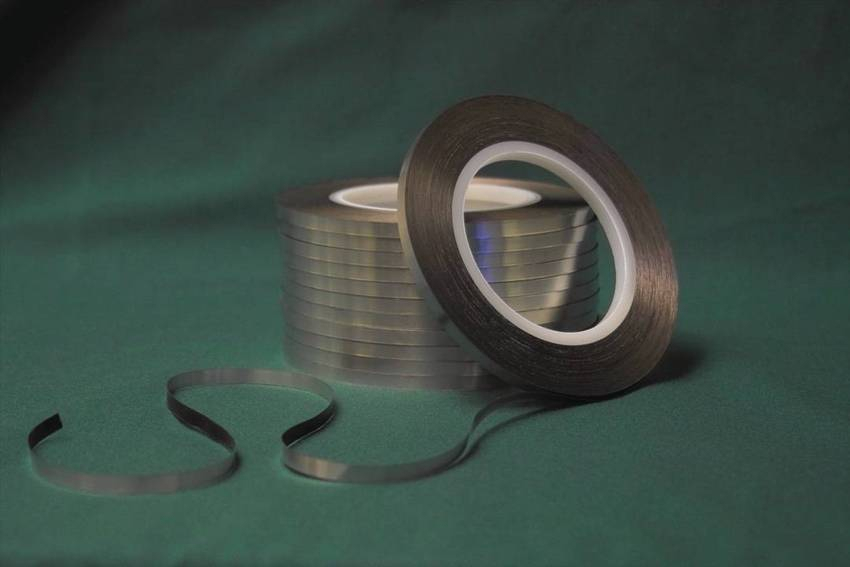

Adhesives Research, Inc.    Glen Rock, PA 17327
Apr 16, 2009 With 1 oz tin-plated copper foil backing, 2.4 mil pressure-sensitive adhesive (PSA) foil tape ARclad® 90038 offers high electrical conductivity and corrosion resistance, and provides alternative to bus bar material used in thin-film PV modules. It features homogenous conductive adhesive technology that forms stable, conductive bonds to electrical contact points even under extreme environmental stress. UL 510 rated tape is supplied in roll or spooled format.

Chroma Corp.    McHenry, IL 60050-8378
Apr 16, 2009 Utilizing no light bulbs, batteries, or wiring, light stable Photoluminescent plastic compound glows for over 32 hr. It is non-radioactive, recharges itself, requires no maintenance, and cannot be accidentally turned off. Applications include rotational molded marine navigation buoys, injection molded EXIT signs, profile extruded strips for exit aisle delimitations, buttons on electronic devices, dashboards, cup holders, and seat belt release buttons.

Moyno Inc. Unit Of Robbins & Myers, Inc.    Springfield, OH 45501 0960
Apr 16, 2009 Featuring two-piece drive shaft, Moyno® 1000 compact close-coupled positive displacement pump eliminates need for complete pump disassembly when servicing mechanical seal. It is suited for shear sensitive chemical feeds, adhesives, lime, slurries, and viscous crude oil transfer applications. Unit features low shear pumping action, smooth, non-pulsating flow, and pressure capabilities to 350 psi. Standard flange and open throat hopper models are also available.

Sensor Products Inc.    Madison, NJ 07940
Apr 16, 2009 Revealing pressure magnitude and distribution between any two contacting or mating surfaces, from 2-43,000 psi, Mylar-based Pressurex® Sensor Film helps verify adequate frame-to-module edge sealing. Placed at interface of 2 contacting surfaces, film permanently captures force applied during lamination press by changing color. Film offers solution for quality control checks during equipment setup, calibration, as well as re-qualification of solar module production line.

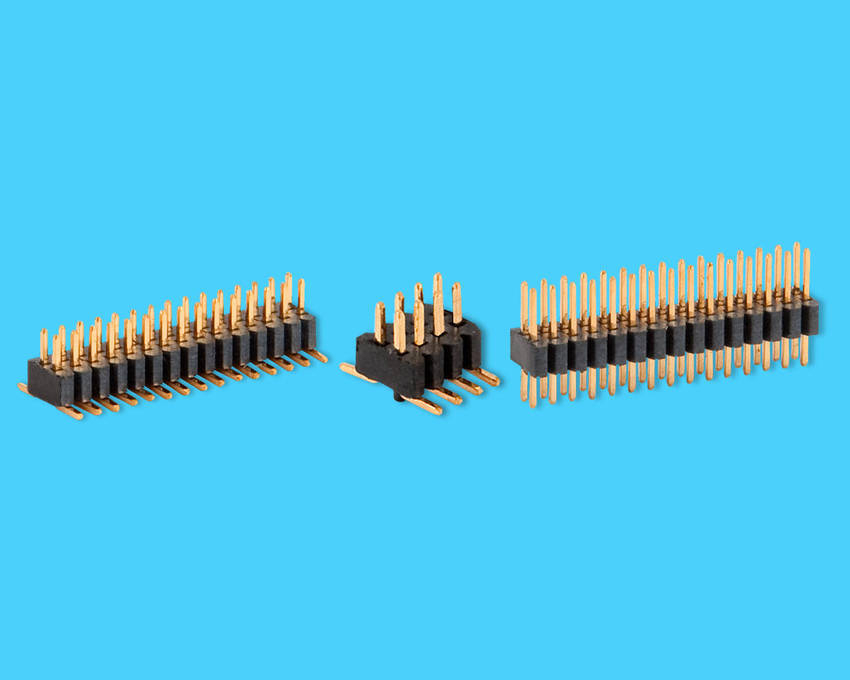

Sullins Electronics Corp.    San Marcos, CA 92079-0189
Apr 16, 2009 With insulating material of black liquid crystal polymer, and insulation resistance of 1,000 megaW, SMH Series male header, and SFM Series female header mates are available in single- and dual-row configurations, with or without guideposts, and with SMT, straight, or right angle terminations. Male headers are provided in 1.0 or 1.5 mm profiles, and offered with 1.65 or 1.90 mm head heights in SMT versions. Female header mates have 2.1 or 3.15 mm profiles.

Stalker Radar    Plano, TX 75074-7467
Apr 16, 2009 With speed range of 0.2-18 m/sec from below 1 mph to over 40 mph, Stalker Pro II surface velocity radar is designed for measuring flow in rivers, streams, and other bodies of water. It can automatically adjusts its speed reading based on angle, radar points at target flow. Device features vertical angle accuracy of ±2° and vertical angle resolution of 1°. It can also measure in cm/sec, ft/sec, and km/hr.

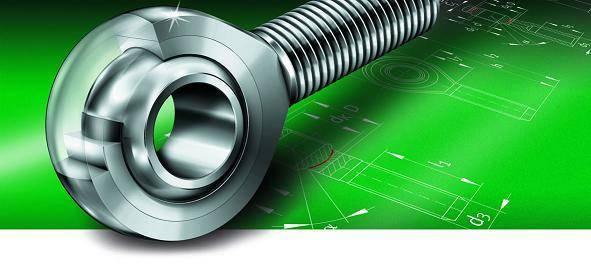

Schaeffler Group USA, Inc.    Fort Mill, SC 29715
Apr 16, 2009 Available with dia from 5-30 mm, ELGES stainless steel rod ends are resistant to most media, including food, beverages, chemicals, and water. Housing and stem conform to DIN ISO 12 240-4, dimension series K, and have radial spherical plain bearing and right or left hand internal or external thread. Sliding contact pair incorporates corrosion-resistant steel and corrosion-resistant PTFE-bronze film that is fixed in outer ring crowned surface, ensuring maintenance-free operation.

Sappi Fine Paper North America    Westbrook, ME 04098
Apr 16, 2009 These FSC-/SFI Chain of Custody-certified digital papers, matched to their folio counterpart, contain 10% PCW content and are engineered for optimal performance on color digital presses. While McCoy for HP Indigo and McCoy Digital delivers photobook quality performance, Opus Digital balances optics and versatility for dry ink (toner) digital presses. Also available, Flo Digital is suited for use as house sheet for daily turn-arounds and personalized digital mailing programs.

STMicroelectronics    Lexington, MA 02421
Apr 16, 2009 Featuring absolute analog output, 3-axis Model LIS352AX operates with any supply voltage from 2.16-3.6 V. Internal regulated voltage makes measurements insensitive to typical variations in power-supply voltage that occur in battery-operated devices, such as mobile phones and other portable devices. Housed in 3 x 5 x 1 mm plastic package, sensor provides accurate output across full-scale range of ±2.0 g with offset drift of ±0.3 mg/°C.

Ubicom, Inc.    Sunnyvale, CA 94085-3520
Apr 16, 2009 Enabling rapid development of networking and multimedia products, Linux Board Support Package includes implementation of Linux 2.6.28 SMP kernel, device drivers, GNU tool suite, and documentation. Package offers Ethernet-based version of GDB, enabling full kernel and driver debugging; tool to configure Software I/O features of processor; and Ethernet-based profiler tool, which leverages multi-threaded architecture to run real-time statistical profiling without affecting system performance.

Express Logic, Inc    San Diego, CA 92127
Apr 16, 2009 To visualize and understand real-time system behavior, TraceX® v5 lets embedded system developers see/log occurrence of system events such as messages, interrupts, and context switches. Deterministic and undeterministic priority inversions are graphically revealed, accelerating programming problem resolution by finding unexpected behavior and investigating specific areas of code in detail. Thread reordering, advanced search, as well as FileX® and NetX(TM) event support are also included.

Express Logic, Inc    San Diego, CA 92127
Apr 16, 2009 To avoid stack overflow problems in embedded systems, StackX(TM) analyzes application code and identifies maximum stack usage. Development tool performs analysis of complete application at executable code level, computing worst-case stack usage that might be experienced. Through this solution, users are told how large a stack is needed for each application thread and automatically alerted if they fail to allocate sufficient memory. This also helps to avoid wasting unnecessary memory.

GE Intelligent Platforms    Charlottesville, VA 22911
Apr 16, 2009 Available for MicroTCA and AdvancedTCA, Telum(TM) 3001 Graphics Adapter includes provision for dual digital and/or analog displays and support for ganged operation. Single silicon package integrates ATI(TM) M72-CSP128 GPU, 128 Mb onboard memory, and x8 PCI Express(TM). It supports max resolutions of 1,920 x 1,200 DVI/digital and 1,600 x 1,200 VGA/analog. In addition, module includes DirectX 10.0 compliance, OpenGL 2.0 support, MPEG 1/2/4 hardware acceleration, and 32-bit floating point processing.

Hewlett-Packard Co. (Corporate Headquarters)    Palo Alto, CA 94304-1185
Apr 16, 2009 Offered in 11 standards-based tower, rack, and blade platforms, HP ProLiant G6 servers integrate Nehalem Intel® Xeon® 5500 processors and HP Smart Array Modular Controllers. HP Insight Control Environment (ICE) is included for controlling management and monitoring of server infrastructure onsite or remotely. Along with various energy optimization features, servers come with HP Dynamic Power Capping, setup/inspection, bandwidth allocation, and migration automation utilities.

Hewlett-Packard Co. (Corporate Headquarters)    Palo Alto, CA 94304-1185
Apr 16, 2009 Powered by Intel® Xeon® 5500 processor series, HP Z800/Z600/Z400 Workstations employ self-checking, 85% or 89% efficient, power supply and can be serviced totally without tools. Interior offers totally modular design; components slide into place in cable-less environment. Along with solid-state drive option, workstations integrate memory controllers, Intel Turbo Boost Technology, professional graphics solutions, and HD audio. Various power management technologies are also included.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Apr 16, 2009 Drive test solution with VoIP test sequence software (B9990A-510) lets network equipment manufacturers and wireless service providers integrate voice-quality measurements with drive test RF data used in optimization of wireless networks. Using same database for VoIP and RF measurements, product supports RF measurements for all established wireless technologies and provides end-to-end service quality measurements of SIP-based VoIP communication.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Apr 16, 2009 Supporting standards-based and proprietary femtocell implementations, SART Signaling Analyzer Real Time provides detailed real-time diagnostics, troubleshooting, and historic analysis. With SART, users can properly dimension deployment and core network services; evaluate femtocell performance in relation to 3rd-party broadband connections; and interpret, correlate, and analyze protocol messages on both sides of gateway that connects femtocells to mobile networks in IuH implementations.
