Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245

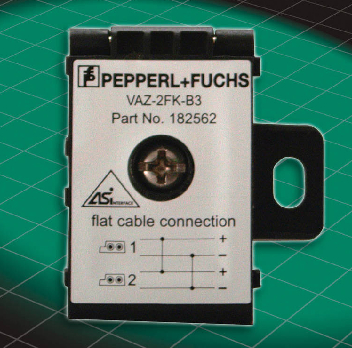

Apr 29, 2009 Measuring 19 x 26 x 40 mm, VAZ-2FK-B3 Flat-to-Flat Adapters facilitate connection of 2 AS-Interface cables or two 24 Vdc auxiliary power cables. Units feature 1-part design with IP67/IP68/IP69k protection. Compact housing fits into cable tray or can be screw mounted to side of machine. Typical applications include general conveyor and specialty machines.

Linear Technology Corp.    Milpitas, CA 95035
Apr 29, 2009 Available in 3 x 3 mm DFN-8, 8-lead SOT-23, and 3-lead SOT-223 packages, Model LT3092 features programmable output current from 0.5-200 mA and 1% initial accuracy. Current regulation over 1.5-40 V is better than 10 ppm/V. Since IC requires no capacitors, it is suited for intrinsically safe applications in which output may be shorted and no sparking can be tolerated. Reverse supply tolerance and thermal shutdown protect both IC and load.

ABB Robotics, Inc.    Auburn Hills, MI 48326
Apr 29, 2009 FlexWasher(TM) W30 and W40 use integrated robot to move HPWD tool around fixed part or vice-versa, enabling high-pressure water to reach most areas of simple and complex parts. Both High Pressure Water Deburring (HPWD) and Parts Washing systems, suited for general industrial applications, remove eyelash burrs and foreign materials without removing parent materials. Compact and modular systems have closed-loop water filtration system and do not use heated water or cleaning chemicals.

Pacific Handy Cutter, Inc.    Costa Mesa, CA 92626
Apr 29, 2009 Suited for occasional and production carton cutting, S7(TM) Safety Cutter features Safety Blade/Guard Activation System, which extends blade and guard simultaneously, preventing razor blade cuts while cutting, and then springs back safely. Universal right- and left-handed tool has 3-in-1 design that also includes integrated tape splitter and shrink wrap cutter.

Schurter, Inc.    Santa Rosa, CA 95403
Apr 29, 2009 Model UMZ 250 Universal Modular Fuse and fuseholder combination features gold-plated caps for reflow soldering to PCB. Providing overcurrent circuit protection, compact, leadless unit offers low profile for maximized production speed. Current ratings range from 315 mA to 4 A, with voltage ratings of 250 Vac and 125 Vdc according to IEC and 277 Vac and 250 Vdc to UL. Unit opens according to IEC 60127-4 time-lag characteristic and has rated braking capacity of up to 200 A.

CS Unitec, Inc.    Norwalk, CT 06850

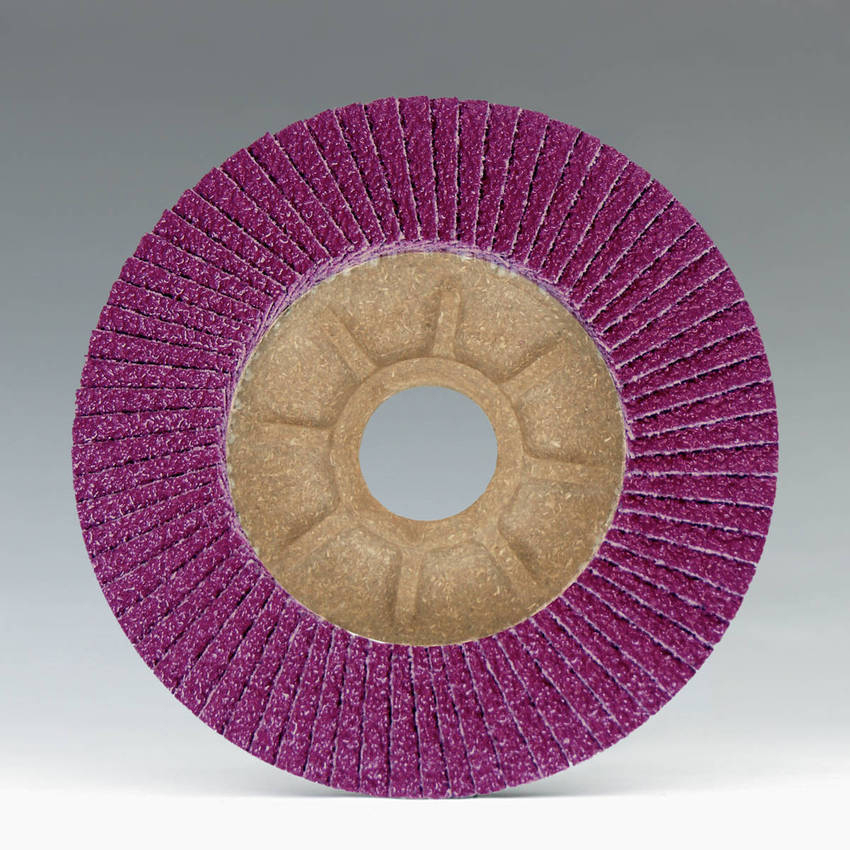

Apr 29, 2009 PLANTEX® COOL TOP® flap discs feature zirconium abrasive fabric, with top-size coating that optimizes grinding performance, and backing plate made of natural hemp with polypropylene binder. Discs automatically reduce in size during grinding, allowing full use of abrasive fabric. Suited for speeds of 5,000-8,000 rpm and able to run at maximum of 13,300 rpm, they are available in diameters of 4, 4½, 5, and 7 in. and in grits of 40 and 60.

Keyence Corporation of America    Elmwood Park, NJ 07407

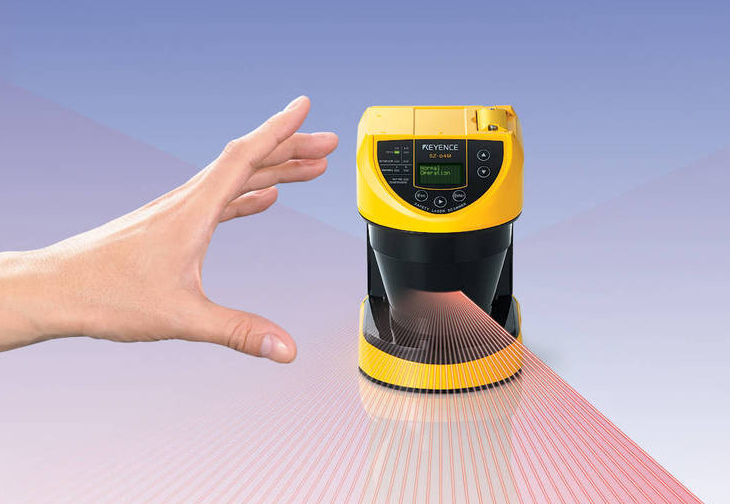

Apr 29, 2009 Keyence SZ Series, Type 3 Safety Laser Scanner can create protection zone up to 13.77 ft and warning zone area up to 32.80 ft from scanner, with up to 16 protection and 32 warning zones configured and modified via PC. It incorporates muting and reference point monitoring functions, which are set using configuration software. Side-mounted installation allows vertical guarding or access protection and unit can also be mounted on automated guide vehicles.

Emerson Process Management, Rosemount Div.    Chanhassen, MN 55317

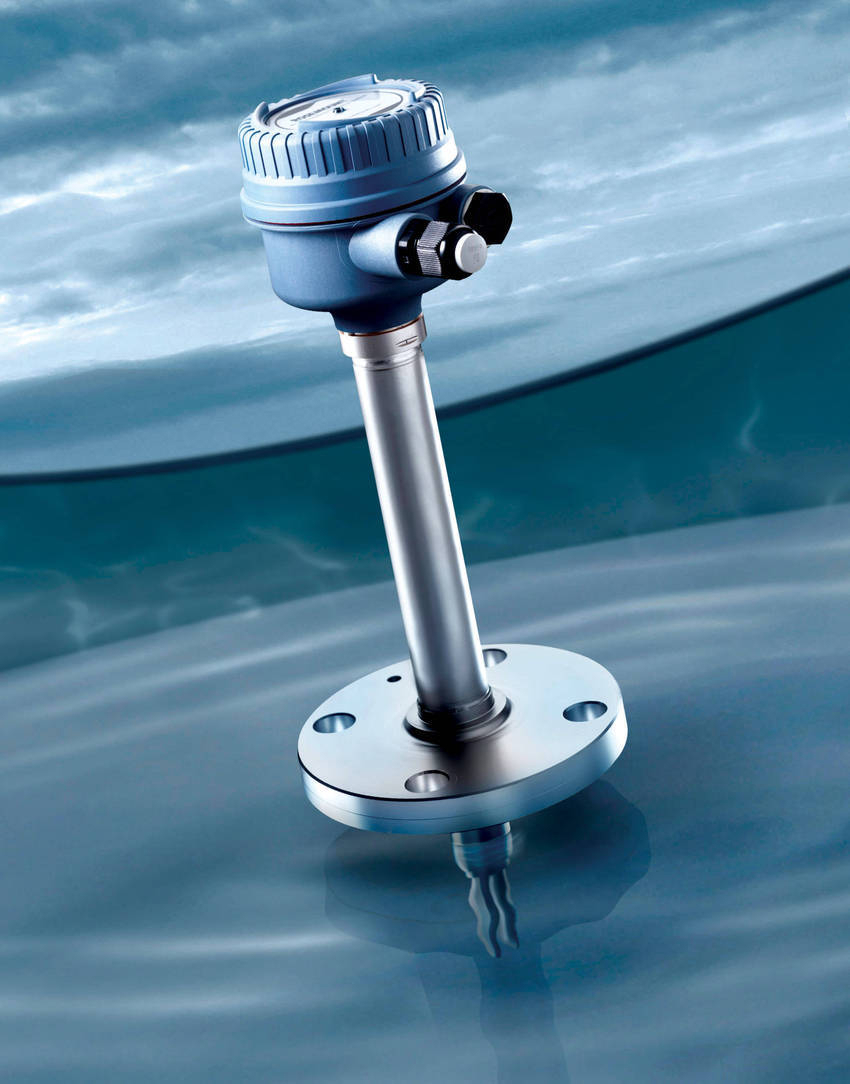

Apr 29, 2009 Rosemount® 2130 vibrating fork liquid level switch features built-in fault monitoring/self-checking diagnostics, with LED providing visual indication when corrosion, internal/external damage, or breaks in electrical wiring are present. It is available with 316L SS or corrosion-resistant alloy C wet side as well as with aluminum or SS housing. Low-density option is suitable for liquids with specific gravity down to 0.5.

Casella USA    Amherst, NH 03031
Apr 29, 2009 TUFF(TM) Air Sampling Pumps feature sealed case with rubber overmolding that protects internal electronics from moisture, extreme temperatures, solvents, and impact. Operating from 1.7 or 2.7 Ah battery pack, units offer flow range from 5 mLpm to 4.5 Lpm. Double-acting diaphragm pump mechanism enables real-time flow control and stability across range of sampling media. User interface displays flow, sampled volume, and run duration as well as battery fuel gauge and alarm.

LM-76 Linear Bearings    East Longmeadow, MA 01028
Apr 29, 2009 Designed to be washed down with disinfectants or industrial cleaners, SS DEFENDER Linear Rail(TM) suits medical, pharmaceutical, and food processing applications. Rails are available in lengths of 40.94, 59.84, 81.89, and 122.83 in. or in cut to order sizes, and each 3 bearing slider unit is 3.15 in. long. Cross section of bearing and slider is only 1.02 x .866 in. Bearing rails are rolled 304 stainless with internal bearing race, and each 440C SS ball bearing roller features 2RS seals.

Kalamazoo Machine Tool, Inc.    Portage, MI 49002
Apr 29, 2009 Featuring 6° canted saw frame with mitering from 0-60°, H6A-NC fully automatic and H6 SA semi-automatic have capacities of 20 in. at 90°, 17½ in. at 45°, and 9½ in. at 60°. Both models have a 1¼ x 17 ft 5 in. blade operating at 60-360 fpm, and material work height is at 32¼ in., with vise opening of 23½ in. Programmable H6A-NC saw can automatically program length, size of material, blade speed and quantity, and stores individual jobs for later recall.

Elma Electronic Inc.    Fremont, CA 94538
Apr 29, 2009 Aluminum based black anodized Elma front panel heat sinks dissipate heat while covering open sections of enclosure. Cooling fin extrusion has width of 42 HP and comes in 1U high increments. Each fin is built upon 1.5 HP pitch to leave enough space in between for screw heads. Heat sink front panels come in various sizes and configurations, but are specifically designed for 19 in. technology. EMC versions with mounting bracket for gaskets are also available.

L-Com, Inc.    North Andover, MA 01845

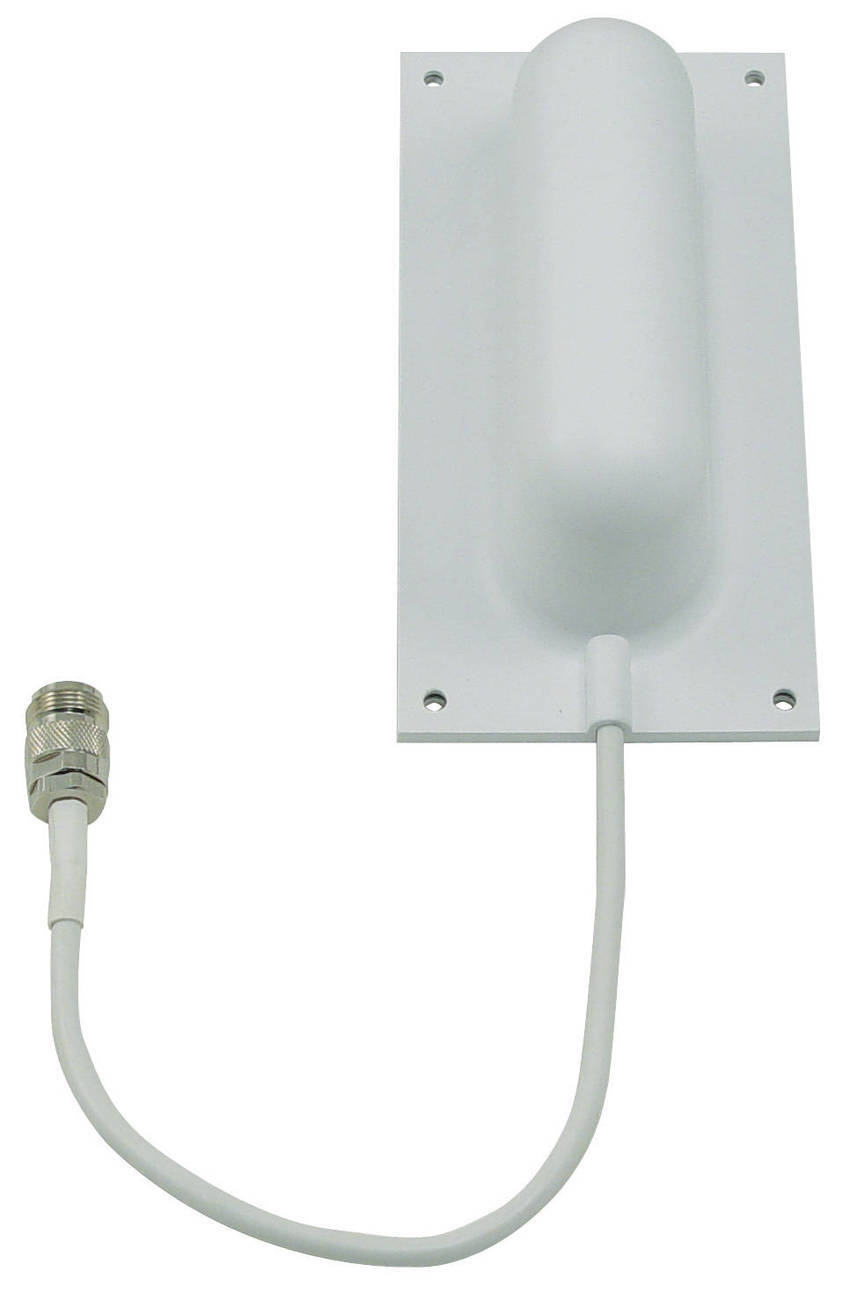

Apr 29, 2009 Featuring 3 x 6 in. footprint, Model HG2405P-135 provides wide angle 2.4 GHz coverage of area, while minimizing occurrence of multipath. It is available with 4 connector versions: type N female, type N male, reverse polarity SMA plug, and reverse polarity TNC plug with optional cable lengths to meet any requirements. Antenna is suited for installation in offices, health facilities, educational settings, industrial sites, and retail complexes.

Label-Aire Inc.    Fullerton, CA 92833

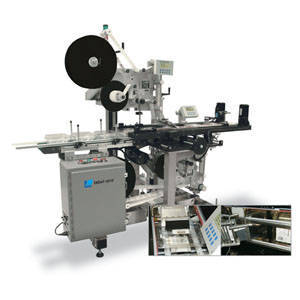

Apr 29, 2009 Hugger Belt Clamshell labeling system consists of hugger belt product transport system with infeed belt conveyor. Top/bottom labeling system has stainless steel and anodized aluminum construction and pair of Model 3115 Wipe-On label applicators. Containers, filled or empty, are conveyed at speeds of up to 70/min then transferred on hugger belt system, exposing the top and bottom container panels for label application. Pressure sensitive lales are applied with placement accuracy of ± 1/32 in.

Platinum Tools    Camarillo, CA 93012
Apr 29, 2009 Featuring rugged design and terminating all popular plug configurations used in voice, data, and A/V installations, All-In-One Modular Plug Crimp Tool (P/N: 12503) is suited for telecom and network, security, residential structured wiring, and professional and commercial A/V applications. Steel framed with PVC handles and rust resistant black oxide finish, tool weighs only 12 oz and terminates RJ45, RJ11/12, and RJ22 (handset) plugs to solid or stranded cable from most manufacturers.

Dri-Air Industries, Inc.    East Windsor, CT 06088

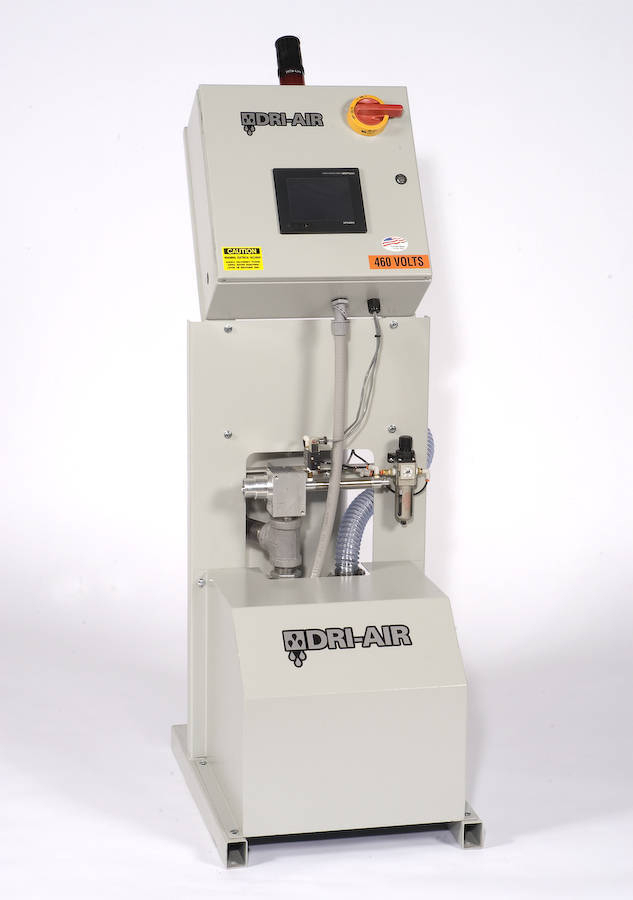

Apr 29, 2009 Available in 4 sizes from 4-33 stations, SENTINEL Line utilizes closed-loop conveying principle and includes all items except piping. Series 4 has panel mounted PLC with graphic display and keypad used to adjust amount of material delivered and to regulate purge times. System is self-contained on compact frame. Larger systems up to 33 stations utilize color touch screen that shows status of each receiver and pump; actuation, fill, and cleanout time are set up through easy to navigate screens.

Megger    Dallas, TX 75237
Apr 29, 2009 Together with Megger Goose (Generic Object Oriented Substation Event) Configurator software, MPRT Test Set can test protective relay installations that are based on IEC 61850. It also performs high speed trip and reclose timing test via AVTS Dynamic Control feature, and manual high-speed timing tests using Touch View Interface. Test set fully satisfies timing requirements of IEC 61850-5 standard, Type 1A, Class P 2/3.

Linear Technology Corp.    Milpitas, CA 95035

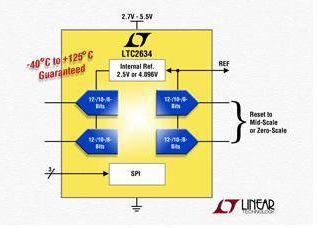

Apr 29, 2009 LTC2634 quad 12-bit, 10-bit, and 8-bit rail-to-rail DACs integrate precision reference in 3 x 3 mm QFN and MSOP packages. They operate from single 2.7-5.5 V supply, with supply current of 125 µA. DACs are available in number of ordering options to meet range of applications, including the 3 resolution options, 2.5 or 4.096 V FS range, choice between powering up DACs at zero-scale or mid-scale, and performance over automotive, industrial, and commercial temperature ranges.

Norbar Torque Tools, Inc.    Willoughby, OH 44094
Apr 29, 2009 Used in conjunction with TruCheck(TM) Plus 1000, bench-top Power Tool Test Fixture simulates conditions of bolted joint. TruCheck(TM) Plus 1000 is torque wrench tester with accuracy of ±1%, and range of up to 1,000 Nm. It consists of Joint Simulation 'Rundown' Assembly, ¾ and 1 in. sockets and required base plate and fittings.

XSPlatforms    Gorinchem   Netherlands
Apr 29, 2009 Available in 3 varieties (straight, curved, and collapsible) XTP-Guardrails fit various roof types without affecting building's appearance or damaging roof structure. They are made of high-grade weather-resistant aluminium,are maintenance-free, and NEN-EN 13374 certified. Main components of guardrail system simply click into position without use of tools, while free-standing design eliminates risk of leakage.
