PINC Solutions    Berkeley, CA 94709
May 01, 2009 Offered as RTLS-enabled yard visibility and management product for cold chain management applications, Yard Hound Reefer enables automated, remote monitoring of both current temperature inside refrigerated trailers and their fuel levels. It leverages passive RFID and IEEE 802.15.4 standard-based mesh networking technology for transmitting monitored information from trailers back to database in real-time. System also supports user-configurable, automatic alarms and notifications.

Algae-X International    Fort Myers, FL 33905
May 01, 2009 Covering range of flow capacities and tank sizes, SMART FPS Series combines fully automated control and monitoring with fuel decontamination, water and sediment removal. Units function as on-board tank cleaning systems, and when used as fuel transfer systems, will supply completely clean and dry fuel to day tanks. Systems employ SFC-50 Smart Filtration Controller, which features programmable PLC with text interface, color-coded alarm indicator lights, and wiring harness.

Ansys, Inc.    Canonsburg, PA 15317
May 01, 2009 Providing Smart Engineering Simulation(TM), ANSYS® 12.0 compresses design and analysis cycles, enabling parametric studies and design optimization across multiple physics, optimizing accuracy of virtual prototypes, and capturing and reusing simulation processes and data. ANSYS® Workbench(TM) 2.0 allows engineers to set up, visualize, and manage simulations, while ANSYS® FLUENT® fluid flow solver lets CFD practitioners access bi-directional CAD integration, advanced meshing, and post-processing.

Reynard Corp.    San Clemente, CA 92673
May 01, 2009 Featuring refractive index profile of silicon, polished and coated indium arsenide (InAs) offers transmission edge of 3.1 µm at 80K (cryogenic) and 3.8 µm at 298K (room temperature). Windows may be manufactured with surface qualities approaching 10-5 per MIL-PRF-13830. Complete blocking below 3.0 µm, due to natural material absorption, enables production of fully-blocked filters in 3-5 µm and 8-12 µm spectral bands.

Grupo Premo    Barcelona   Spain
May 01, 2009 Suited for RFID transponder applications from 20-134.2 kHz, 3DC11LP-0247J, 3DC11LP-0477J, and 3DC11LP-0720J antennas consist of 3 coils oriented to x-, y-, and z-axis coordinates and windings over one common core. Isolation between axes is higher than 25 dB. At 13 x 11.6 x 3.6 mm, units incorporate plastic cap on tap and around coil, offering maximized sensitivity to magnetic fields. Applications include passive keyless entry systems, tire pressure monitoring systems, and access control.

Hendrickson International    Woodridge, IL 60517-4904
May 01, 2009 Available in 42,000, 48,000, 54,000, and 58,000 lb capacities, HN® FR family of tandem rubber suspensions utilize VariRate® spring system to maximize stability. Diagonally-mounted rubber bolster springs act in compression and shear to dissipate road shock and wide spring centers and Hytrel® auxiliary springs optimize stability in high center of gravity applications. Walking-beam design equalizes vehicle load over both axles by allowing wheels to adjust to uneven terrain.

Edmund Optics    Barrington, NJ 08007
May 01, 2009 Ensuring linear relationship between input scan angle and focal position on flat plane, F-Theta Scanning Lenses include 355 nm Fused silica type lens with short focal length, which allows users to obtain smallest possible spot size. Fused silica optimizes optical transmission, particularly for UV and near-UV wavelengths. Suited for use in laser marking and 3-D prototyping systems, telecentric lenses eliminate perspective error found in conventional lens systems.

Danaher Tool Group    Hanover, MD 21076
May 01, 2009 Designed to provide access in narrow spaces, GearWrench® indexable nail puller allows DIYers and professional tool users to accommodate for varying surface angles. Hand tool features pry bar and measures 12 in. Its forged alloy head adjusts to 14 angles and 180° for optimal versatility and leverage in carpentry, roofing, remodeling, and custom woodwork applications. Nail puller is designed for nail sizes 4D-10D.

Helwig Carbon Products, Inc.    Milwaukee, WI 53224 9008
May 01, 2009 Available for manufacturing of graphite vanes for OEM and aftermarket dry running vane pumps, self-lubricating and dimensionally stable grade MH1 can be molded to near net shape and machined to tolerances of 0.0005 in. Impact-resistant, resin bonded graphite design contributes to extended vane life in non-lubricated vacuum pumps and compressors. It will not damage bore of housing, exhibits low wear rate, and is specifically designed for use in dry-running applications.

E-Z Flow    San Diego, CA 92111
May 01, 2009 Comprised of Green 33, Green 40, and Green 100, Botanithane® Packaging Foams feature densities of .33, .4, and 1 lb/cu-ft, respectively. Products are made from renewable resources with minimum amount of petrochemicals. Polyol resin mixes in E-Z Flow cartridges, rises and cures in 30 seconds, and provides same level of cushioning as petroleum-based chemicals.

Rieker Inc.    Aston, PA 19014
May 01, 2009 Model H4PD sensor provides ±22° dual axis inclination sensing in rugged IP66 environmentally protected die-cast zinc housing. Unit incorporates MEMS sensing element referenced to gravity with integrated temperature compensation over industrial operating range of -40º to +85ºC. PWM output is linear with respect to input angle directly. OEM-ready device is EMC protected, vibration and shock resistant, and offers mechanical zero adjustment.

IBT    Merriam, KS 66203
May 01, 2009 Web-based comprehensive service Virtual Safety Manager enables subscribing companies to develop programs that bundle preparation of safety manuals, training programs, reporting and tracking of individual workers, into one intuitive package. Service offers thorough and effective safety management and administration program.

DVEO division of Computer Modules, Inc    San Diego, CA 92127
Apr 30, 2009 Measuring 3.3 x 3.3 x 1.6 in., VideoTank HD(TM) system is comprised of H.264 video recorder that offers removable storage capabilities via compact flash cards. Unit specifically supports up to 32 Gb cards, which enable recording of up to 2 hr of 1080i content. Offering full control via LCD panel and on-board pushbuttons, system is designed for encoding/decoding and rugged mobile applications where small HD cameras are deployed.

Magna-Power Electronics    Flemington, NJ 08822
Apr 30, 2009 Housed in 2U package, XR Series includes 54 programmable models that accept input voltage of 208-480 Vac at 50, 60, and 400 Hz. Units offer power ratings of 2, 4, and 6 kW and current ratings up to 375 Adc. Utilizing additional power processing stage to deliver current-fed power processing technology, devices can operate under short-circuit and open-circuit conditions. All include 37-pin isolated 0-10 V external I/O to monitor and control all functions.

Parker Hannifin Corp.    Oxford, MI 48371

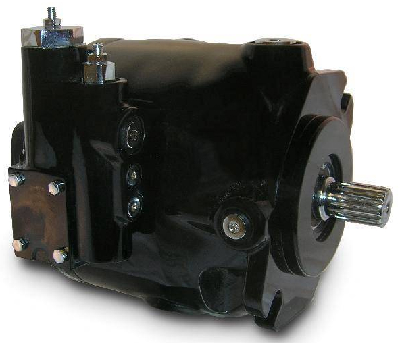

Apr 30, 2009 Axial piston pumps of 45cc/rev P1/PD Series are optimized for medium-pressure open-circuit mobile (P1) and industrial (PD) applications. Available with optional torque limiter or as full power through-drive version, series is rated for continuous operation at pressures to 280 bar. Operating efficiency lowers electricity demands, while noise output level can reduce or eliminate need for insulation and help comply with OSHA hearing conservation standards.

austriamicrosystems AG    Premstatten   Austria
Apr 30, 2009 For linear motion sensing, AS5311 utilizes 2 mm multipole magnetic strip and provides 1.95 µm resolution signal at incremental output and 488 nm signal at serial output. It uses multipole magnetic ring for rotary motion sensing, with incremental output resolution of 10 bit/pole pair and traveling speed of up to 650 mm/sec. Operated with 3.3 or 5 V supply voltage, unit operates in temperatures from -40 to +125°C. Onboard diagnostics monitor placement of magnet above device.

Power Integrations, Inc.    San Jose, CA 95138

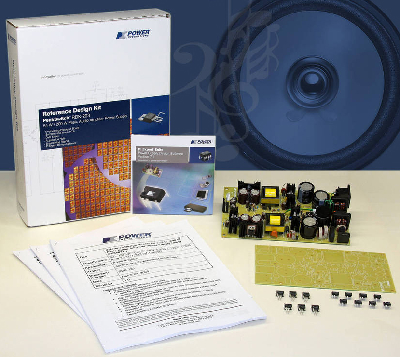

Apr 30, 2009 Reference Design Kit, RDK-203, offers dual-rail power supply with high loop bandwidth and peak power for 5.1-channel home audio systems with up to 650 W audio power rating. Using this solution, developers can meet new and emerging standby power usage regulations for consumer A/V equipment. Kit is based on PeakSwitch PKS607YN, and circuit consumes less than 0.9 W at 240 Vrms input. This exceeds power efficiency regulations established by ENERGY STAR, CEC, EISA, EC EuP, and EC CoC.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039

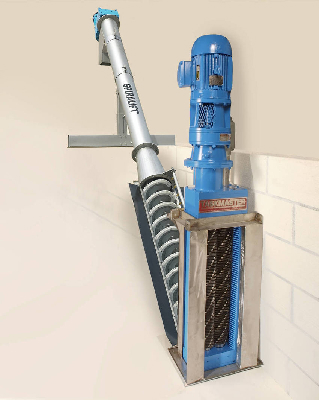

Apr 30, 2009 Comprised of TASKMASTER® grinder, stainless steel shaftless screw screen, and control system, SPIRALIFT SL fine screens, washes, transports, and compacts channel-borne wastewater solids while leaving essential organics in flow. PLC-based control system uses flow level data to cycle screw to minimize power and wear. SPIRALIFT can be supplied with choice of electric or hydraulic drives and variety of channel widths, flow, and lift requirements.

Beckhoff Automation LLC    Minneapolis, MN 55337

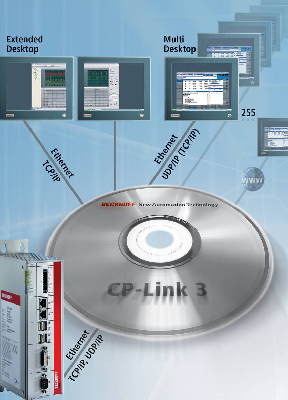

Apr 30, 2009 Based on 100 Mbit/s Ethernet and IP protocol, CP-Link 3 enables users to connect up to 255 Ethernet panels or panel PCs with one industrial PC. Display contents are captured by virtual graphic adapter in host PC and sent using Ethernet to one or more Ethernet panels with Windows OS. For display communication, TCP/IP or UDP/IP can be configured, depending on operating mode. Networking can be done using standard CAT 5 cables, which are suitable for drag chains.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 30, 2009 Offered in Split and Solid Core configurations, Series SCS are suited for monitoring whether fans, pumps, or motors are operating. Current flowing through core of device powers circuit, and all models have built-in, solid-state output. Featuring UL and CE approvals, series is designed to facilitate installation and comes in ABS plastic enclosure with UL, V-O flammability rating. Optional LEDs and 10 A relay modules are available.
