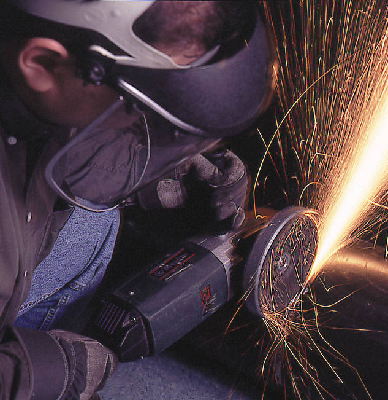

Weiler Corporation    Cresco, PA 18326 0149
May 01, 2009 Working with steel, iron, and other ferrous metals, Vortec Pro(TM) wheels are reinforced with fiberglass webbing for stability and resin-bond-formulated for aggressive stock removal and accelerated cutting. Type 27 grinding and cutting products, offered in 4-7 in. dia, have aluminum oxide grain and are designed for use on right-angle grinders. Available from 2-7 in. dia, Type 1 cutting wheels have same grain, incorporate metal ring around hub, and may be used on wider range of grinders.

Picosecond Pulse Labs, Inc.    Boulder, CO 80301
May 01, 2009 Featuring dc coupled differential output programmable from 250 mV to 2.0 V, 8 GHz Model 12040 and 12.5 GHz Model 12050 are designed to address test requirements at higher data rates. Both units are fully programmable, with adjustable frequency, amplitude, offset, and crossing point. Users may also select from pre-defined PRBS patterns or programmable user-defined data (up to 512 kb). Front panel touch screen GUI and USB computer control options are available.

Greenray Industries Inc.    Mechanicsburg, PA 17055
May 01, 2009 Designed for telecommunications, instrumentation, and radio communications applications, YH1420 Series OCXO meets Stratum 3 requirements and delivers short-term stability from 10-100 MHz. Model 1421 offers a true sinewave output while Model 1420 offers squarewave output. Units feature 0.80 x 0.50 x 0.37 in., ROHS-compliant, DIP package and require either +5 or +3.3 Vdc supply voltage.

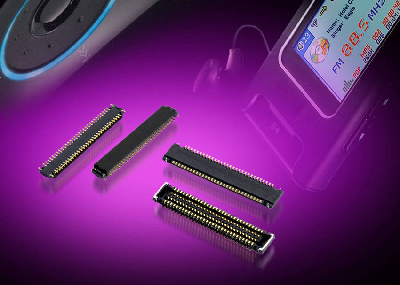

AVX Corp.    Myrtle Beach, SC 29578
May 01, 2009 Available in 10- to 60-position models, 5802 Series has 0.8 mm stacking height and 3.2 mm width, including tails. Units feature 0.3 A contact current, 50 V contact voltage, and operating temperature of -40 to 85°C. Area beneath connectors is fully insulated, and contacts employ twin rib structure, which ensures they are wiped clean from contaminants during every mating cycle. Connectors are suited for cell phones, MP3 players, digital cameras, and PDAs.

Cognex Corp.    Natick, MA 01760 2059
May 01, 2009 Using 2 laser aimers for setup, DataMan® 200 supports variety of 1D and 2D codes including UPC/EAN/JAN, Code 39, Code 128, Code 93, Interleaved 2 of 5, Data Matrix, QR Code, and micro QR Code. Ethernet connectivity enables real-time data and image transfer, and integration with plant controllers and networks. Adjusting camera's focus by applying electrical charge to fluid within lens, optional liquid lens technology makes reader suitable for applications with variable focus requirements.

ADLINK Technology Inc.    Irvine, CA 92618
May 01, 2009 Comprised of PCIe-8560 PCI Express host board, PXI-8656/6U remote system controller, and expansion cable, PCIe-to-CompactPCI/PXI Expansion Kit utilizes 2.5 Gbps high-speed PCI Express bus to provide over 110 MB/sec of sustained data transfer rate at distances up to 7 m. All CompactPCI and PXI modules installed in remote chassis operate as if they are directly installed in host system. Applications include telecommunication systems, mass production testing, and military/aerospace.

Michell Instruments    Rowley, MA 01969
May 01, 2009 Capable of giving moisture readings down to -40°Cdp, Optidew chilled mirror instruments incorporate Frost Assurance System Technology (FAST) to provide accuracy and reliability. FAST ensures that, for temperatures below 0°C, the dew point reading is derived from ice crystals rather than water droplets. Using routine where mirror temperature is controlled and adjusted at certain levels, instruments help eliminate errors experienced in cases where water does not freeze at 0°C.

Seco-Larm    Irvine, CA 92606-5012
May 01, 2009 Including 5 Vdc power adapter, Model MVE-AH010Q HDMI over Cat5e/6 transmitter/receiver amplify and duplicate HDMI signals to optimize picture and sound quality up to 196 ft at full 1080p HD resolution. System can transmit 480i signal up to 328 ft, with supported formats including maximum 1080p/1080i and minimum 480p/480i.

Kennametal Inc., Advanced Materials Div.    Latrobe, PA 15650-0231
May 01, 2009 RHM(TM) modular reaming system features interchangeable reamer heads that reduce tool setup time and machine downtime. KST(TM) (Kennametal Short Taper) coupling system provides simultaneous taper-face contact, resulting in less than 3 microns runout and rigid union. Two drive flats on reamer shank and in tool body foster symmetrical torque transmission. Reamer heads are available in straight-flute or helical flute styles and can be applied to both clamping versions.

Emerson Network Power    St. Louis, MO 92008
May 01, 2009 Supplied in LGA package with 16.26 x 16.26 mm outline and 3.2 mm profile, LGA C Series delivers 15-100 W of scalable power. Non-isolated, surface mount converters come in 3, 6, 10, and 20 A models with input voltage ratings of 3.0-13.8 Vdc and 4.5-13.8 Vdc for 20 A model. Output range is adjustable from 0.59-5.1 Vdc through external resistor trimming. Certified RoHS-compliant, modules offer 92% efficiency at full load and accommodate -40 to +85°C ambient operating temperatures.

Hendrickson International    Woodridge, IL 60517-4904
May 01, 2009 Available in tandem capacities of 42,000, 48,000, 54,000, and 58,000 lb, HN® FR Series utilizes VariRate® spring system to provide optimal balance of empty ride quality and loaded stability. Diagonally-mounted rubber bolster springs act in compression and shear to dissipate road shock, while extra wide spring centers and Hytrel® auxiliary springs provide stability for high center of gravity applications and emergency driving conditions.

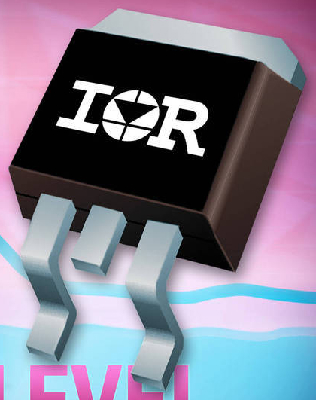

International Rectifier Corp.    El Segundo, CA 90245
May 01, 2009 Available in TO-220, D2PAK, and TO-262 packages, logic level gate drive trench HEXFET® power MOSFETs offer voltages from 40-100 V and can be driven from MCU or weak battery to deliver improved efficiency at light load conditions. On-state resistance of 1.7-4.5 mW @ 4.5 Vgs promotes thermal efficiency, while max current rating of 195 A provide more guard band from unwanted transients. Solutions are qualified to industrial grade and moisture sensitivity level 1.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
May 01, 2009 Featuring multiple detection modes, selectable timing functions, and remote teach, SU18 and SU19 Photoelectric Fiber Optic Amplifiers each deliver NPN light on, NPN dark on, PNP light on, or PNP dark on output options. Locking lever secures fiber optic cable to sensor, while press-and-click feature facilitates DIN rail mounting and removal. Series SU18 is available in pushbutton teach or potentiometer adjustable models, while SU19 Series can be gang-mounted with up to 18 amplifiers.

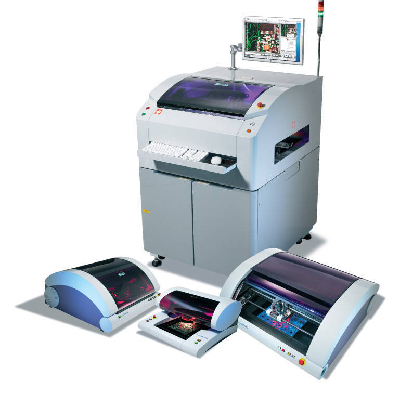

Marantz Business Electronics    MA Eindhoven 5653  Netherlands
May 01, 2009 Able to network multiple AOI machines into closed loop process monitoring and quality control system, Catch System utilizes open source SQL database capable of managing large data quantity, multiple users, and numerous machines. CS Repair module provides paperless system of defect classification and repair, while CS Watch enables user to observe process from remote location or factory display. CS Analyzer delivers SPC Track and Trace and end of batch performance analysis.

Lochinvar Corp.    Lebanon, TN 37090
May 01, 2009 Installed with separate storage tank to minimize maintenance concerns, 3 ARMOR® models feature stainless steel heat exchanger, 5:1 modulating turndown, and SMART SYSTEM(TM) operating control. These 98% thermally efficient units, available with inputs from 600,000-800,000 BTU/hr, help eliminate wasted fuel and minimize operating expenditure. Protected against harmful effects of lime scale buildup, products permit direct-vent distances up to 100 ft for combustion air and vent runs.

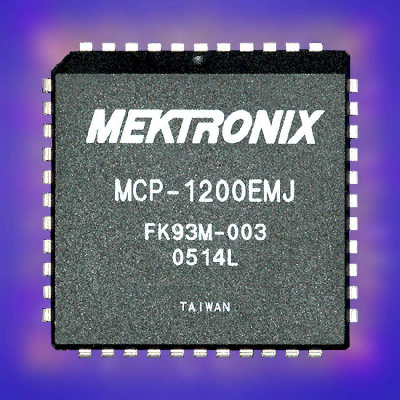

Mektronix Technology, Inc.    Mundelein, IL 60060
May 01, 2009 Designed to replace existing HCTL-1100 IC from Avago, Model MCP-1200 offers single axis motion control solution for servo and stepper motors, and can be synchronized with multiple chips for multi-axis applications. All low-level fast computations are performed on IC, freeing up host microcontroller for supervisory tasks. No external memory is required, just incremental encoder to provide position feedback.

Promess Inc.    Brighton, MI 48116 0748
May 01, 2009 Comprised of 500, 1,000, and 2,500 Nm models, TFT-HC (high capacity) series utilizes servo motors, precision position sensing feedback technology, and proprietary torque transducers to produce controlled torque inputs and feedback monitoring. Torque Functional Test (TFT) systems, in addition to accurate positioning capabilities, offer speeds up to 200 rpm, 1% FS torque sensor accuracy, and 0.25% torque sensor repeatability.

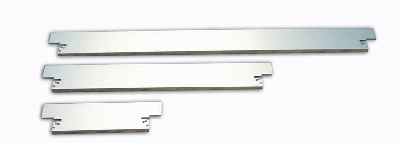

Elma Electronic Inc.    Fremont, CA 94538
May 01, 2009 Suited for VME and other enclosure architectures, IEEE 7HP Front Panels provide alignment for adjacent cards and EMC protection for enclosure. Units are front anodized and rear-conductive with top and bottom cutouts for handle mounting. Anodizing front of panel provides scratch resistance and non-conductive material. Back and sides of panels are alodined, which is conductive but not scratch-resistant. Segmented and continuous gasket styles are available.

Extech Instruments Corp.    Nashua, NH 03063
May 01, 2009 Along with Class 2 Bluetooth® for standard wireless communication, Apex 2 Direct Thermal Printer features 1 MB SRAM/4 MB Flash memory, drop-in paper load system, and Wi-Fi option. This 2 in. receipt printer also incorporates ARM-7, 32-bit MCU as well as Flash-based, integrated CPU that contains firmware, resident barcodes, and resident fonts. Power management technology and battery capacity enable mobile workers to print up to 1,300 ft of receipts on one battery charge.

HaydonKerk Motion Solutions    Waterbury, CT 06705
May 01, 2009 With diameter of 25 mm, G4 canstack linear actuator includes optimized tooth geometry along with high-energy neodymium magnets. Plastic molded threads and oversized spline maximize product lifespan and bearings maximize rotor support/axial load capability. Torque-to-size ratios are compatible with applications such as medical equipment, barcode scanning devices, printing equipment, and laboratory instrumentation. Captive, noncaptive, and external linear configurations are available.
