DVEO division of Computer Modules, Inc    San Diego, CA 92127

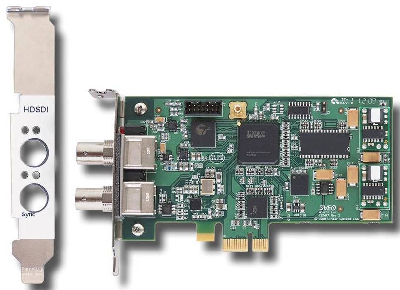

May 05, 2009 HD-SDI Master(TM) I PCIe LP and HD-SDI Master(TM) O PCIe LP are, respectively, single-channel HD-SDI input and output cards that support 1080i, 1080p, and 720p standards at 60 Hz and 59.94 Hz rates. In addition to onboard DDR memory-based data buffer, features include automatic standards detection, automatic cable equalization, and input monitoring of CRC errors. Additional support is provided for Linux® or Windows® OS, DirectShow®, and field-upgradeable firmware.

Blackhawk Technology    Santa Cruz, CA 95060

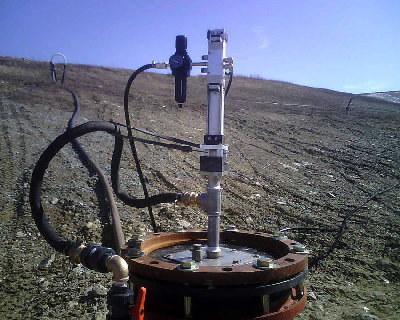

May 05, 2009 With electric motor and controls outside well, tank, and sump, Anchor Electric Positive Displacement Piston Pumps eliminate cogging and enable service to be performed above wellhead. Featuring electric driver for deep and/or high pressure applications, pumps can be installed at any angle from 0-90°, making them suited for low-flow remediation, landfill leachate, gas-condensate recovery, and gas-well dewatering applications.

FCI    Etters, PA 17319

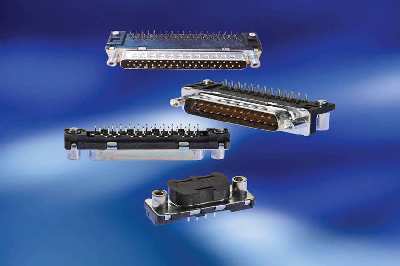

May 05, 2009 Offered in 9-, 15-, 25-, and 37-way versions, D-Sub Right Angle Pin-In-Paste Connectors come in U.S. style footprint with 6.3 mm standoff and Europe style footprint with 7.2 mm standoff. Specific weight balance ensures connectors will stay in initial position as they are reflow-processed. Compliant with RoHS, connectors are suited for daughter boards in industrial and telecom applications.

HBM, Inc.    Marlborough, MA 01752 3014
May 05, 2009 Available with nominal torques of 5 and 10 kNom, T40 torque flange has compact design that facilitates integration in test bench and copes with impact/vibration. Data transmission between rotor and stator is digital, ensuring error-free measured value acquisition and transmission even under difficult ambient conditions involving EMI or fluctuating temperatures. Maintenance-free design employs no slip rings or bearings, and measured torque can be output via voltage or frequency output.

Filamatic    Baltimore, MD 21215

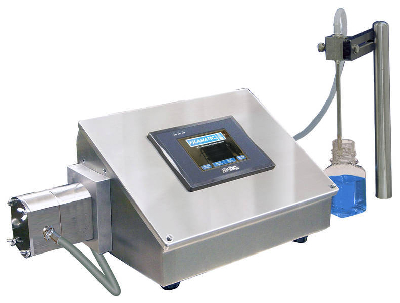

May 05, 2009 Supplied in stainless steel package with HMI touchscreen, network-ready AdaptaFil(TM) Benchtop semi-automatic filling machine offers 4 interchangeable metering systems to accommodate peristaltic, gear, lobe, and piston pumps. Controls can store/recall hundreds of recipes, and other features include weight compensation and batch counting. System is suited for applications that require liquid filling and where frequent application changes are expected.

Wireworks Corp.    Hillside, NJ 07205
May 05, 2009 As recessed low-voltage ring, Guardian Panel Mount can be mounted directly into wall by using mounting screws, fasteners, or toggle bolts. Custom connector panel is then attached to recessed flange, providing protected connectivity. When used with electrical box, it can be ordered in exact box size for surface-mount installations. Alternatively, panel mount can be ordered with flange 1 in. larger than box for flush-mounted applications. Most NEMA electrical box sizes can be accommodated.

Keyence Corporation of America    Elmwood Park, NJ 07407

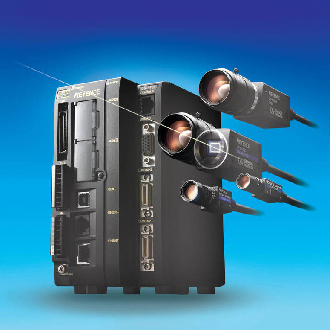

May 05, 2009 Equipped with 5 megapixel camera that transfers 2,432 x 2,050 pixel images in 61.2 ms, Model CV-5000 offers high-speed image processing for any production line. Up to 4 lighting control units can be attached, each with 2 lighting terminals, allowing CV to automatically dim and strobe up to 8 lights simultaneously. Algorithms detect foreign objects or burrs on irregularly shaped profiles, while built-in statistical functions in controllers let user view inspection results in real-time.

Emhart Teknologies, A Black & Decker Co.    Shelton, CT 06484
May 05, 2009 POP NUT® PNT110-I-KIT contains mandrels and nosepieces for 6-32, 8-32, 10-24, 10-32, and 1/4-20 size inserts, while PNT110-M-KIT features mandrels/nosepieces in M3, M4, M5, and M6 sizes. Both kits include 190-piece assortment of commonly used unified threaded inserts. Contoured grips ensure ergonomic fit to hand for comfort and mandrel/nosepiece design simplifies setting of different sized nuts. Manual, plier-style hand tool is manufactured with aluminum and steel.

Electro-Chemical Devices, Inc.    Yorba Linda, CA 92887
May 05, 2009 Triton TR8 Turbidity Analyzer has optical assembly with 3 light beams and sensor electronics that adjust turbidity signal readings according to reference detector. Digital filter helps to suppress potentially interfering signals while self-monitoring diagnostics assure reliability. It features 880 nm LED light source, 2 nonvolatile memory banks, transmitter with 4-20 mA output, and controller with up to 2 outputs and 4 SPDT relays. Operating temperature range is 20-120°F.

W.A.C. Lighting Company    Port Washington, NY 11050
May 05, 2009 LEDme(TM) Light Bars, with lifespan of up to 50,000 hr, feature integrated driver, allowing them to provide uniform lighting across shelving and counter space. They emit little heat, and are sutied for use in kitchens, retail stores, and display cabinets. Installed with mounting back plate and hang hook, products can be front-, center-, or rear-mounted, and are available in 5 sizes ranging from 6 in., 2-light model to 30 in., 10-light system.

Rohrback Cosasco Systems    Santa Fe Springs, CA 90670
May 05, 2009 Microcor Wireless Transmitter uses high-resolution metal loss measurement that provides 18-bit resolution and is rated for operation in hazardous locations in temperatures from -40 to +70°C. Based on Microcor® technology, unit provides accurate corrosion rates in any process media in real-time. Each device will work as node in self-organizing mesh network to ensure consistent delivery of data and provides adaptive solution for data transfer.

Minox/Elcan    Mamaroneck, NY 10543

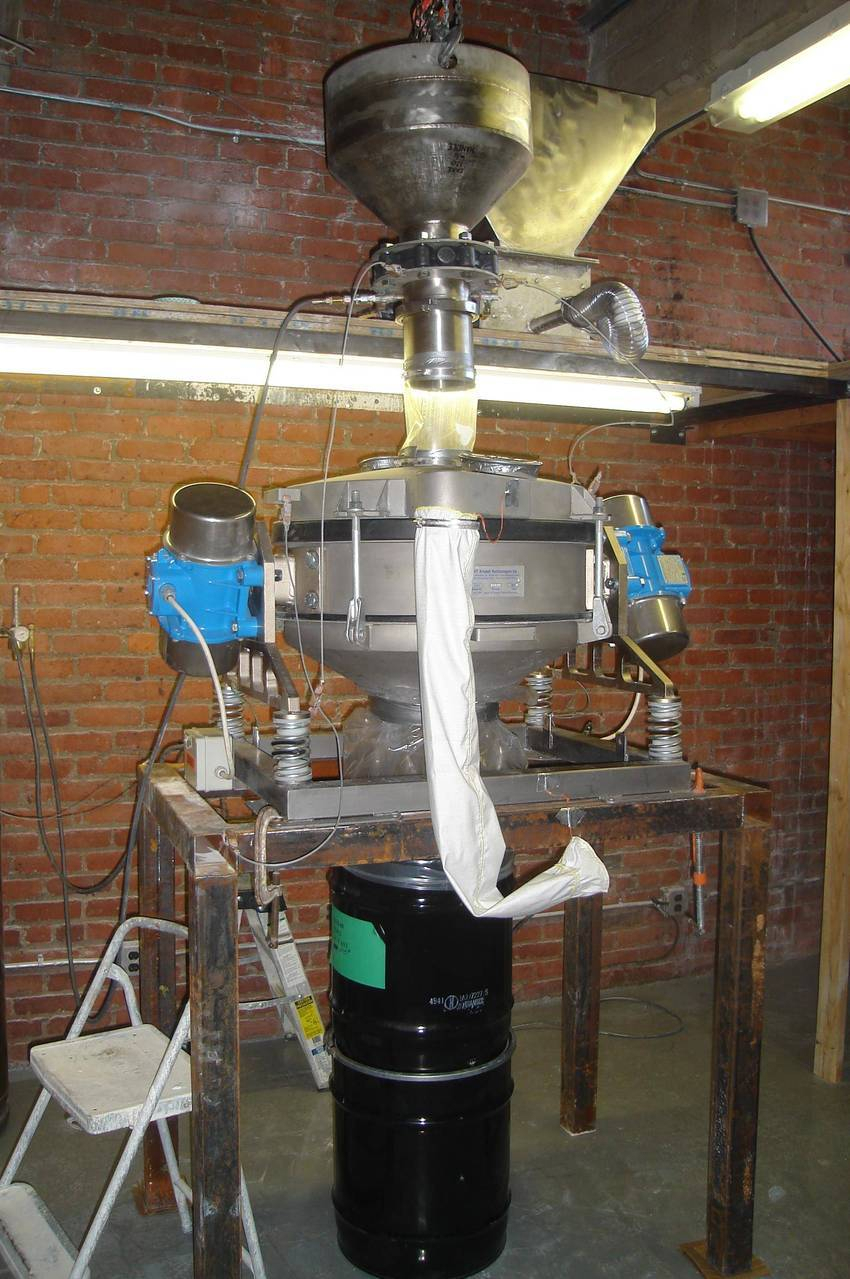

May 05, 2009 Kroosh SXE vibratory screeners are suited for safety screening and sizing classification of various powder materials. Units feature double-deck design, with active sieve area of each deck equal to 0.25, 0.55, or 0.95 m², and allow on site sieve replacement. Operating in multifrequency vibratory-impact modes, they provide self-cleaning of sieves, fluidization/stirring of powder, and deagglomeration of powder clusters. Deblinding system activates from energy of vibrator motors.

TKF, Inc.    Cincinnati, OH 45203

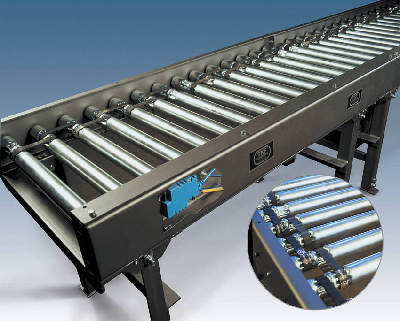

May 05, 2009 With drive gears formed directly into its rollers, lubrication-free PosiGrip Accumulation Conveyor has no separate sprocket or gears and no welded drive components. Motorized rollers, each with adjustable acceleration/deceleration, are powered by smooth-operating and quiet, synchronous belting in positive drive. Along with self-contained electrical components, zero pressure accumulation conveyor has individually controlled zones up to 75 x 48 in. that support loads up to 400 lb each.

Schunk    Morrisville, NC 27560
May 05, 2009 UNILOCK NSA series provides rapid change over between setups with less than 0.0002 in. repeatability. Workpieces are positioned in place within seconds, ensuring absolutely secure clamping during machining. Fully sealed against contamination, series takes up minimal machine space while simplifying workpiece changing and providing reliable, clean, and chip-free support surface. Forced airflow removes chips and contamination from short tapers during automated pallet changing.

Schunk    Morrisville, NC 27560
May 05, 2009 Permitting run-out accuracy of less than 0.003 mm, TRIBOS-SVL Toolholder Extensions allow precise and smooth machining of workpiece areas that are difficult to access. Units can be combined with variety of toolholders, including TENDO hydraulic expansion toolholders, CELSIO heat shrink toolholders, and TRIBOS toolholders. When used with TENDO hydraulic expansion toolholders or TRIBOS-R polygonal toolholders, both systems have vibration damping effect.

Philips Lighting Co.    Somerset, NJ 08875
May 05, 2009 Offering alternative to T5 HO 54 W lamp, Energy Advantage 49 W T5 HO Lamp contains only 1.4 mg of mercury. Unit features high lumen maintenance of 95% and Color Rendering Index of 82-85, helping to support LEED certification. Available in 3,000, 3,500, 4,100, and 5,000 K color temperatures, lamp is suited for high bay applications within retail big box and warehouse/industrial spaces.

ABB Instrumentation    Warminster, PA 18974
May 05, 2009 Available in 1/10-4 in. sizes, HygienicMaster is manufactured from FDA approved materials and certified in accordance with EHEDG and 3A, making it suited for food and beverage, pharmaceutical, and biotech industries. Unit offers range of process connections, fully CIP/SIP cleanable sensor, and reinforced PFA liner, which optimizes vacuum stability and prevents potential liner deformation. Standard HART protocol enables online modification and monitoring of parameters.

Colson Caster Corp.    Jonesboro, AR 72401
May 05, 2009 Built from durable stainless steel, 2 Series Precision Swivel Forks feature permanently sealed and metal-housed precision bearings, eliminating need for monitoring and servicing of bearing structure. Precision swivel mechanism with tight, zero end-play characteristic provides smooth running with true fidelity of motion. Suited for corrosive and harsh environments, forks pair with assortment of 5 and 6 in. dia wheel products.

Allegro MicroSystems Inc.    Worcester, MA 01615
May 05, 2009 Suited for wide variety of applications, 2 A fixed off-time, current-mode-controlled buck-switching regulator A4447 operates in both continuous and discontinuous modes. It requires external clamping diode and inductor and filter capacitor, and uses internal blanking circuit to filter out transients, while off time is determined by external resistor. Typical blanking time is 200 nsec, and output voltage is adjustable from 0.8-24 V based on resistor divider and 0.8 V ±3% reference.

FCI    Etters, PA 17319
May 05, 2009 Handling minimum of 50 mating and unmating cycles, solder-to-board D-Sub Economy Range connector is suited for indoor applications with operating temperature of -20 to +105ºC. It is available in densities of 9-37 positions in straight and right-angle versions, which are available in U.S. footprint of 2.84 mm with connector height of 6.3 mm, and European footprint of 2.54 mm with connector height of 7.2 mm. Applications include set-top boxes, control devices, and energy meters.
