Testing Machines, Inc.    Islandia, NY 11749

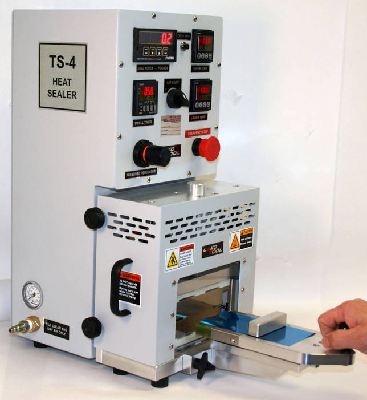

May 19, 2009 Inteded for laboratory use, TS-4 comes in Standard and ISJ (interchangeable seal jaws) versions and is used to prepare heat seal samples for measurement of sealing strength of various substrates. Foot pedal automatically cycles sealing jaws, while load cell system measures and displays total force applied to film sample. For efficient operation, compact unit features microprocessor control of temperature, cycle rate, and dwell time.

Calex Mfg. Co., Inc.    Concord, CA 94520

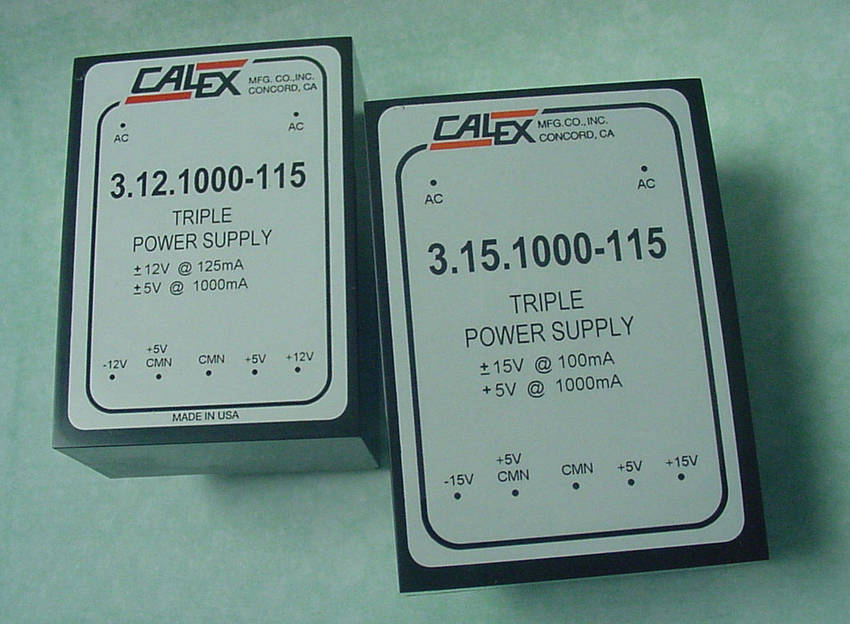

May 19, 2009 Suited for powering sensitive analog circuitry, 3.15.1000 power supply offers 1 A on 5 V output and ±100 mA on ±15 V output while 3.12.1000 supply provides 1 A on 5 V output and ±125 mA on ±12 V output. With operating temperature of -25 to +50°C, both models provide short circuit protection through foldback current limiting. Voltage accuracy is ±1.0%, line and load regulation is ±0.20%, and output noise and ripple is 2 mV rms. Units measure 3.5 x 2.5 x 1.56 in. and mount to PCBs.

QNAP Systems, Inc.    Taiwan   China
May 19, 2009 Adopting 1.6 GHz Intel® Atom(TM) processor, 1 Gb DDRII memory, and Disk on Module architecture, TS-239 Pro delivers performance suited for data-intensive business environments. NetBench test result reveals throughput rate of over 350 Mbps when 20 clients are accessing NAS simultaneously. In addition to built-in iSCSI target service (max 8 iSCSI devices), support is provided for two 2 Tb HDDs, hot-swappable disk trays with locks, 2 Giga LAN ports, 3 USB 2.0 ports, and 2 eSATA ports.

Qosina Corp.    Edgewood, NY 11717 8329
May 19, 2009 Designed to facilitate equipment cleaning, precision swab (Part No. 18044) has 3.6 mm head ultrasonically welded onto a polypropylene handle. Polyurethane foam head minimizes chance of contamination from cotton lint and is optimized for particle entrapment or solvent distribution. Measuring 2.75 in. long, swab is suited for cleaning hard-to-reach areas such as optics or other small angled corners.

Teknor Apex Co.    Pawtucket, RI 02861

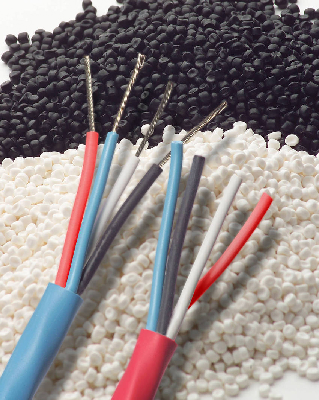

May 19, 2009 Available with Shore A hardness from 56-88, Telcar® TL-1934 Series TPEs are styrenic formulations used for insulation, jackets, and molded parts on flexible cords, coil cords, and cables. RoHS-compliant compounds feature dielectric constant of 2.4 and exhibit minimal dissipation losses. Offering rubber-like flexibility, oil-resistant formulations are suited for temperatures as low as -60°C and pass UL-1581 continuous rating of 105°C.

Scott Brothers Ltd    Cheshire, CW10 9LT   United Kingdom
May 19, 2009 Pack-Mate Flat Storage and Volume Storage bags incorporate cap-less Q2 valve technology(TM) to accelerate compression and facilitate use. Valve automatically opens and closes as vacuum cleaner nozzle is applied and switched on/off to aid in extracting air from bags, which are airtight, waterproof, and reusable. Pack-Mate Travel Storage bags feature a check valve and do not require vacuum cleaner to remove air; outdoor version of this roll bag features nylon mesh.

Servo-Robot Corp.    Bruno, QC J3V6E1  Canada
May 19, 2009 Based on intelligent 3D image processing, AUTOTRAC/WT provides non-contact seam tracking and adaptive submerged arc welding of wind turbine tower tubes. Miniaturization of all electronics minimizes footprint while optimizing power and digital convergence. System has no moving parts, yet digital technology is not affected by reflective surface conditions that can fool other artificial vision techniques.

AAEON Technology Inc    Taipei   Taiwan
May 19, 2009 Model AEC-6930 supports Intel® Core 2 Duo 1.6 GHz processor with 2 DDRII SDRAM SODIMM system memory up to 4 GB. It also includes 4 COM and 4 USB 2.0 ports, 4 GbE connections, as well as 2 PCI and 3 PCMCIA slots for I/O, and CompactFlash and SATA/IDE HDD storage for data access. Housed in heat spreading rugged aluminum alloy chassis, unit also offers DVI-I port which allows VGA function via Y cable and supports MXM Graphic Expansion.

ADLINK Technology Inc.    Irvine, CA 92618

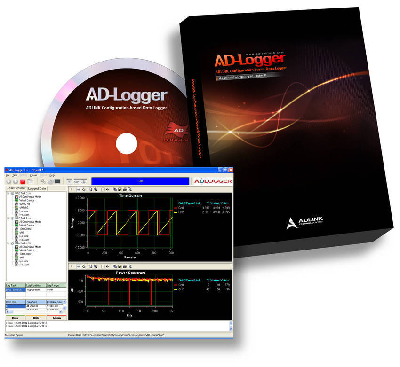

May 19, 2009 Offering configuration-based means to log data, AD-Logger(TM) can be used with ADLINK data acquisition or digitizer cards to log data from variety of sensors, including thermocouples, RTDs, thermistors, strain gages, and accelerometers. Program provides real-time viewer with basic FFT power spectrum analysis and historical view. Logged data can be exported to external applications such as NI® LabVIEW(TM), NI® DIAdem(TM), and MathWorks® MATLAB® for post-analysis.

Arcus Technolgoy    Fremont, CA 94539
May 19, 2009 Integrating driver, controller, and Renishaw's AM256 magnetic encoder into back cap, Model DMX-K-SA-11 features 1.1 in. square form factor and is capable of full, ½, ¼, or 1/16 microsteps in 3 different stack sizes. Motor includes RS-485 communication with baud rate of 9,600-115 Kbps, trapezoidal acceleration profile control, 12-24 Vdc voltage input, and driver current from 100 mA to 1.5 A. Motor's 8-bit encoder chip provides non-contact angular position encoding over 360°.

TDK-Lambda Americas Inc.    San Diego, CA 92154

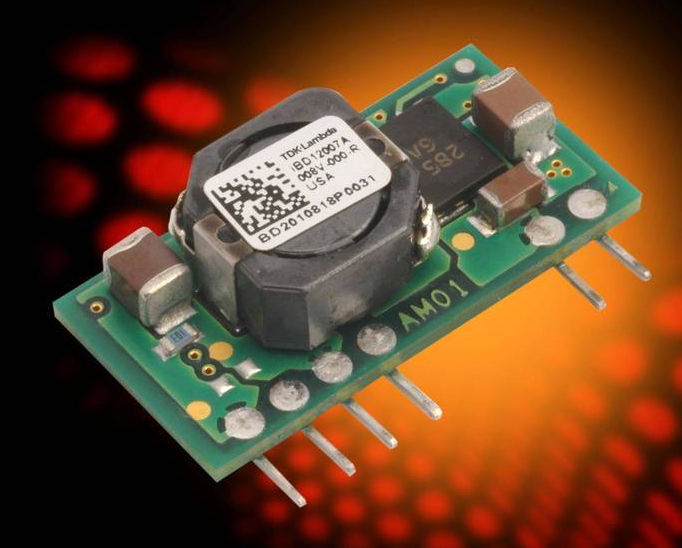

May 19, 2009 With DOSA-compatible pin-out, iBD series of 7 A nonisolated, thru-hole-mounted, DC-to-DC converters are suited for powering various loads in architectures such as distributed power and 4:1 and 5:1 unregulated bus converter systems. They provide output adjustment range from 0.8-5.5 V and have power conversion efficiency of up to 92%. Standard features include fixed-frequency operation for minmial EMI/RFI noise, auto-recovery of input undervoltage, and output overcurrent protection.

Linear Technology Corp.    Milpitas, CA 95035

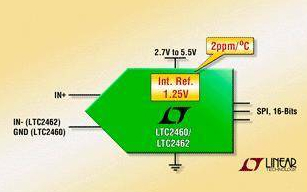

May 19, 2009 Featuring internal 1.25 V reference, LTC2460 can measure single-ended input from 0-1.25 V, while LTC2462 can measure differential input up to ±1.25 V. Both offer 16-bit DC performance of 1LSB integral nonlinearity error, 2.2 µVrms transition noise, and 0.25% maximum gain error. Drawing 2.5 mA supply current at 60 Hz maximum sample rate, they operate up to 60 conversions/sec for use in temperature, pressure, and voltage sensing applications. Units are offered in 3 x 3 mm DFN package.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117

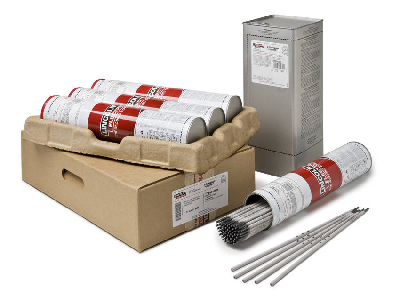

May 19, 2009 Designed for structural fabricators working in flat and horizontal positions, Excalibur® 7028 provides smooth, even burn-off and clean weld puddle. Optimal arc characteristics across wide current range give welders ability to deposit fillet and lap welds without undercutting. With Charpy V-notch test results typically falling in range of 60-142 ft-lbf at -40°F, electrode is suited for ships and bridge structures, storage tanks, and general heavy industrial fabrication jobs.

Nilfisk Industrial Vacuums    Morgantown, PA 19543

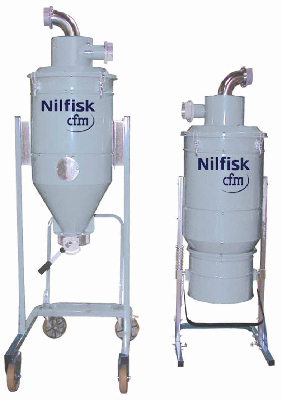

May 19, 2009 When used in conjunction with industrial vacuum cleaners, Nilfisk CFM Hopper Separators can help plant managers increase collection capacity, separate ingredients for re-use, or account for collected materials. Each unit can be equipped with self-cleaning cartridge filtration for large or heavier particles and has 3 options for disposal of collected debris. Various discharge valves and operation controls are available, such as electro-pneumatic reverse purge filter-cleaning system.

Tyz-All Plastics, Inc.    Plainview, NY 11803
May 19, 2009 Available on sheets, ARO-TIES(TM) ATP 45, ATP 55, and ATN 45 Tie Strips are nylon plastic cable ties offered in range of sizes. High-density polyethylene ties are reusable and releasable, making them suited for closure and fastening strap and tie applications, including computer cables, wire harnesses, bags, containers, and cargo closures.

Midwest Motion Products    Watertown, MN 55388

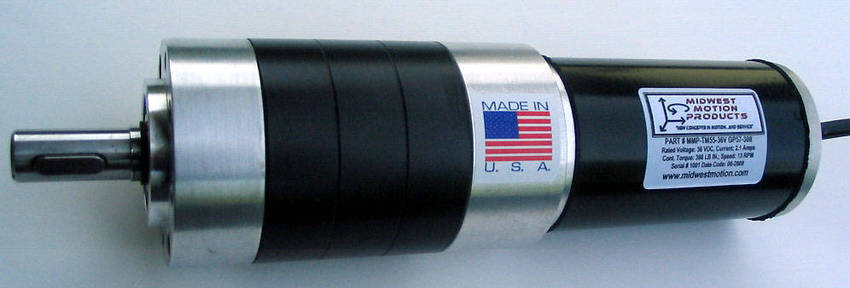

May 19, 2009 With full continuous output torque of 398 lb-in., Model MMP-TM55-36VGP57-308 consumes 2.1 A of current and delivers 13 rpm of continuous output speed. Reversible gearmotor measures 2.14 in. dia x 7.75 in. long and incorporates 12 mm dia x 25 mm long keyed output shaft. Unit mounts using 4 face-mount M5 threaded holes, equally spaced on 40 mm dia B.C. Motor windings for 12, 24, 48, 60, and 90 V are available for IP54-rated devices.

Northfield Precision Instrument Corp.    Island Park, NY 11558
May 19, 2009 Able to mount on pallets as work is mechanized at different stations, Model 1000 3-Jaw Chuck is suited for lathes, milling machines, power, and specialty applications. Spring clamp unit features hardened and ground face plate with coolant grooves to flush dirt and chips away. Sub jaw holds pull-down inserts to pull workpiece into face or zero axial location, and, at end of cycle, air opens chuck for parts loader.

Vecoplan, LLC    Archdale, NC 27263
May 19, 2009 Featuring 52 x 48 in. hopper opening, RG52U Shorty Shredder is designed specifically for wood residue, trip blocks, panel scraps, dunnage, cardboard and paper, and light plastics. Powered by 60 hp motor, shredder's 15 in. diameter rotor has 37 cutting inserts, turns at 120 rpm, and is fed by 2-speed hydraulic ram. Short feed ram maximizes utilization of space in new facilities or allows machine to be retro-fitted in tight areas.

Readco Kurimoto, LLC    York, PA 17402
May 19, 2009 Designed for smaller continuous batch powder blending operations, RK Labmaster features touch screen control, speeds up to 5,800 fpm, and process modules from 1-12 quarts. These allow scalable production to larger size units while facilitating operation, monitoring, and cleanup. Also available, RK-1 one in. dia continuous mixer allows mixing of one or more dry or liquid ingredients. It can produce up to 10 lb/hr and discharges homogenous product at end of process.

Sauer-Danfoss    Ames, IA 50010
May 19, 2009 Designed as 38-pin controller, PLUS+1(TM) MC038-010 features 15 inputs and 13 outputs, including 6 and 10 A outputs. When in sleep mode, outputs are disabled and device enters low power consumption condition. Unit is suited for night lighting, and control of variable speed DC electric motors and high-current solenoids. Equipped with 36 input pins, 3 CAN ports, 3 output pins, and 3 levels of sensor power supply, 50-pin PLUS+1 MC050-055 facilitates data management between multiple CAN bus systems.
