Bell & Gossett    Morton Grove, IL 60053
Oct 08, 2008 Designed for domestic hot water and closed-loop heating systems, NRF-25 and NBF-25 employ 3-speed switch and motors that promote coverage for range of hydraulic capabilities. Elements of construction include DuraGlide(TM) Bearing System, heat-resistant and non-metallic closed impeller design, as well as self-cleaning particle shield. Covering multiple hydraulic settings, circulators offer flow rates from 24-45 gpm and heads from 19-33 ft. Optional check valve is available for NRF-25.

Videx, Inc.    Corvallis, OR 97330
Oct 08, 2008 Supporting browser-based access by up to 5 managers simultaneously, CyberAudit-Web Professional enables use of various communication devices to exchange information between up to 500 electronic keys and software. With targeted installations of up to 15,000 locks/keys, Enterprise can delegate administration to different departments/regions. Stand-alone program, Lite, helps add electronic access control to doors/cabinets, accommodating installations of up to 50 electronic locks/keys.

William Frick & Co.    Libertyville, IL 60048
Oct 08, 2008 Made of PVC, Cable Clippers(TM) come in 12 in. lengths and 2-4 in. widths as well as custom sizes to accommodate any cable thickness and offer area for customized, outdoor-durable label made with customer-supplied messages, phone numbers, and logos. Products, which can be installed from ground level, help identify ownership and pole attachments without need for bucket trucks or ladder work. Integrated adhesive strip secures to any type of cable, and service life is rated from 7-10 years.

Gigahertz-Optik Inc.    Newburyport, MA 01950 4009
Oct 08, 2008 Featuring 4-channel multiplexed technology, X1-1 can operate and display multiple detector measurements of XD-450X 3-Cell Detector series. Sharing common cosine correcting diffuser, XD-4503 includes flat visible (400-800 nm), flat UVA (315-400 nm), and UVB (280-315 nm) detectors in 45 mm dia x 30 mm high housing. Remote controllable, hand-held optometer features autoranging from 0.1 pA to 200 µA or manual range selection, dose mode, and selectable 20 ms to 1 second integration time.

Edmund Optics    Barrington, NJ 08007
Oct 08, 2008 Using parallel rays, Telecentric Backlight Illuminator eliminates parallax errors, making it suitable for machine vision applications that need to measure edges. Silhouetting object provides high contrast for optimal edge detection while minimizing unneeded surface detail. Compatible with Silver Series Telecentric measuring lenses, illuminator accepts ¼ in. fiber optic light guides or 0.312 in. LEDs.

QTC Gears - Quality Transmission Components    Garden City Park, NY 11040
Oct 08, 2008 Made of SUS303 stainless steel, SUSL Series of Modules 0.5, 0.8, and 1 spur gears features Fairloc® integral hub fastening system, which eliminates marred shafts. These 20° pressure angle precision gears conform to JIS N8 Grade standards and are designed to fit shafts from 4-10 mm in diameter. Available with face widths from 5-8 mm, products have compact, self-contained design with sizes ranging from 14-120 teeth.

Spring Tools    Spokane, WA 99206
Oct 08, 2008 Featuring 82.5° beveled edge, Self Centering Center Punch creates perfectly centered holes for mounting brackets, hinges, and other beveled surfaces. Design delivers direct striking force of up to 3,500 psi to working surface, and user controls amount of force applied to surface by varying spring tension. Suited for working in tight spaces and precision jobs, product is made of tool steel and hardened for optimal performance.

Fibox Enclosures    Glen Burnie, MD 21061
Oct 08, 2008 Manufactured from injection-molded polycarbonate, ARCA(TM) Enclosures come in 10 standard interior sizes ranging from 6 x 6 x 4 in. to 18 x 16 x 10 in. All units offer opaque or transparent covers and feature overlapping cover design, providing protection of formed-in-place polyurethane gasket. Suited for electronics, instrumentation, controls, and automation applications in both indoor and outdoor environments, enclosures are UL Listed and NEMA rated Type 4, 4X, 12, and 13.

Cooper Power Tools    Lexington, SC 29071
Oct 08, 2008 Utilizing same 10 tools to 1 line controller, Cleco LiveWire tools with Vmax(TM) operate as tethered solutions capable of speed increases up to 83%. Vmax technology auto-senses applied battery or tethered Vmax power source and transitions maximum tool speed capability appropriately. LiveWire tools feature 2.4 GHz WLAN, programmable wireless security encryption and authentication, as well as 512-cyle tool memory buffer that ensures no safety critical data is ever compromised.

Zontec Inc.    Cincinnati, OH 45240
Oct 08, 2008 Synergy 1000(TM) v6 features setup screen for creating process files with up to 500 measurement or inspection characteristics at once. It provides detailed certificate of analysis report and email notification for out-of-control and/or out-of specification conditions, as well as traceability tag function. Rainbow control chart and math calculator are included and program allows viewing of PDF or Word® documents. Also, it supports JPG and BMP drawings and is compatible with all Windows® OS.

IDEC Corporation    Sunnyvale, CA 94089-2209
Oct 08, 2008 Available in 2 and 3 positions with 24 Vac/dc illumination, LW Silhouette Switches project only 2 mm from panel and provide up to 60 key variations. Users can choose from several operator types, including maintained, spring return from right or left, or 2-way spring return. Offered in round and square shapes, switches feature IP65 degree of protection and come in PCB, solder tab/quick connect, and screw terminal versions.

ITW Devcon Environmental Products    Danvers, MA 01923
Oct 08, 2008 With mixed viscosity of 22,000 cps, Clear Welder(TM) two-part adhesive is formulated to produce clear bond line on various plastics including acrylics, PMMA, FRP, ABS, PVC, and PETG. It requires little or no surface preparation, has typical hardness of 82 Shore D, and withstands service temperatures from -67 to 200°F. Available in 380 mL co-axial cartridges, unit is mixed as dispensed in 10:1 ratio with manual/pneumatic dispensing gun and attains functional cure in 2 hr at room temperature.

PDC International Corp.    South Norwalk, CT 06854

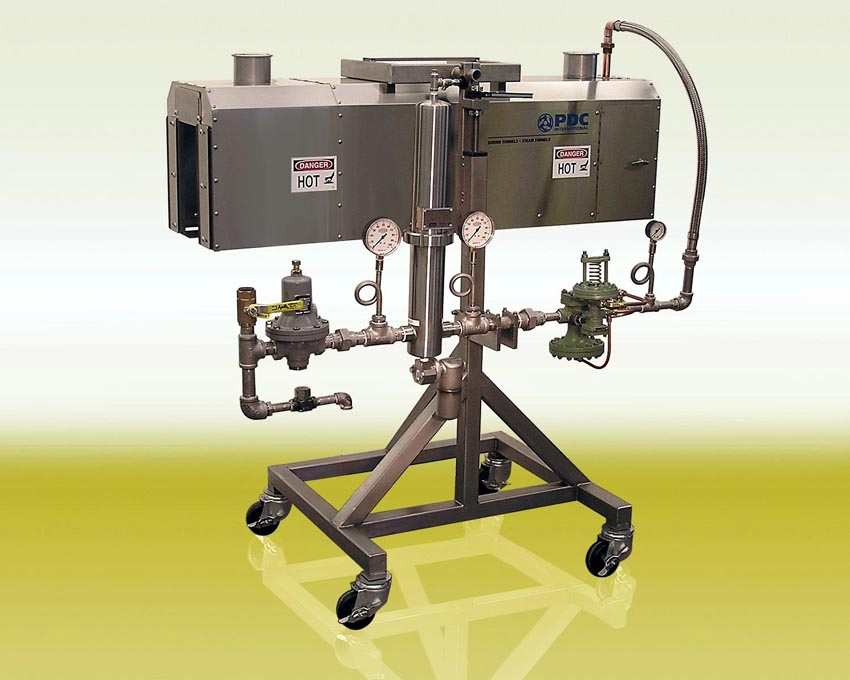

Oct 08, 2008 Suited for contract packers, food and beverage companies, and firms that need tunnel to run heat shrinkable sleeve labels and tamper evident bands, single-zone shrink tunnel can be used as third zone for dual-zone system. It has nozzle positioning technology, dual-wall SS construction, and 5 rows of steam distribution tubes on each side that are externally adjustable for steam volume. Opening dimensions are 4-12 in. in height and 5-7 in. in width, depending upon application.

J. W. Winco, Inc.    New Berlin, WI 53151
Oct 08, 2008 Made of steel, Hand Retractable Spring Plungers are suited for applications requiring any part to be located or indexed into position. Available in inch sizes and featuring knurled handle, non lock-out type spring plungers have yellow zinc-plated body and pin. They are offered with or without sealing patch, and a stainless steel version is also available.

Intelligent Micro Patterning, LLC    St. Petersburg, FL 33703
Oct 08, 2008 SF-100 XTREME maskless photolithography system utilizes Smart Filter technology, which incorporates micro-optical techniques to rapidly project master images directly onto diverse substrate materials. Microfluidics Research Option test capabilities include varying excitation and emissions spectra, allowing for gray scale spatial illumination and fluorescence imaging and measuring particles in flow, including creating particle image velocimetry like conditions.

Material Transfer & Storage, Inc.    Allegan, MI 49010 0218
Oct 08, 2008 Designed for Class I, Division II, Group D, explosionproof service, PowerFill(TM) features 316L stainless steel product contact surfaces, Power-Lift(TM) fill head height adjustment system, stainless steel loading deck, bag present sensor, and fully integrated bag inflation package. Housed in pressurized NEMA enclosure, it also features dust-tight inflatable spout seal, wash down duty weigh modules, and digital weight indicator to ensure precise, dust-free material filling.

Magic Power Technology Inc.    Sunnyvale, CA 94085
Oct 08, 2008 With thermally efficient U-chassis design, MPI-706H Fanless ATX 1U compliant power supply generates 80 W utilizing 8.6 cfm forced air-cooling or 60 W using convection cooling. It is suited for use with mini-ITX and other industrial applications requiring low power consumption, small size, and cool, silent operation. Unit uses universal AC input, is rated at +50°C with linear derating factor of 2.5%/°C to 50% capacity at +70°C, and has MTBF of greater than 130,000 hr.

Rohde & Schwarz GmbH & Co      Germany
Oct 08, 2008 R&S ETH portable TV analyzer allows network operators to perform coverage measurements in field, at public sites, or in buildings. Supporting DVB-T and DVB-H standards, it comes in 4 models with frequency range of 100 kHz to 3.6 GHz or up to 8 GHz, with or without tracking generator. Features include MER value of greater than 40 dB, high-contrast color display, and preselector and preamplifier that raise dynamic range and sensitivity so weak signals can be detected via antenna.

Thomas Equipment, Ltd.    Centreville, NB E7K3G4  Canada
Oct 08, 2008 Featuring high-lift bucket height over 11 ft, operating weight of 7,200 lb, lift capacity of 1,850 lb, and over 2 tons of breakout force, Thomas 185 Skid Steer Loader upgrades and replaces Thomas 175. It is powered by 4-cyclinder 59 hp Tier-3 engine that meets environmental standards and moves at nearly 8 mph. Loader also features 2 in-line hydrostatic pumps to lift, pull, and hoist, dump height over 9 ft, sure grip 8- or 10-ply tires, and range of attachments and options.

Vista-CCTV    Wokingham RG41 5TS  United Kingdom
Oct 08, 2008 Featuring multi-protocol telemetry on both coaxial and RS485 formats, VM8 matrix switcher is offered in 6 options, from 16-96 camera inputs, in groups of 16 cameras. Users can control PTZ/static cameras from up to 4 keyboards, switching any camera to up to 8 different monitors. Up to 96 optional alarm inputs are available and each individual input can be programmed to alarm 4 different cameras including switching cameras to different monitors, presets, and triggering output relays.
