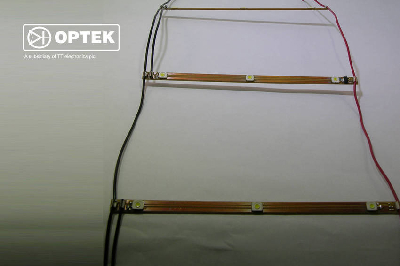

Optek Technology, Inc.    Carrollton, TX 75006-6905
May 28, 2009 Designed specifically for illumination of small- and medium-size display applications, OPA775/OPA776 Jacob's Ladder Series provides 50 lumens/strip with drive current to each LED of 125 mA. Operating at 12 V, Model OPA775 consists of one strip of 7.5 in. FR-4 board with 3 LEDs. One to 30 strips may be connected per buss. Model OPA776, operating at 24 V, consists of 2 strips of 7.5 in. FR-4 board with 3 LEDs on each strip and jumper wire connecting them.

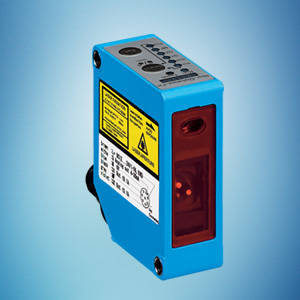

SICK, Inc.    Minneapolis, MN 55438
May 28, 2009 Targeting quality control applications in automotive, robotics, and electronics/semiconductor markets, OD Value Series uses CMOS technology, which allows measurement of targets regardless of color or reflectivity. Stand-alone units include bar graph display for installation and maintenance. Variety of sensing ranges and 4 different output styles are available.

Henkel Loctite Corporation    Rocky Hill, CT 06067
May 28, 2009 Hysol® UF3800(TM) exhibits lack of need for substrate pre-heat that, combined with room temperature fast flow and low-temperature curing properties, helps manufacturers improve throughput rates. Designed for use with CSP and BGA devices, halogen-free underfill has reworkable nature and offers stable electrical performance under temperature humidity bias (THB). Solution is compatible with various Pb-free and halogen-free solder pastes, providing process flexibility.

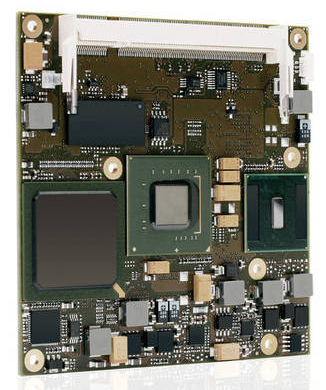

Kontron    Poway, CA 92064
May 28, 2009 Suited for development of mini devices, microETXexpress-DC employs 1.6 GHz Intel® Atom(TM) processor N270 with Hyperthreading, 533 MHz FSB, Intel 945GSE/ICH7M chipset, and Intel GMA 950. It delivers 3D graphic power and dual independent display support (via SVDO, LVDS, VGA, and TV-out) and has 8.5-18 V input range. Measuring 95 x 95 mm, module offers S5 Eco state that reduces power-off consumption to less than 1 mA. Support is provided for range of I/O and up to 2 GB DDR2 533 RAM.

Flexaust Co., Inc., The    Warsaw, IN 46581
May 28, 2009 Flexadux® TR-Series Thermoplastic Rubber Hose is flexible, compressible, and provides moisture, chemical, and UV resistance. Two versions are available and both are supplied with 2 in. soft cuffs and connect using standard clamps and accessories. Flexadux® TR-LT come in sizes 1½ to 16 in. I.D. with 0.020 in. wall and Flexadux® TR-XLT comes in 2 to 6 in. I.D. with 0.012 in. wall.

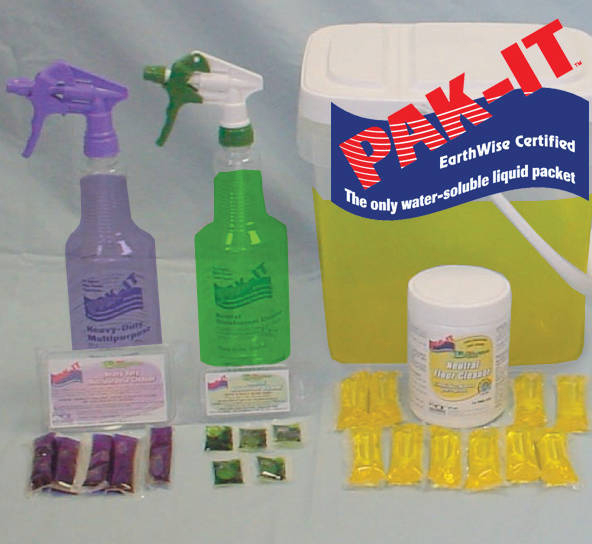

DCL Solutions    Philadelphia, PA 19124
May 28, 2009 Pak-It(TM) Cleaning Kits contain Pak-It pre-portioned liquid concentrates in water-soluble packets to accomplish all cleaning tasks for specific time period, simplifying ordering and inventory control. Cleaners and bottles are color-coded to specific cleaning tasks for quick product identification. Biodegradable, phosphate free, EarthWise and DfE certified formulations include cleaners for floors, carpets, kitchen, laundry, bathroom, and heavy-duty cleaners for deep scrubbing.

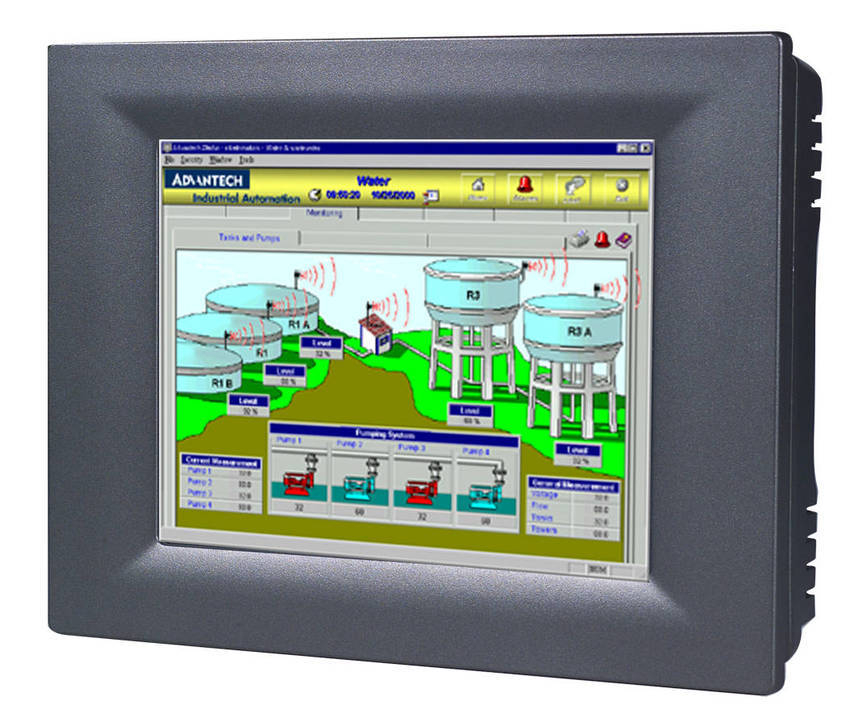

Advantech Automation Corp.    Cincinnati, OH 45240
May 28, 2009 Based on low power consuming Intel XScale PXA270 312 MHz processor, TPC-66T-E2BE 5.7 in. QVGA TFT LCD touch panel computer comes with 64 colors and 320 x 240 resolution. It provides multiple standard communication ports including 2 x RS-232, 1 x RS-485, 1 x Ethernet, and 1 x USB. Featuring NEMA®4/IP65 front panel capable of withstanding harsh industrial conditions, unit supports Microsoft® Windows(TM) CE and includes heat sink.

GAO RFID Inc.    Toronto   Canada
May 28, 2009 Equipped with multiple serial interfaces, series GAO227 automatically detects serial signal baud rate which allows for continued transmission of signal through RS-485, RS-422, or RS-232 to fiber converter. Unit extends serial transmission distance up to 2 km on multi-mode fiber or up to 20 km on single-mode fiber. Converter features high isolation voltage, anti-electromagnetic interference, and avoids lightning by using optical fiber as a communication transmission medium.

Schroff, Inc.    Warwick, RI 02886
May 28, 2009 Designed to prevent damage to board module due to over tightening, Calmark(TM) Series 223 and 224 five-piece Card-Lok retainers suit cold plate-heat exchanger applications. Standard hex wrench can be used to lock board module assembly into cold wall, while wedge action design provides maximum contact between thermal paths on board module assembly and heat-sinking surface for maximum thermal transfer. Retainers are offered in variety of standard lengths, mounting options, and finishes.

Valco Instrument Co., Inc.    Houston, TX 77255
May 28, 2009 Offered in natural PEEK, solid and dual layer color coded, and striped and dash-stripe coded versions, tubing uses colorants that are RoHS compliant. Dual layer tubing eliminates any possibility of contamination of critical sample stream by colorants, as only outer layer is pigmented. Available OD sizes are 360 micron, 1/32, 1/16, and 1/8 in., while standard ID sizes and colors are .005 in. Red, .007 in. Yellow, .010 in. Blue, .020 in. Orange, and .030 in. Green.

Capital Safety    Red Wing, MN 55066-5005
May 28, 2009 Climb Assist Ladder Safety System provides both climbing assistance and fall protection to workers ascending fixed ladder system within wind turbine tower. Utilizing 220 V motor, system is designed to lift between 45-120 lb, reducing worker fatigue and allowing for faster climbs. System includes top and bottom ladder bracket assemblies, motor assembly, and control panel, and can be installed using standard tools.

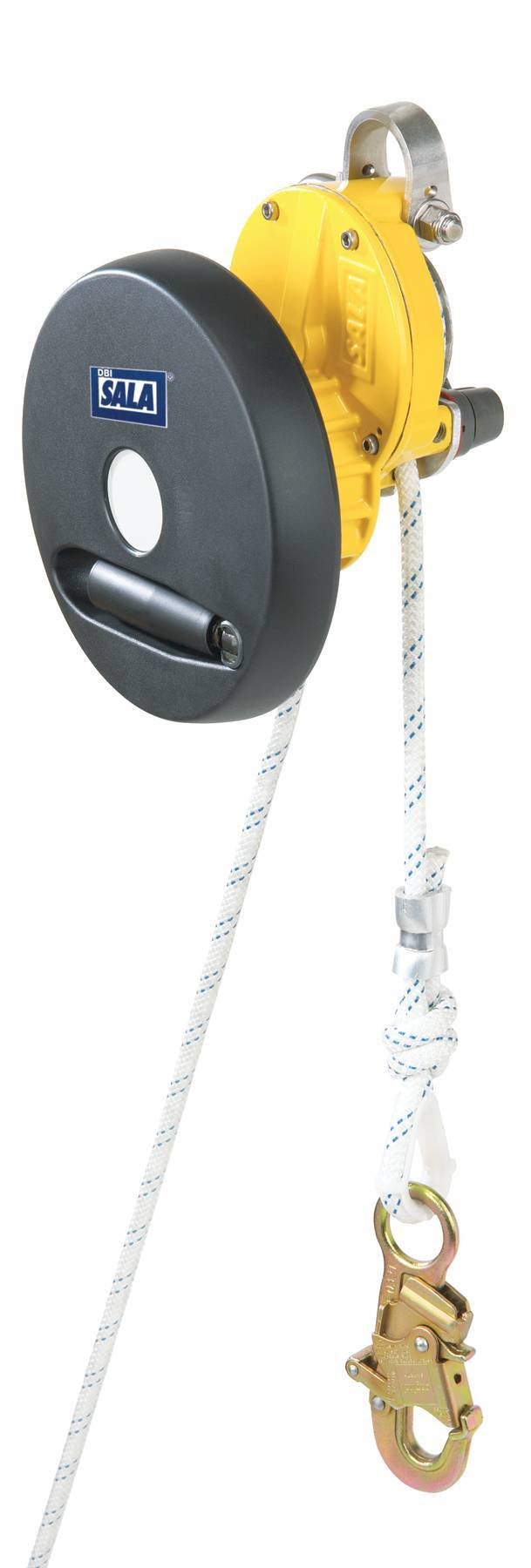

Capital Safety    Red Wing, MN 55066-5005
May 28, 2009 Allowing one end of lifeline to descend while other ascends to prepare for another rescue, Rollgliss R500 provides controlled descent speeds of 2-3 fps for emergency rescue and evacuation from wide range of elevated work areas. Fully automatic system is designed with corrosion resistant materials, and 9.5 mm super static kernmantle rope available in 25 ft increments from 50-1,000 ft in length. Optional lifting wheel helps facilitate safe assisted rescue from distance.

Bio-Chem Fluidics    Boonton, NJ 07005
May 28, 2009 Positioned upstream of sensitive instrumentation, Omnifit® Bubble Trap protects sensors from damage and prevents errors caused by gas bubbles in flow analysis systems, liquid chromatography instruments, enzyme reactors, and flow-through biosensors. Utilizing ¼ in. 28 UNF female threaded ports and fittings, Trap easily connects to in-line systems. Unit is pressure rated up to 30 psi and has typical operating range of 0.5-2.0 mLpm.

Greenheck    Schofield, WI 54476 0410
May 28, 2009 Available in ¼, ½ and ¾ hp sizes, electronically commutated high-efficiency motor Vari-Green is capable of operating from 20-100%. Unit offers 3 different control options including 0-10 Vdc input wiring, motor-mounted dial, or wall-mounted dial.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
May 28, 2009 Available with pushbutton configuration, inclination sensors are designed to detect and measure incline or tilt angle of machine elements or equipment platforms in single or dual axis applications, from 0° to 360° with accuracy of ±0.5°. They come with metal mounting brackets, outdoor IP68/69k rating and 4-20 mA or 0-5 Vdc analog outputs. Other features included are power supply range between 10-30 Vdc, 2 adjustable switching outputs and operating temperature ranging from -25°C to 85°C.

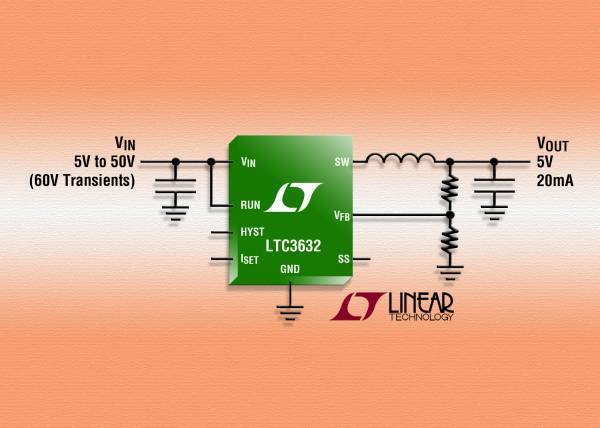

Linear Technology Corp.    Milpitas, CA 95035
May 28, 2009 Targeted for automotive and industrial 4-20 mA control loop applications, LTC3632 operates from input voltage range of 4.5-50 V with protection up to 60 V. It delivers up to 20 mA of continuous output current from 3 x 3 mm package. Unit utilizes internal high side and synchronous power switches, and is available with adjustable output voltage down to 0.8 V. Models LTC3632IDD and LTC3632IMS8E have operating temperature range from from -40 to 125°C.

Haas Automation, Inc.    Oxnard, CA 93030
May 28, 2009 Designed to mount in Y direction of mid-size VMC, TR160Y dual-axis trunnion rotary table measures less than 25 in. wide and 20 in. deep, and fits on one end of machine's table. It has 160 mm T-slot platter, and will swing parts up to 7.5 in. dia. Trunnion provides ±120° of tilt and 360° of rotation for full simultaneous 5-axis motion, or to position parts to any angle. Powerful brushless servomotors on both axes of TR160Y provide 150 ft-lb of torque on A axis and 100 ft-lb of torque on B axis.

Douglas Electrical Components, Inc.    Rockaway, NJ 07866
May 28, 2009 Compatible with variety of liquids and gases including refrigerants, oils, heat transfer fluids, and jet fuels, StudSeal(TM) hermetic feedthroughs transfer power into and out of sealed environments at operational loads up to 1,000 A and 15 kV. StudSeals typically consist of threaded rod on both sides of hermetic seal; other standard and custom solutions are available, such as crimp fittings and terminal-to-wire solutions occurring inside of epoxy and compression fittings.

Master Appliance Corp.    Racine, WI 53403
May 28, 2009 Model MT-30 Table-Top Microtorch is self-igniting, produces continuous hands-free adjustable flame up to 2,500°F, has built-in refillable, metal fuel tank and runs approximately one hr on full charge. Ignition system meets Consumer Products Safety Commission safety requirements, including slide lock safety feature that prevents accidental ignition. Its 3 in. dia circular base is stable and can be moved to any location or stored in small space.

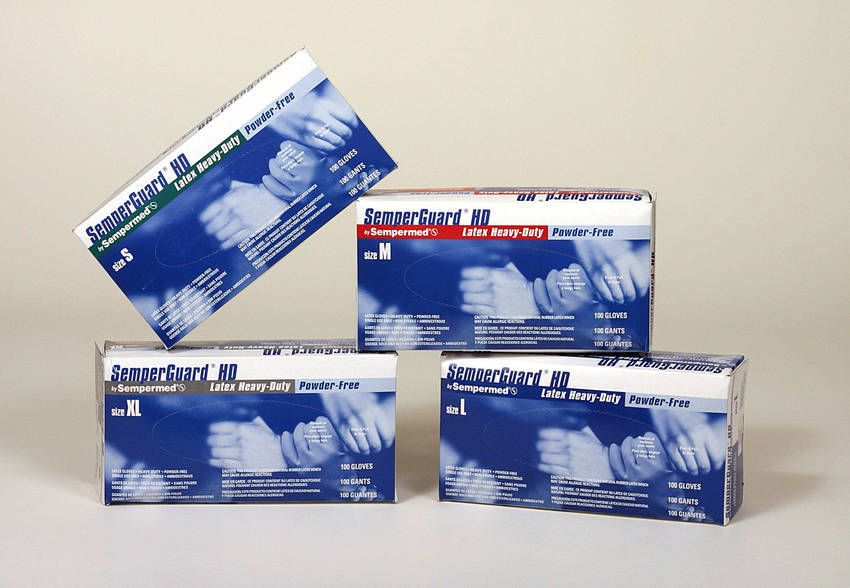

Sempermed USA, Inc.    Clearwater, FL 33762
May 28, 2009 Intended for industrial use, SemperGuard® Heavy Duty Latex powder-free industrial gloves have long, thick design that provides barrier protection for wrist and lower forearm. Textured surface provides tactile sensitivity and provides positive gripping characteristics.
