Lee Company, The    Westbrook, CT 06498 0424

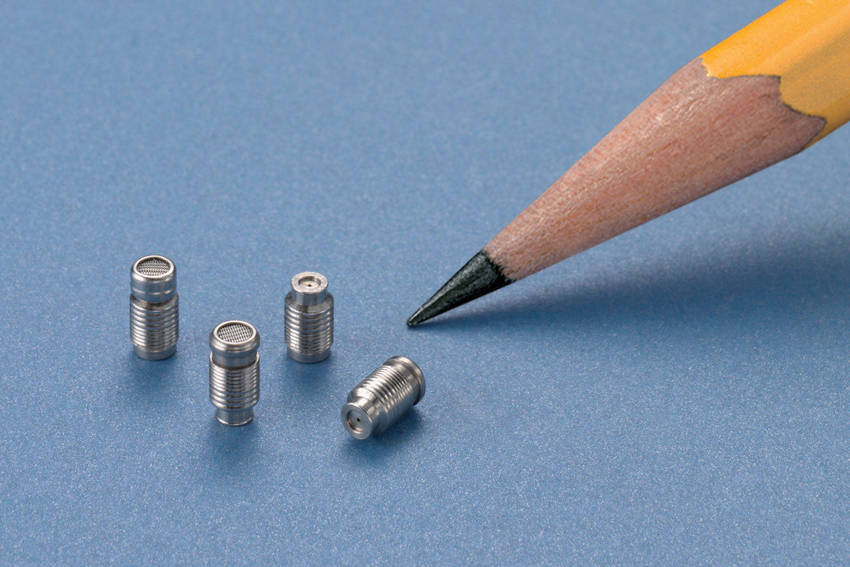

Jun 01, 2009 Constructed entirely of stainless steel, calibrated cartridge-style IMH Insert Orifices are available in range of flow rates, with orifice sizes as small as 0.002 in. Self-retained flow restrictors are available in 2.5 and 5.5 mm dia, and are offered with integral safety screen in certain models.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Jun 01, 2009 Suitable for any animal with tidal volumes of 30-350 µL and respiratory rates of 60-400 breaths/min, MiniVent features rod clamp that allows it to be positioned directly next to animal. Ventilator employs valveless rotary plunger that eliminates clogging during ventilation cycle. Inspiration and expiration is controlled by synchronized forward and rotating movement of cylinder and plunger. Compact and lightweight unit reduces tidal volume error due to system compliance to 3 µL.

Heritage Plastics, Inc.    Picayune, MS 39466
Jun 01, 2009 Pelletized mineral-containing BioTuf 976 film compound is based on blend of biodegradable resins, including aliphatic/aromatic co-polyester. Designed to be extruded and converted on standard low density PE or grooved-feed HMW-HDPE processing equipment, compound produces films with physical properties similar to linear-low density polyethylene.

Electro Standards Laboratories    Cranston, RI 02921 3403

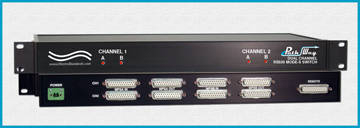

Jun 01, 2009 Pathway M7954 dual channel RS-530 mode-S switch's A/B function permits data on input MPS ports from either of 2 devices connected to ports MPSA-IN and MPSB-IN, to stream through to output ports MPSA-OUT and MPSB-OUT, respectively. Only one position may stream data at a time for each channel, and 12 pins/channel are supported. All position control is managed via remote port, featuring custom interface DB25 connector located on rear of unit.

PREMA Semiconductor GmbH    Mainz D-55129  Germany
Jun 01, 2009 Suited for use in automatic test environments, PR2201 has low typical input bias current of 5 pA and input offset voltage of typical ±2 mV, which can be further reduced by external trimming. With high differential input voltage of up to 60 V and low quiescent current of 500 µA, unit features gain bandwidth of up to 1 MHz and slew rate of more than 1 V/µs, suited for designing fast control circuits. Optional component PR2202 comes with 2 integrated op-amps.

BI Technologies Corp.    Fullerton, CA 92835-1051

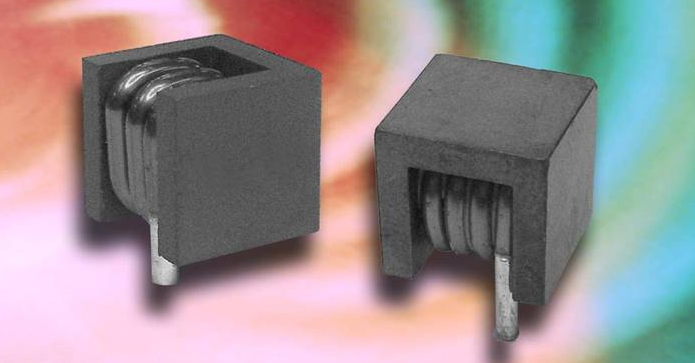

Jun 01, 2009 Suitable for motherboard and computer power applications, HM58 Series high-current low-loss cube inductor features heavy-gauge coil wire and exhibits saturation current rating up to 60 A at frequencies to 1 MHz. It has operating temperature range from -40 to +125°C and is available in standard tray packaging. DCR ratings are from 0.65-1.05 mW, with tolerances to ±5%. With through-hole configuration and 3 open sides, device requires footprint of only 11 x 11.5 mm.

GAO Instruments Inc.,    Toronto   Canada
Jun 01, 2009 With built-in FFT spectrum analysis, USB interface, automatic parameter measurements, and waveform recording function, dual channel GAO2101C is suited for low bandwidth debugging. Providing maximum repeating sampling rate of 250 MSa/sec, it captures signals triggered with edge, pulse, and video and analyzes synchronized signals with delayed scanning. Product helps engineers and technicians to perform complex measurements in science, medicine, engineering, and telecom industries.

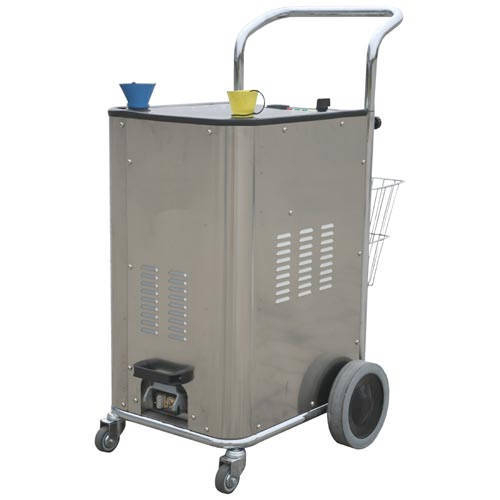

Daimer Industries Inc    Woburn, MA 01801
Jun 01, 2009 KleenJet® Ultra 8365C and Ultra 8485CV deliver 120 psi pressure and up to 329°F steam temperatures. Both models feature 14 L boiler, 10 L detergent chamber, and continuous refill via either 10 L water chamber or direct water feed from hose for long periods of non-stop use. Model 8485CV includes wet/dry vacuum with 2,200 mm of column lift, water filtration and 14 L extraction chamber. Systems utilize replaceable heating element technology.

Hach Co.    Loveland, CO 80539-0389

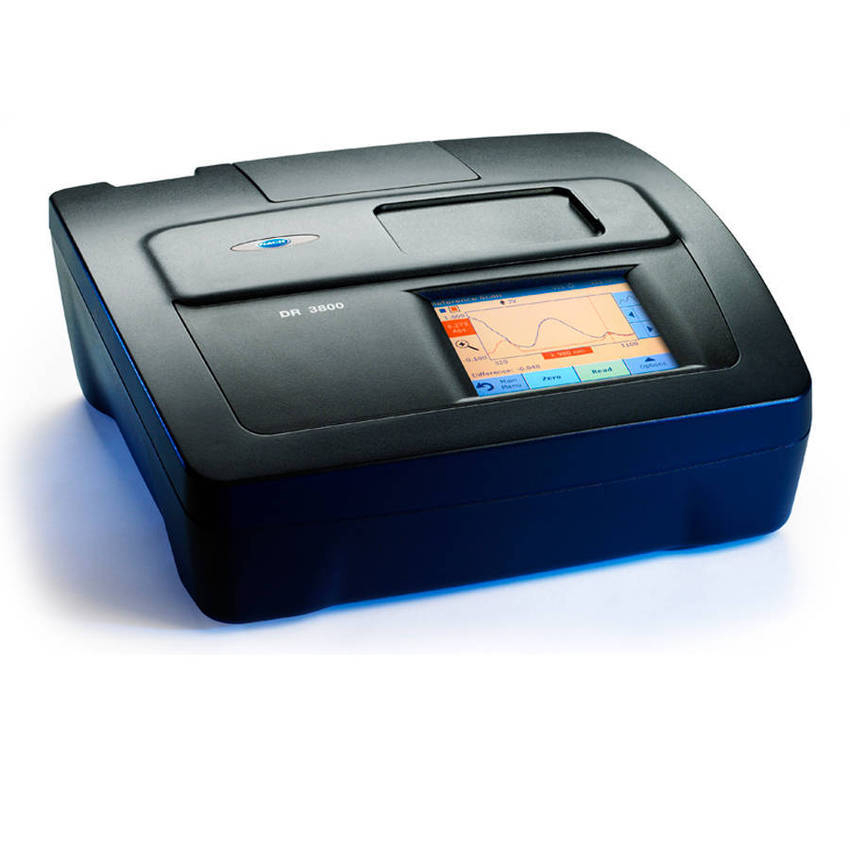

Jun 01, 2009 DR 3800 Benchtop Spectrophotometer features high-speed wavelength scanning in entire visible range, which can be used for method development or maintaining consistency of colored products. Color touch screen user interface displays warnings in red, while on-screen Help Guide working procedures helps reduce errors. Optional LINK2SC® software allows for comparison of lab and process measurements, providing user with timely information to control plant processes.

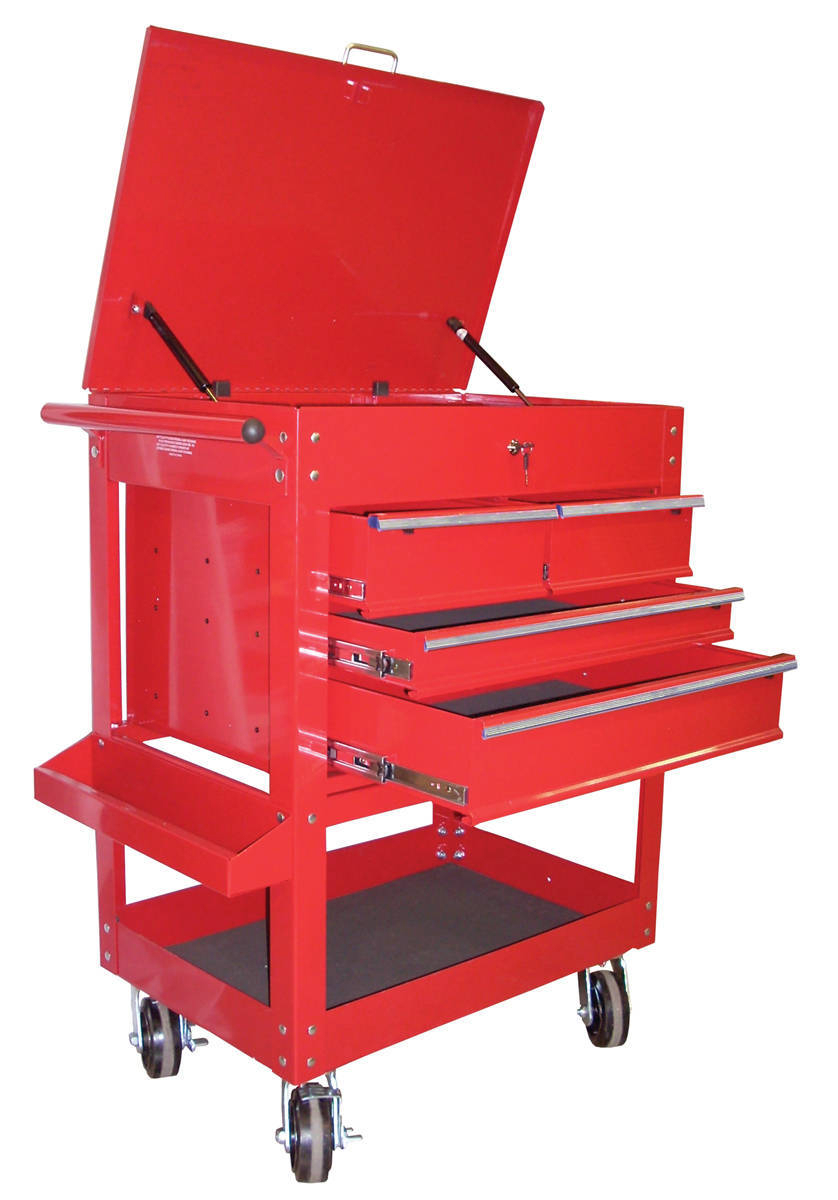

K-Tool International    Wixom, MI 48393
Jun 01, 2009 Available in 5 colors, 4 drawer utility carts have 2 gas struts in top storage tray for opening and closing, one-handed drawer locks that operate only when top lid is closed, and additional side storage tray for taller items, such as aerosol cans. They also include top-locking tray, large bottom storage tray for oversized items, 22-slot screwdriver/prybar holder and steel ball bearing slides for quiet operation.

Murrelektronik, Inc.    Duluth, GA 30096

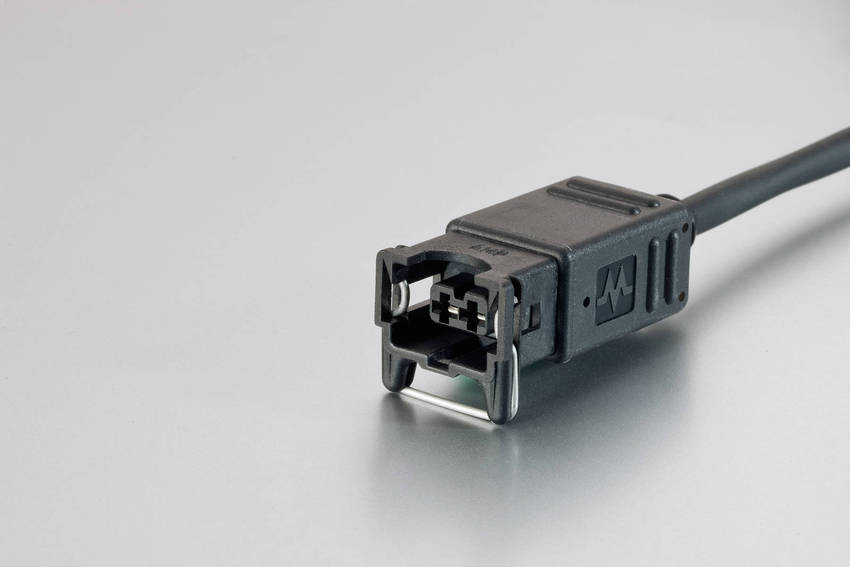

Jun 01, 2009 IP65 sealed Junior Timer Valve Plug is designed for applications in mobile hydraulic sector, and features locking mechanism to save time during installation and maintenance. Available in 3 models: without suppression, with LED, and with LED and suppression, unit has operating voltage of 24 V and capacity of 4 A.

FIPA, Inc.    Atlanta, GA 30318
Jun 01, 2009 Fitted with permanent magnets, magnetic grippers provide secure handling of heavy work-pieces even without vacuum cups. IP65 rated unit has maximum operating temperature of +80°C and does not allow any work-pieces to fall, even during power failure. When they are energized, reverse polarity cut-off coil neutralizes magnetic field and unit releases work-piece at desired location. Adapters are available for thread sizes G1/8 and G1/4.

E Instruments International LLC    Langhorne, PA 19047

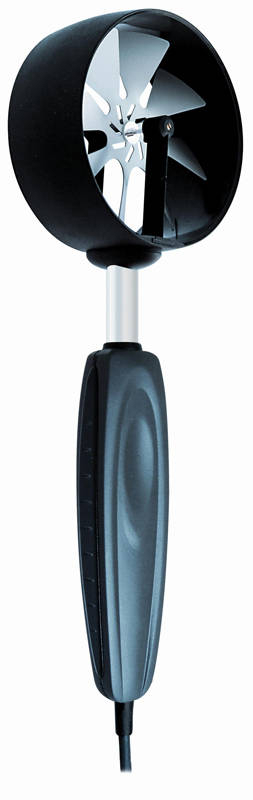

Jun 01, 2009 Including Ice Blue backlit 128 x 128 pixel LCD display that is readable in both light or dark environments, LV100 suits applications in laboratories, cleanrooms, and air balancing. Measuring 5 x 2.5 x 1.25 in., it calculates airflow with 0.01 resolution, and features 70 mm fixed probe, optional cones for air flow, adjustable shut off, shock proof housing, and single 9 V battery. Unit has operating temperature range between -4 to +176°F.

Bryan Steam LLC    Peru, IN 46970

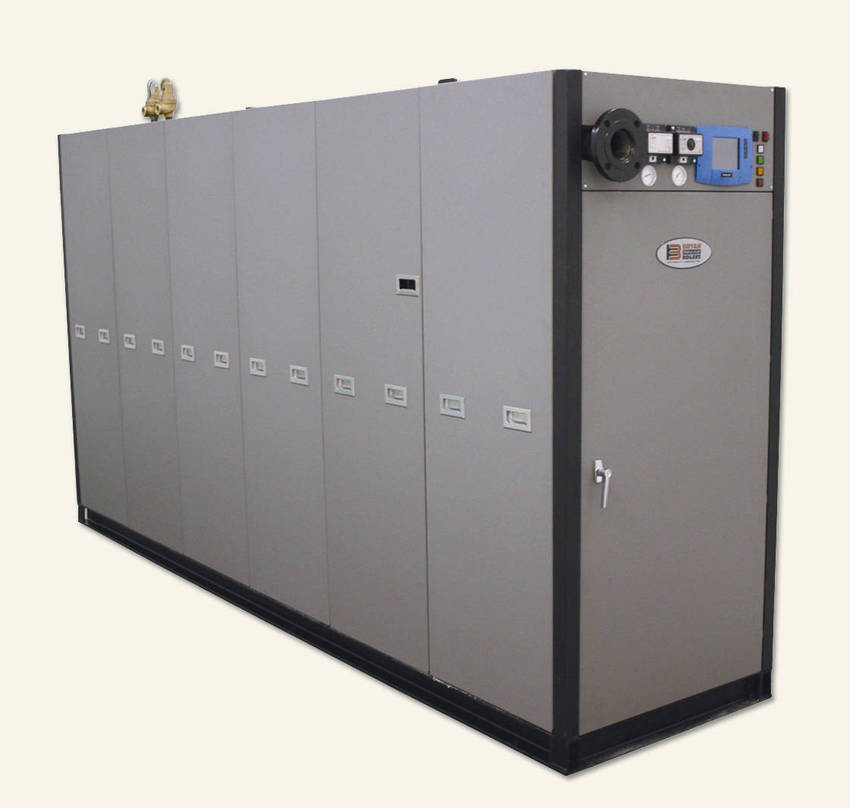

Jun 01, 2009 Triple-Flex(TM) condensing flexible water tube boilers fire at 3,000 MBH input, with sub 30 ppm NOx levels, utilizing hybrid metal fiber 5:1 turndown burner and SOLA hydronic safety controls and interface systems. Other features include variable speed combustion air blower and removable access panels making boiler interior accessible for service and inspection. Triple-Flex(TM) boilers deliver operating efficiencies of 99% in new buildings designed for condensing boiler conditions.

Makino Machine Tool Co.    Mason, OH 45040 9695
Jun 01, 2009 Designed for production of large titanium and titanium alloy aerospace parts, 5-axis Model T4 includes Active Dampening System, which balances frictional forces with cutting force to suppress vibrations. Machine provides X, Y, and Z axis travels of 165, 78, and 39 in. respectively, and can hold workpieces up to 11,022 lb. Utilizing induction motor technology, HSK-A125 spindle has max speed of 4,000 rpm, 740 lb-ft continuous torque, and 1,100 lb-ft peak torque.

Dot Hill Systems Corp.    Carlsbad, CA 92009
Jun 01, 2009 Dot Hill 2722 Fibre Channel and 2522 Serial Attached SCSI arrays are 2U, 24-drive external RAID storage systems that utilize 2.5 in. drives with SAS host connectivity. Supporting SAS, SATA, and solid state disks, they offer host interface speed of 12 Gbps and are suited for high-density video streaming applications. Systems support up to 96 SAS drives for total capacity of 28.8 TB, based on 300 GB SAS drives, as well as 230,000 input/output operations/sec.

Ekahau, West Coast    Saratoga, CA 95070
Jun 01, 2009 Ekahau Site Survey features Wi-Fi 802.11 WLAN spectrum analysis capabilities allowing users to detect and visualize interference that could affect network performance. Dual-band spectrum analysis tool can be operated simultaneously with software and can be initiated from its user interface. Tool can analyze 2.4 GHz as well as 5 GHz frequency bands.

EXFO    Quebec G1M 2K2  Canada
Jun 01, 2009 Built on FPGA architecture, CFP-based IQS-85100G Packet Blazer accelerates development of 100 Gbps and 40 Gbps Ethernet equipment. Solution offers layer 1/2/3 traffic generation and analysis features to stress and validate network elements and transceivers. At layer 1, unit can test physical coding sublayer and perform BER testing on optical or electrical interfaces. At layers 2/3, users can generate and analyze 100 Gbps line rate Ethernet and IP packets, and perform EtherBERT(TM) tests.

Trek Diagnostic Systems, Inc.    Cleveland, OH 44131
Jun 01, 2009 Designed for in-vitro diagnostics, YeastOne susceptibility plate is FDA-cleared for testing Candida species isolates against 4 antifungal agents: voriconazole, fluconazole, 5-flucytosine, and itraconazole. It features 24 hr incubation, colorimetric endpoints, and on-scale QC ranges. Available for research use, Sensititre® Xtra Gram Negative MIC plate incorporates 21 antimicrobic compounds. These include doripenem, colistin, polymixin B, doxycycline, minocycline, ertapenem, and imipenem.

Clarity Systems    Toronto M2N 5Y7  Canada
Jun 01, 2009 Created for Office of Finance, Clarity FSR(TM) v6.5 automates creation and submission of statutory filings as well as key internal documents. Program also helps companies automate reconciliation process in controlled and auditable environment. With Continuous Controls capabilities, users can automatically identify anomalies within operating environment. With Clarity FSR, organizations can document risks and opportunities and assess them in terms of likelihood and magnitude of impact.
