Eaton Corp.    Cleveland, OH 44114

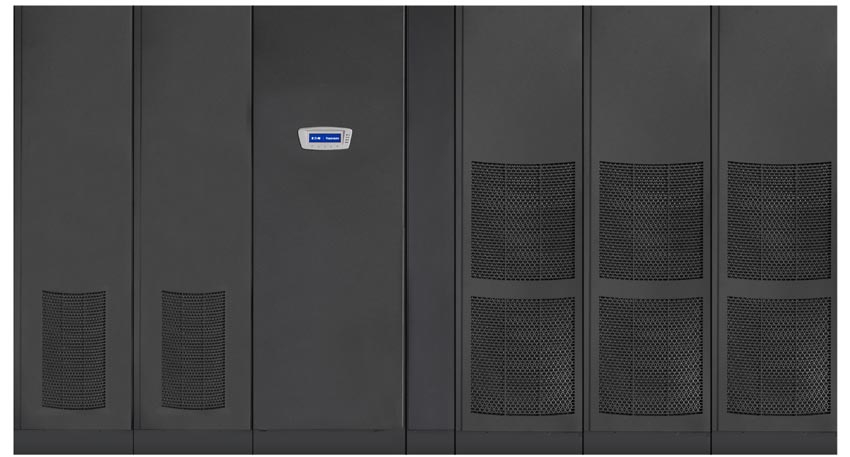

Oct 20, 2008 Eaton 9395 System Bypass Module (SBM) makes it possible to parallel up to 32 x 9395 UPSs with non-identical kVA ratings up to 1,100 kVA. SBMs feature customizable cabinet with LCD touchscreen to display system and UPS status and control system operation. Navigation scheme allows access to key information such as battery runtime remaining, event and alarm history, and system metering.

NCMT Ltd    Surrey KT7 0QJ  United Kingdom
Oct 20, 2008 Offered standard with 40-taper spindle rated 25 kW/14,000 rpm, D500 minimizes cumulative inaccuracy inherent upon increase of simultaneously interpolated axes. Rapid traverses of 48 m/min in X and 50 m/min in Y and Z axes can be achieved when supporting workpieces up to 350 kg on table or 300 kg on pallet of APC configurations, as can 50 rpm positioning of 360° C-axis table and +30°/-120° A-axis trunnion. Acceleration/deceleration during cutting is optimized via 3 direct-drive motors.

Crystek Crystals Corp.    Fort Myers, FL 33913

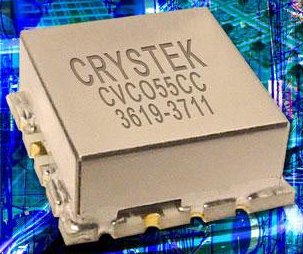

Oct 20, 2008 Supplied in 0.5 x 0.5 in. SMD package, CVCO55CC-3619-3711 operates from 3,619-3,711 MHz with control voltage range of 0.1-16 V. Typical phase noise is -106 dBc/Hz @ 10 KHz offset, and output power is +5.0 dBm typ. Input voltage is 8 V, with max current consumption of 40 mA; pulling and pushing are minimized to 3.00 MHz and 0.50 MHz/V, respectively; and second harmonic suppression is -20 dBc typ. Areas of use include digital radio equipment, fixed wireless access, and base stations.

OYSTAR USA    Fairfield, NJ 07004

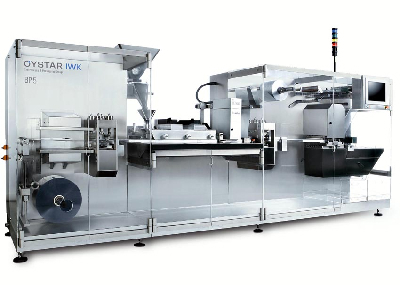

Oct 20, 2008 Featuring modular design, OYSTAR IWK Blisterpac BP 5 includes platen sealing station with integrated cooling. Sealing temperatures are monitored and automatically controlled. Web transport is achieved by servo drive with creep-feed start-up that allows for precise positioning of filled base web. Proper connection of blister transfer unit with cartoner or stacking system is made possible through retractable transport conveyor, which rejects faulty or partially filled blisters.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Oct 20, 2008 Offered in 2 sizes with 4.840 x 2.930 in. or 6.890 x 4.650 in. internal footprint to fit common thermostats and transmitters, Series TG Polycarbonate Thermostat Cover prevents physical damage and unauthorized adjustments. Low-profile (2.125 or 3 in.) design with ventilation slits promotes optimal air flow for obtaining accurate measurements. Each cover comes with 2 keys as well as mounting hardware for drywall and concrete walls.

Master Magnetics, Inc    Castle Rock, CO 80104

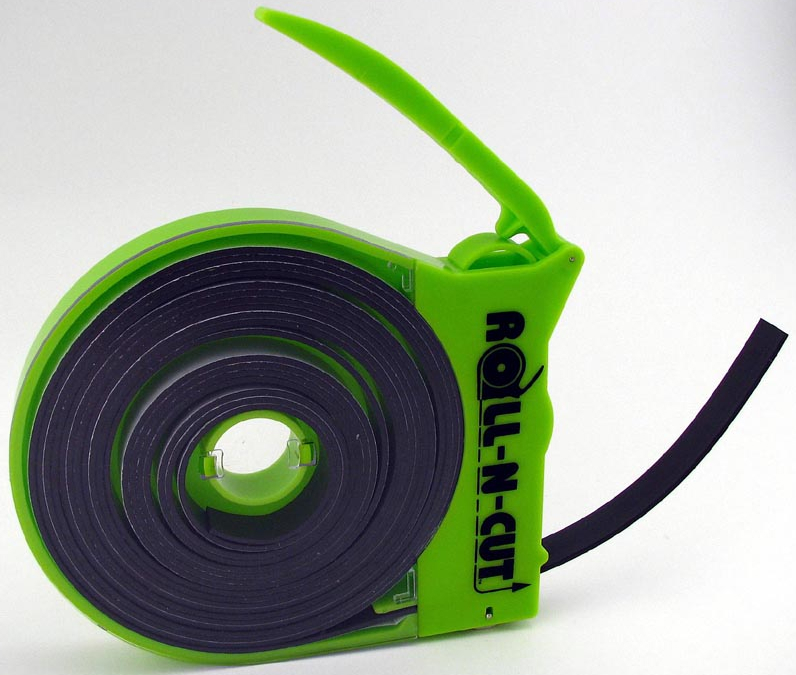

Oct 20, 2008 Roll N' Cut(TM) Dispenser accommodates one ½ in. wide x 15 ft long roll of .060 in. thick magnetic tape (included) rated at 6 lb of pull per foot. Featuring cut-to-length functionality via lever actuation for desired amount of magnet, dispenser also protects roll from gathering fine filings, paper clips, and staples while stored. Bright green color of trilingual clamshell package promotes visibility, while transparent and removable cover facilitates refills.

AutomationDirect.com    Cumming, GA 30040-9905
Oct 20, 2008 Modular design of Edison finger-safe power distribution blocks lets users select and configure number of poles required by each application. Suitable for factory and field wiring, DIN rail-mount products are rated from 175-760 A, accept copper conductors, and maintain SCCR rating of 200 kA with proper fusing. Edison open-style terminal blocks, rated up to 760 A, are surface-mountable and engineered to maintain SCCR rating of 200 kA with copper conductors, 10 kA for aluminum.

Maxon Precision Motors    Fall River, MA 02720

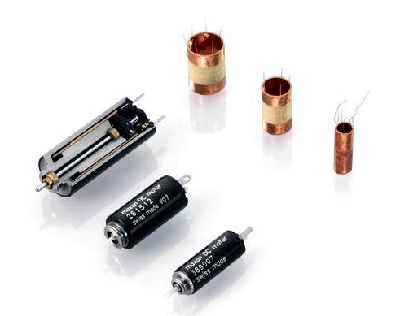

Oct 20, 2008 Measuring 8 mm in diameter and 16 mm in length, Model RE 8 features pencil-thin ceramic shaft that measures 0.8 mm in diameter and turns into 2 sleeve bearings. Precious metal brushes ensure constant and low contact resistance between brushes and commutator, even after pro-longed standstill. With ironless winding, motor is suitable for network-independent applications, such as lasers, leveling equipment, and insulin pumps.

GBI Data Sorting Systems, Inc.    Deerfield Beach, FL 33442

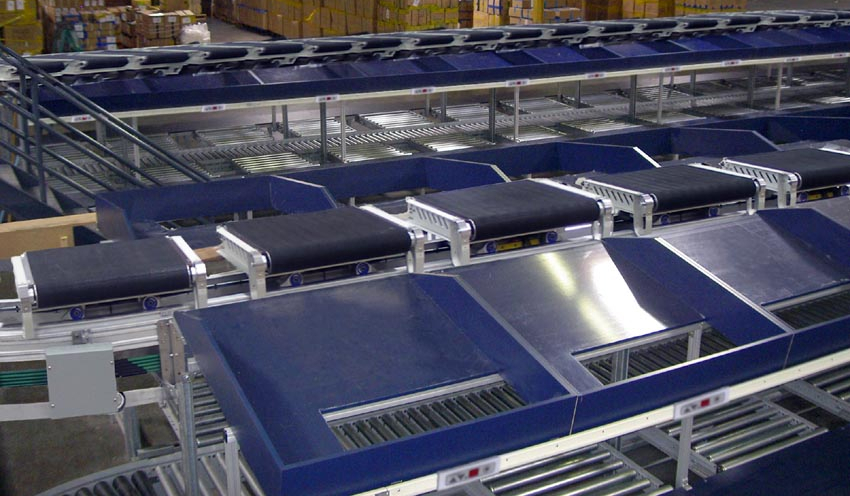

Oct 20, 2008 Driven by contactless induction motors, cross-belt sorter offers automatic product loading by utilizing series of metered induction belts. Each cross-belt car unit contains smart processor with its own independent set of controls, enabling range of functional capabilities that can be configured on-the-fly. Sort and cross-belt action instructions, such as variable belt speeds and multiple dispatching positions, are communicated across contactless infrared link.

Perpetuum Ltd.    Southampton   United Kingdom
Oct 20, 2008 Wireless sensor node assessment kit, wSNAK, confirms advantages of condition monitoring systems powered by vibration energy-harvesting. Its 4 energy harvester-powered wireless sensor nodes send vibration/temperature data to laptop-based receiver, and each sensor node runs IEPE accelerometer with integrated temperature sensor on flying lead. Data is sent from each node, via IEE802.15.4 transmitter, to receiver situated up to 100 m away.

Thomas Products Division    Sheboygan, WI 53081
Oct 20, 2008 Weighing 5.1 lb, 309 Series WOB-L DC Pump and Compressor is manufactured with corrosion-resistant materials on inside and corrosion-resistant treatment on external components. Unit features oil-less operation, die-cast aluminum components, steel mounting brackets and isolators, all wetted aluminum parts, and stainless steel inlet valve. Providing up to 26.75 in. Hg and 160 psi of maximum intermittent pressure, 309 Series meets radiated emission requirements and is RoHS compliant.

Anver Corp. - Anver.Com    Hudson, MA 01749

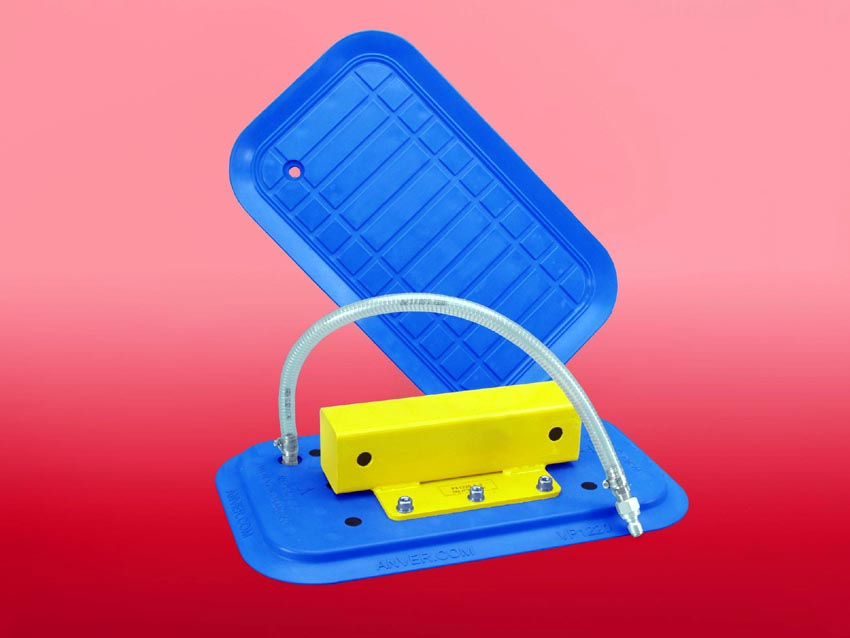

Oct 20, 2008 Featuring 2 outside sealing edges and 1 inner seal, Vacuum Pad with Bonded Seals one-piece suction cup has non-skid surface and shallow lip that evenly distributes vacuum forces to protect load. It is available in nitrile or silicone construction with internal steel plate reinforcement, and offers lifting capacity of up to 1,100 lb horizontal. Measuring 13 x 21 in. when pressed onto load surface, product can handle glass and stone panels in vertical and horizontal position.

AAEON Technology Inc    Taipei   Taiwan

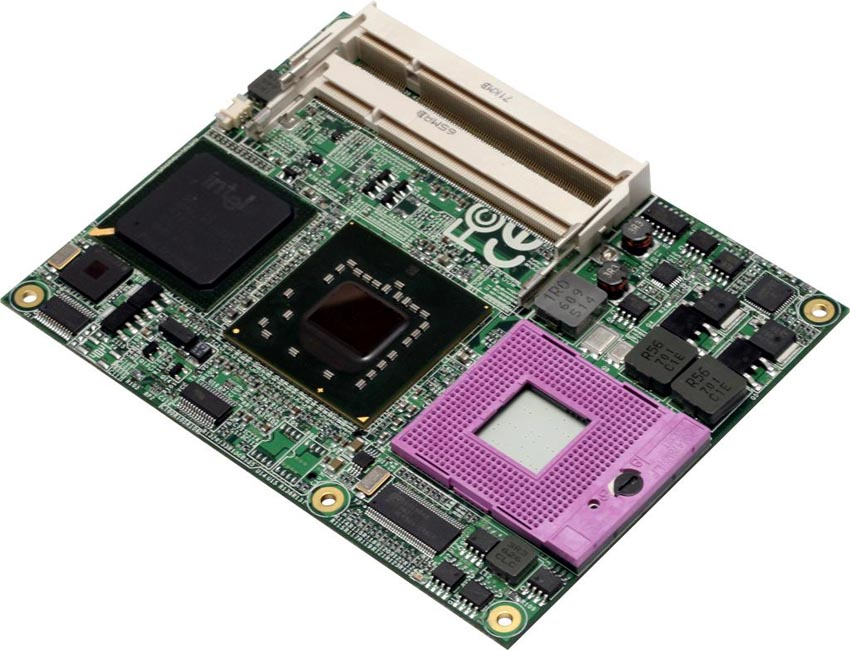

Oct 20, 2008 With Intel® Core(TM) 2 Duo/Celeron® M (socket-P based) processor, COM-965 offers Intel X3100 graphics core with support for 24-bit dual-channel LVDS, TV-out, and CRT with support for simultaneous/dual view configurations. It includes 2 SODIMM sockets for supporting up to 4 Gb of DDRII memory. Features include Gigabit Ethernet, 8 USB2.0 ports, one PATA and 3 SATA interfaces, dc input range of 8.5-19 Vdc, and support for PCI-Express graphic cards.

Aimtec, Inc.    Dollard Des Ormeaux, QC H9G3B9  Canada
Oct 20, 2008 Producing maximum output currents of 1 A and output ripple and noise of 60 mV p-p, AMSR1-78-NZ series of DC-DC switching regulators operate from input ranges of 4.75-32 to 16-33 Vdc. Series operates continuously at full load without need for load derating below 71°C, within ambient temperature range of -40 to +85°C. Featuring 11.68 x 8.9 x 17.5 mm SIP3 package, devices suit portable power and standby-power applications.

Continental Fan Mfg. Inc.    Buffalo, NY 14215
Oct 20, 2008 Including aluminum blades and rear guard, CEB Cabinet Mount Panel Fan offers permanently lubricated drive shaft bearings and ball bearing ODP motor. It features 18 ga galvanized steel housing, 20 ga powder coated venturi, and belt drive capacities to 21,500 cfm. Available in sizes from 24-48 in. with voltage options of 115/230 V 1 phase and 230/460 V 3 phase, unit comes fully assembled and ready to install.

Electro Standards Laboratories    Cranston, RI 02921 3403

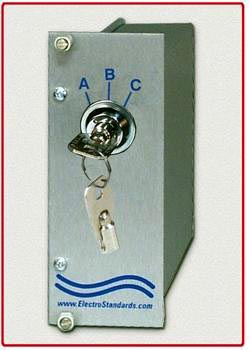

Oct 20, 2008 Offering Cat 5 performance, 3-position model 9065 RJ45 A/B/Offline Switch allows user to switch device connected to Common port between devices connected to ports A or B. It also offers port-to-port isolation, by selecting C or Off-Line position with security of its keylock actuator. Rugged rackmount switch module is encased in all-aluminum enclosure for EMI/RFI protection, and is also available in desktop version.

Industrial Vision Components    Toledo, OH 43617

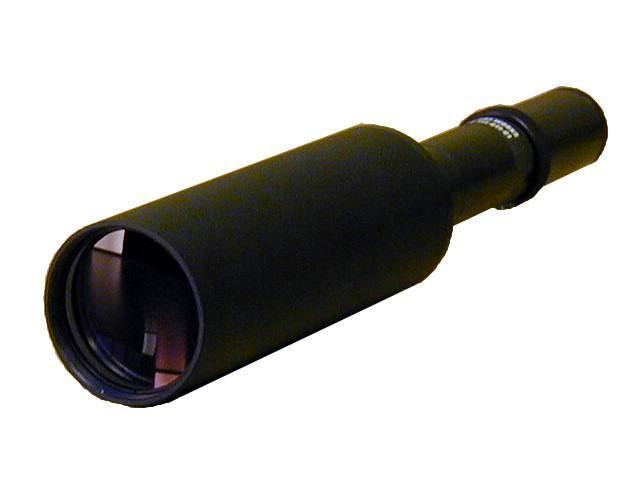

Oct 20, 2008 Featuring true double telecentric design, Elite Series Telecentric Machine Vision Lens provides distortion of less than 0.2% and telecentric error of less than 0.1%. Telecentric lens provides true caliper measurement by accepting only parallel cones of light, eliminating perspective change that can cause measurement error or mask critical defects. C-mount lenses are offered in range of standard sizes.

Electro Standards Laboratories    Cranston, RI 02921 3403

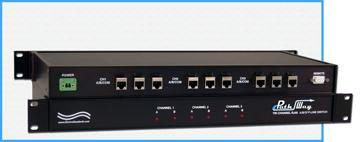

Oct 20, 2008 Featuring remote control via contact closure, Model 7353 Tri-Channel RJ45 Cat 5 A/B Off-Line network switch allows access to 2 separate devices through device connected to common port for each of switch's 3 channels. Available without front panel pushbutton control, unit uses contact control to switch position of each individual channel. Each channel is individual switch that is commanded separately from other switches in unit, and each will switch to off-line upon power loss.

Electro Standards Laboratories    Cranston, RI 02921 3403

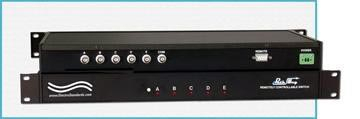

Oct 20, 2008 Housed in aluminum rackmount enclosure that provides EMI/RFI shielding, Model 7334 5-to-1 BNC switch allows access of workstation or device between 5 other devices or networks. Both center pin and shell signals are switched by unit and switch ports are transparent to all data. DB9 RS232 serial port allows user to remotely control switch and lockout front-panel pushbutton control. Custom length BNC coaxial cables are available.

Tumbler Technologies, Inc.    Santa Clara, CA 95054

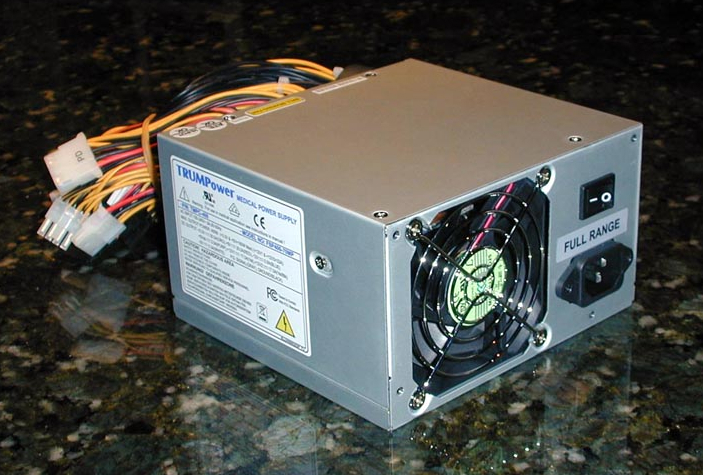

Oct 20, 2008 Including active PFC, Model TMPC-400 medically approved ATX PC power supply can be used globally without changing input settings. It is approved to UL 60601-1, IEC 60601-1, and EN 60601-1 medical standards and complies with EN 60601-1-2 EMC standards. Featuring MTBF greater than 200,000 hr at 25°C, unit provides maximum overall output of 400 W, with 3.3 V/5 V/12 V providing maximum power of 380 W and combined output of 3.3 and 5 V limited to 180 W.
