AutomationDirect.com    Cumming, GA 30040-9905
Jun 01, 2009 Available in 4, 6, and 8-port models, Zip-Port(TM) Multiport Junction Blocks allow multiple sensors to be wired to single block with one cable connecting to control panel. Units come in field wireable or 5 m cable versions with 4 and 5-pin M12 connectors, and choice of 1 or 2 I/O per port. Providing 24 Vdc and 120 Vdc/ac operation in temperatures from -4 to +176°F, blocks feature IP67 protection rating when all ports are connected or covered with protective caps.

Schaefer, Inc.    Hopkinton, MA 01748

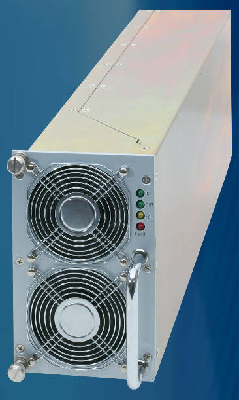

Jun 01, 2009 Comprised of 3U x 40TE x 538 mm rack modules, C5100 Series offers 3 standard DC input voltage ranges from 320-800 Vdc as well as 3 AC input voltages of 3 x 400 Vac (320-460) and 3 x 480 Vac (400-530). Single outputs are available in 6 standard ranges from 23-200 Vdc, which are adjustable and fully regulated to 0.2% or better (load) and 0.1% (line). Exhibiting efficiencies up to 95%, these 5,000 W, plug-in units incorporate CombiTec I/O connectors and can be rotated for 5U mounting.

New Scale Technologies    Victor, NY 14534
Jun 01, 2009 TRACKER(TM) position sensor is noncontact, magnetic unit suited for optical imaging stabilization and zoom in digital/phone cameras and binoculars. It does not require light source and is insensitive to external light. Operating from supply volage of 3-3.6 Vdc, on-chip encoder provides direct digital output using standard I2C protocol. It is offered in TSSOP or dice-on-foil versions as well as chip-on-board and miniature wafer-level chip scale packaging as small as 2.5 x 3.9 x 0.6 mm.

Emseal Joint Systems, Ltd.    Westborough, MA 01581
Jun 01, 2009 EMSHIELD WFR2 is UL 2079-certified fire-safety expansion joint system for walls that protects against thermal, wind, seismic, and other changes. Fire-rated for 2 hr, system minimizes environmental impact and meets fire-safety and building codes. It is designed for facilities such as stadiums, hospitals, schools, universities, airports, and hotels.

BEI Kimco Magnetics    Vista, CA 92081
Jun 01, 2009 Housed in 2.75 in. dia x 5.2 in. long package, Linear Voice Coil Housed Actuator features integrated shaft and AMP connector that prevents flying leads otherwise requiring terminals. Unit offers peak force capability of 60 lb, force sensitivity of 4.56 lb/A, 1 in. stroke, and continuous force of 17 lb. Fully encapsulated, device operates in harsh and dirty environments without contamination. Applications include valve actuation, speed and force control, and office/factory automation.

PerkinElmer, Inc.    NORFOLK, MA 02181

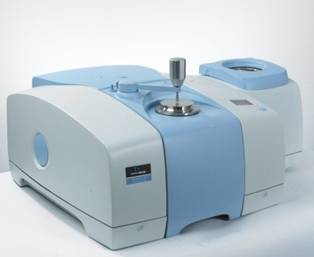

Jun 01, 2009 With optimized sensitivity, Spectrum 100S can analyze poorly transmitting samples like heavily filled elastomers, poorly reflecting samples such as coal, and micro-samples such as single fibers. Advanced Atmospheric Compensation feature removes spectral interference from water and carbon dioxide, and can eliminate need to take reference data before running analysis. Automatic Virtual Instrument function enables method transfer from one instrument to another.

Greyline Instruments, Inc.    Massena, NY 13662
Jun 01, 2009 Utilizing submerged ultrasonic sensor, Model AVFM-II continuously measures both Velocity and Level in channel. It includes flow rate display, totalizer, three 4-20 mA outputs, and 2 control relays. Intrinsically safe sensors and built-in data logger are optional. Able to monitor flow through open channels, partially full sewer pipes, and surcharged pipes without flume or weir, meter is suited for stormwater, combined effluent, raw sewage, and irrigation water.

Duraline Div., J.B. Nottingham & Co., Inc.    Islandia, NY 11749

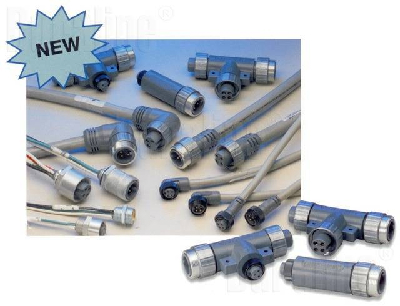

Jun 01, 2009 Offering NFPA compliant components, SOFTPower Cable Connectors provide factory prewired molded-to-cable assemblies that deliver portable and modular power for industrial machinery. Environmentally sealed units prevent ingress of dust, water, and other contaminants. Using SOFTPower Cable Assemblies in lieu of conduit, dual-rated TC/STOOW cables eliminate need for raceways or cable trays, and provide crush and impact resistance of metal clad cable.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
Jun 01, 2009 Featuring 4-pole frameless motor, M18 Cordless ½ in. hammer drill/driver delivers 550 in.-lb of peak torque with M18 XC high capacity Lithium-Ion battery, and 450 in.-lb of peak torque with M18 compact Lithium-Ion battery. It is suited for HVAC technician for duct fastening; commercial plumber as they run conduit or anchor pipe hangers; and professional electrician for running wire, secure conduit clamps, or drill through metal studs.

Kennametal, Inc.    Latrobe, PA 15650-0231
Jun 01, 2009 Models KC915M (KCK15) and KC935M (KCPK30) are available for machining steel, cast iron, and stainless steel workpiece materials. Dry-milling grade, KC915M (KCK15) is designed for all applications in grey cast iron and grey cast iron with nodular graphite, and can also be used to finish-mill low-alloyed steel. KC935M (KCPK30) suits applications in plain and alloyed steel, stainless steel, grey cast iron, grey cast iron with nodular graphite, and certain high-temperature alloys.

Hirose Electric USA, Inc.    Cupertino, CA 95014
Jun 01, 2009 Featuring insulation resistance of 1,000 MW at 500 Vdc, with contact resistance of 100 mW at 1 mA, DM3 Series of card connectors are available in 3 different configurations for compatibility. DM3AT/DM3BT Push-Push connectors feature card ejection travel of 4 mm for easy hold and removal of card, while DM3C hinge connectors have metal cover that guides card during insertion and removal. DM3D push-pull card connectors come with partial card insertion hold, preventing card from fall-out.

Flowline Inc.    Los Alamitos, CA 90720
Jun 01, 2009 Designed to operate on any liquid, watertight Ultraflux UF801-P can be used on pipe diameters from 10 mm up to 10 m and includes integral logger with data capacity of over 6 months at 2 min intervals and has 14 hr battery life. Non-invasive external probes are clamped on to pipe to facilitate quick installation for immediate measurement. Weighing only 1 kg, unit also offers external input options including current, voltage, pulse, frequency, and RTD input for heat metering.

HellermannTyton    Milwaukee, WI 53224
Jun 01, 2009 Designed for routing, mounting, and securing wire harnesses to mounting holes, Assorted Fir Tree Bundling Clips feature staggered fir tree design that provides low insertion force and high pull out force. Suited for use with standard panel thicknesses between 0.7-5.75 and 0.7-18.0 mm, respectively, TC6FT6 and TC6FT6LG orient bundle directly over mounting hole. SOC8FT6 orients bundle 90° from mounting hole, and suits standard panel thickness between 0.7-5.75 mm.

MH&W International Corporation    Mahwah, NJ 07430

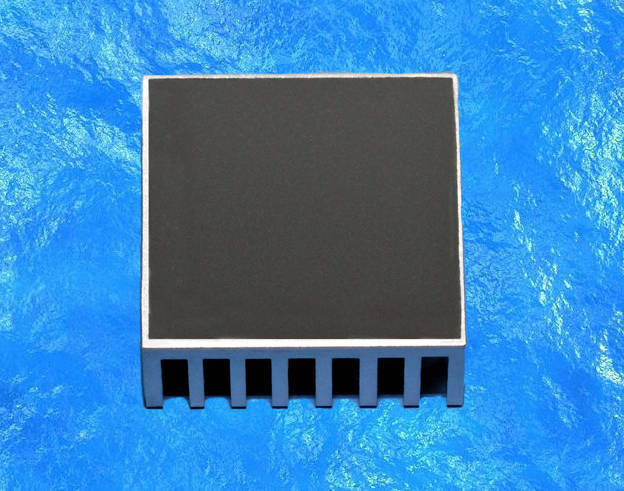

Jun 01, 2009 Featuring thermal impedance of just 208°C-mm2/W, double-sided adhesive tape Keratherm® KL 90 consists of ceramic-filled acrylic adhesive film that provides bonding properties, and replaces use of mechanical fasteners. Silicone-free tape is 0.300 mm thick and is supplied on 400 mm wide rolls, while custom die-cut shapes are also available. Fiberglass-reinforced version KL 91 is available for applications requiring high peel strength, and conformability to irregular surfaces.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Jun 01, 2009 Weighing only 3 gm, Model 3023M27 has footprint of 0.36 x 0.36 in., sensitivity of 10 mV/g, and features 4-pin radial connector. Labels of axes X, Y, and Z are laser marked in large font size on 3 orthogonal faces aiding user in orienting sensor. Adhesive mount unit is suited for use in modal analysis, noise vibration and harshness (NVH), Environmental Stress Screening (ESS), and general purpose triaxial vibration applications where space is at premium.

Capital Safety    Red Wing, MN 55066-5005

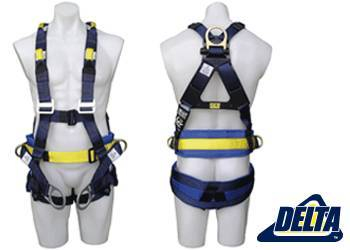

Jun 01, 2009 Designed for telecom and power industry personnel working on towers and poles, Delta(TM) Tower Workers Harness features spring loaded stand-up rear D-ring, easy adjust hardware, protective label/instruction pack, and i-Safe(TM) intelligent safety system for monitoring use and maintenance. Other features include front fall arrest belay loops, confined space loops, side angled D-rings, pole work D-rings, padded work positioning seat, and lower back pad.

Kin-Tek Laboratories    LaMarque, TX 77568 4202
Jun 01, 2009 Capable of adding multiple trace concentration components to flowing gas stream, AutoBlend(TM) computer controlled system features 6 independently controlled permeation channels, each capable of containing up to 8 compounds for total of 48 compounds. Mixtures can be supplied dry or humidified and can be delivered at up to 20 psig pressure. Concentrations from hundreds of parts-per-million down to low parts-per-trillion can be added. Component concentrations can be varied independently.

Lee Company, The    Westbrook, CT 06498 0424
Jun 01, 2009 Constructed entirely of stainless steel, calibrated cartridge-style IMH Insert Orifices are available in range of flow rates, with orifice sizes as small as 0.002 in. Self-retained flow restrictors are available in 2.5 and 5.5 mm dia, and are offered with integral safety screen in certain models.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Jun 01, 2009 Suitable for any animal with tidal volumes of 30-350 µL and respiratory rates of 60-400 breaths/min, MiniVent features rod clamp that allows it to be positioned directly next to animal. Ventilator employs valveless rotary plunger that eliminates clogging during ventilation cycle. Inspiration and expiration is controlled by synchronized forward and rotating movement of cylinder and plunger. Compact and lightweight unit reduces tidal volume error due to system compliance to 3 µL.

Heritage Plastics, Inc.    Picayune, MS 39466
Jun 01, 2009 Pelletized mineral-containing BioTuf 976 film compound is based on blend of biodegradable resins, including aliphatic/aromatic co-polyester. Designed to be extruded and converted on standard low density PE or grooved-feed HMW-HDPE processing equipment, compound produces films with physical properties similar to linear-low density polyethylene.
