OK International    Garden Grove, CA 92841
Oct 29, 2008 Used for thermally demanding applications, MFR-1100 Series Single Output Soldering and Rework System is powered by SmartHeat® Technology. MFR-H1-SC Cartridge Hand-piece offers soldering and rework cartridges that provide fine access, SMD rework, and pad clean-up, while tip-equipped MFR-H2-ST delivers soldering performance required by lead-free and production soldering environments. Also available, MFR-H4-TW Precision Tweezer Hand-piece is capable of removing small discrete components.

MTS Systems Corp. - Sensor Div.    Cary, NC 27513
Oct 29, 2008 Portable in design, M-Series CAN Test kit allows cylinder manufacturers to verify functionality of CAN protocol versions of M-series linear position sensors once installed in cylinders. It includes GUI and AC/DC converter that provides power directly to sensor, isolating it from rest of vehicle. Kit also includes test cable with M12 plug, which mates with M12 Integrated Connector System, and cable allowing customization to other connector systems.

Murrplastik    Doylestown, PA 18901
Oct 29, 2008 During installation, individual side links of Murrplastik (MP) 52.2 PowerLine and MP 82.2 HeavyLine chains are assembled angled to each other. After one short turn, distinct click signals that pieces have engaged properly. To disengage, side links are turned back to each other and levered apart with screwdriver. Chains feature heavy-duty connection between frame bridge and side wall, and frame bridge can be removed by unscrewing locks, without any risk of injury, using screwdriver.

Precision International Corp.    Bloomfield, CT 06002
Oct 29, 2008 Available for Coborn RG9 CNC 8-Axis Grinding Machine, Robot Automatic Loading System offers 6-axis operation and is capable of 4.5 lb payloads, 36 in. programmable reach, and positioning accuracy of ±0.0001 in. System features 2 pneumatic grippers and hydraulic clamping system for rotary tools, as well as 2 insert trays, 2 insert plates, and 1 toolholder for ISO insert type tools. Grinding machine includes vision system for tool measurement, automatic wheel dressing, and wear compensation.

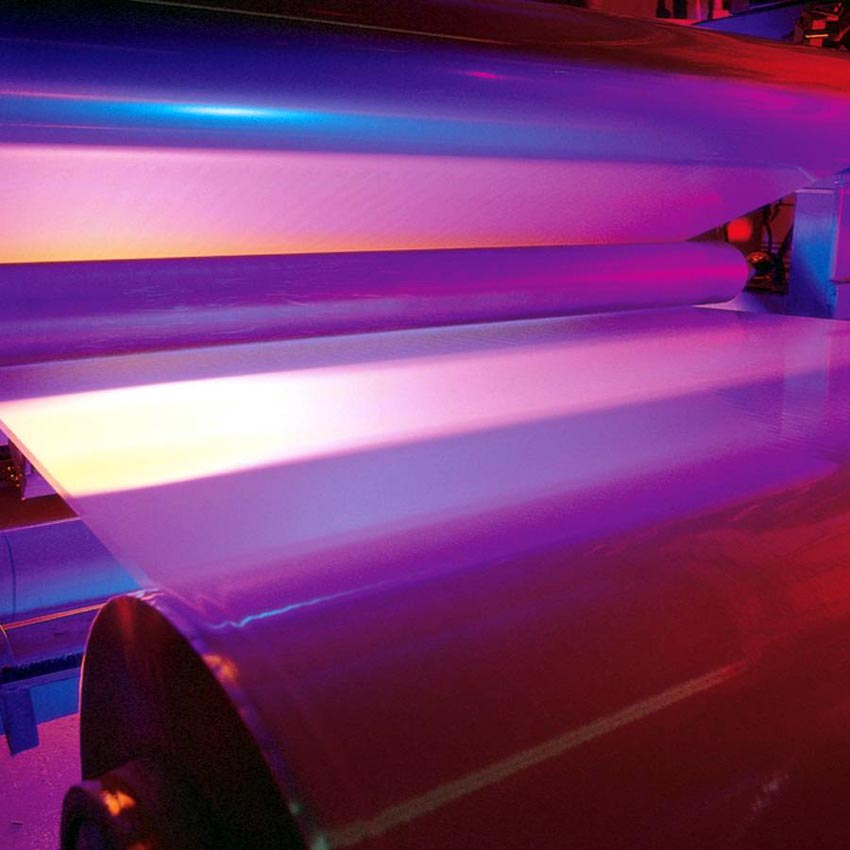

Ampac Packaging, LLC    Cincinnati, OH 45246
Oct 29, 2008 Available in clear or opaque versions, Apex 3739 MW multilayer film features printing base for lamination to reverse printed PET or PP. Low seal initiation temperature, high seal strength, and broad sealing window optimize packaging speeds on vertical form fill seal machines. PureFlex(TM) MW laminated rollstock is self-ventilating, FDA-compliant for all food types, and available in 1- or 2-side sealable versions. Both products are designed for freezer-to-microwave applications.

Sugino Corp.    Itasca, IL 60143
Oct 29, 2008 Utilizing 2 servo motors, which are synchronized for through-hole applications, SSM4 and SSM5 Drap Units are capable of high-speed drilling and tapping for class 3 thread production in single pass. Units are available with feed motors ranging from 2.8 lb-ft at 3,000 rpm to 15.85 lb-ft at 2,000 rpm, and spindle motors from 15.86-36.95 lb-ft at 2,000 rpm. Touchscreen control features conversational software that facilitates programming and active diagnostics.

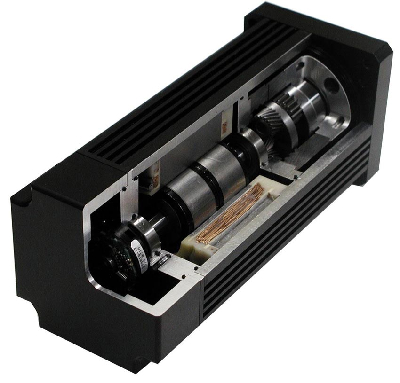

Dynetic Systems Corp.    Elk River, MN 55330 2496
Oct 29, 2008 Designed to interface to sinusoidal drives from 12-320 Vdc, Brushless PM Servo Gear Motors provide gear motor torque values from 26.5-224 lb-in. Maximum gear motor momentary torque is 198 lb-in. for NEMA size 23 and 633 lb-in. for NEMA size 34 motors. Available in IP65 or IP67 configurations, units come with single, dual, and 3-stage geartrains in 10 gear ratios from 16:1-1,012:1. Applications range from aerospace actuators to industrial machines and medical equipment.

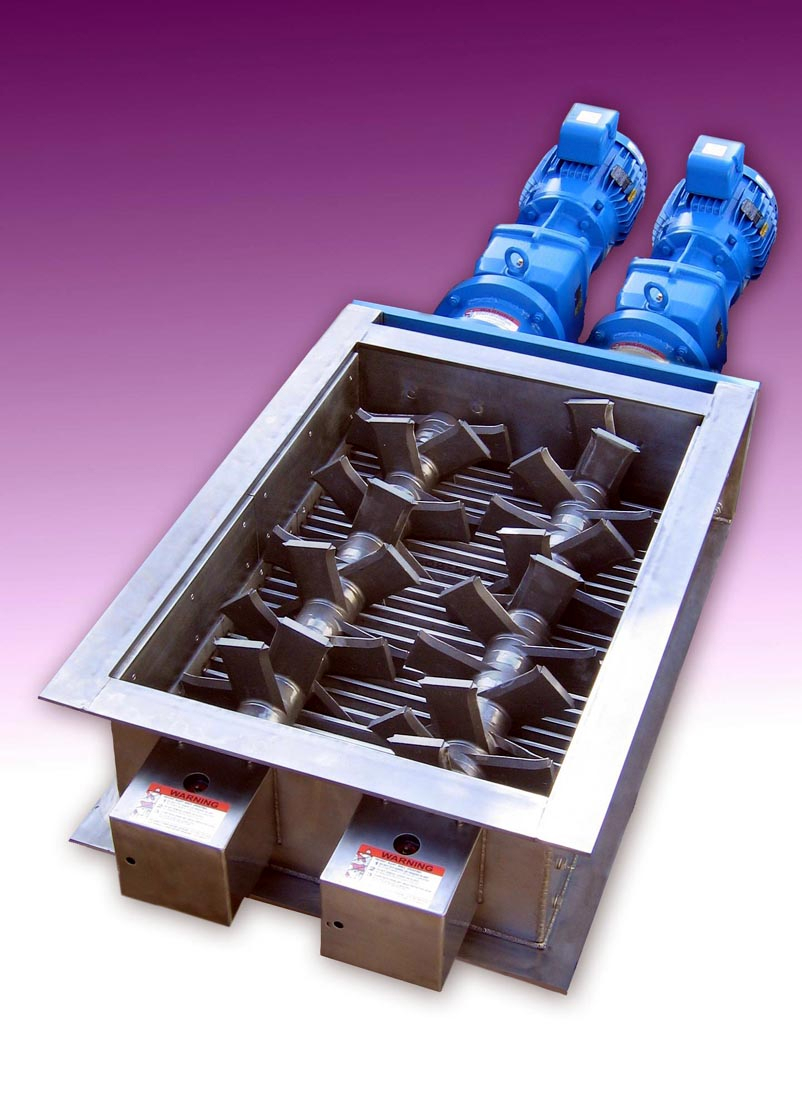

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039
Oct 29, 2008 Provided with inlet openings from 28-50 in. long, DC2840 Twin-LP high-capacity crusher features 1-piece stainless steel body with no cracks or crevices for material accumulation. It includes 2 shafts with individual high-profile cutting teeth that rotate through heavy bar grating to crush material while self-clearing with each rotation. Also included are shaft seals, heavy-duty roller bearings, and direct drive with choice of motors.

Misumi USA    Schaumburg, IL 60173
Oct 29, 2008 Suited for use in various machine and assembly positioning station builds throughout automation industry, Series BSL offers thread diameters of 8, 10, 12, and 15 mm with corresponding leads of 2, 4, 5, and 10 mm. Left-handed ball screws are built from induction hardened and carburized steel in lengths from 100-895 mm, configurable in 1 mm increments. All are fully RoHS-compliant, and may be ordered with various key groove options as well as 3 grease options.

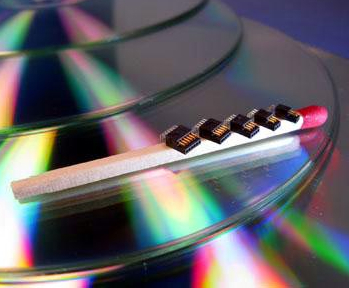

Omnetics Connector Corp.    Minneapolis, MN 55432
Oct 29, 2008 Suited for military, aerospace, defence, and medical applications, miniature connectors are designed to prevent mis-mating and ensure signal integrity even in conditions prone to shock and vibration. Insulators hold one row of pins and one row of sockets, which polarizes connector without space normally required for guide pins. Able to withstand temperatures from -55 to +125°C, devices are available in 4-, 6-, 8-, 10-, and 12-position sizes and come on 0.025 in. pitch spacing.

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0  Canada
Oct 29, 2008 Compatible with semi-automatic and robotic TOUGH GUN(TM) MIG Guns, TOUGH LOCK(TM) Contact Tip System acts as common consumable platform to help minimize inventory for companies that manage manual and automated welding operations. Precision-machined tips ensure exact tolerances and optimal bore finish that supports consistent welding quality. Featuring dual-lead thread design, tips can be rotated 180° to create new wear position and extend tip life.

Densitron Corp.    Santa Fe Springs, CA 90670
Oct 29, 2008 Utilizing ITO metal film technology, DTS413 series features Projected Capacitive (PCT) sensor component behind glass front cover lens for protection against physical, mechanical, and chemical abuse. Light transmission up to 90% promotes readability, and no recalibration is required since there is no drift. Able to work with gloved or ungloved finger, sensors require activation force approaching 0 g on glass cover lens. Standard sizes include 3.2, 3.5, 4.3, and 5.7 in.

Hayward Industrial Products Inc., Hayward Flow Control Systems    Clemmons, NC 27012
Oct 29, 2008 Designed to replace metal valves in industrial piping systems, BYB Series lever-operated valves feature one-piece; 2-8 in.; PVC, CPVC, PPL, or PVDF plastic body with CPVC, PPL, or PVDF discs. They are offered with choice of FPM, Nitrile, or EPDM full face liners and have Type 410 SS stem completely isolated from process stream. Also available, 14-24 in. sizes add high-torque gear box. Options include gear boxes on 2-8 in. sizes and electric/pneumatic actuation.

Scapa North America    Windsor, CT 06095
Oct 29, 2008 Featuring release liners on both sides for optimal firmness, Scapa 707 is made up of polyester film double-coated with silicone adhesive on one side and acrylic adhesive on other. Conformable tape contours to intricate parts and provides chemical resistance. Pressure sensitive adhesive (PSA) film adheres to silicone gaskets, foams, and sponges over operating temperature range of -20 to +350°F, and acrylic adhesive also bonds to plastic, glass, and metal substrates.

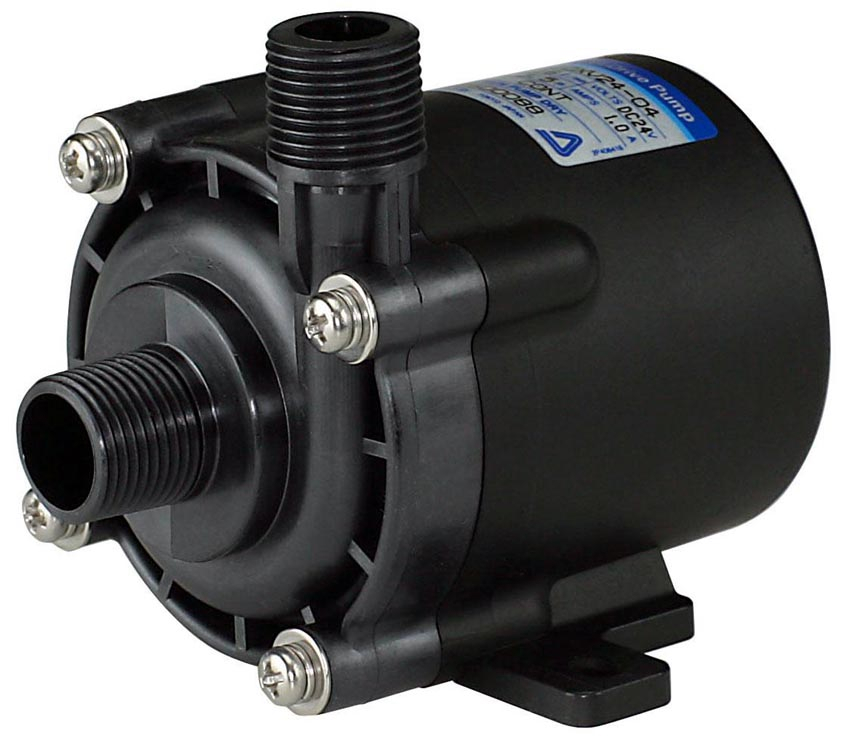

Iwaki Walchem Corp.    Holliston, MA 01746
Oct 29, 2008 Available in hose barb and threaded connections, Models RD-12 and RD-12Z provide external flow adjustment feature via 1-5 Vdc third wire input. Classified as safety voltage (50 V or under), they allow users to comply with CSA, UL, CE, and GS standards. With sound levels as low as 40 dB, pumps are suited for OEM applications, including small chiller/circulator systems, as well as for electronics cooling, servers, power supplies, fuel cell recirculation, and laboratory equipment.

Pass & Seymour/Legrand    Syracuse, NY 13221
Oct 29, 2008 Suited for projects with repetitive installations such as hotels, office buildings, and condominiums, P&S PlugTail Power(TM) Pre-Fabricated Wiring Assemblies offer simple installation, with no vertical measuring necessary for floor brackets which slide under sill plate. Wall brackets screw directly to studs. Assembly system includes floor or wall brackets with one- or two-gang openings, pre-installed boxes and pre-installed mud rings available in 5/8 or ¾ in. rise.

Iconics Inc.    Foxboro, MA 02035
Oct 29, 2008 Designed for integration with facility-based systems, FacilityWorX(TM) visualization software module is built on BACnet protocol, incorporates OPC-To-The-Core(TM) technology, and acts as secure integration platform for Building Automation Systems. Intelligent facility management software, meant to provide visualization and control into multiple facility-based systems, helps cut energy costs and features Web-based configuration based on ICONICS.NET Workbench configuration environment.

NSIGHT Enterprise Software, LLC    New York, NY 10106
Oct 29, 2008 Combining professional services automation software with implementation and IT business consulting services, Autotask ProPlus is designed for IT service providers and MSPs that need to centralize diverse portfolio of service offerings, divisional resources, and multiple service delivery systems into Autotask. Consulting services include Business Optimization Assessment, Advanced Autotask Implementation, Best Practice Sessions, and Quarterly Business Optimization Check-ups.

Iconics Inc.    Foxboro, MA 02035
Oct 29, 2008 Hyper Historian(TM) plant historian v10.5 is able to integrate with SQL Server 2008 and offers data logging rates of up to 100,000 data events/sec. Utilizing 64-bit swinging door algorithm for high-speed data compression, it includes audit trail for regulated industries, 3D Windows Presentation Foundation (WPF)/XAML trend chart control, and web configuration allowing data export to Excel/CSV file. Program is certified for Microsoft Windows Server 2008 and Windows Vista(TM).

InterWoven Inc.    Sunnyvale, CA 94089
Oct 29, 2008 Accommodating centralized creation and management of rich media assets, Interwoven MediaBin v4.6.2 Digital Asset Management (DAM) solution gives marketers interactivity and control needed for managing and deploying video, images, presentations, and logos. Tools are provided for cropping images prior to download, automating application of watermark to specified images, and retrieving Digital Negative Files. Other features include Flash support and automated asset expiration management.
