ARNOLD UMFORMTECHNIK GmbH & Co. KG    D-74670 Forchtenberg-Ernsbach   Germany
Dec 06, 2011 Utilizing flow-hole forming technology in fabrication process, Flowform® screws heat sheet metal via axial force and driver speed. After screw penetrates material, trilobal shape causes metric thread to be formed in host material that can accept standard metric screw if repairs are needed. Formed hole adapts to shape of screw after controlled-torque assembly, and process eliminates need for additional securing components as well as component preparation steps such as drilling or punching.

BIG Daishowa Seiki Co., Ltd.    Hoffman Estates, IL 60192
Dec 06, 2011 Intended for plunge-chamfering of holes, fixed-angle C-Cutters include two 30° tools for 16-85 mm dia holes and three 60° tools for 14-65 mm dia holes. Adjustable nozzles direct coolant efficiently to point of cutting, allowing feed rates to 0.6 mm/rev and speeds to 240 mm/min. Also available, Universal C-Cutter enables chamfers as shallow as 5° with minimum hole diameter of 5.5 mm and as steep as 85° with minimal hole diameter of 38.8 mm.

Kennametal, Inc.    Latrobe, PA 15650-0231
Dec 06, 2011 Specifically engineered for machining carbon fiber reinforced polymer parts, Beyond(TM) KCN05(TM) Routers possess solid carbide substrate and HP diamond coating. Four models are available, including ball-nose router dedicated for pocketing and profiling, down-cut style with left-hand flutes that compress fibers as it cuts, compression-style router with left-hand flutes on shaft and right-hand flutes at bottom, and burr-style model with many thin flutes for optimized productivity.

Federal-Mogul Corp.    Southfield, MI 48034
Dec 06, 2011 Featuring iridium alloy center electrode, Champion® FB-M18 Spark Plug is suited for large stationary engine applications utilizing compressed natural gas, landfill-gas, or biogas fuels. Ground electrode has grain-stabilized platinum alloy tip for minimized material degradation at extreme temperatures. Integrating resistor, suppressor, and core seal, Industrial Fired-In Suppressor Seal core technology is combined with hot lock shell seal for optimized sealing.

Siemens AG    Munich D-80333  Germany
Dec 06, 2011 Available with 120 or 154 m dia rotor, SWT-6.0 combines robust construction, direct drive design, and towerhead mass of roughly 350 tons to accommodate performance and environmental requirements of offshore sites. Entire electrical system, including medium voltage system and full converter, is enclosed in nacelle, enabling safe, accelerated, onshore pre-commissioning testing. Helicopter-hoisting platform integrated in nacelle rear allows access for service technicians.

Pentek Inc.    Upper Saddle River, NJ 07458
Dec 06, 2011 Housed in 16.9 x 9.5 x 13.4 in. steel enclosure, Model RTR 2726 captures and plays back signals up to 700 MHz in shock- and vibration-prone environments such as vehicles, ships, and aircraft. System inlcudes built-in digital up- and down-converters, with record channels offering 16-bit, 200 MHz ADCs and playback channels offering 16-bit, 800 MHz DACs. Based on quad-core Intel Xeon® processor, system includes 8 hot-swappable solid-state disk drives in RAID configuration with up to 4 TB capacity.

Calex Mfg. Co., Inc.    Concord, CA 94520
Dec 06, 2011 Featuring continuous input range of 9-75 Vdc, AHW Series provides regulated ±5, ±12, and ±15 Vdc output at ±400, ±167, and ±133 mA. Open frame converters utilize solder ball pins for surface mount installation and can fully regulate down to no-load condition. Measuring 1.22 x 0.78 x 0.28 in., units operate from -55 to +100°C, provide input to output isolation of 1,544 Vdc, and can withstand aggressive solvents and cleaning cycles during manufacturing process.

Olympus Europa Holding GmbH    Hamburg 20097  Germany
Dec 06, 2011 Featuring pixel-shifting mechanism, Models DP73 and DP73WDR provide max resolution of 17.28 megapixels. Fine Detail Process technology enables clear images at all magnifications, while 3CCD mode optimizes color accuracy by capturing true RGB values for every recorded pixel without color interpolation. In 15 fps live mode, cameras deliver 1600 x 1200 pixel resolution. In addition, DP73WDR employs WiDER technology to ensure that each image area is optimally exposed, regardless of intensity differences.

Paragon Software Systems, Inc.,    Dallas, TX 75240
Dec 06, 2011 With User Defined Feasibility Checks, Route Optimization Software ensures that planned transportation schedules are realistic and practical by allowing users to apply their own business constraints. Option can be used to ensure that all deliveries are completed before collections are scheduled, certain customers always go on same route; certain delivery types are always completed before others; or specific customers are always first on route due to unloading difficulties.

Thermo Fisher Scientific    Waltham, MA 02454
Dec 06, 2011 Accommodating both vapor- and liquid-phase storage, CryoExtra(TM) Containers are vacuum-insulated, stainless steel vessels that minimize top-to-bottom temperature variation. Lid and neck design, combined with advanced temperature monitoring, helps prevent temperature fluctuations that occur due to lid openings. Microprocessor-based LN2 level control ensures that liquid nitrogen levels are tightly controlled, while de-fog function allows push-button sample identification.

Danaher Motion/Portescap    Radford, VA 24141
Dec 06, 2011 Able to adapt to closed loop control systems, HM series includes 42 and 57 mm frame sizes each with short stack, one stack, or 2 stack design. Windings can be customized to satisfy application requirements, and several optional encoder mounting features are available. Depending on stack length, HM 42 mm motors provide holding torque to 65 oz-in., and HM 57 mm motors deliver 330 oz-in. max. RoHS-compliant series can serve as drop-in replacement in industrial and medical hybrid applications.

Ensinger, Inc.    Washington, PA 15301

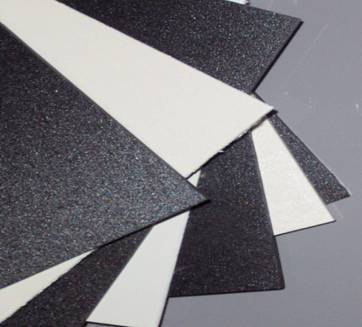

Dec 06, 2011 Available in .062, .093, and .125 in. thicknesses, Penn Fibre' thin gauge TECANYL® PPO sheet is made from Sabic Noryl EN 265 resin and supports continuous use temperatures exceeding 220°F. Another thickness, 0.40 in., is also available, with 50 sheet minimum, and standard sheet size is 24 x 48 in. All sizes exhibit minimal moisture absorption, impact strength, and electrical insulating properties. Chemical degradation from water, salt solutions, acids, and bases is also minimal.

Sensortechnics Inc.    Dublin, CA 94568
Dec 06, 2011 Featuring MEMS construction which integrates micro-flow channel and analog CMOS signal conditioning within silicon sensor chip, LBA Series is suited for differential pressure flow measurement where pressure drop across flow element is measure of volumetric flow rate. Sensors offer 0.01% resolution with dynamic range greater than 10,000. Immune to dust and condensation, sensors can be used with long connecting tubes and input filters without recalibrating or correcting output signal.

AZ Displays, Inc.    Aliso Viejo, CA 92656 1498
Dec 06, 2011 Suited for such applications as industrial controls or handheld devices, ATM0350D7-T has built-in 4-wire resistive touch panel with viewing angle of +40°/-60° (U/D) and +60°/-60° (L/R). Antiglare surface makes displays suitable for use under light reflective conditions, and nominal display mode is white transmissive. Display consists of a-Si TFT active matrix driver element TFT with QVGA resolution of 320 x RGB x 240 pixels and dimensions of 76.9 x 63.9 x 4.0 mm.

Keyence Corp.    Itasca, IL 60143
Dec 06, 2011 Combining functionality of laser scan micrometer, machine vision system, and optical comparator in single device, Model TM-3000 is available in 3 sensor head sizes and can utilize 2 transmitter-receiver pairs simultaneously. Because system works in 2 dimensions, it can measure up to 16 points within measurement area. In addition to 15 measurement modes and 8 auxiliary modes, device includes position correction function, which automatically orients test part prior to measurement.

Sauer-Danfoss    Ames, IA 50010
Dec 06, 2011 Measuring just 183.5 mm long, Model DDC20 allows installation in space-constrained, light-duty OEM equipment. Male slipper design minimizes friction on both piston and bore of cylinder block, optimizing fuel efficiency and extending oil life. Valve plate design brings noise down to 78.5 dBa while operating at 200 bar and 2,000 rpm. With optional loop flushing and bypass valves, machine or load can be moved without rotating pump shaft or engine.

Advanced Anti-Vibration Components - AAC    New Hyde Park, NY 11040

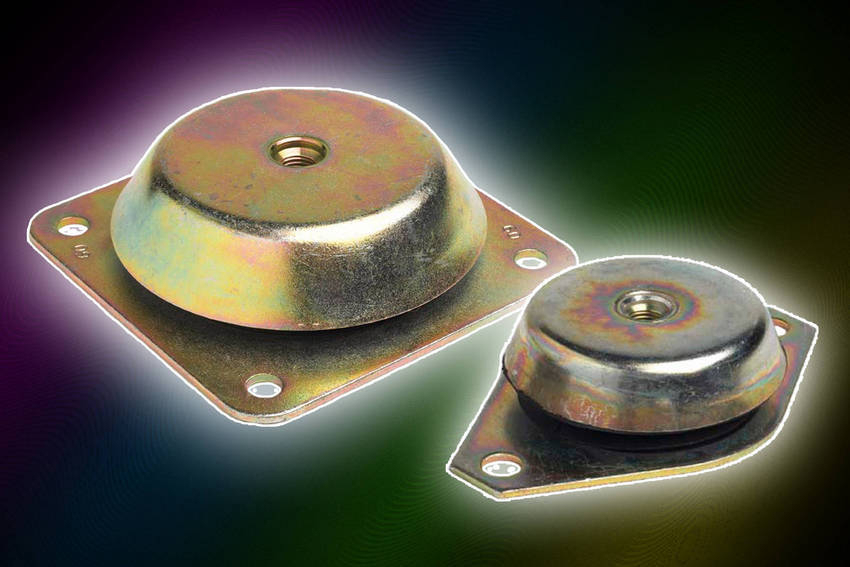

Dec 06, 2011 Able to dampen shock and vibration for loads from 432-1,956 lbf, V12Z55M062M... Series is made from natural rubber and styrene-butadiene rubber compound for optimal pliability and elasticity. There are 12 isolators in series: 2 have 4-hole mounting, and 10 have 2-hole mount configuration. All feature welded steel plated nut at top of housing and are designed for use in compression. Durometer hardness ranges are 45 and 60 ±5.

Aremco Products, Inc.    Valley Cottage, NY 10989
Dec 06, 2011 Based on titanium diboride, Graphi-Coat(TM) 623 inhibits oxidation of most commercial grades of graphite to 2,000°F. Two-part, water-based, non-volatile material is applied using brush, roller, dip- or spray-processing. Typically air set for 1-2 hr at ambient temperature then cured in-situ or in 10-15 min at 1,300°F, coating protects graphite crucibles and fixtures used in metallurgical casting processes as well as graphite electrodes used in arc-melting furnaces.

Industrial Magnetics, Inc.    Boyne City, MI 49712
Dec 06, 2011 Supplied in hard case, 12 piece Pull Test Kit includes various ferrous test pieces, air gap spacers, polarity tester, Magna View green sheet, ruler, and hand-held or digitally calibrated scale. Magnetic pull strength testing can be performed on magnets with round or flat surfaces and on either permanent or electromagnetic circuits. Kits may be used as part of regular QC program or to compare 2 similar looking magnetic devices.

L-Com, Inc.    North Andover, MA 01845
Dec 06, 2011 UPMA-LEADS and UPMB-LEADS parts are available with mounting option that allows use of side-flange to mount USB jack. Supplied with mounting hardware, products provide long wire leads for custom wiring through panels/enclosures. Jacks provide mounting options for product designs where there is not enough room above or below jack to mount connector. Parts feature 30 µin. gold plating on contacts and 24 AWG UL1007 style tinned copper leads.
