Lehighton Electronics, Inc.    Lehighton, PA 18235

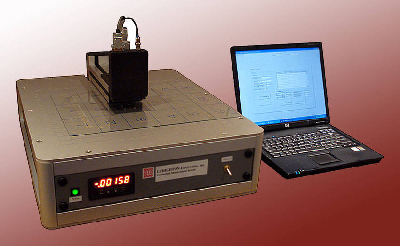

Jun 10, 2009 Implementing sensor heads for in-line product monitoring, 1800 Series offers fully automated conveyor models to monitor uniformity of ITO, TCO, thin films, and other coatings on non-conductive substrates. Optional SPC software gives warning when uniformity or sheet-resistance measurements are out of range. With automatic Z-function sensor head, 1800AG Model offers automatic gap adjustment. R/D Series is suited for characterization of wafers up to 450 mm dia, coated glass panels, and solar cells.

Murata Power Solutions, Inc.    Mansfield, MA 02048

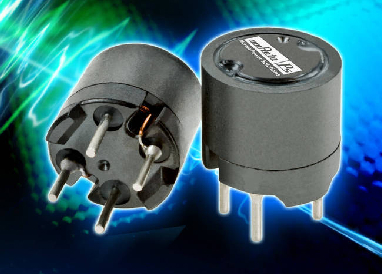

Jun 10, 2009 Featuring integral ferrite shield, Series 1200RS and 1200LRS are suited for power line filtering in low to medium current applications such as switching power supply circuits. Through hole, radial leaded devices have overall dimensions of 10.5 mm dia x 8.5 mm. Operating from -40 to +85°C, Series 1200LRS offers inductance values from 6.8 µH to 22 mH and DC current rating up to 4.7 A IDC, while Series 1200RS features inductance from 10 µH to 1 mH and max current rating of 4.6 A IDC.

Franklin International    Columbus, OH 43207
Jun 10, 2009 Utilizing microscopic spheres, Micronax Microsphere Adhesives create discontinuous adhesive surface that limits physical contact with substrate, resulting in removability and stable adhesion over time. Acrylic-based adhesives hold labels firmly in place on most substrates yet are permanently repositionable, making them suited for decorations, wall graphics, and temporary signage. Sphere sizes can be modified from 20-80 microns to meet customer requirements.

Newport Corp.    Irvine, CA 92606
Jun 10, 2009 Featuring flexible power control for continuous wave (CW) to modulated operating mode, Alliant(TM) 100 W IR laser exhibits single-mode beam quality and wall-plug efficiency that deliver maximum power at smallest focused spot. Brightness is suited for industrial machining applications such as precision cutting, spot and seam welding, and metal sintering. Tested for 24/7 operation, laser is based on ProLite® Xt high brightness laser diodes and supplied in rack-mount enclosure.

One Stop Systems    Escondido, CA 92029
Jun 10, 2009 Housed in 3U 19 in. rackmount enclosure, Expansion Platform adds up to 4 PCIe and 3 PCI-X add-in boards to servers with limited slot counts. Using Gen 2 host system, unit operates at Gen 2 speeds or 5 Gb/s per lane. Since platform accommodates either x4 or x8 cable connectors, it can operate from 10-40 Gb/s. System includes host adapter and 1 m cable, 300 W power supply, two 5¼ in. drive bays, and one 3½ in. drive bay, as well as 2 USB ports on front panel.

E Instruments International LLC    Langhorne, PA 19047
Jun 10, 2009 Combining pressure and vacuum generation into one design, scissor-action Pneumatic PHP Pumps include fine adjustment vernier, pressure release valve, and spring-loaded lock nut for stroke adjustment. Models PHP 2, PHP 10/25, and PHP 35/40 offer ranges of -0.9 to 2 bar, -0.9 to 10/25 bar, and -0.9 to 35/40 bar, respectively. Carrying case and set of adaptors are optional.

Evolis Card Printer    ZI Angers - Beaucouze 49070  France

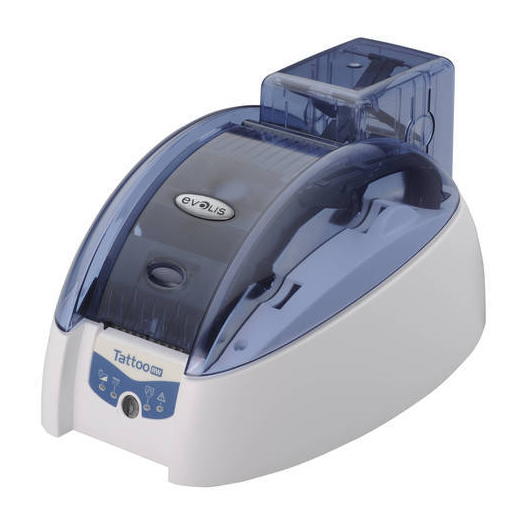

Jun 10, 2009 Tattoo RW is compact, monochrome printer that is designed to print on rewriteable cards. Cards can be inserted automatically through card feeder, which is hermetically sealed and can hold up to 100 cards, or manually through device's front feed. Unit provides ISO-compliant magnetic encoding and RFID and also features Ethernet port for networking. Designed to print badges with information updated on regular basis, unit supports variety of applications.

Technical Manufacturing Corp.    Peabody, MA 01960
Jun 10, 2009 Designed for use with scanning electron microscopes (SEMs), STACIS® FP active hard-mount vibration cancellation floor platform features extended stroke piezoelectric actuators and damped, powder-coated steel plates that sandwich 4 isolators and digital controller. Measuring 7 in. tall, it weighs less than 400 lb and can support up to 2,500 lb. or more with no soft air suspension. With vibration cancellation starting below 1 Hz, platform is available with 3 or 6 degrees of freedom.

Wireworks Corp.    Hillside, NJ 07205

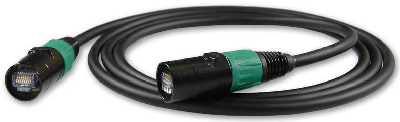

Jun 10, 2009 Available as single-channel cords and multichannel assemblies, TacCat products provide tactical CAT5e Ethernet interconnection in heavy-duty construction for on-the-road Ethernet and digital audio applications. Cords are available in standard lengths from 25-250 ft with Neutrik's etherCON data connectors or traditional RJ45 Ethernet connectors. TacCat multichannel assemblies, available with same choice of connectors, have 4 individual CAT5e cables in one outer jacket.

E-T-A Circuit Breakers    Mount Prospect, IL 60056 6060

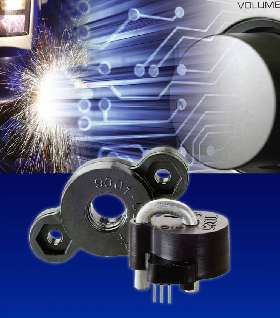

Jun 10, 2009 Based on Hall Effect technology, TD and 9001 Current Detectors protect power semiconductors in power electronic circuits by signaling when current in circuit has exceeded nominal trip point. Digital output is factory programmed to go low when trip point is exceeded. Operating over temperature range of -40 to +125°C, units mount directly to PCB and provide isolation between sensed current and output. Both have negligible levels of power dissipation.

Correct Building Products    Biddeford, ME 04005
Jun 10, 2009 Providing clean, finished look, CorrectDeck CX® Starter Board Profile features one bull-nosed edge and one edge with grooved side to accommodate Fastenator® hidden fastening system. Profile is available in 6 colors and features CX Technology, making decking stain-, mold-, and fade-resistant. Made from 80% recycled content, profile consists of 60/40 combination of hardwood and polypropylene and can qualify for LEED points from U.S. Green Building Council.

Maxpro Technologies    Fairview, PA 16415

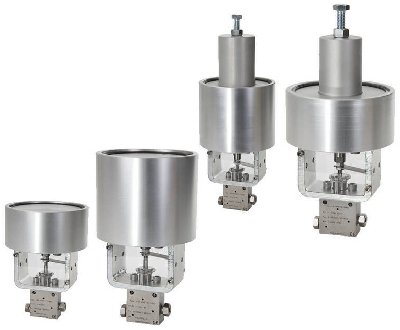

Jun 10, 2009 Available in 2 sizes to cover varying plant air supplies, air operated actuators mount on standard valve body to provide remote control capabilities in process applications. Piston style offers dependable operation and extended actuator cycle life, while yoke style design, which offers separation from process fluids and actuator air pressure, also indicates stem position. Offered in NO or NC configurations, both styles are made of corrosion-resistant anodized aluminum.

Eagle Pneumatic, Inc.    Lakeland, FL 33811
Jun 10, 2009 Constructed of stainless steel, M2 Elite Drive-Thru Pneumatic Tube System features vandal-resistant door and switches, built-in blower pack, and auto close feature on customer door. Customers can choose from systems with 1-way video, 2-way video, or audio only, and video systems can have 4 x 7 in. or 10.4 in. LCD screens. Available with 7, 10, or 12 in. truck base, systems accommodate low speed blower and defrosting units to adapt to local climates.

LEVITON    Melville, NY 11747

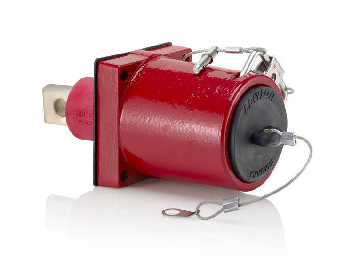

Jun 10, 2009 Available in male and female versions, X Series features 45° angle stainless steel clevis pin that permits ganging of multiple receptacles as close as ¼ in. apart and accepts industry standard lockouts for added security. Clevis pin's bracket design secures it from being completely removed, preventing loss or damage. Offered with single- or double-hole terminations, receptacles deliver up to 1,000 Vac/Vdc and up to 1,135 A of continuous power under extreme conditions.

Schenck Process    Fairfield, NJ 07004
Jun 10, 2009 Suited for handling wheat, rice, coal, gravel, ore, and cement, MoveMaster Chain Conveyors and Bucket Elevators utilize En-Masse principle where bulk materials are induced to move like liquid through dust-tight steel casing, which can be designed horizontally, on inclined plane, vertically, and around bends. Offering capacities from 10-2,000 tons, conveyors have high tensile alloy steel chains, while elevators are manufactured with heavy duty steel to withstand harsh environments.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039
Jun 10, 2009 Custom-built for channel width and lift height, SCREENMASTER® CS efficiently cleans bar screen rack and removes solids from channel installations. It employs front clean/front return principle and is driven by ¾-1 hp motor and gear drive. Constructed of corrosion-resistant stainless steel, system delivers continuous rotary motion and can be installed in new or existing channels and at 75° inclination. It is supplied with S320 Program Controller, which activates on timed/level basis.

Vi-Cas Mfg. Co., Inc.    Cincinnati, OH 45236

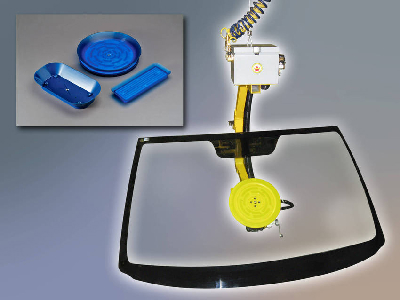

Jun 10, 2009 Available in sizes greater than 15 in., Large Diameter Vacuum Cups fit virtually any type of vacuum equipment used for lifting or pick-and-place of large, bulky, cumbersome, or heavy items. Round, rectangular, and oval-shaped cups are offered. Materials are available to suit most applications, including food grade materials for food handling, high-temperature materials, and anti-static materials for handling electronic components.

American Casting & Manufacturing Corp.    Plainview, NY 11803
Jun 10, 2009 Available in 15 in. lengths for larger bundling and security applications, BT4S Series is manufactured in printed and numbered designs. All nylon cable ties come with steel locking tooth for added strength. Applications include meters, chemical shipments, crash carts, switches, tote boxes, and air cargo containers as well as fiber drums, lockers, hatches, and trailers.

Bondhus Corp.    Monticello, MN 55362 9347

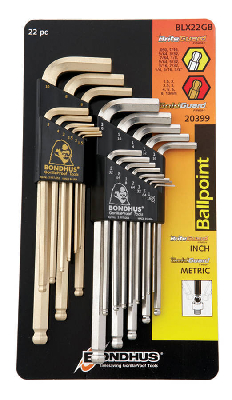

Jun 10, 2009 Made from Protanium® steel, full range of inch, metric, and star tools is available with real 14K gold-plated finish and BriteGuard(TM) chrome-plated finish. Visually striking finish helps users locate tools and identify inch vs. metric models. All tools carry lifetime warranty.

FLEXcon    Spencer, MA 01562

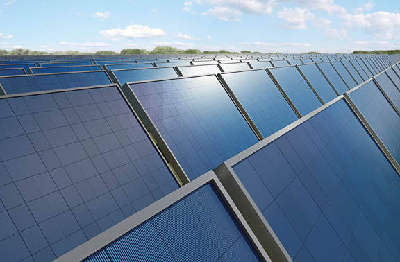

Jun 10, 2009 Designed for use with slow-cure encapsulants, PVguard(TM) 105040W Backsheet Protective Laminate is RoHS-compliant and constructed of TPE (Tedlar®/PET/EVA). PVguard 10E40W Backsheet Protective Laminate, suited for use with fast-cure encapsulants, also features TPE construction and is RoHS-compliant as well as UL-recognized. Partial discharge rating from TUV is greater than 1,000 V for both products, which also deliver UV and moisture protection required in photovoltaic panel production.
