Linear Technology Corp.    Milpitas, CA 95035
Jul 06, 2009 Supplied in TSSOP-16E package, LTC3412AMPFE is 4 MHz synchronous buck regulator that uses constant frequency, current mode architecture and delivers up to 3 A of continuous output current at voltages down to 0.8 V. It operates from 2.25-5.5 V input and over -55 to +125°C junction temperature range, exhibiting efficiencies up to 95%. Features include programmable frequency from 300 kHz to 4 MHz, ±2% output voltage accuracy, and synchronizable switching frequency.

Avago Technologies    San Jose, CA 95131

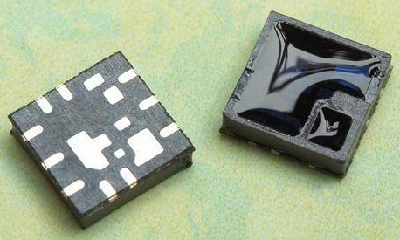

Jul 06, 2009 Operating from 2.4-3.6 V supply, RoHS-compliant APDS-9120 combines signal conditioning IC, emitter, and detector into one 4.4 x 4.4 x 1.1 mm SMT package that offers analog and digital output options. Ambient light cancellation circuit, operational up to 100K lux, helps prevent false triggering, while sensing capabilities are adjustable from 10 kHz to 1 MHz. Integration eliminates need for external LED driver, signal filtering, and amplification. Typical detection distance is 30 mm.

Fluid Components International    San Marcos, CA 92069

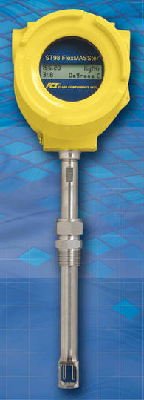

Jul 06, 2009 Featuring thermal dispersion mass flow sensor and intelligent digital electronics, FlexMASSter® ST98 series can provide process flow rate and totalized flow data within minutes of installation. Integrated 2-way HART communications gives access to air/gas flow data as well as diagnostics, calibration, and configuration information. Accurate to ±1% of reading, plus ±0.5% of full scale, inline solution has repeatability to ±0.5% of reading and flow range of 0.00062-1,850 scfm.

Emhart Teknologies, A Black & Decker Co.    Shelton, CT 06484
Jul 06, 2009 Featuring PNT110 Manual Tool, POP NUT® PNT110 Rivet Nut Tool Kits include PNT110-I-KIT with mandrels and nosepieces for 6-32, 8-32, 10-24, 10-32, and ¼-20 size inserts as well as 190 unified thread inserts, while PNT110-M-KIT contains mandrels/nosepieces for M3, M4, M5, and M6 with 190 metric threaded inserts. Featuring aluminum casting and steel construction, kits are ideal solution for auto body repair, automotive and garage applications, industrial MRO, and home operation needs.

Hammond Power Solutions, Inc.    Baraboo, WI 53912
Jul 06, 2009 HPS Fortress(TM) Series is supplied in NEMA 3R enclosure potted/encapsulated with electrical-grade silica sand and resin compounds that completely enclose core and coil to seal out moisture and airborne contaminants. While key hole mounting slots facilitate installation, rear and side entry conduit knockouts promote wiring compartment access. Series includes 9 standard single-phase groups from 50 VA to 37.5 kVA (50 and 60 Hz) and 8 standard 3-phase groups from 2-75 kVA (60 Hz).

Microscan Systems, Inc.    Renton, WA 98057

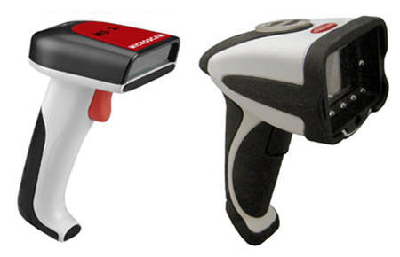

Jul 06, 2009 Ergonomically designed HS-1 decodes linear barcodes in applications such as printed black and white labels and is built to withstand multiple drops in harsh environments. For high-contrast automated data applications from clean rooms to industrial environments, HS-2D can decode linear barcodes as well as 2D symbols with help from its dual LED targeting system. Both models allow barcode output to be plugged directly into MS Office programs such as Word/Excel.

Intelligent Instrumentation, Inc.    Tucson, AZ 85706
Jul 06, 2009 LANpoint TIME computers support iCLASS 13.56 MHz RFID proximity reader option in addition to other technologies: IR barcode, visible red barcode, magnetic stripe, and HID 125 kHz RFID. Supplied in NEMA 12 housings, WiFi Ethernet IEEE802.11b/g-enabled solutions also support various combinations of readers and keyboard-only/without AutoID reader. Features include onboard non-volatile storage, numeric or QWERTY industrial keyboard, backlit LCD, as well as various I/O and DIO.

Rohrback Cosasco Systems    Santa Fe Springs, CA 90670
Jul 06, 2009 Ensuring piping assets are monitored against underprotection from corrosion damage, Cosasco® Side-Stream Assembly monitors parameters such as metal loss, corrosion rate, erosion rate, pressure, temperature, flow, and bacterial activity. Multiple 1 in. tees are included, which can be configured with Microcor® corrosion/erosion rate measuring, Corrater® LPR and galvanic measuring, Bio-probes, and process parameter measuring systems. Corrosion/process data is provided within minutes.

JVL USA/Motion Control Sales Ltd.    Morrow, OH 45152
Jul 06, 2009 Supplied as 57 x 57 mm PCB, SMC75 offers everything required to solve modern control task as standalone controller or controlled from PLC/PC via serial commands or I/O. It incorporates RS485 and CANbus serial interface as well as 8 I/Os that can be configured as inputs, outputs, or analog input - controllable via nanoPLC and MacTalk graphic programming. MODBUS RTU and CANopen facilitate and accelerate connection to PLC, while ActiveX/OCX driver is available for PC or IPC.

Newport Corp.    Irvine, CA 92606
Jul 06, 2009 Driven by 6 LTA actuators, Hexapod 6-axis micropositioning system features anti-friction coated spherical joint design. Hexapod XPS electronic controller offers freely-definable virtual pivot point, instrument grade I/O, hardware-based input triggers, event triggers, high-speed data acquisition, TCP/IP communication, and integrated TCL programming language for on-board processes. Two user-definable coordinate systems are provided, which facilitate incremental displacements.

American Industrial Systems, Inc.    Irvine, CA 92614

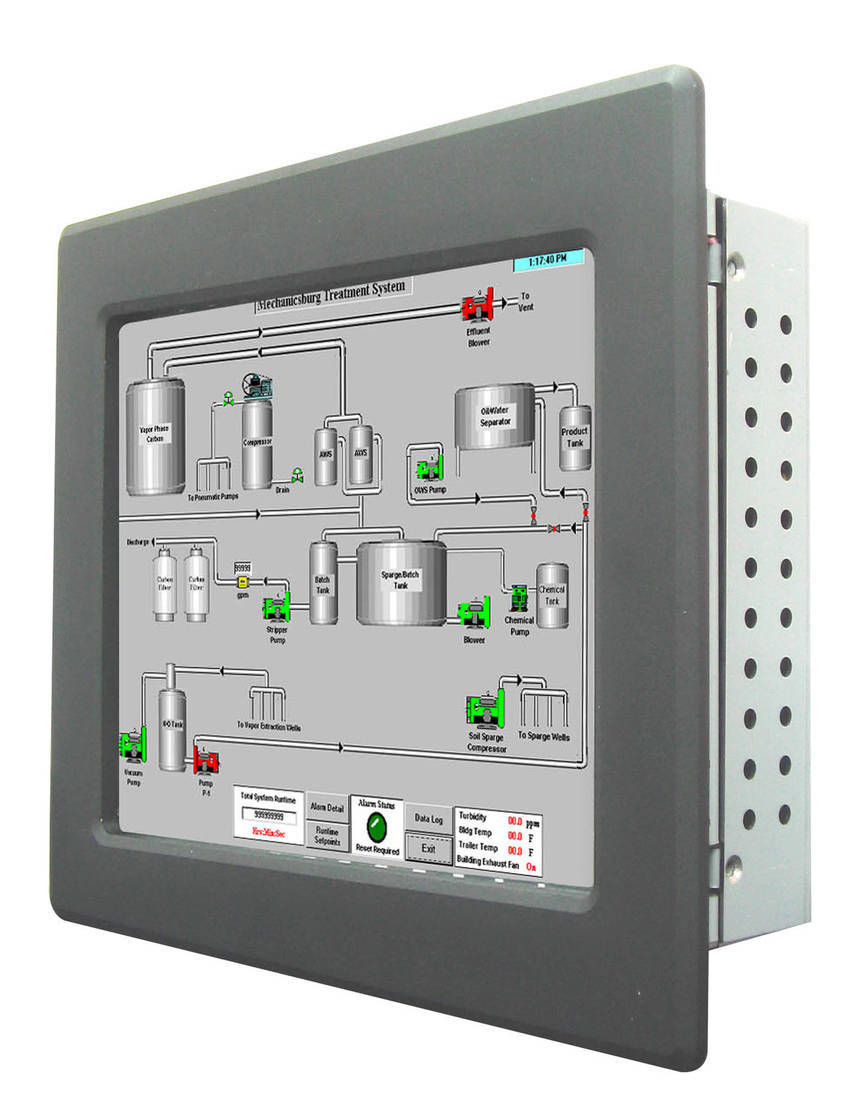

Jul 06, 2009 Based on Intel® Atom N270 Processor, 15 in. industrial panel PC features modular design that facilitates various mechanical mounting options such as open frame, panel mount bezel, and IP65/NEMA4 bezel. Suited for 24/7 usage, unit features 80 GB hard drive, 1 GB RAM, fanless design, 5 wire resistive touch, and rugged steel housing. Applications include automation control, HMI, testing equipment, and process monitoring.

CUI, Inc.    Tualatin, OR 97062

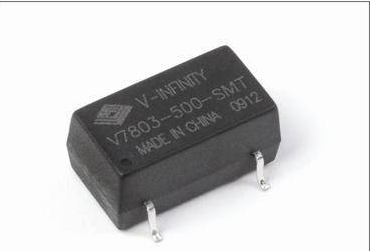

Jul 06, 2009 Measuring 15.24 x 8.50 x 7.00 mm, compact V78XX-500-SMT series offers efficiencies of up to 96% and does not require heat sink. It offers wide input range from 4.5-28 Vdc and regulated output voltages of 3.3, 5, 12, and 15 Vdc. Output current is 500 mA with operating temperature range of -40 to +71°C at 100% load, derating to 60% load at 85°C. Other features include short circuit protection, thermal shutdown, low ripple and noise (10 mV p-p typical), and MTBF of 2 million hr.

Polytec, Inc.    Tustin, CA 92780
Jul 06, 2009 Suited for studying high frequency MEMS or piezoelectric transducers used in medical ultrasound or NDT, UHF-120 can measure at amplitudes up to 100 m/sec with resolution of 30 fm/√Hz. It can be used in development of high spatial resolution ultrasound transducers for study of crosstalk between array elements, output uniformity and tissue interaction using phantoms. Laser Doppler Vibrometer can also be integrated into probe stations for testing at wafer level.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371

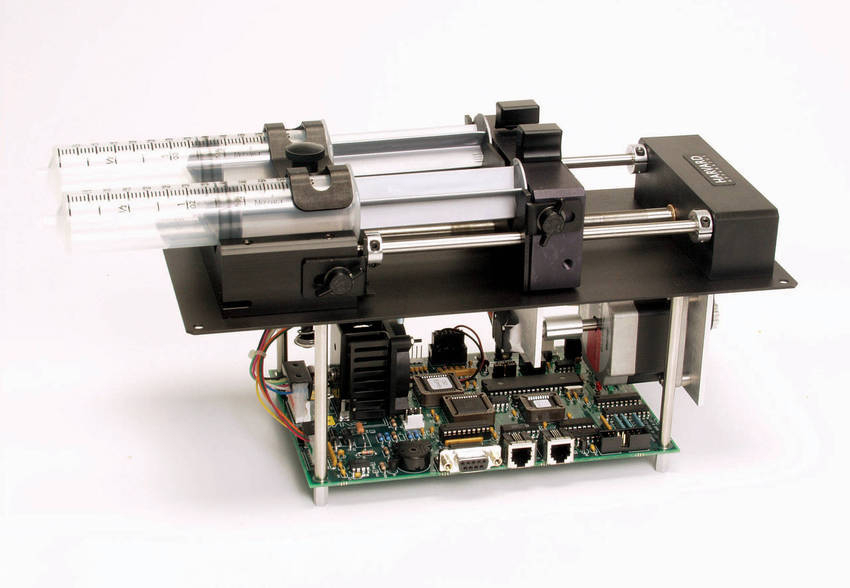

Jul 06, 2009 Including microliter, milliliter, programmable, and high pressure models, OEM syringe pump modules are designed to build pump suited to user's research and design needs. Each OEM Syringe Pump provides accuracy and precision as well as smooth flow. Customization of flow rate range, construction material, force, syringe size, control mechanism, as well as other attributes, is possilbe.

GAO Instruments Inc.,    Toronto   Canada
Jul 06, 2009 With read range of 7 m in open space and up to 11 m in indoor confined area, UHF EPC Class 1 Gen 2 handheld RFID reader can be used for inventory of items on pallets, warehouse shelves, and moving vehicles. Features include WiFi, USB and RS232 connectivity, SD Card slot for external memory, 3.5 in. touch screen, QWERTY keyboard, Samsung processor, trigger button on handle, and bar code scanning. Product can be configured with linear or horizontally polarized antenna.

Murrelektronik, Inc.    Duluth, GA 30096

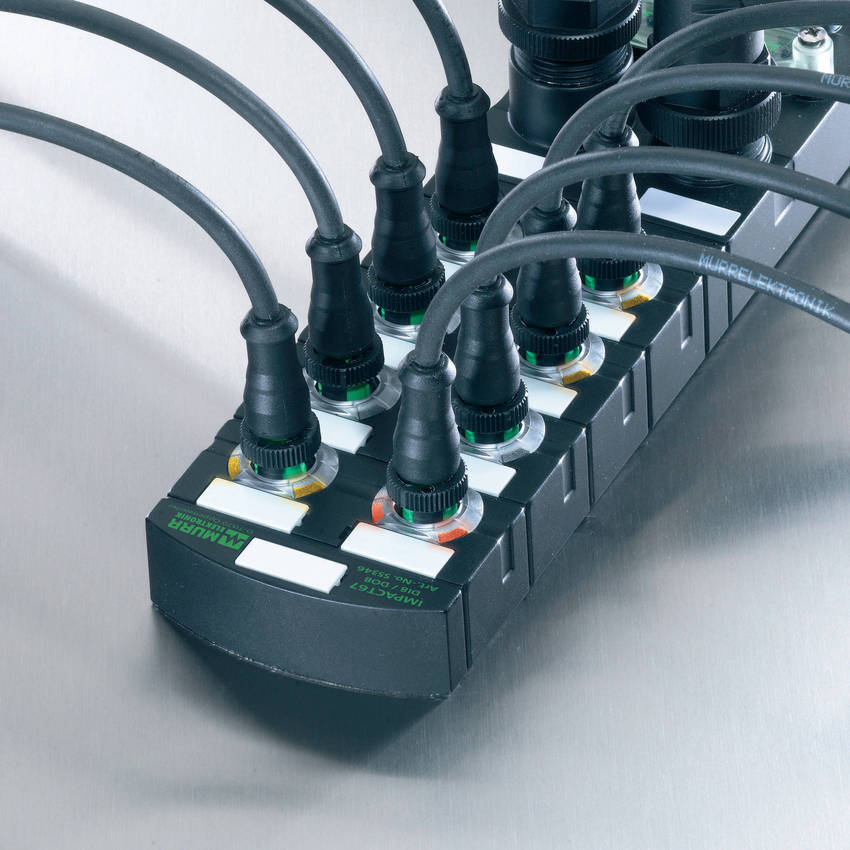

Jul 06, 2009 Available with Profibus, CanOpen, DeviceNet, EtherCat and EtherNet /IP bus protocols, IMPACT67 compact field bus I/O modules are designed for electrical engineers to maintain digital inputs and outputs. IP67 protected unit comes with predefined inputs and outputs, port-related cutoff and single channel diagnostics via LED. Modules are equipped with field bus group diagnostics to reduce machine outages and localize and rectify faults.

SIXNET    Clifton Park, NY 12065 0767

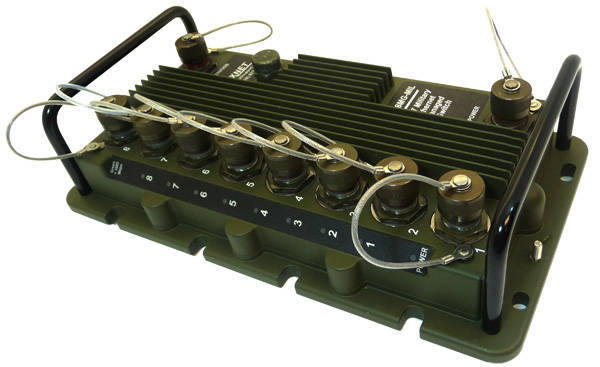

Jul 06, 2009 Featuring with rugged D38999 style connectors and IP67/NEMA 6 rated package, 8-port ET-8MG-MIL-1 (managed) and ET-8EG-MIL-1 (unmanaged) switches are certified to meet MIL-STD-810F and MIL-STD-461E and offer MTBF over 1,000,000 hr based on MIL-STD-217F. Each port supports auto-speed/duplex, auto-crossover and auto-polarity for true plug and play connections, and fast wire-speed switching with automatic intelligent routing prevents collisions and delays.

SKF USA, Inc.    Lansdale, PA 19446

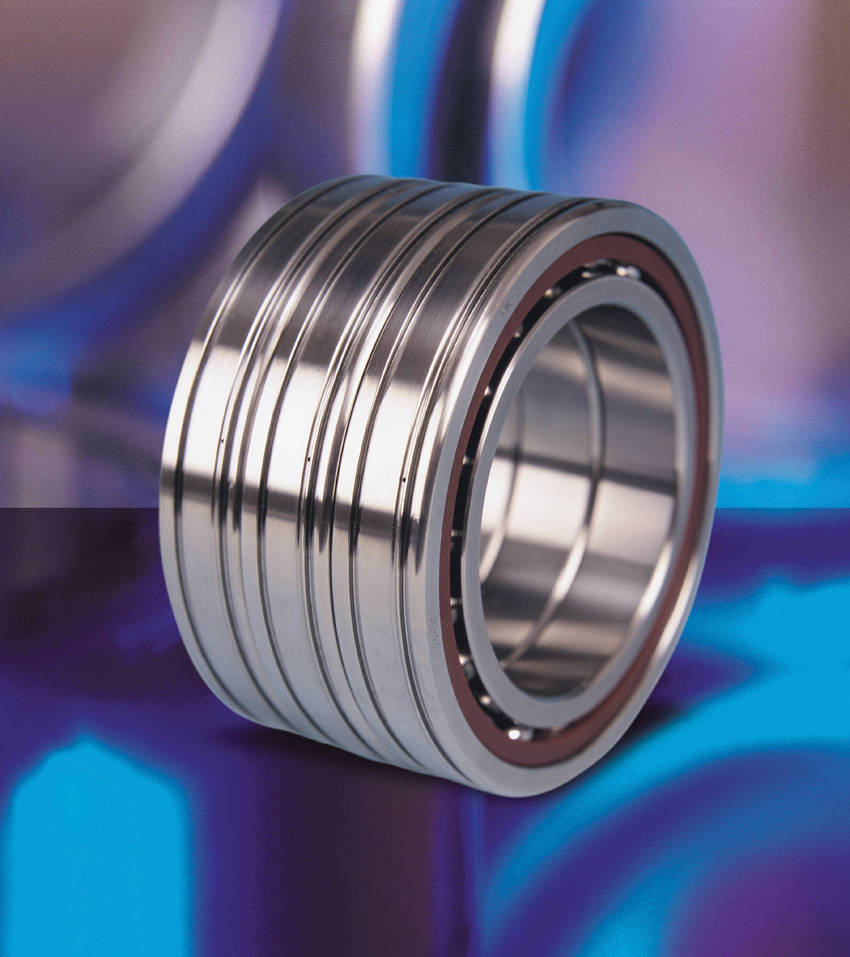

Jul 06, 2009 With high stiffness and load-carrying capacity, angular contact thrust ball bearings generate less friction, providing safe radial and axial support and axial guidance of shafts in machine tool screw drives and spindles. Features include 62° contact angle, ground transition between raceway and shoulder, and heat treatment for constant preload over entire service life. Supplied with grease for quick installation, bearings are offered in single- and double-direction versions.

Schleuniger, Inc.    Manchester, NH 03103

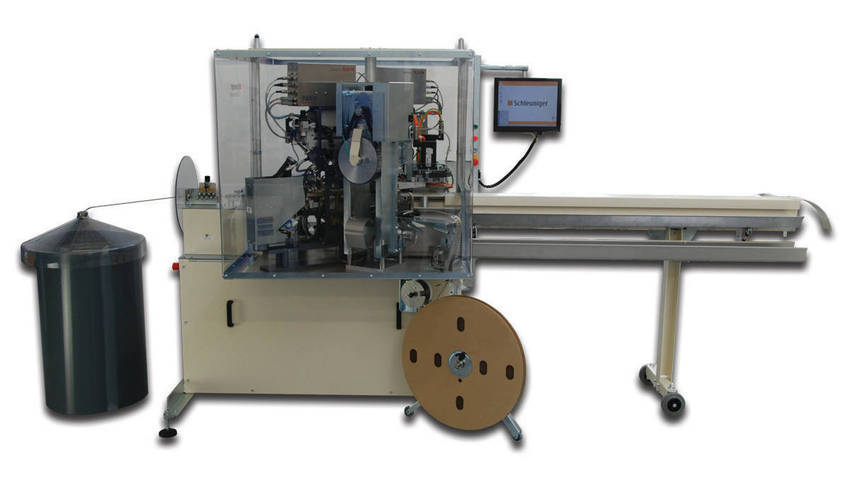

Jul 06, 2009 Fully automatic CrimpCenter 36 can hold up to 6 processing stations and features EASY user interface software with color touchscreen and icon-based menus. Unit utilizes TCP/IP communication, and synchronized Ethernet powerlink for fast and continuous communication between software and 5 servo drives. UniCrimp 220 A Crimping Machine includes crimp force monitoring, crimp height micro-adjust, jog mode, and split cycle, while ToolingShuttle 30 combines applicator, terminal reel, and paper winder.

Esco Tool    Medfield, MA 02052
Jul 06, 2009 Capable of removing membrane and overlay from tube's outer surface, as well as bevel tube simultaneously, Membrane Removal Head is designed to fit 5 different MILLHOG® tools that cover tube range from 7/8-3 in. OD. It features Golf T inserts, which can be installed and removed without wrenches, and eliminate screws and head breakage. Head is available in 2 styles; to remove membrane only or to remove membrane and overlay.
