Patterson Fan    Blythewood, SC 29016
Jun 15, 2009 Designed to handle up to 2,400 lb each, Shop Carts are manufactured with 6 phenolic wheels for mobility and are constructed of welded, powder-coated steel. Lumber and Flat carts include durable underbracing for heavy work loads. Custom sizes and colors are available.

Dorner Mfg. Corp.    Hartland, WI 53029 0020
Jun 15, 2009 Capable of sustaining speeds of 260 fpm, AquaGard(TM) SS modular conveyor includes 1 in. nosebar tails for small part transfers; powered transfer for consistent speeds; and roller transfer plate which provides smooth product transitions with minimal added length. Bracket design allows various controls to be added without drilling, while belts, supported by UHMW wear strips, are available in 4-36 in. widths and 3-83 ft lengths. All parts are FDA-approved and meet/exceed BISSC standards.

Snyder Manufacturing, Inc.    Dover, OH 44622
Jun 15, 2009 Snyder Safe-Gard(TM) Technology is now available in LeatherLike(TM) Lite Fabrics. Phthalate-free and lead-free fabrics also feature anti-mildew, anti-fungal, and anti-microbial properties. Suited for use in athletic and gymnasium applications, premium quality leather-like embossed laminated fabric is available in an array of stocked and special order colors.

Advanced Cerametrics Inc.    Lambertville, NJ 08530
Jun 15, 2009 Capturing mechanical vibration energy from environment, Harvestor-III(TM) line of power modules provide perpetual electric power for microcircuit applications. They can provide continuous voltage output to replace or augment battery power in many applications where wired power is unavailable. Product combines piezoelectric fiber composites (PFCs) with EH1000 energy management circuitry to power sensors, wireless transponders, and other low-power applications.

XP Power    Sunnyvale, CA 94085
Jun 15, 2009 Comprised of 20 models, JHM series is offered in 3 and 6 W board mounted variants and in 24-pin DIP package. Units provide 3,000 Vac input to output isolation for up to 1 min that meets secondary isolation requirements for BF and CF applications and 5,000 Vac isolation for up to 10 msec for defibrillation proof compliance. Full load output is available from -20 to +60°C and up to maximum case temperature of +100°C with derating.

ControlAir Inc.    Amherst, NH 03031 2315
Jun 15, 2009 Built to withstand harsh industrial environments, Type-330 regulator provides instrument quality air to valves, pneumatic controllers, transmitters, transducers, valve positioners, air cylinders, and pneumatic control systems. It consumes air less than 5 scfh, and has temperature range of 0-160ºF. Flow capacity is 22 scfm at 100 psig supply with 20 psig output, while exhaust capacity is 0.1 scfm with downstream 5 psig above set point. Output ranges include 0-30, 0-60, and 0-120 psig.

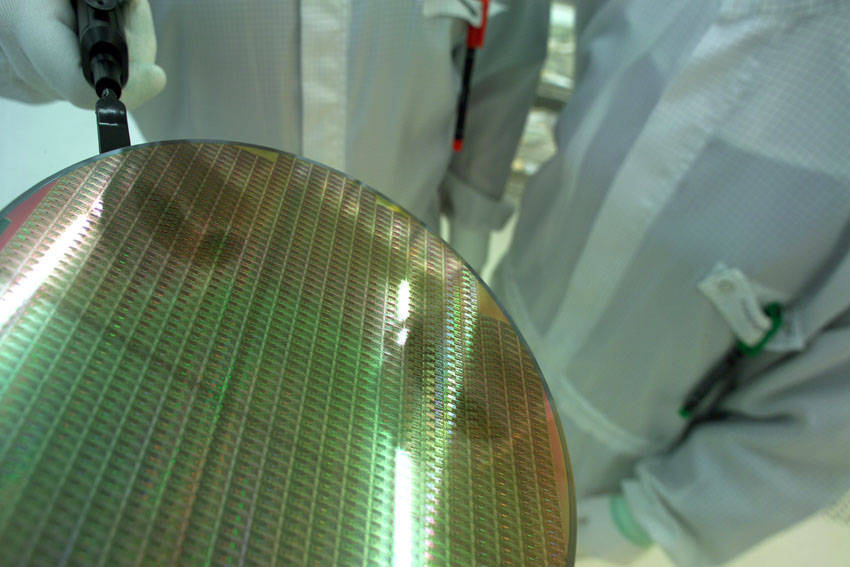

austriamicrosystems AG    Premstatten   Austria
Jun 12, 2009 Through Silicon Via (TSV) technology enables two 8 in. wafers to be electrically connected. With typical TSV depths of 200-300 µm, it addresses variety of markets requiring 3D integration of CMOS ICs, photo sensors, gas sensors, power devices, or MEMS components such as automotive, industrial, and consumer applications. Flexible manufacturing concept allows for customer specific modifications, and varying wafer thicknesses can be supported.

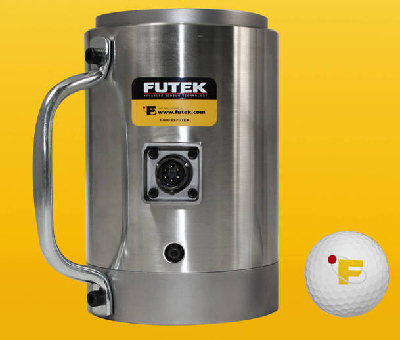

FUTEK Advanced Sensor Technology, Inc    Irvine, CA 92618
Jun 12, 2009 Made of 17-4PH stainless steel, Model LCA600 features raised spherical surface to minimize possibility of off center loading, and removable ergonomic handle for carrying. High-capacity, canister type load cell measures 5 in. in diameter and 5/8 in. in height. Operating from 0-160°F, unit utilizes metal foil strain gauge technology and withstands chemically active and corrosive environments. It includes removable connector guard, mounting holes, and optional USB output.

Exalt Communications Inc.    Campbell, CA 95008
Jun 12, 2009 Serving 7-40 GHz ITU/ETSI bands, EX-s Gigabit Ethernet (GigE) carrier-class, split-mount microwave radio systems offer mobile operators and enterprises backhaul upgrade flexibility and functionality. They enable smooth TDM to IP migration and support mobile network evolution from 3G to HSPA/4G/LTE. With capacities from 20-365 Mbps per carrier, point-to-point systems offer hitless and errorless adaptive coding and modulation that maximize spectrum utilization and availability.

Saelig Co., Inc.    Pittsford, NY 14534
Jun 12, 2009 Designed for current and voltage measurements in automotive hybrid or electrical powertrain systems, KLARI-MOD SC 1000V Series offer 16-bit resolution and 1,000 V safety isolation between measurement circuitry and data output. Modules can be adapted to meet changing measurement requirements via use of different shunts or voltage probes. Data output is available via CANbus or RS232 serial interface.

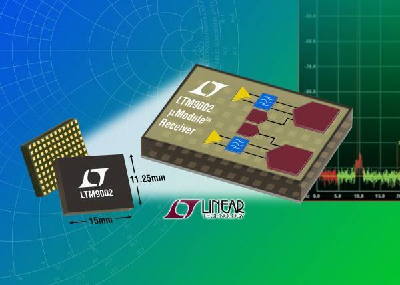

Linear Technology Corp.    Milpitas, CA 95035
Jun 12, 2009 Housed in 11.25 x 15 mm LGA uModule® package, Model LTM9002 combines dual 14-bit ADC sampling up to 125 Msps, anti-aliasing filters, fixed gain differential ADC drivers, and 12-bit trim DACs. Dual IF/baseband receiver subsystem achieves 90 dB isolation at 140 MHz input frequency. Overall gain is typically 26 dB and varies less than 0.1 dB between 2 channels. Utilizing multi-layer substrate, package shields sensitive analog lines from digital traces to minimize digital feedback.

D-M-E Company    Madison Heights, MI 48071-2383
Jun 12, 2009 Using non-resettable, mechanical, 7-digit counter, CounterView records accurate number of mold cycles, and relies on sensor that detects when mold has closed. Each mold cycle triggers display to increase or decrease counting mechanism based on user preference. CounterView also validates process monitoring data and assists mold maintenance procedures. Operating to 250°F, product is available in inch and metric standards and features glass-filled nylon housing.

Microchip Technology, Inc.    Chandler, AZ 85224 6199
Jun 12, 2009 Designed to work with 8-, 16-, or 32-bit PIC® microcontroller or dsPIC® Digital Signal Controller, Model MCP2036 includes multiplexer, frequency mixer, amplifier, driver, and voltage reference. Inductive touch sensing works through plastic, stainless steel, or aluminum front panel, as well as through thick gloves and on surfaces where liquid is present. Housed in 16-pin 4 x 4 mm QFN package and 14-pin PDIP and SOIC packages, AFE is suited for appliance, industrial, and automotive markets.

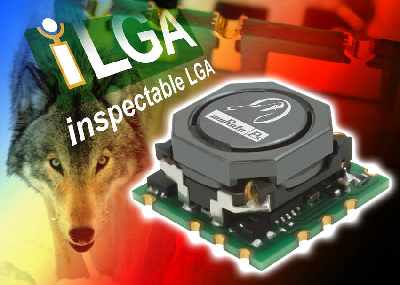

Murata Power Solutions, Inc.    Mansfield, MA 02048
Jun 12, 2009 Offering choice of positive or negative On/Off logic, OKL-T/3-W12 Series features nominal 12 V input and max output current of 3 A. Units have programmable output voltage of 0.591-5.5 V, which is user-selected via external resistor. Modules can drive ceramic capacitive loads up to 200 µF with overall efficiency up to 93%. Operating from -40 to +85°C, devices are housed in 12.2 x 12.2 mm iLGA package with small plated cutouts that allow probing and visual inspection of signal pads.

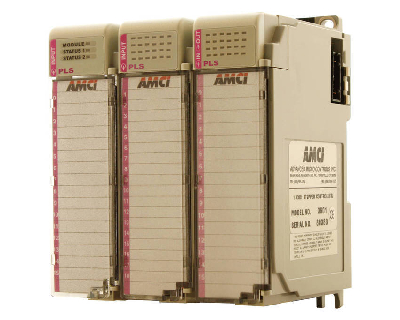

Advanced Micro Controls, Inc.    Terryville, CT 06786
Jun 12, 2009 Designed for Allen Bradley's CompactLogix PAC and MicroLogix 1500 PLC, Series 2600 PLS Controller Modules enable throughput times of 20 µs, virtually eliminating variability in output control. High-speed I/Os are wired directly into card, eliminating need for external relay boards and relays. Each version combines resolver interface and 16 virtual PLS outputs. Model 2612 includes 8 additional physical high-speed PLS I/O, while Model 2613 includes 16 additional physical high-speed PLS I/O.

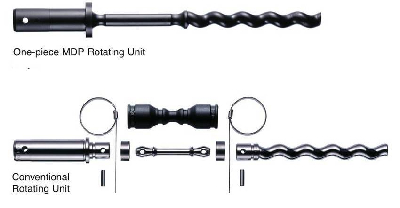

seepex, Inc.    Enon, OH 45323
Jun 12, 2009 Available in 4 sizes with capacities to 2.5 gpm, pressures to 174 psi, and speeds from 0-600 rpm, MDP Series features 1-piece rotating unit made from Xytel ST801 nylon, which is virtually unbreakable and resistant to abrasion. Progressive cavity pumps provide pulse-free metering of low- to medium-viscosity fluids with accuracy up to ±1.0%. They can be equipped with electric motor with integrated frequency inverter and forced ventilation, or with mechanical variable speed drives.

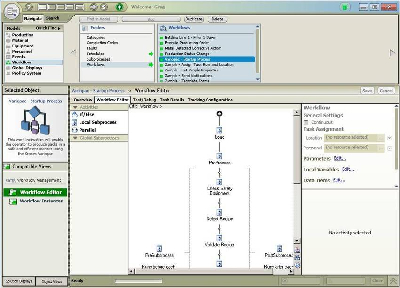

GE Intelligent Platforms    Charlottesville, VA 22911
Jun 12, 2009 Targeting water/wastewater industry, Proficy® Workflow provides information-rich, circumstance-based workflows that operators follow to understand what is happening around them and how to react in sequenced and procedural manner that is repeatable every day. Program guides operators with step-by-step instructions for each task and automatically walks them through corrective action to prevent or fix problems. Software can connect to many existing databases using Proficy SOA.

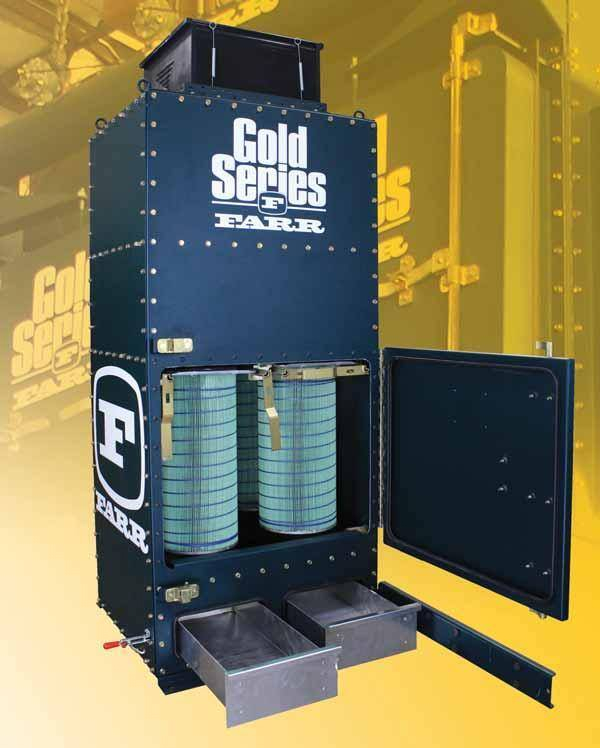

Camfil Farr Air Pollution Control    Jonesboro, AR 72401
Jun 12, 2009 Measuring 38 in. square and under 8 ft high, Gold Series® GS4M Mini dust collector controls emissions from airflow applications up to 2,000 cfm. Rugged, compact unit features 3 hp fan motor that handles 1,000 cfm at 9 in. wc or 2,000 cfm at 5 in. wc static pressure. Featuring fan with less than 70 dB noise, filters, and cleaning system, unit contains 4 HemiPleat® flame retardant filter cartridges with 788 sq ft of media rated at 99.99% efficiency on 0.5 micron particles.

Molex Inc.    Lisle, IL 60532-1682
Jun 12, 2009 HDMI Type D connector is 19-pin D-Subminiature unit that meets electrical and mechanical specifications of HDMI Specification 1.4. Designed for mobile phone manufacturers, PCB receptacle connector allows mobile device users to display HD video, photos, and other content from devices onto full-size flat panel TV screens.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jun 12, 2009 Providing accurate countdown timing for variety of applications, Series LCT316 can be triggered remotely using digital input terminals or locally via set button. Time intervals can be set up to 999 minutes or seconds. Operating from 32-158°F, timer includes LED status light to show time and operation, and internal buzzer to alert when time interval has expired.
