Stackpole Electronics Inc.    Raleigh, NC 27604
Jun 15, 2009 Current sensing resistors of 4-terminal HLD Series come in 1, 3, and 5 W package sizes that measure 1 x 0.25 in. but can be customized to fit size constraints. Open design optimizes heat dissipation into ambient air, effectively lowering board temperatures. Capable of tolerances down to 1% and TCRs down to 50 ppm, with typical resistance values range from 0.003-0.1 W, series suits variety of applications.

Steiner Binoculars    Moorestown, NJ 08057
Jun 15, 2009 With 1,000 yd field of view, Wildlife Pro ULTRA-SHARP 8x30 allows for sharp focusing on moving targets and in low-light conditions. Integral Sports Autofocus System makes objects sharp without need to manually refocus from 30 yd to infinity, while ULTRA-SHARP focus fingertip adjustment requires miniscule touch of ribbed fingertip wheel to fine-tune sharpness or focus on nearby objects (within 6 ft). Adjustments for left and right eye can be made to accommodate individual users.

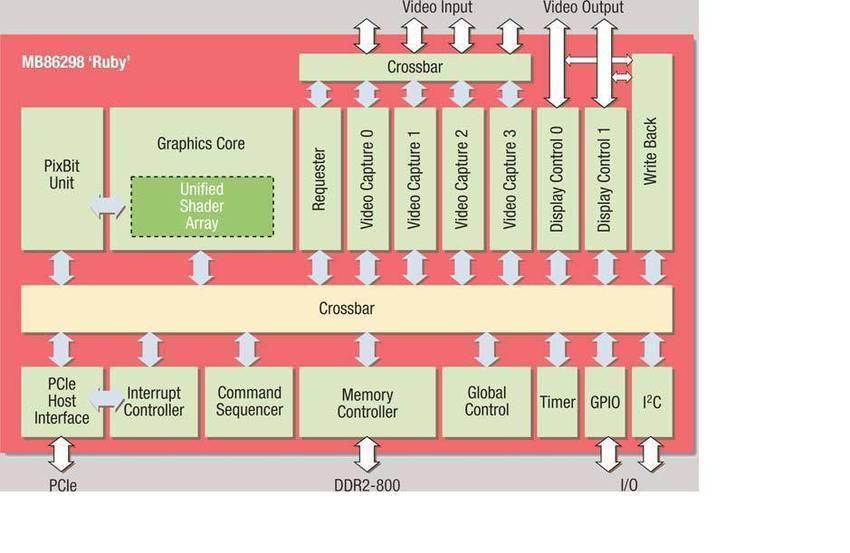

Fujitsu Microelectronics Inc.    San Jose, CA 95134 1804
Jun 15, 2009 Fujitsu MB86298 Graphics Processor features shader unit with pipeline structure that is configurable to use high-level geometry, color, and lighting algorithms for FSAA image generation. Power consumption is typically less than 2.5 W. Dual-display output unit has video-capture module that interfaces to 4 parallel external devices, and can support displays with up to 1,400 x 1,050 pixels. Up to 512 MB of external DDR2 800 memory can be addressed using 64- or 32-bit interface bus.

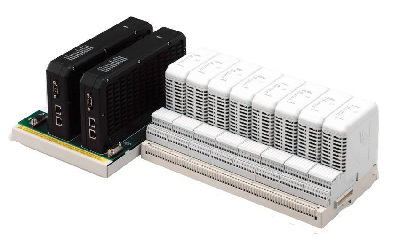

GE Intelligent Platforms    Charlottesville, VA 22911
Jun 15, 2009 Offering distributed control system, Proficy Process Systems with PAC8000 Controllers feature broad process control function block library, peer-to-peer communications between controllers, and ability to handle program and I/O changes on-the-fly. For remote maintenance and calibration, controllers can pass HART information from smart field devices to computer running device asset management software. Two high-speed Ethernet ports use Fault Tolerant Ethernet for redundant communications.

Forrest Manufacturing Co., Inc.    Clifton, NJ 07014

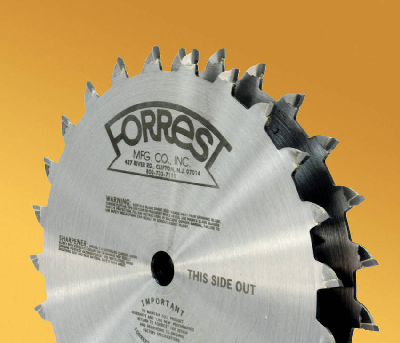

Jun 15, 2009 Available in 2 different sets, Thin Kerf Dados cut grooves in thin plywood, MDF, or melamine boards. Two-piece set includes two 24-tooth outside saw blades and set of magnetic adjusting shims for 3/16 in. cuts, while 3-piece set includes outside saw blades plus 1/16 in. chipper with magnetic shims for creating cuts from 3/16 to ¼ in. Both work on table or radial arm saws with 5/8 in. bore. All feature corrosion-resistant C-4 micrograin carbide saw blade tips and side runout to ±.001 in.

Pacific Aerospace & Electronic    Wenatchee, WA 98801
Jun 15, 2009 Operating over -65 to +155°C range, 38999 DC circular connector combines Kryoflex® ceramic-to-metal sealing technology, beryllium copper CDA alloy 172/173 contacts, and all-aluminum shell. MIL-Spec compliant product has leak rate of less than 1x10_-9 cc/sec helium at one atmospheric DP and offers insulation resistance of more than 5,000 MX @ 500 Vdc. It accepts 24-30 AWG solid or stranded wire and exhibits no evidence of breakdown or flashover when tested IAW MIL-STD-1344, Method 3003.

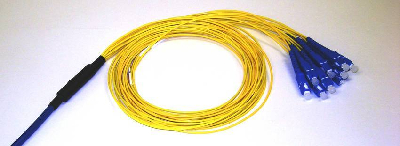

Megladon Manufacturing Group, Ltd.    Austin, TX 78758
Jun 15, 2009 Featuring HLC SCRATCHGUARD technology, Bend Insensitive Trunk Cables are suited for data centers, CATV headends and private networks. Cables utilize Draka's bend insensitive fiber in both 10X and 100X versions. They can be configured in loose tube or tight buffered designs with various fiber counts and lengths, and are supported with all standard fiber optic connectors including SCAPC HLC.

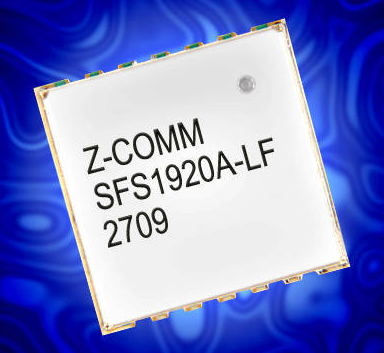

Z-Communications, Inc.    San Diego, CA 92126
Jun 15, 2009 Model SFS1920A-LF operates at 1,920 MHz and offers typical phase noise of -98 dBc/Hz at 10 kHz offset and typical sideband spurs of -75 dBc. Delivering typical output power of 0 dBm with VCO voltage supply of 5 Vdc, it draws 24 mA and phase locked loop voltage of 3 Vdc while drawing 9 mA over -40º to +85ºC. Typical 2nd harmonic suppression is -20 dBc. Unit is contained in standard PLL-V12N package with low shield measuring 0.60 x 0.60 x 0.13 in.

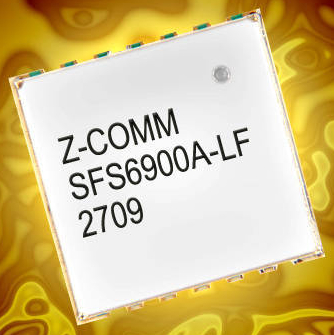

Z-Communications, Inc.    San Diego, CA 92126
Jun 15, 2009 Supplied in 0.60 x 0.60 x 0.13 in. package, RoHS-compliant SFS6900A-LF delivers typ output power of 3 dBm with VCO voltage supply of 5 Vdc while drawing 33 mA (typ) and phase locked loop voltage of 3 Vdc while drawing 11 mA (typ) over 0° to +70°C range. This single-frequency synthesizer features typ phase noise of -90 dBc/Hz @ 10 kHz offset and typ sideband spurs of -65 dBc as well as typical second harmonic suppression of -20 dBc.

AutomationDirect.com    Cumming, GA 30040-9905
Jun 15, 2009 Configured via software, CLICK Programmable Logic Controllers include analog CPU modules with 2 analog inputs and 2 outputs, voltage ranges up to 5 Vdc, and current up to 20 mA. Modules also feature one RS-485 and two RS-232 communication ports, real-time clock, and battery backup for internal SRAM. Units are differentiated by discrete I/O; all have 4 dc inputs, and choice of 4 dc sinking, dc sourcing, or relay outputs.

Iconotech    Clinton, CT 06413
Jun 15, 2009 Inserted between 2 Iconotech Case Printers, Bundle Inverter 3636 facilitates 4-panel printing by collecting cases from first printer, inverting, and inserting them into second printer without adding labor. Once in inverter, cases are squared, gripped by cut edges, and rotated 165° where clamps open and cases are deposited directly into magazine of second Optimizer for printing other 2 panels. System can be run at operating speed of 60 cases/min.

Econocorp. Inc.    Randolph, MA 02368

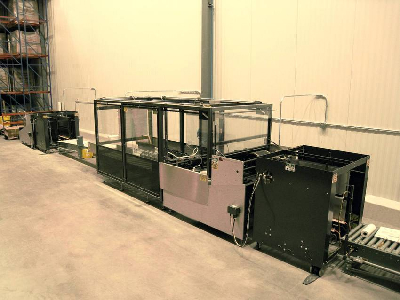

Jun 15, 2009 Measuring 60 x 32 in., ECONOSEAL E-System 2000 provides solution for automatic, horizontal cartoning at up to 1,500 cartons/hr. System handles cartons ranging from 1 x ¾ x 2 ½ in. to 12 x 4 x 12 in., and accommodates both paperboard and corrugated material. Machine erects all cartons on single product loading station, closes all end flaps using glue seal end or tuck closure methods, and automatically discharges completed cartons for next operation.

Industrial Scientific Corp.    Oakdale, PA 15071 1500
Jun 15, 2009 Offered to subscribers of iNet Gas Detection as a Service, MX4 iQuad(TM) features combination of 3 alarms: ultra-bright LEDs, 95 db audible alarm, and vibrating alarm to warn users of hazardous gas levels. Rubber overmold covers it's polycarbonate housing to protect dust-tight unit from high-impact bumps and drops. Decector is also resistant to both water jets and submersion.

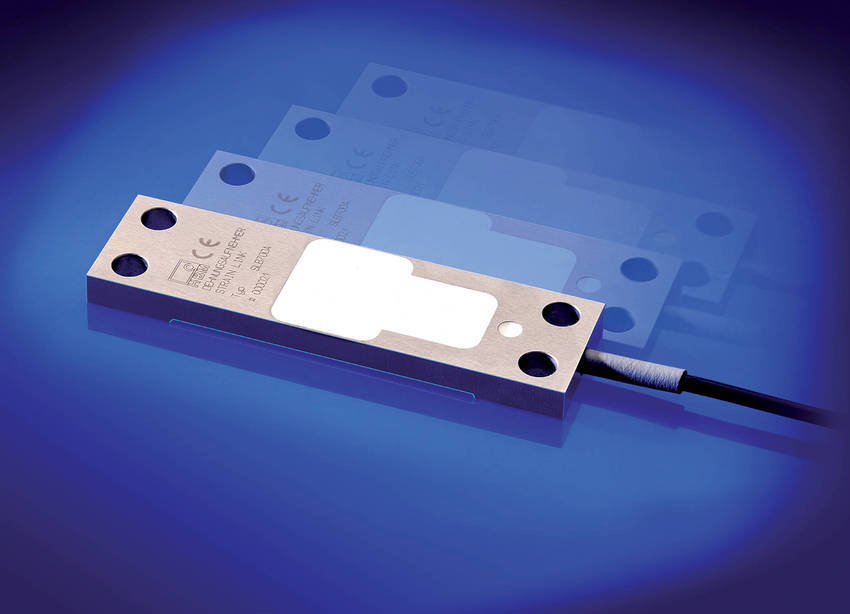

HBM, Inc.    Marlborough, MA 01752 3014
Jun 15, 2009 With measuring range of 500 µm/m, SLB-700A is designed for measuring strains on solid components, such as cranes and bridges, where high loads need to be measured. It provides safety reserve with breaking strain of 300%. Measuring 6 mm, unit can be mounted on any component with standard M6 hexagon socket. Housing is made of stainless steel and meets IP65 to protect it against environmental influences.

Lumex Inc.    Carol Stream, IL 60188
Jun 15, 2009 Offering full graphic capability and daylight visibility, InfoVue(TM) high/low temp series of custom, high-duty LCD displays suit military, freezer, gas pumps/fuel meters, non-automotive transportation, and non-climate controlled facility applications. They are available in sizes ranging from 8 x 1 character displays to 320 x 240 pixel graphic displays. Eliminating requirement for coolers, units allows use of low-power heaters.

Nameplates For Industry, Inc.    New Bedford, MA 02745
Jun 15, 2009 Designed to meet inventory and assembly requirements, NFi Label Identification Kits have all graphic product markings supplied on single sheet or bagged. Made from variety of substrates in sizes from 3/8 in. sq. up to 24 x 36 in., units feature flat or domed decorative and functional labels. Kits come with serial number tags, warning labels, tamper-proof seals, logos, RoHS markings, model numbers, and front- and back panels in multiple languages.

JAI, Inc.    San Jose, CA 95134
Jun 15, 2009 C3 Compact series 1.4 megapixel cameras, CM-141MCL/CM-141PMCL (monochrome sensor) and CB-141MCL/CB-141PMCL (Bayer color sensor), feature sensitivity as low as 0.03 lux, SNR greater than 58 dB, and operate at 30 fps. The 4 cameras are designed around Sony ICX285 2/3 in. progressive scan CCD with 1,392 x 1,040 pixels and 6.45 µm pixel size. Measuring 29 x 44 x 75, other features include pre-set shutter speeds up to 1/10,000 second and programmable exposures as short as 63 µs.

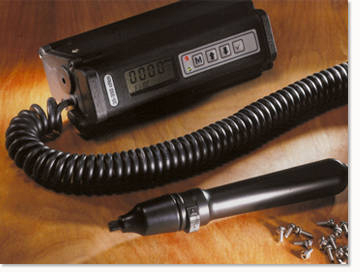

Mountz, Inc.    San Jose, CA 95112
Jun 15, 2009 Suited for testing and storing test data for ISO, SPC, and QC documentation, microprocessor controlled TorqueMate® features memory capacity for storing more than 2,000 values of detailing date, time, and torque measurement. It can be used for torque calibration, joint testing, auditing, or verification of torque applied. Available in various models covering torque range of 7.1 ozf.in. up to 12 lbf.ft, unit provides audible and visual alarm signals when preset torque value is achieved.

Mahr Federal Inc.    Providence, RI 02905
Jun 15, 2009 Featuring dual input ports for single or differential ID or OD measurements, Series 830 includes dimensional-measuring model calibrated in both inch and metric units. Gage inputs can be used simultaneously with either normal or reversed polarity for differential measurement setups, and ±2 V analog output port is also provided. Portable or bench mountable unit provides minimum of 8 hr of operation using rechargeable batteries and also operates on 120 or 240 AC line voltage.

Tapco, Inc.    Bridgeton, MO 63044
Jun 15, 2009 Injection molded from high grade prime virgin resins for abrasion resistance and impact strength, food-grade nylon elevator buckets are compliant with FDA Regulations Title 21 CFR177.1500, CFR175.105, CFR178.2010, and CFR 177.300. High ear CC design and rounded front lip provide clean discharge with less damage to product.
