Mark-10 Corp.    Copiague, NY 11726
Jun 23, 2009 Offering capacity of 1,200 lb, Wedge Grip features hardened serrated steel jaws that are opened with ergonomic spring loaded knob and rack-and-pinion type mechanism. Jaws ride on rollers instead of sliding along surface of housing, preventing jamming. Additional features include thru slot for samples of unlimited width, and optional swivel adapter that provides proper sample alignment in pull testing applications.

Northfield Precision Instrument Corp.    Island Park, NY 11558
Jun 23, 2009 Model 625, ¼ in. stroke and 6 in. diaphragm Hi-Low chucking systems offer on-the-fly and cycle interrupt methods of chucking. Products allow roughing and finishing of machine parts in one operation. Valve system, connected to sliding jaw air chucks, lets users drop jaw force by stopping spindle, rechucking, then contining machining finish cuts with no distortion. Models are available in SAE or metric in sizes from 3- 18 in., with accuracies from 0.001-0.00001 in.

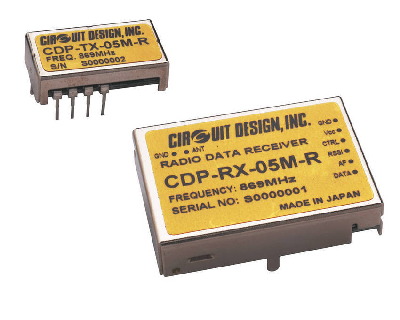

Circuit Design, Inc.    Nagano 399-8303  Japan
Jun 23, 2009 Programmed with 4 channels, transmitter Model CDP-TX-05M-R and receiver Model CDP-RX-05M-R feature narrowband FM 25 kHz channel spacing and operating temperature of -20 to +65°C. Using TCXO as reference oscillator circuit of radio component ensures frequency stability. With output of 10 mW authorized for narrow band FM and double superheterodyne receivers with receive sensitivity in European harmonized ISM band, communication range of 600 m line-of-sight is possible.

Robert Bosch GmbH    Waiblingen D-71332  Germany
Jun 23, 2009 Offering online control of sealing parameters, ultrasonic sealing technology suits applications that involve horizontal packaging of solid products in pillow packs. Narrowness of seals at longitudinal and transverse seams minimizes packaging material requirements, while thickness of material itself minimizes energy requirements. With integrated process monitoring system and non-heated sealing heads, solution will not cause any product quality deterioration during packaging process.

Renishaw, Inc.    Hoffman Estates, IL 60192
Jun 23, 2009 Applicable to all Renishaw brands, CMM retrofit program is single-source service that utilizes UCC2 universal CMM controller and MODUS(TM) metrology software, touch trigger, and 5-axis sensors. It also includes REVO measuring system, to upgrade to 5-axis scanning capability, which offers continuous scanning at speeds up to 500 mm/sec and captures up to 4,000 data points/sec. Site work is performed within 1 week and service includes customer training.

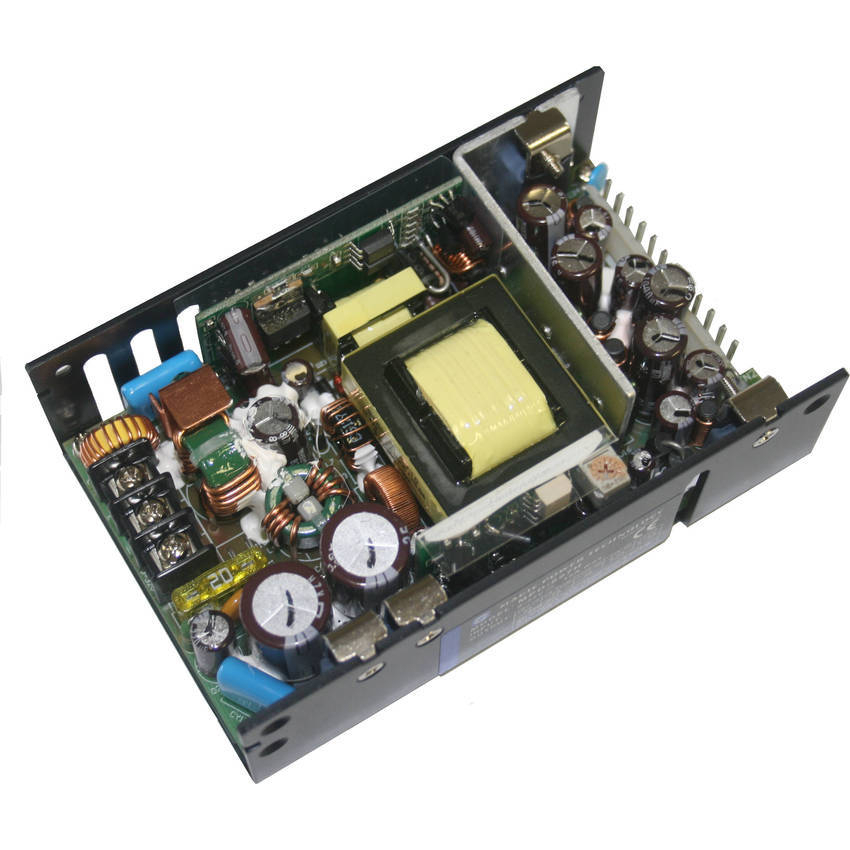

Magic Power Technology Inc.    Sunnyvale, CA 94085
Jun 23, 2009 Measuring 81 x 128 x 40 mm, MPD-807H, DC-DC ATX compatible power supply can generate up to 100 W with 8.6 cfm forced air-cooling or up to 70 W under convection cooling. Offering overload and over voltage protection, unit can be used in both 12 and 24 V applications such as vehicle and industrial automation systems. Unit is rated at 50°C and derates linearly by 2.5%/°C to 50% capacity at 70°C, and has MTBF value greater than 130,000 hr. Open frame design allows for no noise and reduced dust.

Edmund Optics    Barrington, NJ 08007
Jun 23, 2009 With fixed iris and focus, TECHSPEC® Compact Telecentric Lenses are suited for implementation into factory floors and assembly lines, as well as robotics applications. Lenses are available with primary working distances of 65 and 110 mm with primary magnifications of 1x, 2x, 3x, and 4x, and 0.5x, 0.75x, 1x, and 2x, respectively. All sizes provide maximum sensor format of 2/3 in., telecentricity of less than 0.2°, and accommodate C-mount camera mount.

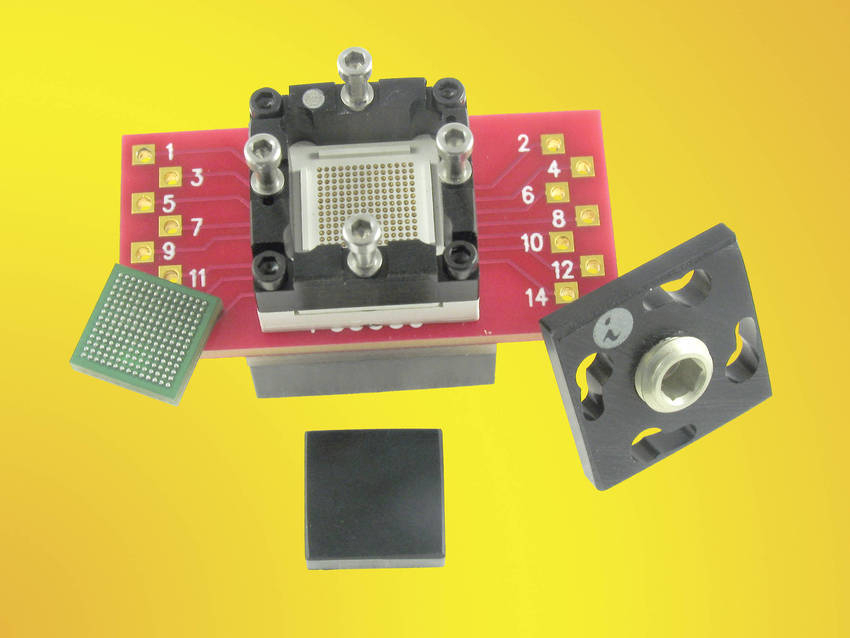

Ironwood Electronics, Inc.    St. Paul, MN 55121
Jun 23, 2009 Designed for Burn-in and Test applications, SBT-BGA-7003 is stamped spring pin with 26 g actuation force per ball and cycle life of 100,000 insertions. Contactor has self inductance of 0.88 nH, insertion loss of less than 1 dB at 20 GHz, capacitance of 0.097 pF, and temperature range of -55 to +180°C. Socket also features floating guide for precise ball to pin alignment, while current capacity of each contactor is 4 A at 80°C temperature rise.

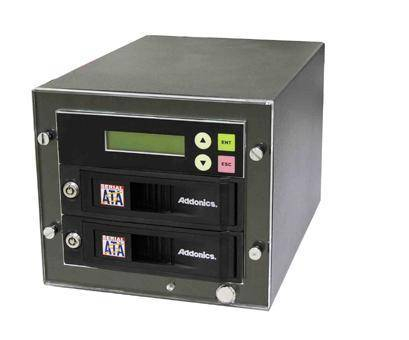

Addonics Technologies, Inc.    San Jose, CA 95131
Jun 23, 2009 Available in 4 models, standalone HDD duplicators work without special software or complicated set-up. Basic HDD Duplicator can copy 3.5 in. SATA drives to any 3.5 in. SATA drive. HDD Duplicator PRO can copy from 2.5 to 3.5 in. hard drive or SSD with either SATA or IDE interface, to target drive of any kind, while HDD Duplicator PRO S can make copies from ordinary hard drives to target drives with AES 256-bit data encryption or vice versa. Also available is Zebra HDD Duplicator.

American Industrial Systems, Inc.    Irvine, CA 92614
Jun 23, 2009 Designed for use in medical/hospital environments, 8.4 in. IA160 Series utilizes Intel Atom 1.6Ghz N270 Processor with Intel 945 GSE Chipset. It is engineered to Military 810F shock, vibration, and drop standards, and has IP54 dust and waterproof rating. Featuring aluminum-magnesium alloy construction, unit includes integrated 802.11b/g WIFI and Bluetooth modules and 1 x SODIMM, max 2GB DDR2 400/533. Also available is 10.4 in. size V8011 Series based on VIA C7M Nano 1.2 Ghz Processor.

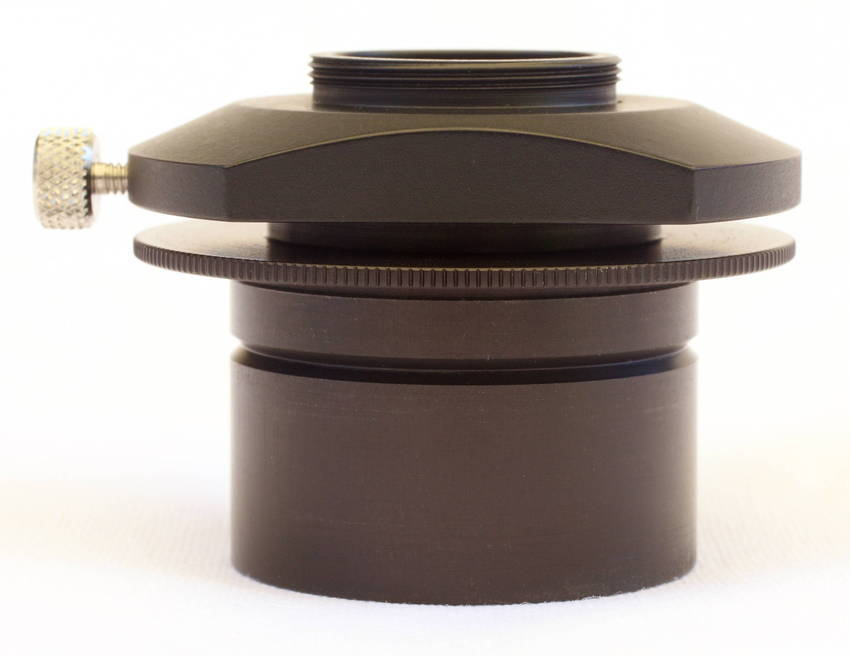

TOFRA, Inc.    Palo Alto, CA 94303
Jun 23, 2009 Constructed of 2 threaded parts with thread lead 1 mm and adjustment range 5 mm, Universal Direct Parfocalizing C-Mount camera adapter positions camera chip in intermediate image plane of microscope. Adjustable height allows user to parfocalize image in microscope oculars and on camera. Product causes no image degradation due to lensless design and suited for scanning applications.

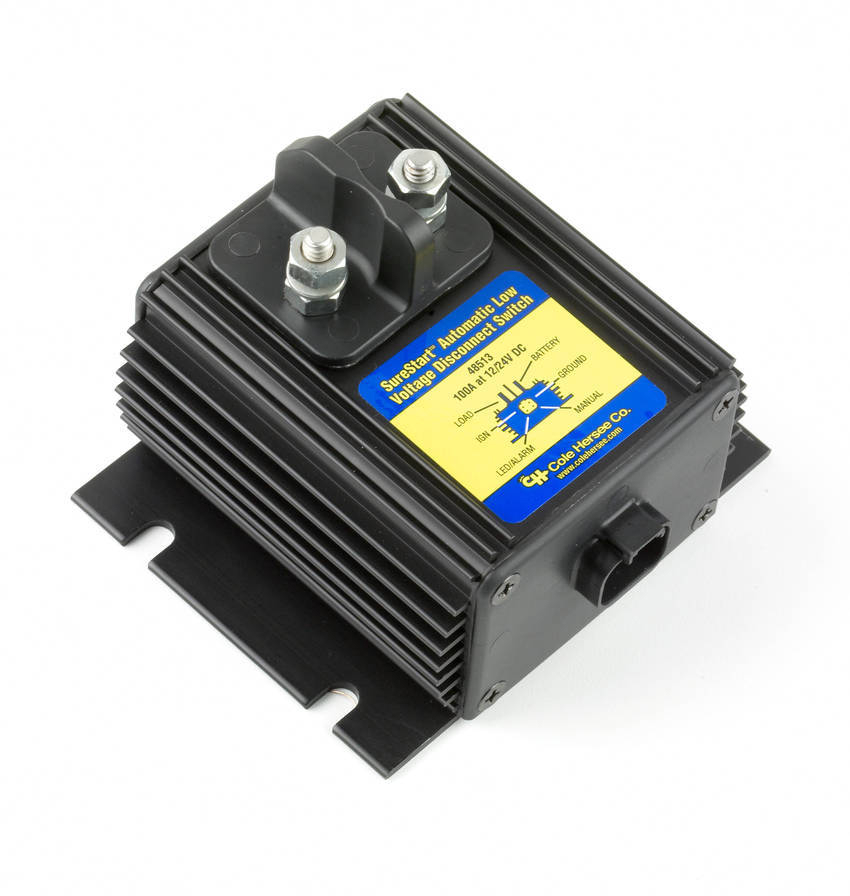

Cole Hersee Co.    Boston, MA 02127 2467
Jun 23, 2009 SureStart(TM) Low Voltage Disconnect Switch 48513 electronically senses battery voltage and conserves starting power by disconnecting non-critical loads, prolonging battery life in vehicles. It offers service life of over 1,000,000 on/off cycles, features manual override, and is resistant to moisture, salt spray, vibration, and shock. Measuring only 4.5 x 4 x 4.27 in., switch can be used in utility and delivery vehicles, as well as vehicles with ancillary on-board equipment.

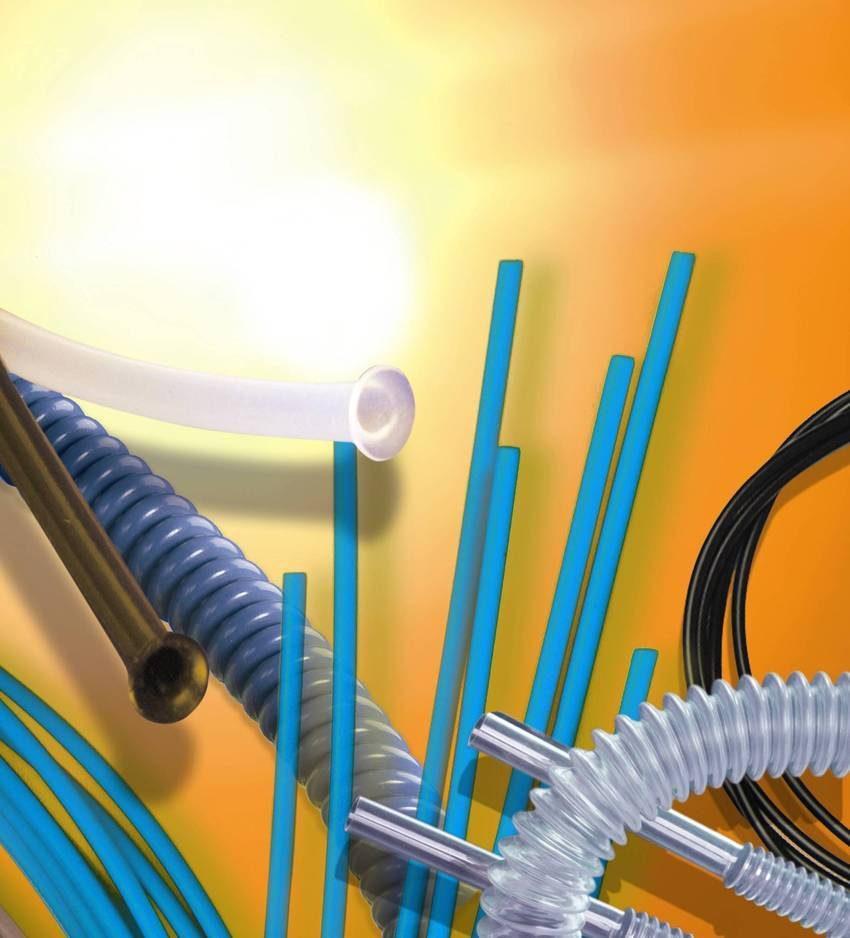

Parker/Texloc Div. of Parflex    Fort Worth, TX 76106
Jun 23, 2009 Designed to operate in temperatures as high as 500°F, chemically inert UV resistant fluoropolymer tubing protects wiring from sunlight and UV rays. Custom and standard sized tubes ranging from .004-4 in. ID are available in TexFluor® PTFE, FEP, or PFA. Tubes are offered in smooth bore, heat shrink for covering wires, or in extra flexible convoluted or corrugated style, while dual shrink tube can encapsulate wiring to create moisture barrier as well.

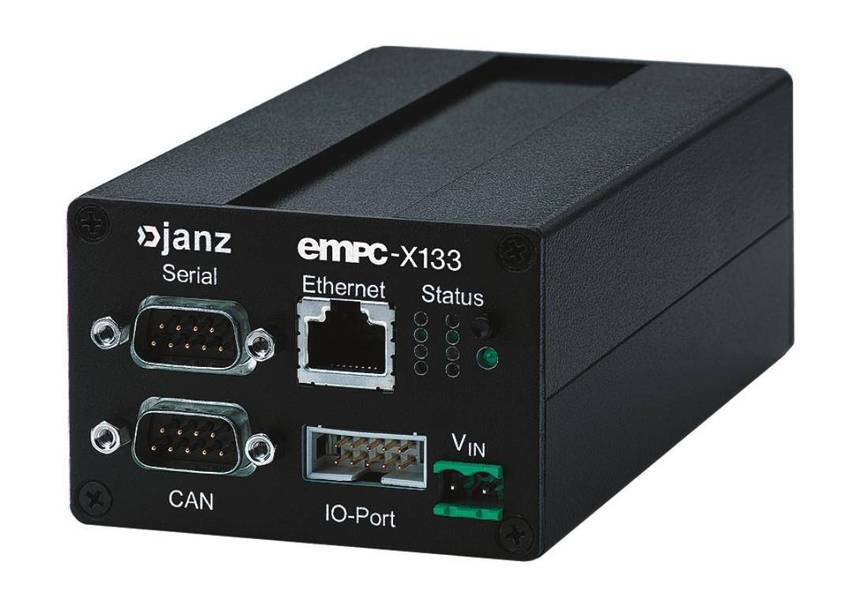

Saelig Co., Inc.    Pittsford, NY 14534
Jun 23, 2009 Compact CANminiBOX(TM) weighs less than 1 lb and features AMD Élan 133 MHz SC520 processor with 128 MB internal SD-RAM and 512 MB SD-RAM CompactFlash. It offers front-panel availability for 10/100 MBit/sec Ethernet, status LED's, RS232 serial port, CAN port, and one USB 1.1 port. Using 10-28 Vdc power, unit operates within ambient temperatures of 0 to +50°C and features 2 kV ESD protection on all inputs. DIN-rail mounted unit consumes less than 6 W and measures 3 x 2 x 4.7 in.

Digi International    Minnetonka, MN 55343
Jun 23, 2009 Comprised of hardware, hosted software, and services, iDigi Tank Wireless M2M Solution builds applications for connecting remote tanks of liquids, solids, and gases. iDigi Platform-as-a-Service connects remote assets to customer's applications, runs on grid of Digi-managed servers, and fully supports cloud-to-cloud interconnections. Through secure login, customers gain instant access to remote tank assets. As on-demand model, customers pay only for services consumed.

Millennial Net, Inc.    Burlington, MA 01803
Jun 23, 2009 MeshScape® 6424 Wi-Controller supports configurations of analog and digital outputs to control actuators and relays serving points of energy consumption such as boilers and heaters. Device can receive direct/supervisory control variables over MeshScape® wireless sensor network and may be configured for continuous regulatory, on-demand, scheduled, and/or timer-based control. Remote/local overrides and fail-safe modes ensure proper functionality even if wireless communication is disrupted.

National Instruments Corp.    Austin, TX 78759-3504
Jun 23, 2009 Able to process images from multiple IEEE 1394 and GigE Vision cameras, NI EVS-1464RT enables high-speed, real-time machine vision systems to be built for applications such as sorting products, verifying assembly, and inspecting packaging. This multicore controller features extended temperature range, RTOS, solid-state hard drive, and fanless design to withstand harsh environments. It also includes range DIO and industrial communication options.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Jun 23, 2009 Gallium arsenide field effect transistors (GaAs FETs) are targeted toward microwave radios and block up-converters. As X-Band GaAs FET for microwave digital radios supporting point-to-point and point-to-multipoint terrestrial communications, TIM1011-8ULA operates in 10.7-11.7 GHz range and has power added efficiency of 39%. For Ku-band, TIM1213-8ULA and TIM1213-8ULA, respectively, operate in 12.7-13.2 GHz and 13.75-14.5 GHz ranges and offer power efficiencies of 35% and 32%.

Serena Software, Inc.    San Mateo, CA 94403
Jun 23, 2009 Serena® Dimensions® CM and Express 2009 R1 adds multistream development and continuous integration capabilities to support Agile development. It provides capabilities that support parallel practices such as multistream development and atomic commit, enabling enterprises to support multiple development methodologies. Development can be accomplished within preferred client, such as IDE or Windows Explorer. Program also provides integration for Visual Studio 2005/2008.

EMS Database Management Solutions, Inc    Newyork, NY 10010
Jun 23, 2009 With Data Import for InterBase/Firebird v3.2, users can import data from MS Excel 97-2007, MS Access, DBF, XML, TXT, CSV, MS Word 2007, ODF, and HTML files into database tables. Users can create separate tables for each source data file, specify source data charset when importing TXT and CSV files, and set correspondence between source data and existing table fields. Correspondence is based on identity of source columns' and destination table fields' names.
