Tol-O-Matic, Inc.    Hamel, MN 55340 9499
Jun 19, 2009 Integrating programmable digital drive, servomotor, and actuator, ICR Plus Linear Rod-Style SmartActuator provides 100% duty-cycle performance in low- to medium-force applications. Servomotor offers choice of 2 screws, providing up to 80 lb of continuous force for speeds up to 23 ips, or up to 200 lb continuous force for speeds up to 9 ips. Maximum stroke length is 24 in. Operating on 24 or 48 Vdc, actuator accepts signals from PLCs, sensors, or existing motion controller.

Shell Lubricants    Houston, TX 77002
Jun 19, 2009 Shell Tellus EE helps reduce energy consumption of hydraulic machinery by 8% on average while also providing equipment protection and capability of extending oil maintenance intervals. Containing additive technology, this synthetic hydraulic fluid exceeds max test duration of 10,000 hr in industry TOST test and demonstrates wear levels in hydraulic pump tests below those set by industry standards and certain OEM limits.

Target Technologies International    Burnaby V5A3H4  Canada
Jun 19, 2009 Completely recyclable and reusable, Futrfill TPE is derived from environmentally inert material free of heavy metal, phthalate, biphenyl A, and vinyl. It utilizes only virgin thermoplastic materials, colorants, and stabilizers while maintaining appropriate elasticity and compression characteristics. Also able to be used for running tracks, mats, and playgrounds, virgin material consists of same base polymer used in food and milk container applications.

Fluid Metering, Inc. (FMI)    Syosset, NY 11791
Jun 19, 2009 Utilizing dual synchronized fluid metering pumps, Smooth-flo PDS100 provides pulse-free delivery down to 15 µl/min. Pump heads are integrally mounted to control unit, which includes stepper motors, drivers, and programmable electronics housed in anodized aluminum enclosure. Using front-panel membrane switches and LCD display for programming, menu-driven system offers RS485, 4-20 mA, 0-5 V, and 0-10 V electronic control interfaces for connection to sensors, PLCs, and PC control systems.

Streamlight, Inc.    Eagleville, PA 19403
Jun 19, 2009 Designed for auto and industrial professionals, Trident® HP comes in yellow finish, and features white power LED which provides up to 2,000 candela peak beam intensity and 50 lumens of measured system output. Unit runs up to 7 hr on one power LED and up to 150 hr on single LED, and shock resistant power LED comes with 100,000 hr lifespan. It has 3 Ultra-bright white LEDS for total of 30 lumens measured system output, and single one of 3 white LEDs provides 11 lumens measured system output.

Honeywell International, Inc.    Morristown, NJ 07960
Jun 19, 2009 When used in OneWireless systems, XYR(TM) 6000 monitors position of valve, sending signal from remote or potentially dangerous areas of plant. It can identify linear or rotary valve positions and minimizes risk of unwanted fluid release or unplanned product contamination. When used for safety shower notification, sensor can serve as emergency response trigger. Sensor also simplifies maintenance by electronically tagging each valve in system and identifying degraded or damaged valves.

Trace Software    Saint Romain de Colbosc   France
Jun 18, 2009 Able to integrate with SolidWorks, elecworks(TM) increases collaboration between electrical and mechanical teams and allows creation of automation and electrical installation projects with optimal design and documentation generation capabilities. Users can work on all areas of digital installation in real-time, based on SQL Server database-driven kernel with multiple views. Bidirectional links and data update are ensured between equipment in 3D SolidWorks mock-up and symbol in relevant diagram.

Wireworks Corp.    Hillside, NJ 07205

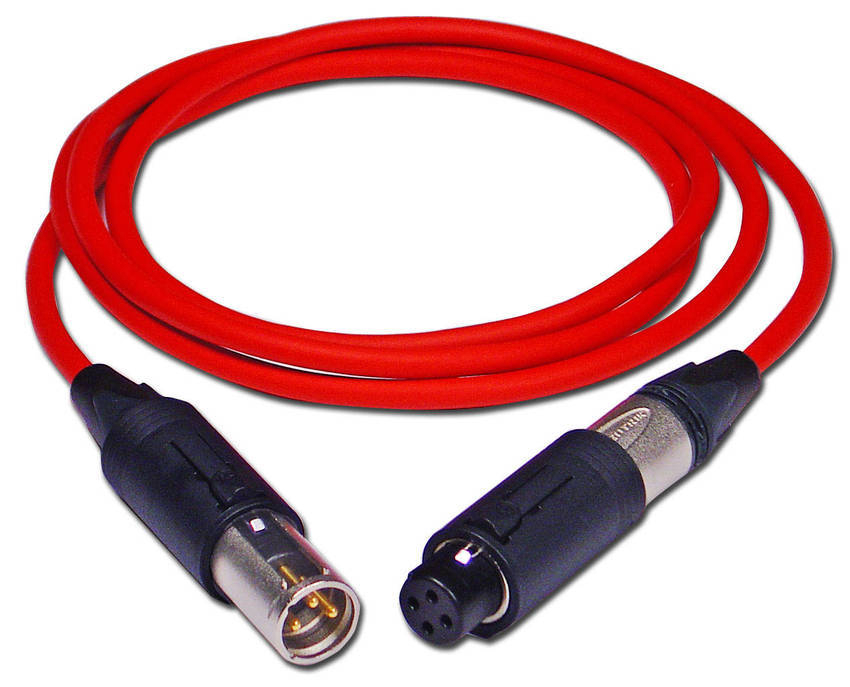

Jun 18, 2009 Adaptable BG Unisex XLR Cords match up MusiLUX microphone cable or AES/EBU digital cable with convertCON 3-pin connectors that feature sliding housing to convert between male and female connector. Used in microphone and line level applications, units allow users to connect variety of gear without need to consider XLR connector gender. They are available in convertCON to convertCON, convertCON to XLR3 male, convertCON to XLR3 female, and convertCON to ¼ in. TRS configurations.

Danaher Motion/Kollmorgen    Radford, VA 24141

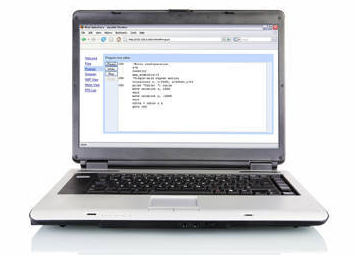

Jun 18, 2009 Offering network-enabled implementation of BASIC-like programming language, Motion Programming Script (MPS) enables electrical and mechanical engineers with little programming knowledge to write complex motion sequences and program equipment via short, intuitively named commands. MPS is especially useful in stage gantry and robotics applications, where need for complex motion intersects with demand for simple commands. It can be accessed remotely through Telnet or web-browser.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jun 18, 2009 Four-channel Pathway® M4441 DB9 RS232 Serial Data Port Sharer allows single destination port to automatically connect to any of 4 source channels based on data activity. Each channel is sequentially scanned or monitored for data activity and contends for connection. Once data is detected on single channel, remaining 3 channels are locked out until data traffic stops and is absent for preset period. Model 4441 then resumes monitoring of all 4 channels for data activity.

Endwave Corporation    San Jose,, CA 95134
Jun 18, 2009 Operating over frequency spectrum of 71.0-86.0 GHz, E-band TX/RX module pair is designed for broadband point-to-point radios carrying voice and data traffic at multigigabit/sec rates. System features conversion gain of 15 dB and output power of 16 dBm along with power detector on TX output. Supporting modulation formats ranging from on/off keying to 16 QAM modulation, pair also includes on-board micro-controller for software controlled compensation.

Vaunix Technology Corporation    Haverhill, MA 01835
Jun 18, 2009 Offering 63 dB of programmable attenuation through 6 GHz, Lab Brick LDA-102 and LDA-602 offer frequency coverage of 0.1-1000.0 MHz and 6-6,000 MHz, respectively. Both are powered and controlled by connection to PC's USB port or powered USB hub. Based on GaAs MMIC attenuator technology, devices offer 0.5 dB attenuation resolution by means of programmable steps from 0.5-63 dB. Both are designed for 50 W environments and are rated for max switching speed of 80 ns.

Baumer Ltd.    Southington, CT 06489 1534

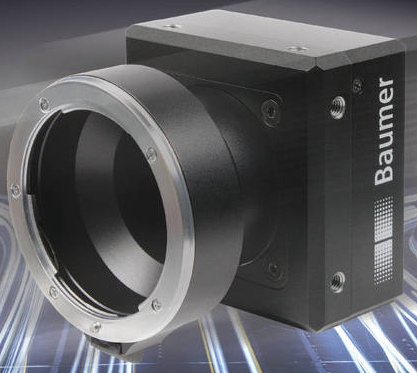

Jun 18, 2009 HX Camera series can achieve frame rates to 500 fps and resolutions greater than 1.3 megapixels @ 1,280 x 1024 pixels. Frame rates to 120,000 fps can also be achieved by restricting image data to 1, 2, or 3 regions of interest within full frame. Supporting CameraLink communication standard for data transfer rates to 680 MB/sec, cameras also provide photo sensitivity to 2500ASA for low-light use, human eye-like adjustment for dynamic applications, and multi-exposure capability.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Jun 18, 2009 DATEL Quad Sampling A/D converter, Model ADSQ-1410, is 14-bit, 10 MS/sec unit that converts full-scale step input signals at rate of 10 MHz. It offers 0.5 LSB RMS DC noise and dynamic performance of 80 dB, suiting it for time and multichannel frequency domain applications. Rising edge triggered start convert signal controls conversion of all 4 converters. Unit requires ±5 V for internal analog supplies and 2-5 V supply for logic outputs and operates in temperatures from 0-70°C.

Fluid Research Corp.    Tustin, CA 92780
Jun 18, 2009 Able to be integrated into robotic solutions to optimize repeatability and accuracy, MiniShot may be used for micro-dosing single- and dual-component materials with low to medium viscosities. Micro-dosing is dosing of one component (1 part medium) in volumes as small as .004 ml, whereas Micro Meter Mix is dosing of dual component (2 part media) in volumes as small as .008 ml. Pump serves medical, automotive, aerospace, electrical, food product, and pharmaceutical applications.

Sensortechnics, Inc.    Walpole, MA 02081
Jun 18, 2009 Mounted to outside of container/vessel, CLC series uses contact-free technology to continuously measure fill level of liquids or granular/pulverized materials. Measurement can occur through almost any non-metallic wall material, and level sensing range is up to 4 in. (expandable via multi-sensor configurations). Non-invasive design eliminates media compatibility and sterility issues, while additional reference electrode compensates for all changes in ambient environmental conditions.

Hartmann Electronic    Springfield, OH 45505
Jun 18, 2009 Able to run with cPCI 32-bit CPU or cPCI Express CPU, CompactPCI Evaluation Backplane includes one cPCI to cPCIx bridge and one cPCIx to cPCI bridge. It supports PICMG EXP.0 Rev 1.0 with power connector and PICMG 2.11 Rev 1.0. Power is provided via power rails for high current input (20 A each screw) up to 190 A, and ATX connector is available for additional power input (6 A each pin).

Permabond    Somerset, NJ 08873
Jun 18, 2009 Exhibiting accelerated cure on acidic and porous surfaces, Permabond® 791 surface insensitive cyanoacrylate meets specifications for Commercial Standard A-A-3097 Type II Class 1. This low-viscosity (30-50 cP) engineering adhesive, with max gap fill of 0.004 in., has shear strength value of 2,900 psi and service temperature range of -65 to +180°F. Properties are suited for applications involving close-fitting components.

Koehler Instrument Co., Inc.    Bohemia, NY 11716

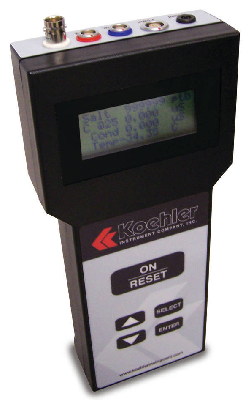

Jun 18, 2009 Suited for field or laboratory use, Salt in Crude Apparatus measures salt concentration, conductance, and temperature of crude oil samples as well as pH of aqueous samples. It conforms to ASTM D3230 test specifications, comes with multiple power adaptors, and offers built-in self-calibration feature. There is 24 Kb RAM dedicated to data storage (~500 test results), but complete data storage is limited only by HDD of external PC. Data upload is supported via Windows-based software.

Highland Technology, Inc.    San Francisco, CA 94103
Jun 18, 2009 Allowing users to directly program resistances or simulated RTD temperatures, V420 simulates resistors, RTDs, thermistors, strain gages, and load cells, and remains accurate for DC, AC, or pulsed excitation. It simulates eight 2- or 4-wire resistive sensors and features fully isolated channels with up to 750 V common-mode range with overvoltage protection up to 50 V. Channels can be individually programmed in 4 ranges, from 5 W to 65.5 KW and operate from microvolts to 24 V/ 50 mA.
