Koehler Instrument Co., Inc.    Bohemia, NY 11716
Jun 30, 2009 Automated Low Temperature Instruments, integrated with panel PC, display and graph all analytical parameters in real-time on 6.4 in. TFT/LCD touch screen display with 640 x 480 resolution. Also, all information displayed on screen is recorded in MS Excel-compatible file format. Included software package monitors operation and performance of all analyzer components to ensure accurate data measurement. Direct cooling system, 1- or 2-stage, reaches low temperatures in ~15 min.

SICK, Inc.    Minneapolis, MN 55438
Jun 30, 2009 Able to read all common 1D barcodes, IDM140 has compact design that is ergonomically constructed for everyday use. It reliably reads poorly printed or damaged codes, eliminating the need to manually input data, and supports multiple interfaces - USB, PS/2, and RS232 TTL - within one unit. Areas of use include non-industrial, general-purpose applications within office and factory as well as warehouse and logistics environments.

Amerimax Building Products, Inc.    Plano, TX 75024
Jun 30, 2009 Available in 6 colors, Aluma-Shield(TM) low-maintenance aluminum patio cover system features Teflon® additive and will repel oil, dirt, dust, and stains. It provides real wood appearance with combination of matte finish and semi-gloss cleaning characteristics. Offering protection against UV, salt, pollution, and weathering, customizable paint system makes surface resistant to chalking, fading, cracks, peels, warps, and termites.

Caron Products & Services, Inc.    Marietta, OH 45750 0715
Jun 30, 2009 Optimized for light transmission with minimal heat generation, expandable and waterproof gLux(TM) features modular and adjustable light banks that let users fill incubator with general or direct lighting of various intensities. This energy-efficient, high-output lighting system comes standard in 10 and 25 ft³ Diurnal Incubators or is available as accessory for all other 10 and 25 ft³ products as accessory number LGHT301 or LGHT303.

Wilson Tool International Inc.    White Bear Lake, MN 55110
Jun 30, 2009 Offering punch press fabricators alternative to replacing entire die in parting applications, Dura-Die parting tool features replaceable die inserts engineered with Ultima® premium tool steel for optimal wear resistance and grind life. Die base is made of shock-resistant steel, allowing it to withstand even high punching forces. Tools are available for standard parting in C, D, and E stations, and close-to-clamp is available in D and E stations.

articuCAD Inc.    Ripley, WV 25233
Jun 30, 2009 Stand-alone utility ArticuCAD DWG DXF to PDF Converter v3.5.3 does not require AutoCAD and supports batch processing. It allows user to directly set page size as needed or choose predefined size, and accurately maintains layout and quality of original DWG file. Supporting 256 colors/true colors and pen width and destination colors settings, software allows for converting model space, all layouts and all paper space to PDF file as well as specify layout name to convert.

GAO Instruments Inc.,    Toronto   Canada
Jun 30, 2009 Suited for use in sciences, medicine, engineering, and telecom industries, dual channel GAO4446 operates at frequency of 500 MHz with 1,000 MS/sec sampling rate and 1 Mpts/ch recording length. It triggers on positive or negative glitches, or pulses with bandwidth due to its glitch trigger function. Unit can measure large and small signals simultaneously and detect peak interference more than 1 nsec even at very low signal frequencies. Parallel interface enables direct link to printer.

Fairchild Semiconductor    San Jose, CA 95134
Jun 30, 2009 Suited for dual camera applications, FSA1211 is 12-port, SPST analog switch that isolates high speed bus from parasitic components to maintain signal integrity. It has bandwidth of 720 MHz, high ESD of 5.5 kV, and offers optimal way to isolate capacitance and maintain signal integrity for high speed data paths. When isolating unused parallel interface, switch reduces radiated EMI of path, improving RF desense.

Materialise    Leuven   Belgium
Jun 30, 2009 Accura® Xtreme Plastic is suited for wide range of prototyping and manufacturing applications including tough enclosures, snap fit assemblies, consumer electronic components, and alternatives for CNC machined parts. It features high impact strength of 0.45 J/cm which combined with elongation at break of up to 22 percent.

Harris Corp.    Rochester, NY 14610
Jun 29, 2009 Packaged in standard military-hardened handheld form factor, Model RF-7800T delivers high-resolution, full-motion tactical video to individual warfighters for real-time intelligence, surveillance, and reconnaissance (ISR). Portable, ground-based remotely operated video enhanced receiver (ROVER) accepts video captured by military's fleet of unmanned aerial vehicles. Operating in 1.71-1.81 GHz L-band, unit also supports 2.2-2.5 GHz S-Band and 4.4-5.8 GHz C-Band.

Sanyo Fisher (USA) Corp.    Chatsworth, CA 91311
Jun 29, 2009 Outfitted with 330 W VIDI(TM) UHP x 2 lamps, PDG-DET100L DLP projector offers SXGA resolution with brightness of 7,500 lumens and 7500:1 contrast ratio. DICOM Simulation Mode enables precise reproduction of medical-related data, and dust-resistant sealed optical engine maintains performance stability. With 3000:1 contrast ratio, PLC-WTC500L LCD projector offers WXGA resolution and brightness of 5,000 lumens. Its 2-lamp system can double intervals between lamp replacements to 6,000 hr.

Shuttle Computer Group    City of Industry, CA 91745
Jun 29, 2009 Measuring 30 x 20 x 18.5 cm, SA76G2 employs AMD RS760/SB710 chipset that enables support for AMD processors for socket AM3 as well as processors with AM2 and AM2+ sockets. ATI Radeon 3000 onboard graphics capability is DirectX-10 compatible and allows for addressing up to 4 monitors simultaneously. In addition to support for up to 8 GB DDR2 RAM, barebone offers 6 USB ports on front and rear sides, headphone and microphone jacks, 6-channel audio, PS2, VGA, and DVI for I/O connectivity.

North Atlantic Industries, Inc.    Bohemia, NY 11716

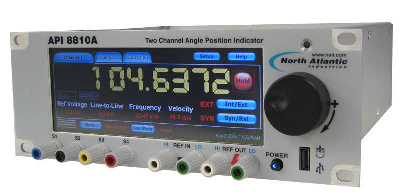

Jun 29, 2009 Capable of performing Synchro/Resolver evaluation, calibration, and test functions on components, assemblies, and systems, Model 8810A automatically accepts and displays input voltages from 1.0-90 VL-L and reference voltages from 2-115 Vrms over frequency range of 47 Hz to 20 KHz. Unit provides fully independent dual inputs, touch screen controls, 0.001° resolution, and 0.004° accuracy. It offers front panel analog and digital display modes and adjustable resolution from 1/10,000° to 1°.

Hach Co.    Loveland, CO 80539-0389

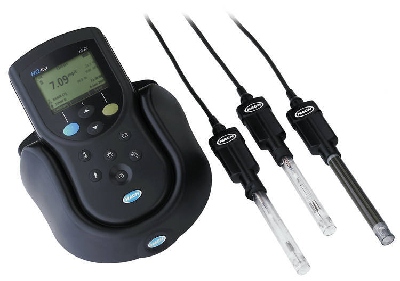

Jun 29, 2009 Designed for HQd line of meters, IntelliCAL(TM) Probes provide portable measurement of ORP, sodium, and pH for low-ionic strength samples for analysis in lab or field. When switching between parameters, operator plugs IntelliCAL probe into HQd meter. System automatically recognizes testing parameter from probe and recalls calibration history. It uses intuitive menu structure along with guided measurement and calibration methods. Conductivity, DO, and LBOD probes are also available.

Linear Technology Corp.    Milpitas, CA 95035
Jun 29, 2009 Supplied in 7 x 8 mm QFN package, LTC2754-16 incorporates 4 DACs that can each be software-programmed or pin-strapped for 1 of 6 unipolar or bipolar output ranges via 4-wire serial interface. SoftSpan output voltage ranges include 2 unipolar ranges (0-5 V, 0-10 V) and 4 bipolar ranges (±10/±5/±2.5/-2.5 to +7.5 V). Along with 2 MHz multiplying bandwidth, features include voltage controlled offset and gain adjustment pins, settling time of 2 µsec, and glitch impulse of 0.26 or 1.25 nV/s.

Key Technology, Inc.    Walla Walla, WA 99362
Jun 29, 2009 Manta® uses Vis/IR cameras, Raptor laser technology, and LED lighting to recognize object size, shape, and color differences to detect foreign material. Locating Manta at end of processing line helps assure quality of final product; it can tally specific product characteristics and trigger alarm or process adjustment if out-of-tolerance conditions are detected. Featuring 2 m wide scan area, Manta handles up to 50,700 lb of frozen potato strips per hour, based on 7 mm wide cuts.

Flexicon Corporation    Bethlehem, PA 18020 8006
Jun 29, 2009 As fully mobile unit, Recirculating Spreader-Feeder evenly distributes powder and bulk coatings onto food products as they pass between its longitudinal discharge hopper and lower collection hopper. Horizontal conveyor, which has multiple discharge ports to apportion material across length of discharge hopper, automatically starts and stops to maintain preset fill level in hopper. Also, rotating agitator along bottom of hopper promotes uniform discharge through adjustable screen.

Sealed Air Corp.    Saddle Brook, NJ 07663-5291
Jun 29, 2009 Custom-designed to accommodate exact size and shape of product, Instapak® TempGuard(TM) coolers use polyurethane foam to keep temperature-sensitive products safe during shipment. Cavities can be customized to fit right amount of gel refrigerant or dry ice, lending to weight reduction, while ability to keep products colder for extended periods lets companies choose more cost-effective shipping options. Cooler is reusable, since foam is not fused to corrugated shipping container.

Edmund Optics    Barrington, NJ 08007
Jun 29, 2009 Zoom Beam Expanders are designed for Nd: YAG laser sources, providing variable magnification of 1-3x and 2-8x with adjustable focus to correct for laser beam divergence. Antireflective coating can be customized for various wavelengths. Devices are available for 1,064 nm lasers in both 1-3x and 2-8x models, with Output Clear Apertures of 20, 30, 38, and 60 mm; and in 532 nm models with magnification of 1-3x with aperture of 20 mm and, as with 355 nm models, 2-8x with apertures of 30 and 60 mm.

ITW Vortec    Cincinnati, OH 45242-4719

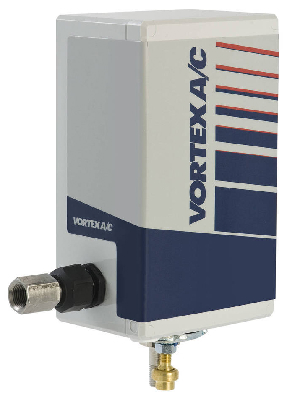

Jun 29, 2009 Vortex A/C NEMA 12 delivers Total Enclosure Protection to ensure reliable operation in extreme environments. Along with 62 dBA operation, features include maintenance-free design, capacities from 900-5,000 BTU/H, and integral mechanical thermostat that maintains 80 to 90°F temperatures. Enclosure cooling product operates in environments up to 175°F and offers slight pressurization of enclosure in all operating modes. Top- or side-mount installation requires no wiring.
