Acromag, Inc.    Wixom, MI 48393 7037

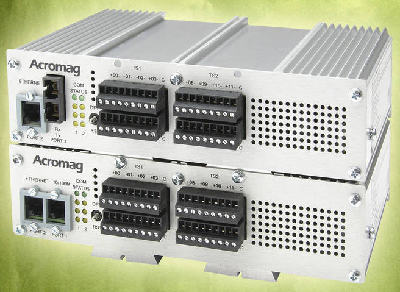

Jul 16, 2009 Designed for distributed I/O and SCADA applications, EtherStax® ES2163/ES2164 perform A/D conversion on up to 64 single-ended dc current or voltage inputs, respectively, and interface signals to Ethernet devices or controllers with Modbus TCP/IP or UDP/IP communication. Scanning updates all channels in less than 10 ms, and embedded web page provides setup menus. While ES2163 accepts dc current with ±20, 0-20, or 4-20 mA input ranges, ES2164 accepts ±5 or ±10 ranges.

Phidgets, Inc.    Calgary, AB T2M3R7  Canada

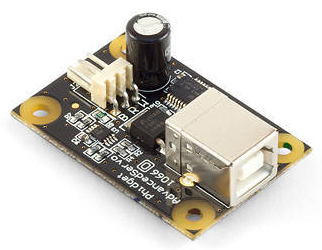

Jul 16, 2009 Completely plug-and-play, 1066 - PhidgetAdvancedServo 1-Motor is powered solely by USB cable and lets users control position, velocity, and acceleration of one RC servo motor rated up to 450 mA. Unit also measures current being consumed servo motor, and PWM to servo is updated 50 times/sec. Velocity limit is 6400°/s, with resolution of 0.390625°/s (14-bit), and acceleration limit is 320,000°/s², with resolution of 19.53125°/s² (14-bit).

Schunk    Morrisville, NC 27560

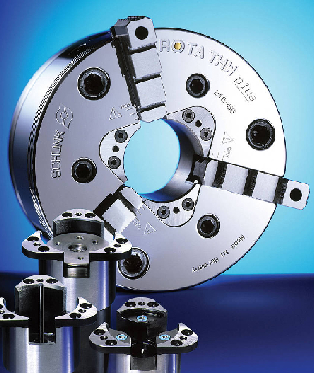

Jul 16, 2009 Available in sizes 165, 185, 215, 260, and 315, ROTA THWplus features wedge-bar actuation system for larger through holes and optimal spindle speeds. In less than 60 sec, complete jaw set can be changed with repeatability of less than 0.0005 in. Many combinations of top and base jaws can be utilized to fit any need. To avoid damage to machine and danger to operator, actuation wrench can only be removed when jaw is properly engaged.

SMSC    Hauppauge, NY 11788
Jul 16, 2009 Designed as companion chip for MOST® Intelligent Network Interface Controllers, Model OS85650 expands A/V capability for automotive infotainment devices. Featuring multiple interfaces, 1.5 Gbit/s routing engine, and DTCP co-processor, device routes data streams simultaneously between application I/O interfaces, including MediaLB®, HBI, TSI, SPI, and I²S. Co-processor autonomously encrypts and decrypts up to 8 multiple synchronous and isochronous data channels routed through device.

Stackpole Electronics Inc.    Raleigh, NC 27604

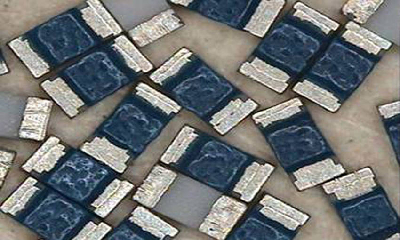

Jul 16, 2009 Designed for compliance with IEC61000-4-2, ESD/ESDU Series is comprised of transient suppression chips with 8 KV protection level for direct contact and 15 KV for air. Chip array versions of above devices, ESA/ESAU Series, come in 0603 x 4 chip array size, while ESD/ESDU Series is available in 0402 and 0603 chip sizes. All circuit protection devices employ air gap technology that achieves 0.2-0.05 capacitance and response time below 1 msec.

Wolfson Microelectronics plc    Edinburgh EH11 2QB  United Kingdom
Jul 16, 2009 Supplied in 48-pin, 3.64 x 3.54 x 0.7 mm CSP, WM8993 manages all audio processing and routing in multimedia mobile handsets; consumes less than 5 mW (typ); and enables 100+ hr of playback. Integrated ReTune(TM) Mobile Parametric Equalizer optimizes speaker characteristics and frequency response, while programmable dynamic range control helps boost low-level signals and optimize dynamic range as well as prevent audio signal clipping and distortion.

Aps Novastar LLC    Huntingdon Valley, PA 19006

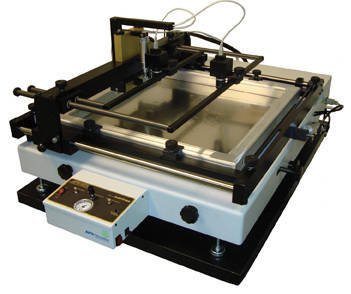

Jul 16, 2009 With SMTrue(TM) Vision Assist alignment system, double-sided nesting kit, and alignment system, SPR-45VA provides SMT and PCB assemblers with speed and reproducibility required for solder paste printing applications down to 12 mil pitch components. Axial stencil to board registration with dual or single camera assist allows for accurate printing of 0201s, ultra micro BGAs, CSPs, and 15 mil pitch QFPs, with adjustment for board tolerance variation in X, Y, and Theta.

Teseq, Inc.    Edison, NJ 08837
Jul 16, 2009 Suited for high current and voltage surge testing, CDN 3083-S100M enables mobility between test sites while adhering to IEC EN 61000-4-5 and ANSI C62.45 specifications. Coupling/decoupling network (CDN) injects standard 1.2/50 µsec combination wave surges up to 8 kV open-circuit and 4 kA 8/20 µsec surge short circuit into main power supply of equipment under test (EUT). Two decoupling networks in parallel with added decoupling units enable 200 A per phase in single phase applications.

Air Squared, Inc.    Broomfield, CO 80020
Jul 16, 2009 With package size of 7.5 x 5.9 x 5.7 in., 3-stage oil-free Scroll Pump features displacement of 2 cfm, noise level less than 45 dBA, and power requirement of 150 W. Power delivery is continuous, and rotary scroll design provides balanced, pulse-free operation. With only 2 primary moving parts, there are no inlet or discharge valves to break or make noise. Pump can replace turbo boosted pumps in spectrometers, gas detectors, analyzers, and lab vacuum stations.

Linear Technology Corp.    Milpitas, CA 95035

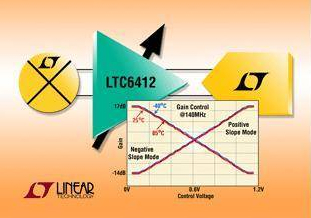

Jul 16, 2009 Optimized for 1-500 MHz operation, Model LTC6412 provides continuous gain adjustment from -14 to 17 dB. Third-order output intercept point is 35 dBm at 240 MHz across all gain settings. Device also achieves constant output noise level over entire gain range, with noise figure of 10 dB at max gain setting. Using negative gain slope mode, gain control slope is -32 dB/V at 140 MHz, with control range of 0.1-1.1 V. Housed in 4 x 4 mm QFN package, LTC6412 consumes 110 mA on 3.3 V supply.

Linear Technology Corp.    Milpitas, CA 95035
Jul 16, 2009 Supplied in 11.25 x 15 mm LGA package, LTM9003 wideband RF-to-digital receiver subsystem includes 12-bit, 250 Msps ADC, bandpass filter, IF amp, and RF downconverting mixer. IC reduces board space and development time for wireless basestations implementing PA linearization with digital predistortion (DPD). Included 125 MHz bandpass filter exhibits less than 0.5 dB passband ripple, and noise floor of receiver chain is -147.3 dBm/Hz. Absolute delay through filter is 2.7 ns.

Microchip Technology, Inc.    Chandler, AZ 85224 6199

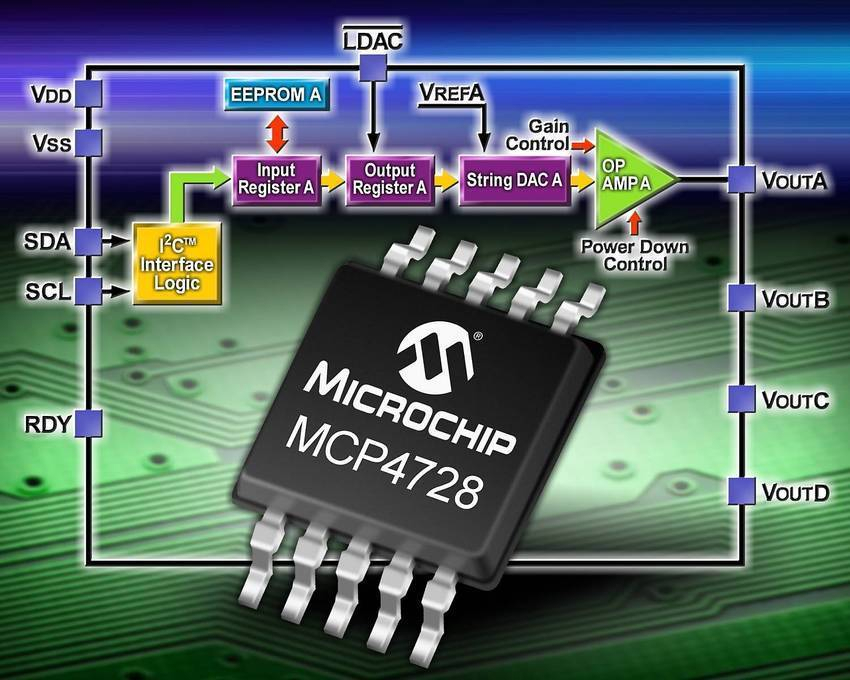

Jul 16, 2009 Supplied in 10-pin MSOP, MCP4728 lets designers program input codes, configuration bits, and I²C(TM) address bits to integral EEPROM so that data is held during power-off time. This makes configuration and outputs available immediately after power-up. Also, each channel can be individually shut down, reducing power consumption to as low as 0.04 µA, to extend battery life. On-chip precision output amp enables rail-to-rail analog output for utilization of entire voltage range.

Advantech Co. Ltd    Irvine, CA 92618
Jul 16, 2009 Supporting 1.8 GHz SL9380 Intel® Core(TM)2 Duo processor and Intel® 3100 chipset, MIC-5602Rev2 PrAMC features 17 W thermal design power and 4 GB onboard ECC. Board includes 1 GbE port, 1 USB 2.0 port, and 1 mini-USB port. AMC connector routes 2 GbE SerDes transceivers and 2 SATA ports. Able to boot from network, CF, SATA, USB, or onboard flash disk, module is suited for applications requiring protocol offload, host media processing, encryption/decryption, and content and packet processing.

Griswold Pump Company    Thomasville, GA 31792
Jul 16, 2009 Designed for use in any job that requires moving water from one place to another, H Series includes in 3, 5, 7 ½, 10, 15, and 20 hp models with heads to 260 ft and flow rates to 325 gpm. Along with positive priming, features include enclosed impeller and mechanical shaft seal. Heavy-duty rigid bracket maintains perfect alignment between centrifugal pump and motor. Applications include turf irrigation, swimming pool, industrial, marine, and general transfer.

ifm efector, Inc.    Exton, PA 19341

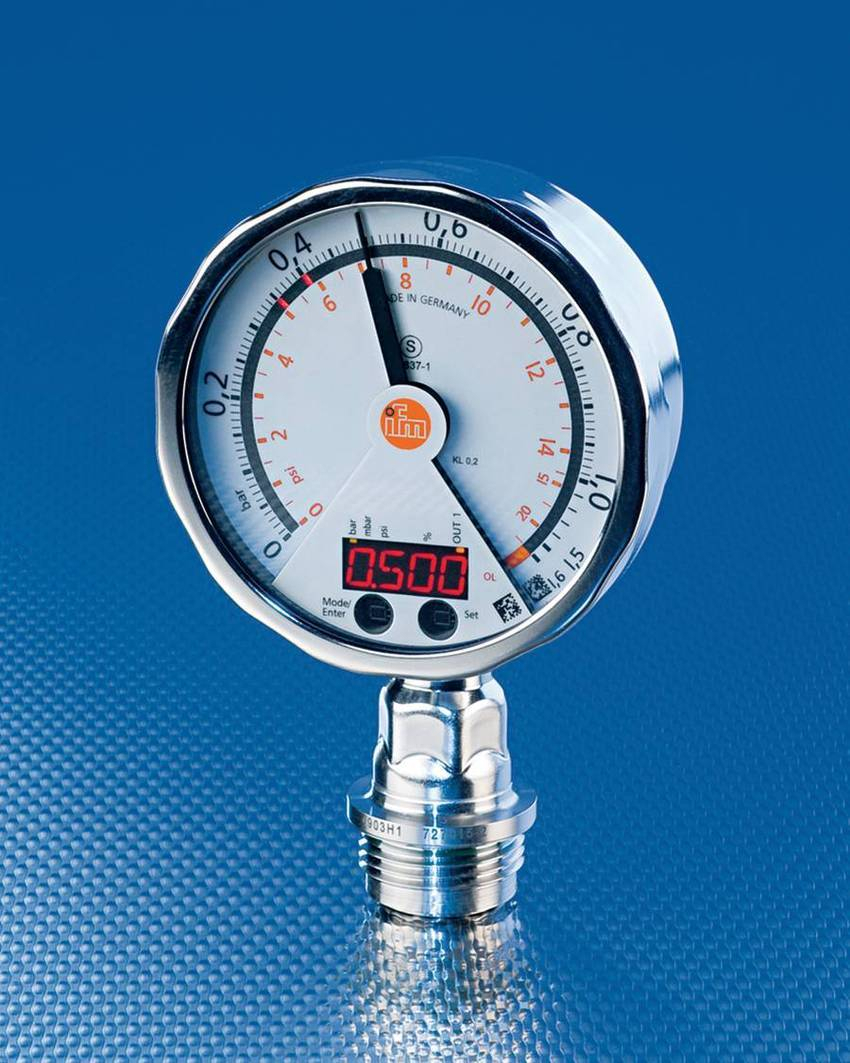

Jul 16, 2009 Combining features of gauge, switch, and sensor, PG Series mounts in-line to provide high-visibility indication of sanitary process conditions. Ceramic cell sensing technology provides long-term reliability, overload protection, and precision indication (0.2%) of pressure values. While gauge display indicates current operating pressure relative to overall range of unit, programmable 4-digit LED display with touch-screen interface indicates current pressure value.

SWECO®, Div. of M-I L.L.C.    Florence, KY 41022
Jul 16, 2009 Developed for plastics industry, DC Classifier(TM) utilizes either positive or negative air flow to draw moisture and heat away from particulates to dry/cool material. Material continues through machine to classification stages, where oversize and fine particles can be removed. Modular decks facilitate removal for cleaning in-between process changes, when more than one material type or color is processed in same machine, and casters are available to meet mobility requirements.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Jul 16, 2009 Novo-Gloss I.Q. DOI-Goniophotometer uses reflectance profiles to calculate gloss, haze, and Distinctness Of Image (DOI) values, allowing user to fully evaluate surface finish. By Pressing one button, operators retrieve gloss, Rspec, DOI, and Haze measurements at 20° or 60°. Instrument measures gloss in accordance with ISO 2813 and ASTM D523 standards, haze to ASTM E430 standard, and DOI value from 0-100 to ASTM D5767-A standard.

Key Technology, Inc.    Walla Walla, WA 99362
Jul 16, 2009 Available as option on Iso-Flo® conveyors, SmartArm(TM) includes self-powered wireless SmartArm sensor, remote base station, and software, enabling users to monitor asset or equipment shaker condition at any computer workstation. System measures and reports speed and stroke to provide real-time analysis of shaker function, line-flow conditions, and trends. SmartArm client also shows alert when speed or stroke are out of tolerance. Operating from -4 to 156°F, system meets NEMA 4X washdown standards.

OptiSwitch Technology Corporation    San Diego, CA 92121-2247
Jul 16, 2009 Designed to operate from single DL123 battery or equivalent, PLDD-120 delivers 120 A of peak current for 300 µs to laser diode bar at 1 Hz repetition rate. Measuring 2.1 x 0.75 x 0.78 in. size and weighing 15.2 g, unit is suited for man-portable target designation, rangefinding, illumination, and remote sensing applications.

Coherent Inc., Laser Group    Santa Clara, CA 95054-1112
Jul 16, 2009 By producing 1.5 W at repetition rate of 70 kHz, MATRIX 355-1.5-70 delivers enhanced precision by enabling complete control over pulse energy and timing from first to last pulse. It utilizes PermAlign(TM) component mounting technology, robotic assembly methods, and components such as Aluminum Free Active Area (AAA(TM)) pump diodes. Laser is suited for stereolithography, enabling step from rapid prototyping to rapid manufacturing, and for scribing sapphire substrates in GaN/InGaN based LED production.
