Industrial Test Systems, Inc.    Rock Hill, SC 29730
Jul 24, 2009 Suited for aquarists, retailers, breeders, and wholesalers, eXact Micro 7+ Aquarium and Pond Water Test Kit (486691-AQ) helps ensure healthy environment for fish. It includes eXact Micro 7+ photometer and reagent strips that measure Ammonia, Nitrate, Bromine, pH, Total Alkalinity, Calcium Hardness, Copper, Chlorine, Ozone, Permanganate, and Transmission. In transmission mode, IP67 waterproof photometer reads additional 26 parameters. Handheld unit has built-in sampling cell.

Lincoln Industrial    St. Louis, MO 63120 1578

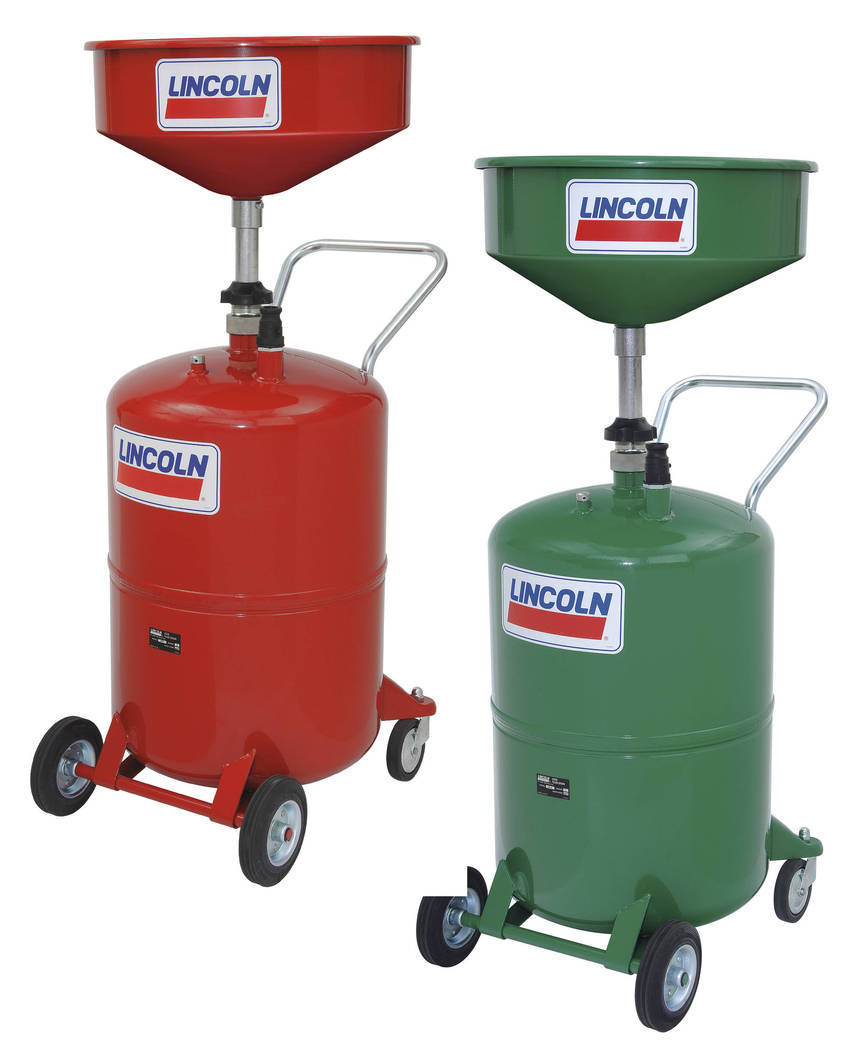

Jul 24, 2009 Model 3617 Used Antifreeze Drain and 3618 Used Fluid Drain have male ¾ in. cam and groove connector located on top of tank to provide clean connection to used fluid evacuation system. Features include 20 gal capacity tank, heavy-duty steel construction, and 18 in. offset drain bowl with oil filter screen. Drain height adjusts from 44-72 in., and both have two 4 in. casters with ball bearing swivel construction and rubber tread combined with two 6 in. rubber wheels mounted to solid axle.

Lincoln Industrial    St. Louis, MO 63120 1578
Jul 24, 2009 Designed to meet mobile service equipment application demands, fully integrated 12 VDC Reel-n-Flow Pump and Reel Kit is comprised of 12 Vdc FlowMaster® Pump and LFR High-Pressure Hose Reel. FlowMaster, rated to 6,000 psi, features built-in pressure switch and 19:1 gear ratio, which accelerates grease delivery in temperatures as low as -20°F. LFR Hose Reel comes with 50 ft of 3/8 in. high-pressure hose, high-flow control valve, and swivel.

Lincoln Industrial    St. Louis, MO 63120 1578

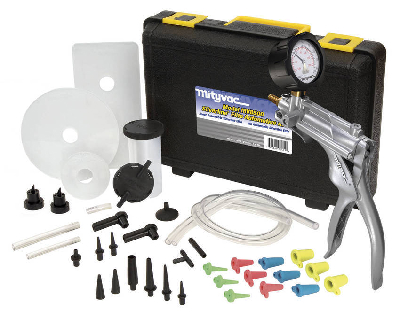

Jul 24, 2009 Available in custom-molded case, MV8500 Silverline Elite Automotive Test Kit performs engine diagnostics, brake bleeding, fluid transfer, evacuation, sampling, and windshield repair. Kit includes hand pump that produces 28 in. Hg vacuum or pressure up to 60 psi. Pump's gearless diaphragm gauge is surrounded by protective rubber boot and can be rotated 360°. With vacuum/pressure release lever, operator can release system pressure without disconnecting pump.

Lincoln Industrial    St. Louis, MO 63120 1578

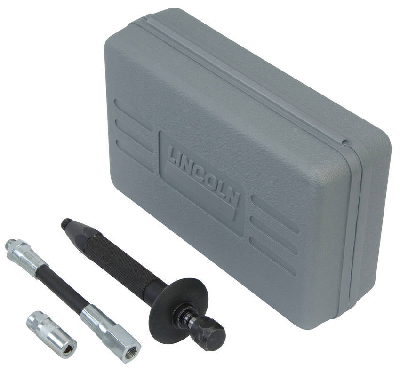

Jul 24, 2009 Offering alternative to fitting replacement and joint assembly, Model 5805 cleans obstructions by allowing lightweight oil or solvents to enter clog with quick burst of pressure. Unit also cleans bearings and joints of hardened grease so that fresh grease can be applied. Model 5805 includes steel drive cylinder, hardened piston, and safety shield, as well as high-pressure hose for hard-to-access fittings and spare drive seals.

Lincoln Industrial    St. Louis, MO 63120 1578

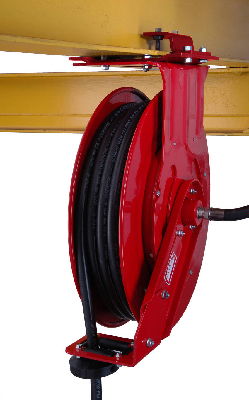

Jul 24, 2009 Offered as alternative to drilling and welding when securing Series 94000 Hose Reels to I-Beams, Model 85654 facilitates reel location and subsequently reduces installation time. Design allows for perpendicular or parallel mounting to beams and provides performance equal to that of direct fastening. Kit includes I-Beam mounting plate, (2) clamp assemblies, (4) 3/8-16 cup point screws, (4) 3/8-16 jam nuts, (8) 3/8-16 hex cap screws, (8) 3/8" lock washers, and (8) 3/8" hex nuts.

Lincoln Industrial    St. Louis, MO 63120 1578

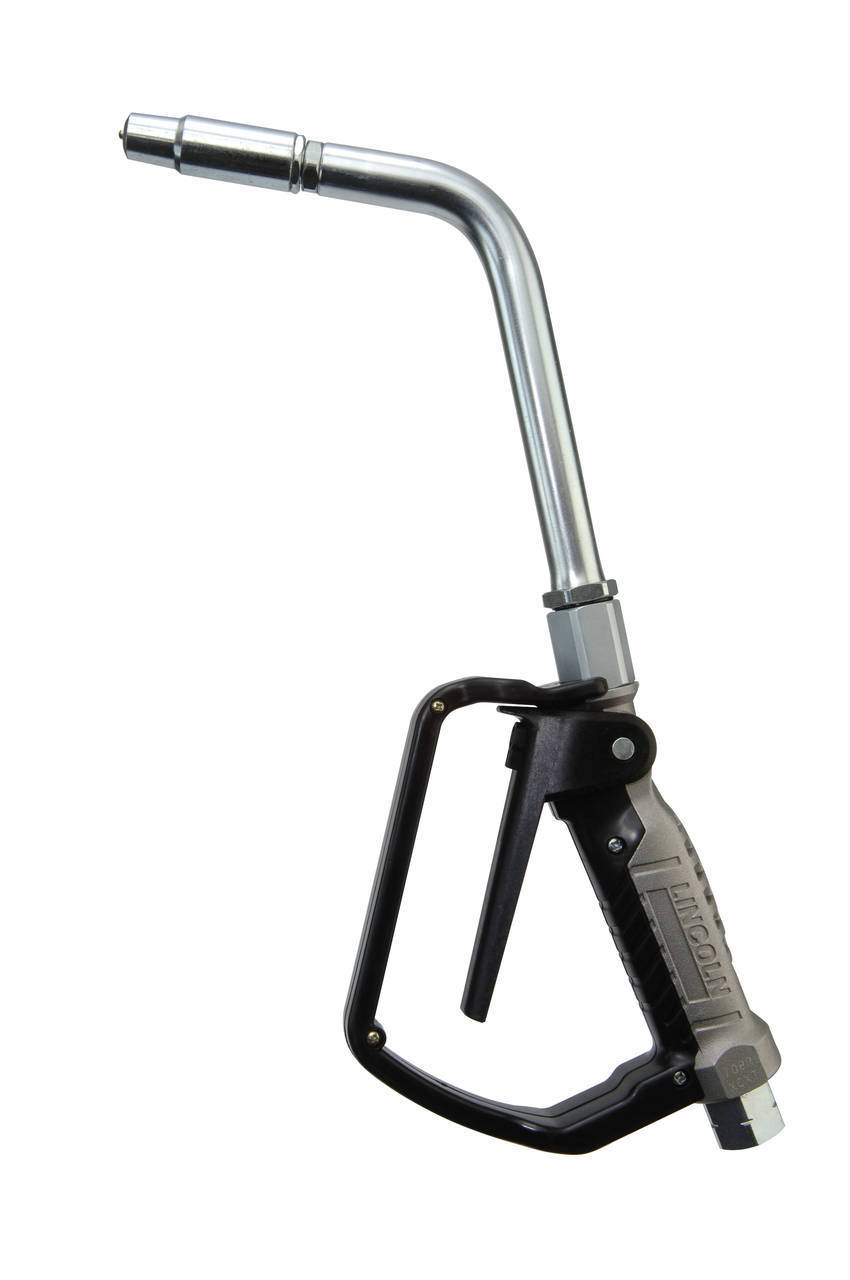

Jul 24, 2009 Series 708 Control Valves feature auto nozzle and ½ in. inlet thread, while Series 712 utilizes semiauto nozzle and ¾ in. inlet thread. Lightweight valves offer 8 and 12 gpm capabilities, respectively. Both include guarded full-hand trigger and option of rigid or flexible extensions.

Lincoln Industrial    St. Louis, MO 63120 1578

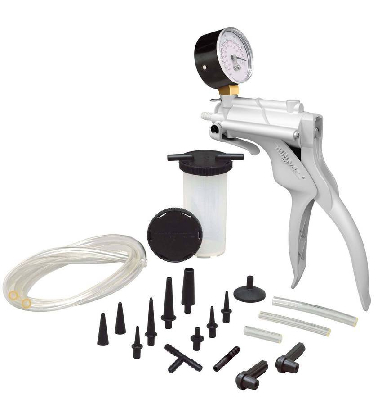

Jul 24, 2009 Featuring Selectline pumps, MV8000 Automotive Test and Bleed Kit and MV8020 Brake Bleeding Kit include essentials for brake bleeding, as well as testing of vacuum and pressure-related engine systems. All pumps are made of lightweight PVC with lever-action vacuum release. Model MV8000 combines pump with vacuum gauge and all accessories for engine vacuum diagnostics and 1-person vacuum brake bleeding, while Model MV8020 includes pump and components for brake and hydraulic clutch bleeding.

Lincoln Industrial    St. Louis, MO 63120 1578

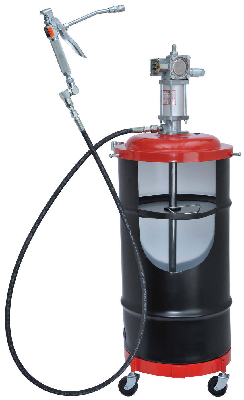

Jul 24, 2009 Intended for vehicle service professionals, Model 6917 Air-operated Portable Grease Pump Package features 50:1 double-acting grease pump, grease control valve, and universal swivel. Its 4-wheel band dolly facilitates maneuverability around shops, and metal follower plate with flexible wiper edge cleans 120 lb drum while also helping prime pump for efficient use of available grease. Applications include light and heavy vehicles as well as agricultural and construction equipment.

Z-Communications, Inc.    San Diego, CA 92126

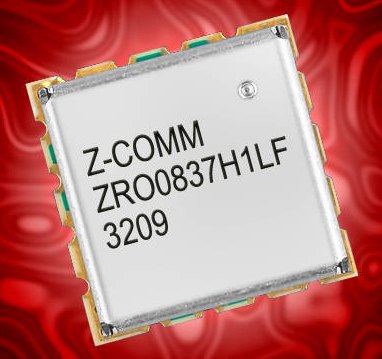

Jul 24, 2009 Model ZRO0837H1LF in UHF-band operates at 830-845 MHz with tuning voltage range of 0.5-4.5 Vdc and typical tuning sensitivity of 7 MHz/V. It is designed to deliver output power of 1.3 dBm at 5.5 Vdc supply while drawing 15 mA over temperature range of -40 to +85ºC. Provided in MINI-16-SM package measuring 0.5 x 0.5 x 0.22 in., it also features typical 2nd harmonic suppression of -15 dBc. Unit is available in tape and reel packaging for production requirements.

Innovative Pressure Technologies, Inc.    Erie, PA 16509

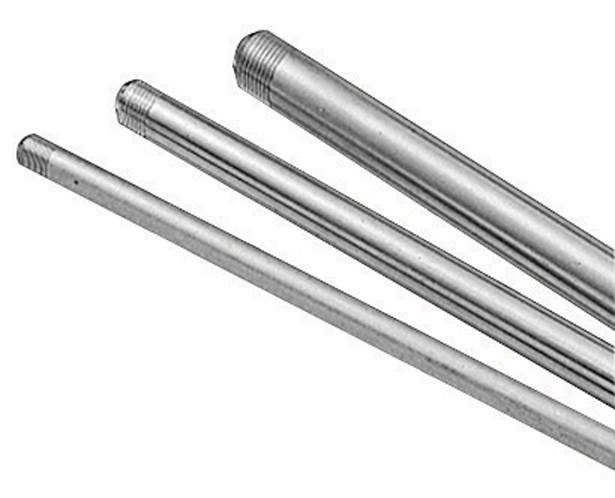

Jul 24, 2009 Supplied in 18-22 ft lengths and made of 316L SS, High Pressure Tubing is resistant to organic acids at high concentrations and moderate temperatures, inorganic acids at moderate concentrations/temperatures, salt solutions, and in caustic environments. In low temperatures, it can be used in sulpheric acid concentrations above 90%. Rated for use in temperatures from -100 to +600°F, tubing features maximum working pressure of 20,000 psi or 60,000 psi. Custom lengths are available upon request.

Bystronic, Inc.    Elgin, IL 60123

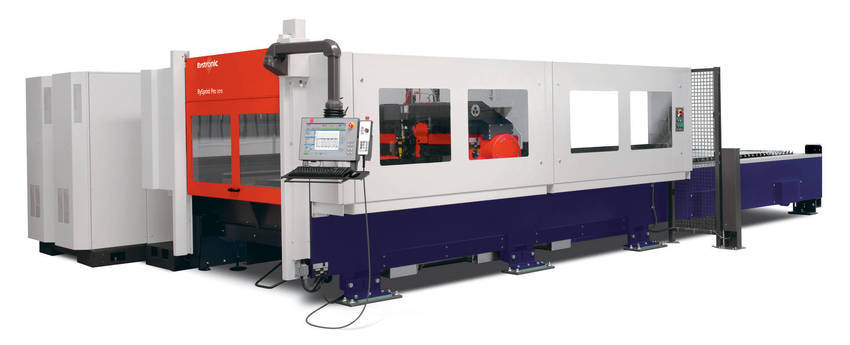

Jul 24, 2009 Optimized for compressed air cutting and thin sheet metal processing, BySprint Pro 3015 is equipped with 3.75 in. cutting head and ByLaser 4400 laser source, with wear-free solid state power supplies and magnetic-bearing turbine. Laser excitation is automatically switched off when protective door is opened, as well as when machine is at standby, resulting in low power consumption. System can also handle thick metal plates.

Godex    Camarillo, CA 93012

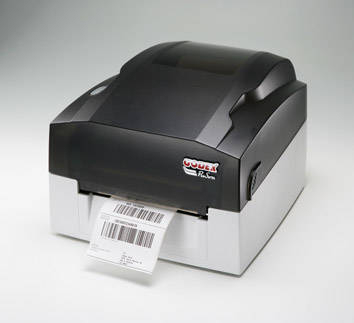

Jul 24, 2009 Featuring auto-adapt media sensor, EZ1105 can print on all thermal transfer substrates including paper, synthetics, fabrics, tag stocks, gap and continuous forms. Hi-speed interfaces include standard USB 2.0 or optional internal Ethernet for label printing. Qlabel software helps download bitmap and scalable fonts to printer, and GEPL emulation enables plug-n-play operation.

Dapra Corporation    Bloomfield, CT 06002
Jul 24, 2009 Featuring 45 degree lead angle, RHINO-CARB Toroid inserts suit face milling, profiling, helical interpolation and chamfering applications. They come in ½, 5/8 and ¾ in. IC, with either T-land or dished-face edge. T-land inserts offer reinforced cutting edge for steels, irons and hard milling, while dished-face units provide high-positive cutting edge for stainless steels, high-temperature alloys and gummy materials. Units are also available in round/button, high-feed and square sizes.

Optek Technology, Inc.    Carrollton, TX 75006-6905

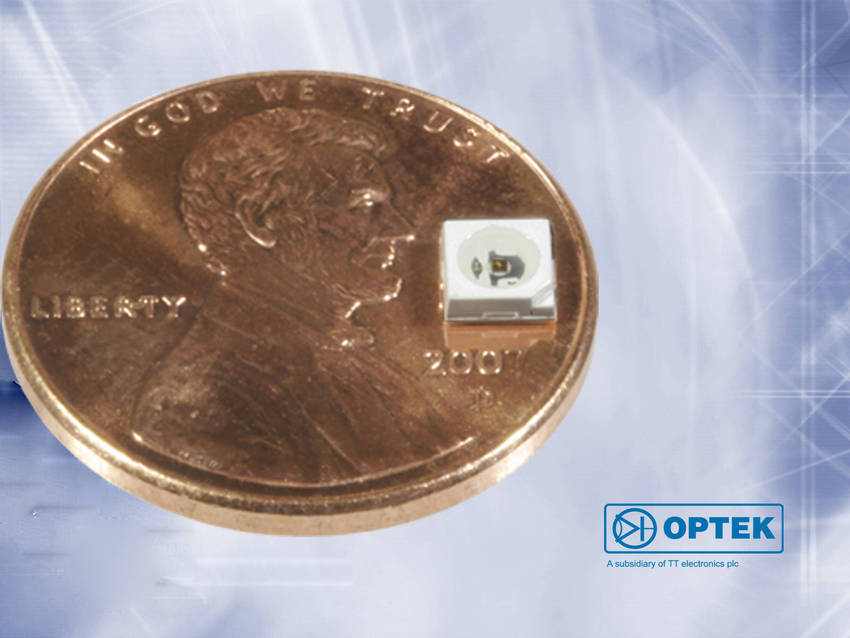

Jul 24, 2009 Available with white, warm white, blue, green, red, amber, and yellow LEDs, OVS5MxBCR4 Series LED package feature 120° viewing angle and water clear lens. Power dissipation at 150 mA is 0.48 W for white/warm white/blue LEDs; 0.51 W for green device; and 0.33 W for red/amber/yellow packages. Luminous intensity is 4,000 4,500, and 5,000 mcd for red/amber/yellow LEDs, respectively, while luminous flux for white/warm white/blue/green LEDs is 25, 25, 6, and 25 lm, respectively.

Holophane    Granville, OH 43203
Jul 24, 2009 Available with asymmetric and symmetric reflectors and refractors, High Mast Advanced Optix (HMAO(TM)) Series luminaires can be used with 400-1,000 W high pressure sodium and metal halide lamps. Luminaires are UL listed for 40ºC, wet locations, and they have open ventilated design to minimize dirt depreciation, unitized quick disconnect ballast assembly, and tool-less lamp replacement. Suitable applications include roadways, port facilities, airports, rail yards, and storage areas.

Phihong USA    Fremont, CA 94539

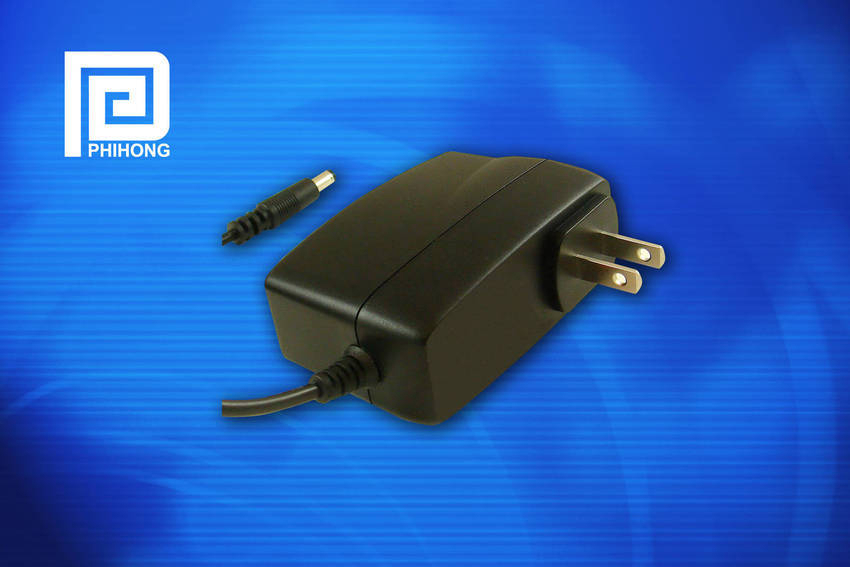

Jul 24, 2009 Suited for portable equipment and access devices, universal input 24 W, 2-wire PSA24A-120(P) is available in single 12 V output. It measures 3.29 x 1.38 x 2.89 in., terminates with standard 2.1 x 5.5 mm DC barrel output connector, and weigh 5.82 oz. Rated for operation from 0-40°C, unit has maximum no-load power consumption of less than 0.3 W. Adapter is Class II double insulated, meets Class B EMI standards, and features over-current, over-voltage, and short-circuit protection.

Gamma Scientific    San Diego, CA 92123 1876

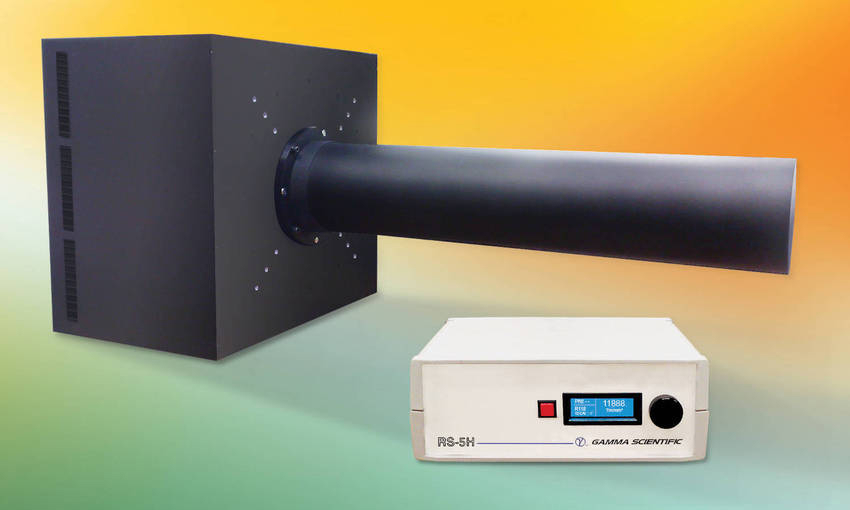

Jul 24, 2009 Designed for testing and calibrating various optical instruments, color-tunable RS-5H features 16-bit linear digital brightness control. It can output saturated blue, green, and red; achieve thousands of lux brightness levels; and simulate different illuminants including A, C, D65, and E. Unit is suited for semiconductor image sensor testing, as well as highway safety and military applications, and as illumination source for light boxes or automotive testing.

AXIOMTEK    Taipei   Taiwan

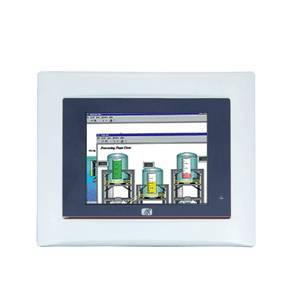

Jul 24, 2009 Based on ultra-low power AMD LX800 500 MHz processor, GOT-5571TL-621 features 5.7 in. high brightness (500 nits) VGA LCD with resolution of 640 x 480 pixels, and NEMA4/IP65 compliant front bezel. It has PC/104 slot, MiniPCI slot, and CompactFlash(TM) card for storage, and includes 2 COM ports, one Ethernet, one audio, and 2 USB 2.0 ports. Measuring only 208.5 x 59.5 x 167.3 mm, RoHS compliant unit can be panel or desktop mounted and has vibration resistance up to 2 Grms.

Hitex Development Tools    Sunnyvale, CA 94086
Jul 24, 2009 Suited for end-of-line integration into production environments, SpeedFlash-XC erases and programs Flash, verifies Flash content, and if necessary protects Flash on products utilizing Infineon 16-bit microcontroller-based design. System connects up to 8 probes to needle bed production equipment via JTAG or DAP, and obtains production data by connecting probes to production computer via USB. System supports complete family of Infineon XC66/XC2000/XE166 microcontroller derivatives.
