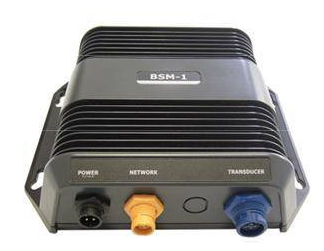

Navico Inc.    Nashua, NH 03063
Jul 17, 2009 Plug-and-play compatible with Northstar 8000i multifunctional touchscreen display, Ethernet-based Northstar BSM-1 Broadband Sounder(TM) delivers peerless echo clarity and detailed underwater definition in depths up to 3,000 ft. Unit provides clear images of individual fish markings and clear separation of fish from other targets, structures, thermoclines, and bottom. Operating on 50 and 200 kHz frequencies, module is compatible with 600 W and 1 kW transducers.

Aries Electronics, Inc.    Bristol, PA 19007-6810
Jul 17, 2009 Facilitating high density interconnect (HDI) construction, BGA Switch-A-Pitch Adapters allow tighter pitch devices to be placed on existing larger pitch designs. Series includes models with tops where BGA landing pads are on 0.40 mm pitch and adapter bottoms are populated with BGA balls on 1.27 mm pitch. Measuring 0.062 in. thick, design eliminates need for laser-drilled microvias on motherboards; standard line and trace spacing down to 0.003 in. can be used.

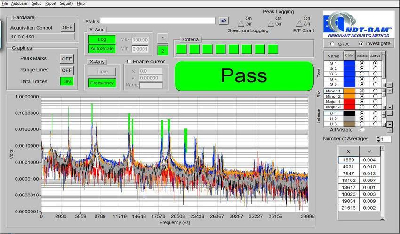

The Modal Shop, Inc.    Cincinnati, OH 45241
Jul 17, 2009 Designed to acquire, analyze, view, and organize data, NDT-RAM v6 optimizes criteria setup and validation for resonant acoustic method systems. AutoLean feature automatically analyzes data and establishes optimal testing limits. With ability to analyze and recall data from within program and view it as it was saved, program eliminates need to retest parts against new testing limits. NDT-RAM can also analyze multiple data sets and generate statistical reports on demand.

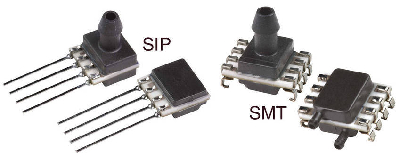

Honeywell International, Inc.    Morristown, NJ 07960
Jul 17, 2009 TruStability(TM) Sensors, comprised of HSC and SSC Series, deliver stability that helps prevent drift over time or from temperature/humidity extremes. Temperature-compensated and calibrated to provide tight accuracy (±1% or ±2% total error band), products also provide digital correction of sensor offset, sensitivity, and non-linearity. Custom calibration, output, power, pressure type, pressure range, mounting, and package options support range of applications.

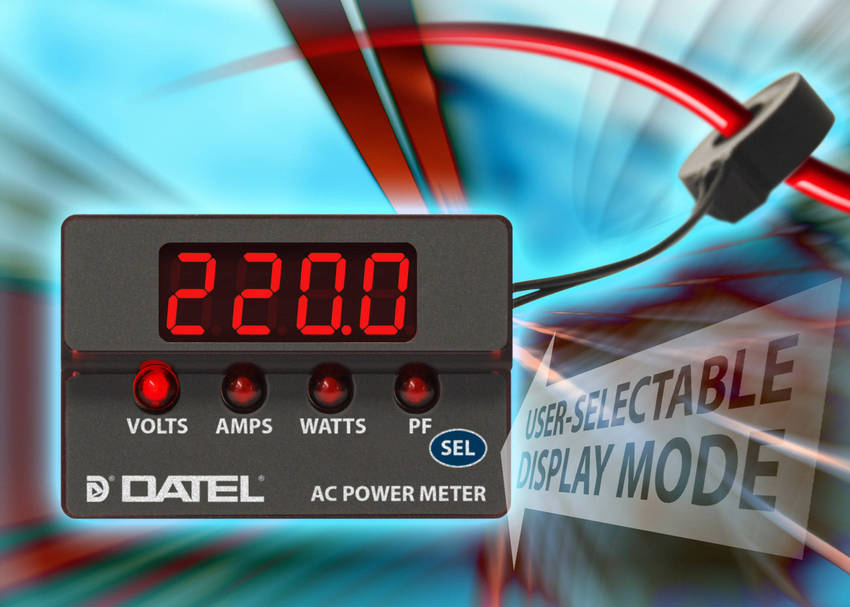

Murata Power Solutions, Inc.    Mansfield, MA 02048
Jul 17, 2009 Designed for mains powered applications, SMT ACM20 series can measure and display AC Volts, Amps, Watts, and Power Factor with ±0.5% FS typ accuracy. It also accurately displays true-rms voltage and current values of triangle and square waves plus other irregularly shaped waveforms. Front panel selector switch allows for fixed reading of any parameter or continuous cycling through all, while 0.36 in., 4-digit, red LED display can be viewed from distances up to 5 m.

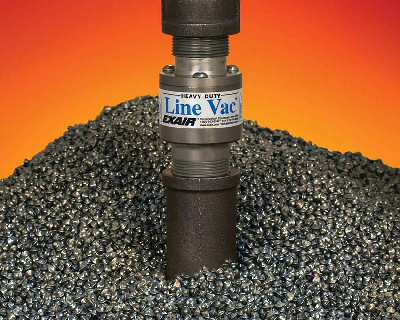

EXAIR Corporation    Cincinnati, OH 45249-1621
Jul 17, 2009 Featuring hardened alloy construction to help prevent premature wear, Heavy Duty Threaded Line Vac(TM) Conveyors use pipe to convey bulk materials, including steel shot, metal parts, scrap, and trim. Conveyors eject small amount of compressed air through directed nozzles to produce vacuum on one end high output flows on other end. Conveying rate is controlled using pressure regulator on compressed air supply. Five sizes up to 2 in. NPT fit standard plumbing pipe and couplers.

Thermo Fisher Scientific    Waltham, MA 02454
Jul 17, 2009 Thermo Scientific Nautilus LIMS for Biobanking and BioSpecimen Management helps manage biospecimen locations, online requests, chain-of-custody, and patient demographics. It offers optimized logistical and operational support to researchers, accelerating sample analysis. Also enabling data capture and specification management, program supports chain-of-custody and handling assurance needs and provides inventory control. It also features web interface and graphical workflow utility tool.

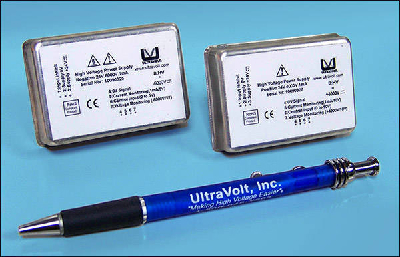

UltraVolt Inc.    Ronkonkoma, NY 11779
Jul 17, 2009 With output current from 166 µA to 6 mA, microsize D Series offers low ripple of less than 0.02% peak to peak, tight line/load regulation, output current limit protection, buffered voltage, and current monitoring. Units are suited for range of applications including avalanche photodiodes, electrostatic chucks, gas chromatography, image intensifiers, micro-channel plates, photomultiplier tubes, scanning electron microscopes, and spectrometers.

Edmund Optics    Barrington, NJ 08007
Jul 17, 2009 Used with well-collimated light sources, IR Right Angle Prisms utilize total internal reflection for right angle path bend. They are available with Calcium Fluoride substrate, which has refraction of 1.434 and provides transmission from 190 nm to 7 µm, in 12.7, 25.4, and 38.1 mm sizes. Prisms are also available with Germanium, suited for applications in 3-12 µm region, and Zinc Selenide with transmission from 1-16 µm. Germanium/Zinc Selenide units are available in 12.7 and 25.4 mm sizes.

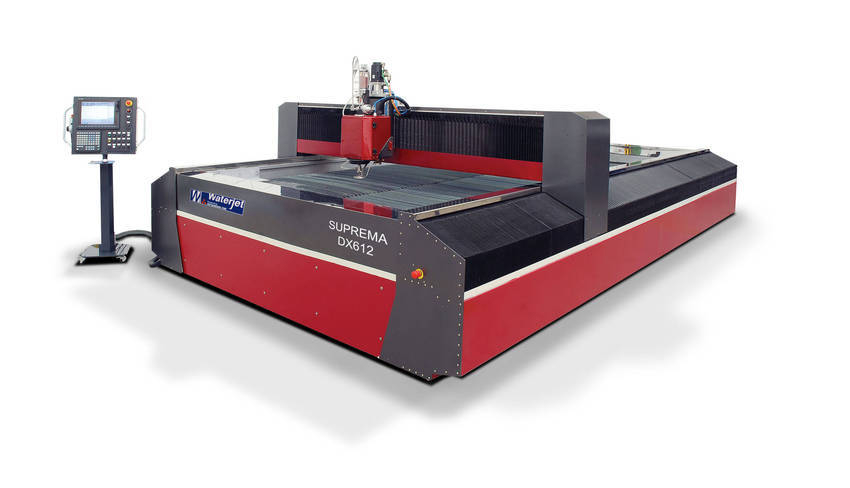

MC Machinery Systems    Wood Dale, IL 60191
Jul 17, 2009 Along with base design featuring 22 in. I-beam construction, DX Series has stainless steel work tank completely isolated from machine frame, pump control incorporated into NC cabinet, and crash protection for X/Y/Z axis. Mitsubishi 700 Series CNC control, operated via 15 in. waterproof screen, delivers programming abilities for precision machining. Other features include auto grease system for ball screw lubrication and Intelligent Taper Control with 76 mm focus tube length.

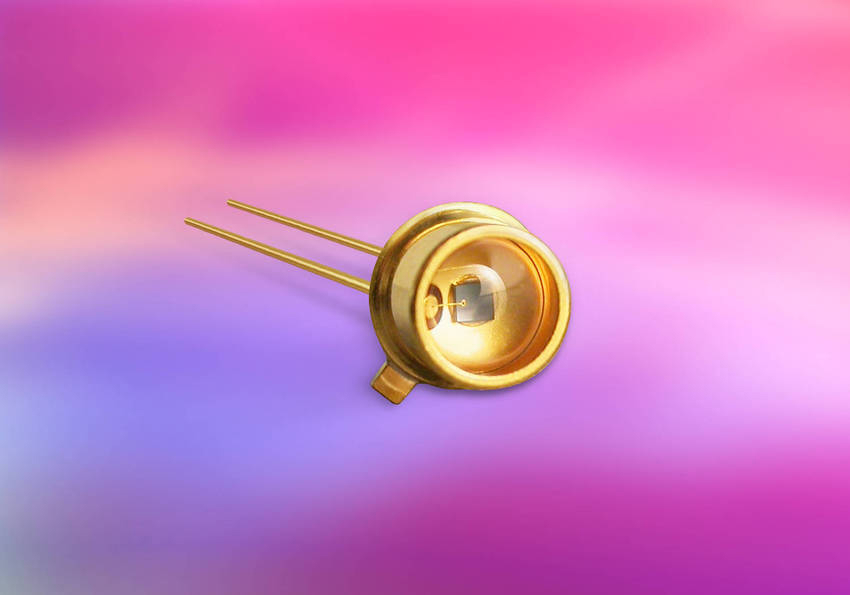

Opto Diode Corp.    Newbury Park, CA 91320
Jul 17, 2009 Operating from 550-720 nm, selective wavelength photodiode, ODD-660W suits fluorescence detection, color sensors, daylight sensors, light barriers, and medical diagnostics application. Hermetically-sealed unit features spectral bandwidth of 80 nm, storage and operating temperature between -30 to 85°C, and lead soldering temperature of up to 260°C. It provides low dark current without optical filters.

Kaeser Compressors, Inc.    Fredericksburg, VA 22404
Jul 17, 2009 With 6 stages of purification, Kaeser Breathing Air System (KBS) removes excess moisture, solid particles, oil and oil vapor, and carbon monoxide from compressed air. It offers flows from 15-940 sCfm, and can feed face masks, hoods, and other breathing devices. System includes activated carbon filter for removing gases, visual color change moisture indicator, and air sample ports for analyzer installation. Applications include petrochem, coating and spraying, or confined spaces.

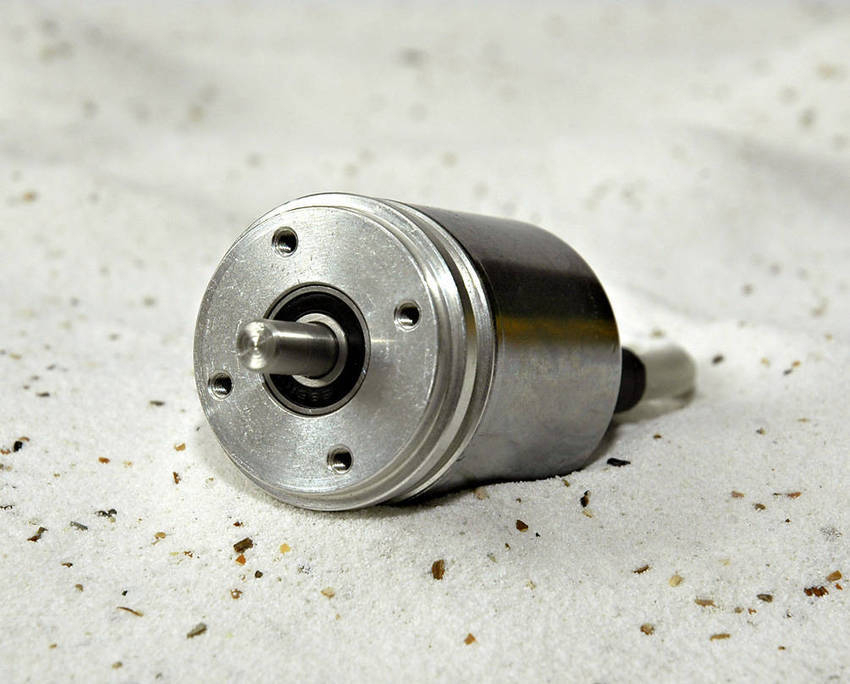

Posital America    Princeton Junction, NJ 08550
Jul 17, 2009 Available in single- or multi-turn models, MAGNETOCODE (MCD) family of rotary encoders enable electronic adjustment of measuring range. They use non-contacting Hall-effect sensors to measure rotations, and have memory system that keeps track of number of rotations that have occurred, even when instrument system is powered down. Available in solid and hollow shaft versions, encoders measure only 36.5 mm dia and can fit into tight spaces.

Lista International Corp.    Holliston, MA 01746
Jul 17, 2009 Built-to-order in either light gray, bright blue, sand, general purpose Arlink® 7000 supports evenly distributed weight of 1,000 lb. It is available with variety of surfaces including plastic laminate, static dissipative laminate, and butcher block. Leg extenders for extra height, 5 in. dia casters for mobility, and choice of hanging drawers are also available.

Master Appliance Corp.    Racine, WI 53403
Jul 17, 2009 Featuring self-igniting piezo electric ignition, compact Model MT-70 includes fuel adjustment wheel to provide 2,500°F pinpoint or broad blue torch flame. It incorporates trigger switch with pulldown lock, and slide-lock control for hands-free use. Self-contained, refillable butane fuel tank provides for up to 60 min of use on full charge. Torch has ergonomic handle to ensure non-slip grip, and can also be used as soldering iron or flameless heat tool using optional tips.

Micro Plastics, Inc.    Flippin, AR 72634
Jul 17, 2009 Offered in standard lengths of 2, 4, 6, and 8 ft, PVC Threaded Rod is amorphous thermoplastic with chemical resistance and dielectric properties. It offers tensile, flexural, and mechanical strength, low moisture absorption, dimensional stability, and flammability characteristics. Special lengths can be cut to meet custom application requirements, while 13 standard thread sizes are available from 4-40 through 1-8.

Jet Edge    St. Michael, MN 55376
Jul 17, 2009 Powered by 280 hp turbo diesel engine, iP36-280DS can produce flow rate of up to 7.2 gal/min of 36,000 psi pressure water for waterjet cutting, surface preparation and cleaning applications. It is built on skid-mounted frame with lifting eyes and forklift guides, and uses pressure-compensated hydraulic system to drive dual plunger-style intensifiers. Unit is also available in 55,000 psi model.

Aremco Products, Inc.    Valley Cottage, NY 10989
Jul 17, 2009 Capable of providing tensile shear strength of 2,400 psi and flexural strength of 13,400 psi, Aremco-Bond(TM) 2200 bonds ceramic and metal wear plates. Electrical insulating properties include dielectric strength of 460 V/mil and volume resistivity of 1.0 x 1015. Abrasion, corrosion and impact resistant compound cures at room temperature in 24-48 hr or by heating to 175 °F for 4 hr. Cured product is machinable and features linear shrinkage of .009 in/in and Shore-D hardness of 86.

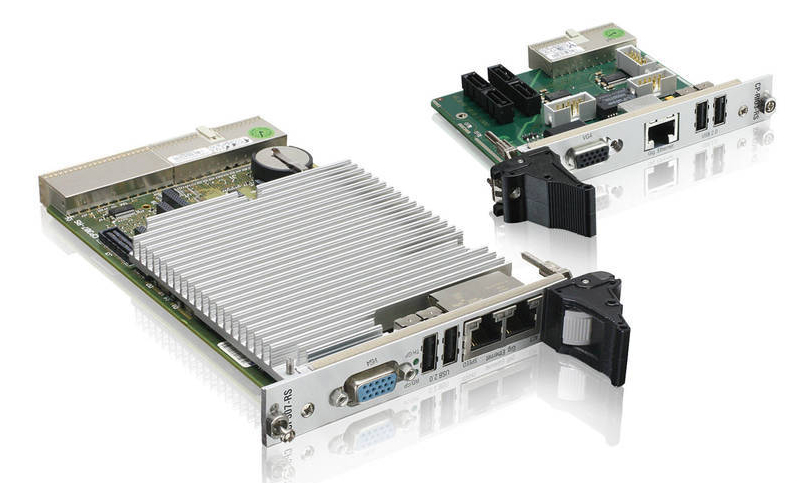

Kontron    Poway, CA 92064
Jul 17, 2009 Available with Intel Core Duo or Intel Core 2 Duo processors, Kontron CP307-RS suits application in video surveillance, image processing and media servers in transportation and industrial automation markets. It can be integrated with Intel Mobile 945GM Express chipset and Intel ICH7-R Southbridge. Graphics accelerator integrated into Mobile Intel 945GM Express allows 2-D, 3-D and video functions for VGA output. Unit runs with Windows XP, XP Embedded, Linux and VxWorks software.

SynQor    Boxborough, MA 01719 1316
Jul 17, 2009 Available with 11 output voltages, including 1.8, 3.3, 5, 7, 12, 15, 24, 28, 30, 40 and 48 V, IQ12 series suit industrial and transportation applications using 12 V battery systems. Units provide on/off control referenced to input side, remote sense for output voltage and output voltage trim range of -20%, +10%. They have at least 2,250 Vdc isolation rating between input and output, are rated with MTBF values in excess of 2 MHrs, and are fully 6/6 RoHS compliant.
