Renishaw, Inc.    Hoffman Estates, IL 60192
Jul 28, 2009 FASTRACK(TM) combines ±5 µm/m accuracy with ruggedness of stainless steel and ease of installation of carrier-type encoder systems. Track-mounted system consists of 2 miniature guide rails that retain low-profile scales (8 x 0.2 mm cross-section) and let them freely expand at their own thermal expansion coefficient with near zero hysteresis. Encoders feature optoelectronics conferring resolutions to 1 nm as well as minimal sub-divisional error and jitter.

AXIOMTEK    Taipei   Taiwan

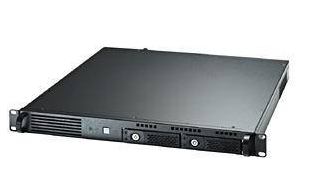

Jul 28, 2009 Compatible with ATX form factor, IPC121 barebone system supports LGA775 Intel® Core(TM)2 Quad processor plus Intel® Q45+ICH10DO express chipset. Unit features up to 16 GB DDR3 800/1,066 MHz SDRAM and supports 2 front-accessible hot-swap 3.5 in. SATA HDDs. Designed for standard 19 in. rack mounting with height of 1U and depth of 44 mm, computer is equipped with dual 10/100/1000 Mbps Ethernet ports, 1 PCI or PCIe x16 slot, and 250 W ATX power supply.

Rubbermaid Commercial Products LLC    Winchester, VA 22601
Jul 28, 2009 Rubbermaid® Hygen(TM) System incorporates textiles for both dry and wet cleaning as well as hardware such as Flexi Frame(TM), which conforms to shape of surface. Quick-Connect Handles and Poles simplify cleaning of hard to reach areas, and system also includes various buckets and carts. Bleach-tolerant and durable, textiles are able to withstand 500 launderings and as many as 200 launderings with bleach. System is suited for schools, hospitals, and airports.

Wireworks Corp.    Hillside, NJ 07205
Jul 28, 2009 Suited for applications within AV industry, LumaVue Custom Panels can serve as both connection panels and identification plates with custom engraving including company name, logo, and contact info. Units can be rear illuminated, and are rear engraved using CIM engraving system, so marking cannot be marred or destroyed. Offered in 10 colors and with gloss or matte finish, panels will not rust or tarnish. They are manufactured in 1/8 or ¼ in. thickness to meet any design requirement.

Fujifilm Medical Systems USA Inc    Stamford, CT 06902
Jul 28, 2009 Meeting needs of low-volume private practices, Fuji Computed Radiography (FCR) Prima digital x-ray system features compact CR reader, electronic viewing workstation, and archiving system. Image acquisition-to-archive solution includes FCRView Client Workstation software that combines softcopy viewing system and digital archive system, while also enabling image viewing on up to 4 additional workstations. System measures 23.6 x 15.7 x 30.7 in.

Overly Door Co.    Greensburg, PA 15601
Jul 28, 2009 Suited for security controlled environments, Flush Wood Acoustic Doors are constructed with conduit in door and provided with AWG18/4 cable solid conductor. Conduit is suited for doors with STC-47 rating and below that are hung on level swing ball bearing hinges where electric hinge transfers power from frame to door. It requires electric locks that fit standard cylindrical and mortise lock preparations and panic devices that require connections on dummy end of device.

ABB Inc.    Auburn Hills, MI 48326
Jul 28, 2009 Requiring no special enclosures/cabinets, ACS350 General Machinery Drive has closed design, built to UL Type 4X (IP66) standards, that accelerates installation and operational initiation. Parameter programming is facilitated via FlashDrop technology, and communication is supported via multiple protocols. Supplied in die-cast aluminum chassis, unit comes in 0.5-10 hp range and offers 8 state sequence programming, EMC filter, and built-in brake chopper.

LumaSense Technologies    Santa Clara, CA 95054
Jul 28, 2009 Designed for continuous-duty monitoring, Mikron PULSAR III aids in reaction furnace temperature control. Non-contact solution exceeds T/C temperature ranges in one, linear, and continuous scale of 662 to 3,632°F. Two wavelengths can be measured using same optics for continuous and instantaneous measurement of Refractory Temperature, Gas Temperature, and Integrated Temperature in vessel away from heat, vibration, and corrosive gases.

HMS Industrial Networks, Inc.    Chicago, IL 60607

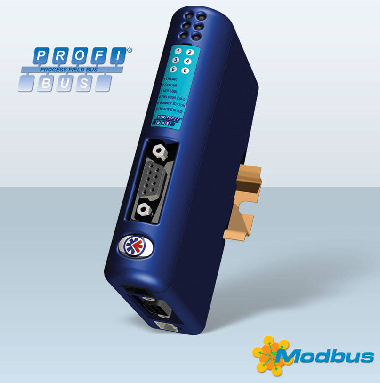

Jul 28, 2009 Operating on 24 V power supply and consuming 100 mA, DIN rail-mounted Anybus Communicator connects automation devices such as temperature sensors, barcode readers, motor controllers, and measuring instruments via Modbus interface to Profibus networks. Communicator acts as slave on Profibus side and master on Modbus side, supporting baudrates from 1,200 Baud up to 56 kbit/s. In RS-485 mode, product can connect up to 31 serial Modbus devices to Profibus.

Linear Technology Corp.    Milpitas, CA 95035
Jul 28, 2009 Supplied in 5 x 5 mm plastic QFN SMT package, LT5578 has active, double-balanced design and operates from 400 MHz to 2.7 GHz to support all allocated LTE (Long-Term Evolution) broadband wireless services. At 900 MHz, mixer offers 27 dBm Output IP3 linearity and noise floor of -160.5 dBm/Hz at output level of -5 dBm. IC also has 1.4 dB conversion gain with integrated RF balun transformers that provide single-ended RF output and Local Oscillator input.

noax Technologies Corp.    Huntersville, NC 28078
Jul 28, 2009 Based on lead-gel accumulator, noax uninterruptible power supply (UPS) allows noax industrial PCs (IPCs) to remain in constant operation for up to 1 hr in case of unexpected power loss, voltage sags, or spikes. Even if battery/connection failure occurs, UPS software will recognize problem and shut down IPC according to user-programmed sequence after certain time. Solid-state unit also integrates voltage reversal, short circuit, battery discharge protection.

Crouzet    San Diego, CA 92154
Jul 28, 2009 Operating on its own, connected to PLC, or driven by potentiometers, 140 x 98 x 33 mm Model BDE40 works with most 3-phase brushless DC Hall effect motors. It offers 4-quadrant functionality and load resistor protection and is suited for applications requiring standard forward and reverse motor control as well as closed-loop speed control for motor slowing and stopping. Controller delivers up to 360 W with 11-36 Vdc, 10 A nominal, and max continuous current of 14 A.

Gardner Denver Nash    Trumbull, CT 06611
Jul 28, 2009 NASH Vectra XL 750 liquid ring vacuum pump and compressor offers vacuum pump operation up to 28.5 in. Hg and compressor operation to 30 psig. It features o-ring sealing, ductile iron construction, as well as single point inlet and discharge connections, which eliminates need for manifolds, simplifying process piping.

ITT Interconnect Solutions    Santa Ana, CA 92705
Jul 28, 2009 Designed for both RF and signal contacts, 38999 Series connector supports up to 128 contacts with EMI shielding. It is 100% scoop proof and employs corrosion-resistant aluminum alloy shell with cadmium over nickel plating. Suited for harsh industrial, petroleum, avionics, military/commercial aircraft, and satellite applications, connector is capable of withstanding 500 hr of salt spray exposure. Custom designs and space-grade materials are also available.

Larson Systems Inc    Minneapolis, MN 55449
Jul 28, 2009 Measuring 7 x 1.4 x 3.5 in., Tiger CNC mounts directly on control panel of spring coiling machine. Digital gage allows spring manufacturers to sort springs directly through coiler's electronics without requiring separate computer interface. Unit is available with 2 software packages: Tiger and Super Tiger.

Doosan Infracore American Corporation    Suwanee, GA 30024
Jul 28, 2009 Capable of generating 139 ft-lb of torque to take deep cuts in tough metals, HP 5100 combines 14,000 rpm spindle speed, 1.5 sec tool-to-tool changes, and 2,362 ipm rapid traverses. It comes with dual rotary tables and shuttle APC capable of changing pallets in 7.8 sec. Measuring 19.6 x 19.6 in., pallets support work pieces up to 31.5 x 35.4 in., weighing max. of 1,100 lb. Centers have 40 taper spindle supported by 4 precision class, permanently lubricated bearings.

Powr-Flite    Fort Worth, TX 76140
Jul 28, 2009 Environmentally friendly, multistep Diamabrush concrete polishing floor system includes Millennium floor machine, concrete tool, and 5 different blades varying from 100 to 2,000 grit. Different grit blades allow user to choose desired floor finish level from moderate gloss to high-gloss, retail-store-like finish.

Lee Company, The    Westbrook, CT 06498 0424
Jul 28, 2009 Available with 1-, 2-, 3-, and 4-place standard manifolds, Lee VHS Injection Manifold Mount System allows for precise injection of fluid into flow stream. Any ported VHS micro-dispense valve can be mounted so that outlet port is in close proximity to flow stream, minimizing captive capillary volume and increasing injected volume. To allow for future expansion and design flexibility, boss plugs are available to seal any unused valve ports in manifold.

L-Com, Inc.    North Andover, MA 01845
Jul 28, 2009 Suited for range of voice, video and data applications, right angle TDG1026KC-R5E Cat 5E coupler fits standard .765 x .585 in. keystone openings. Coupler offers true 90° connectivity to address tight fit applications involving wall plates and some panel designs.

Instron    Norwood, MA 02062-2643
Jul 28, 2009 Suited for any application requiring measurement of linear strain, universal MFX 500 is used to determine calculations including modules, offset yield, and plastic (non-proportional) elongation to failure. Unit is controlled via USB interface and Instron 3300 and 5500 Series testing machines with Bluehill® 2 software. Featuring roller style mounting, unit provides resolution of 0.1 µm and meets ISO 9513, ASTM E83, and EN10002-1/ISO 6892 requirements.
