City Technology Ltd    Portsmouth PO6 1SZ  United Kingdom
Aug 19, 2009 Designed for detecting carbon monoxide and hydrogen sulfide, respectively, 4CF+ and 4HS+ are suited for use in single and multi-gas detection instruments for life safety applications. Gold plated pins reduce contact resistance with socket, ensuring performance in applications involving shock or vibration.

CO2Meter    Flint, MI 48503-3258
Aug 19, 2009 K-33 indoor/outdoor, low-power sensor can store up to 5,400 data points in on-board memory for later download and analysis. With sleep mode enabled, sensor can be powered by 4 AA batteries and remotely record atmospheric conditions for weeks or months. For rapid application prototyping or scientific experiments, SDK enables I2C, UART, analog, and digital outputs via USB connection. Software also allows user to read sensor data log and program parameters for custom applications.

Elma Bustronic    Fremont, CA 94538

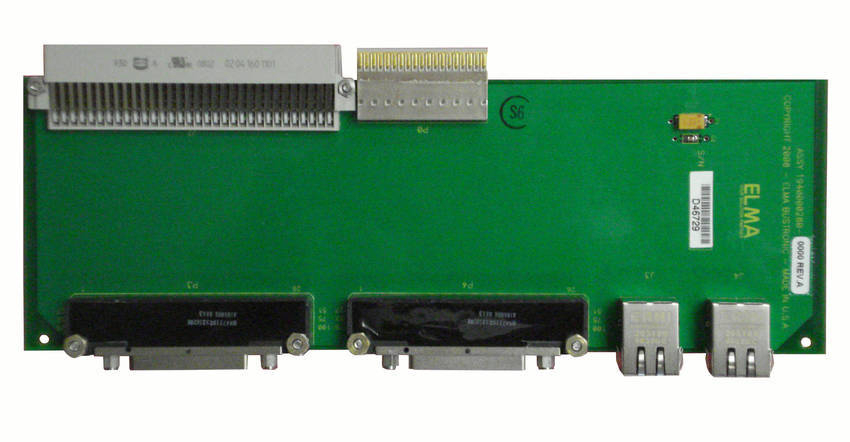

Aug 19, 2009 By directly plugging into backplane, Rear Transition Modules offer resistance to shock and vibration. They are available in VPX, VME64x, VME, CompactPCI, and custom architectures in sizes including 3U x 80 mm, 6U x 80 mm, and 8U x 80 mm. Modules are suited for various standardized or custom systems in military/aerospace, medical, industrial, communications, and energy markets.

Powr-Flite    Fort Worth, TX 76140
Aug 19, 2009 Multi-Surface Floor Sweep features large-capacity dustbin and 8 sweeping blades that can grab anything from dust to pocket change. It has ergonomically designed swivel handle and low profile design for getting in and around tight spaces. Nonmarking wheels and bumpers help protect walls, furniture, and floors.

Aalborg Instruments    Orangeburg, NY 10962

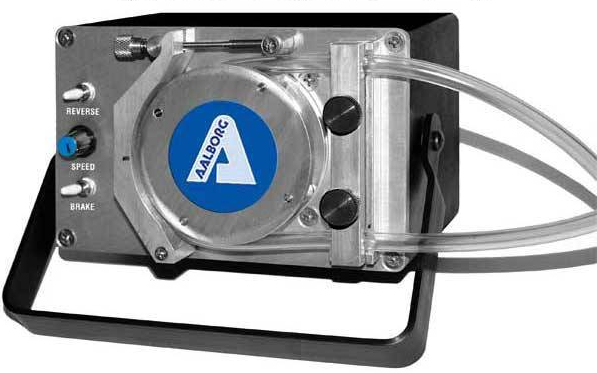

Aug 19, 2009 Offered in fixed or adjustable speed versions, Model TPU variable flow tubing pumps feature adjustable occlusion, chemically resistant tubing materials, and peristaltic pump head technology. They are available with electronic speed control, dynamic break switch, optional DC gear motors, and 4 stainless steel rollers that minimize pulsation. Tubing IDs are 1/8, 3/16, ¼, 5/16, and 3/8 in., each with 1/16 in. wall thickness. Self-priming pumps feature 115 or 230 V service.

GenScope(TM)    East Longmeadow, MA 01028
Aug 19, 2009 Offering multiple lengths of probe, Arti-flex(TM) borescope is designed for heavy in-line use by manufacturers of highly critical aerospace, automotive, and precision casting industries-as well as off-line inspection labs. EasyGlide(TM) 2-way articulation allows for precise manipulation while fused fiberoptic image bundle of over 10,000 glass fibers provides clear and bright images. Product accepts video adapters, digital cameras, and battery-powered light sources for portability.

Adalet    Cleveland, OH 44135 3301

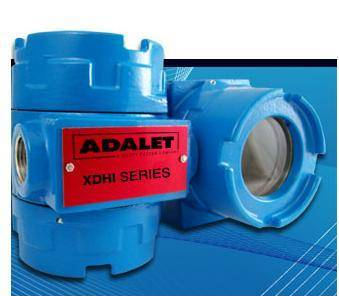

Aug 19, 2009 With only 2¼ in. internal dia, XDHI mini dual-sided instrument housing can accommodate miniature instrumentation or control devices. UL, cUL, and ATEX certified product includes back to back chambers separated by 3/16 in. thick dividing wall. Solid or glass covers are available in either standard flat cover or domes version for added depth. Features included are conduit feed-through hubs, internal/external ground screws, watertight gasket, and external safety blue polyester power coating.

Boge American, Inc.    Powder Springs, GA 30127

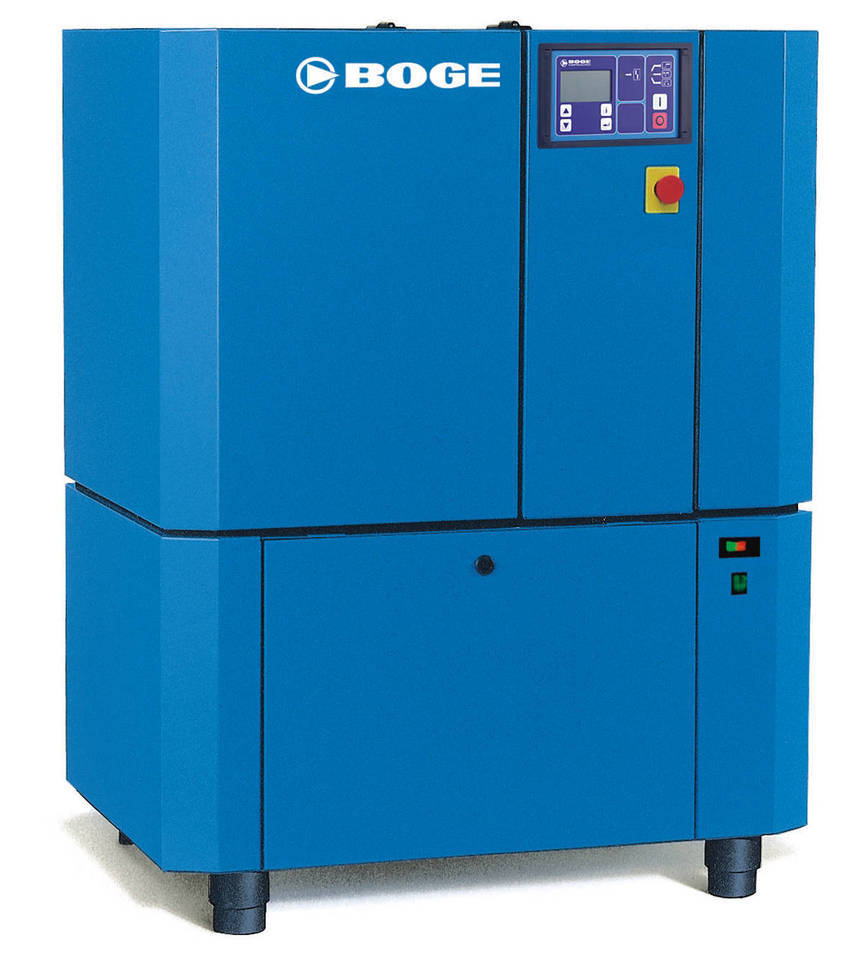

Aug 19, 2009 Featuring models SD 20-2, SD 24-2, and SD 29-2, Boge SD series is designed for space constrained applications. Available in standard pressure of 115-190 psig and output capacities of 67-122 cfm, compressors feature motor power of 20 to 30 hp. Dryer bypass allows for direct connection to compressed air network.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Aug 19, 2009 PV6 series offers mechanical life of 1,000,000 cycles min, electrical life of 50,000 cycles, with illumination base rating of red, yellow, and orange at 20 mA 1.8 V, and blue, green, and white at 20 mA 2.8 V. Operating temperature ranges from -20 to +70°C. Meeting IP-65 standards for water resistance, switch suits applications in elevators, public ticket dispensers, kiosk applications, and security panels.

Phoenix Contact    Harrisburg, PA 17111 0100
Aug 19, 2009 Standing 5 mm tall with 2.5 mm centerline, PTSM targets space-critical applications such as LED lighting, building automation, and power supply units. Spring-cage connector is rated for 6 A, and is available in 2 mounting technologies: pin-in-paste method or surface-mount technology. SMD anchors enable multiple wire termination and disengagement cycles.

Streamlight, Inc.    Eagleville, PA 19403

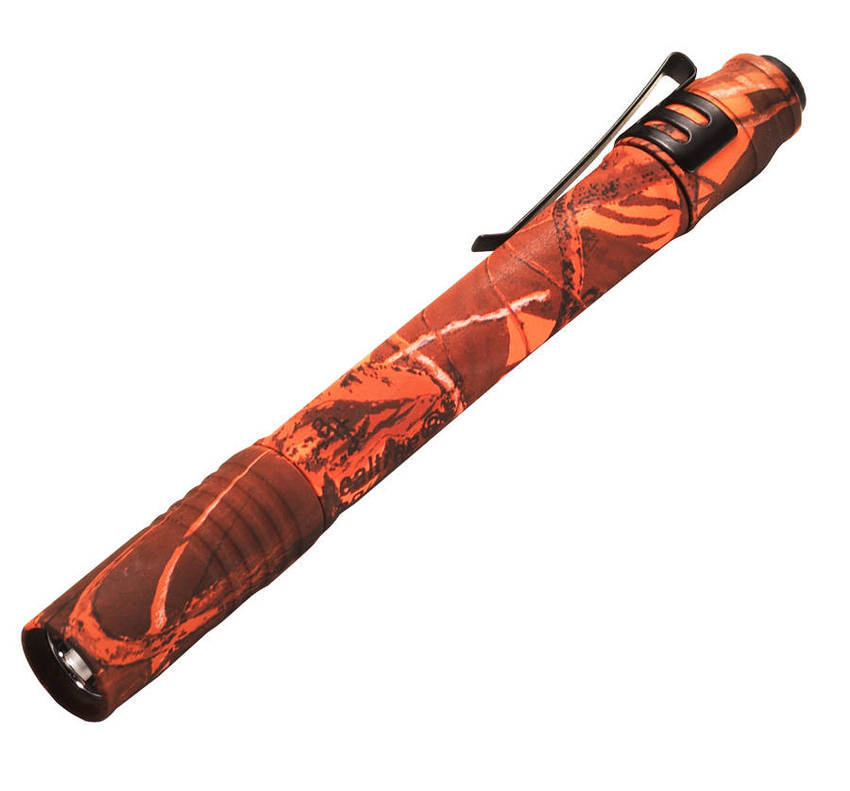

Aug 19, 2009 Offered in REALTREE HARDWOODS® camouflage finishes, ultra-compact Buckmasters® Stylus Pro® LED employs Nichia Ultra-Bright Green LED which offers 80 candela peak beam intensity and 5 lumens measured system output, with rated life of 50,000 hr. Penlight features machined aluminum construction with anodized finish, and multiple O-Ring design to ensure resistance to water and contamination. It runs on 2 AAA alkaline batteries and has push-button tailcap switch for single-handed operation.

Pinpoint Laser Systems    Peabody, MA 01960
Aug 19, 2009 Intended for use with Laser Microgage 2D family of products, Microgage 2D Display enables operators to record readings in field or on factory floor. Stored measurement and alignment readings can then be downloaded onto computer containing DCU software for analysis, plotting, and storage. Microgage 2D Display, along with Microgage 2D system, can be used for machine tool alignment, roll and web alignment, bore alignment, shaft alignment, and variety of other industrial measuring applications.

J. W. Winco, Inc.    New Berlin, WI 53151
Aug 19, 2009 Made of forged, zinc-plated steel with tensile strength of 1,000 N/mm², Series GN 6333 hex nuts are suited for applications where nut needs to be moved quickly to clamping position, and to be removed quickly after loosening. With no locking of thread, RoHS compliant nuts provide easy mounting/dismantling, even in tight spaces.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Aug 19, 2009 With CAT III 1,000 V and CAT IV 600 V ratings, U1240A and U1250A Series optimize user safety in electrical testing and measurement. Multimeters use test probes with 4 mm tips to minimize likelihood of high-energy sparking, and 30 kA fuse for protection from high-voltage transients. During qualification of 30 kA fuse, all models passed HIPOT testing at 2,000 Vac and 2,000 Vdc between microamp, milliamp, and ampere terminals and common ground.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Aug 19, 2009 Kalabie ELN (electronic lab notebook) v4.0 delivers functionality to help expedite decision-making, manage analytical requests, and increase collaboration between colleagues. Dynamic Fields and Forms lets users create templates for entering data into each experiment, and data can be re-used across protocols and experiments. Designed to accommodate multiple disciplines, this web-based, scalable, integrated system helps users manage experiments and results.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Aug 19, 2009 Designed to replace E4418B/19B EPM Series, N1913A and N1914A EPM Series Power Meters offer average and pulse power measurements on 1, 2, or 4 channels. Units feature measurement speed of 400 readings/sec, frequency from 9 kHz to 110 GHz, and single-sensor dynamic range of 50-90 dB, depending on model. Thermocouple-based N8480 Series Power Sensors offer linearity of less than 1%, frequency range from 100 kHz to 50 GHz, and power range of -35 to +44 dBm, model dependent.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Aug 19, 2009 Suited for food testing, water analysis, and protein biomarker discovery/validation, 6430 triple quadrupole liquid chromatography/mass spectrometry (LC/MS) system incorporates additional turbo pump for optimal ion transmission and sensitivity. Ability to switch from positive to negative ion mode in 30 ms promotes flexibility to analyze complex mixtures and optimizes sensitivity by exploiting most prolific ions for any given analyte. MassHunter and MH Optimizer software are included.

Altera Corporation    San Jose, CA 95134
Aug 19, 2009 Used for designing/testing high-speed serial interfaces with up to X8-lane configurations, Stratix® IV GX FPGA Development Kit features hardware and software for accelerated creation of designs using 40 nm Stratix IV GX FPGAs. Complete PCIe Gen2 end-point hardware design package features PCI-SIG-compliant board, 36 full-duplex transceivers (24 operate up to 8.5 Gbps), 2 PCIe Gen2 hard IP blocks, 230K logic elements, and 13.9 Mbits embedded memory. Several protocols are supported.

Dimple-t Bulk Solids Cooler    Winterswijk 7101GR  Netherlands
Aug 19, 2009 Featuring fully welded and totally sealed design, Dimple-t Heat Exchanger indirectly heats or cools free flowing powder and bulk solids, such as sugar or salt, while eliminating concern for dirt or contamination. With no plate supports and manifold pipe welded straight to heat exchanger plates, design eliminates ledges where food products can stay behind. Heat exchanger has no moving parts and does not require fans or large volumes of air to operate.

Ittiam Systems Private Limited    Bangalore 560025  India
Aug 19, 2009 Based on TI's TMS320DM646x(TM) digital media processor, off-the-shelf DVR system provides complete solution with media compression technology, feature-rich application, and browser-based interface. It leverages H.264 Main Profile encoder with bit-optimal VBR rate control and field picture encoding modes for interlace camera inputs. Other features include 4 channels of simultaneous recording, 8 channels of file playback, or simultaneous recording up to 4 channels and playback up to 2 channels.
