Moxa Inc.    Brea, CA 92823
Aug 03, 2009 OnCell Central Manager enables engineers to actively monitor and manage remote site devices from host site, even those configured with private IP. Capabilities include device configuration, maintenance, and monitoring; Telnet enabling; and secure account settings. Installed on machine configured with public IP address, solution serves as go-between for cellular devices and general Internet devices while providing central point of access to remote devices.

Royal Products, Div. Curran Mfg. Corp.    Hauppauge, NY 11788
Aug 03, 2009 Balanced by design for high-speed operations, Accu-Length CNC Collet Chucks expand milling machine and lathe application possibilities. Units are hardened for strength and durability, and less prone to negative effects of centrifugal force than 3-jaw chucks. Master collets contain multiple keyways for fine adjustability, which is useful for second-spindle applications.

Mahr Federal Inc.    Providence, RI 02905
Aug 03, 2009 Available on MMQ 100 and 200 Formtesters, EasyForm® v3.0 provides intuitive touchscreen interface that guides operators through measurement setup and operation. Measurement results are displayed on screen, including 3D representation with color or grid lines providing interactive graphic preview. Program can interactively exclude certain trace data after measuring or analyzing part features, and results can be printed, saved in file formats such as PDF, or exported for analysis in ASCII format.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Aug 03, 2009 Loop-powered Model KFD0-SCS-EX1.55 provides complete isolation for communications with intrinsically safe transmitters approved for use in hazardous areas. Galvanic isolation eliminates need for high integrity earth ground when using shunt type diode type safety barriers. Unlike other isolators, Model KFD0-SCS-EX1.55 does not require external power. Housing is designed to mount on most standard DIN rails.

The Modal Shop, Inc.    Cincinnati, OH 45241
Aug 03, 2009 Utilizing Resonant Acoustic Method, Model NDT-DTF automates quality testing of parts as small as ball bearings or small electronic connectors. Parts are automatically sorted via PLC-controlled stepper motor. No part preparation is needed for testing and no human interpretation is necessary. Offering speeds of 1 part/sec and providing pass/fail result, fixture automates with bowl feeders or vibratory tables and is instrumented with laboratory-grade force sensor, microphone, and DSP analyzer.

New Brunswick Scientific Co., Inc.    Edison, NJ 08818
Aug 03, 2009 Along with high-temperature disinfection option, Galaxy® series has seamless, one-piece chamber that eliminates potential breeding grounds for contaminants. Sealed inner glass door on 170 L models allows viewing of samples while maintaining environmental stability and minimizing CO2/N2 consumption. While perforated shelves provide rapid recover after door opening, oxygen control system enables hypoxic/hyperoxic conditions to be maintained. Models are also offered in 48 and 14 L sizes.

New Brunswick Scientific Co., Inc.    Edison, NJ 08818
Aug 03, 2009 Equipped with built-in load cell for measuring additions and harvesting, sterilizable-in-place 19.5 and 40 liter BioFlo® 510 Fermentor and CelliGen® 510 Bioreactor includes 24 vessel penetrations for positioning sprayballs and sensors. Intuitive bioprocess software program is controlled through 15 in. touch screen. ISA S88-compatible, Allen Bradley Control Logix Process Controller has Ethernet or Modbus connectivity to OPC server for integrating system into existing data networks.

New Brunswick Scientific Co., Inc.    Edison, NJ 08818
Aug 03, 2009 BioFlo®/CelliGen® 115 fermentor and bioreactor system is compact, benchtop control station that features built-in color touchscreen interface as well as pumps, configurable gas flow controllers, pH/DO, and foam/level controllers. Control screens are capable of regulating up to 3 independent systems. Options for gas flow, impellers, vessels, and more suit system for range of teaching, biotech, manufacturing, and pharmaceutical applications.

Starrett, L.S., Co., The    Athol, MA 01331 1915
Aug 03, 2009 Available in FS and TS configurations, Advanz(TM) blades feature tooth tip cylinder of sub-micron grain carbide with triple-chip grind welded to ductile back. They offer optimal carbide-to-back bonding and exhibit resistance to fatigue, shock, wear, and stripping when cutting difficult-to-machine materials. Thicknesses range from ¾ x .035 in. to 3 1/8 x .063 in., and lengths include 100 ft, 150 ft coils, and welded-to-length on 2 5/8 x .063 in. and 3 1/8 x .063 in. blades.

Rozzi Windows Manufacturing, Inc.    Reading, PA 19604
Aug 03, 2009 SEASONVIEW window expands outdoor living area into 3-season comfort room. Constructed of aluminum box-beam frames and glazed with Paragon's marine-grade SUPERCLEAR(TM) PVC film, units feature 4 vinyl glazed spring and pin sashes in aluminum frames that glide up and down and hold any position along window jamb. Each sash may be tilted in to facilitate cleaning/removal, and windows are available with clear, smoke, and bronze tints on sashes.

Col-Met Spray Booths, Inc.    Rockwall, TX 75032

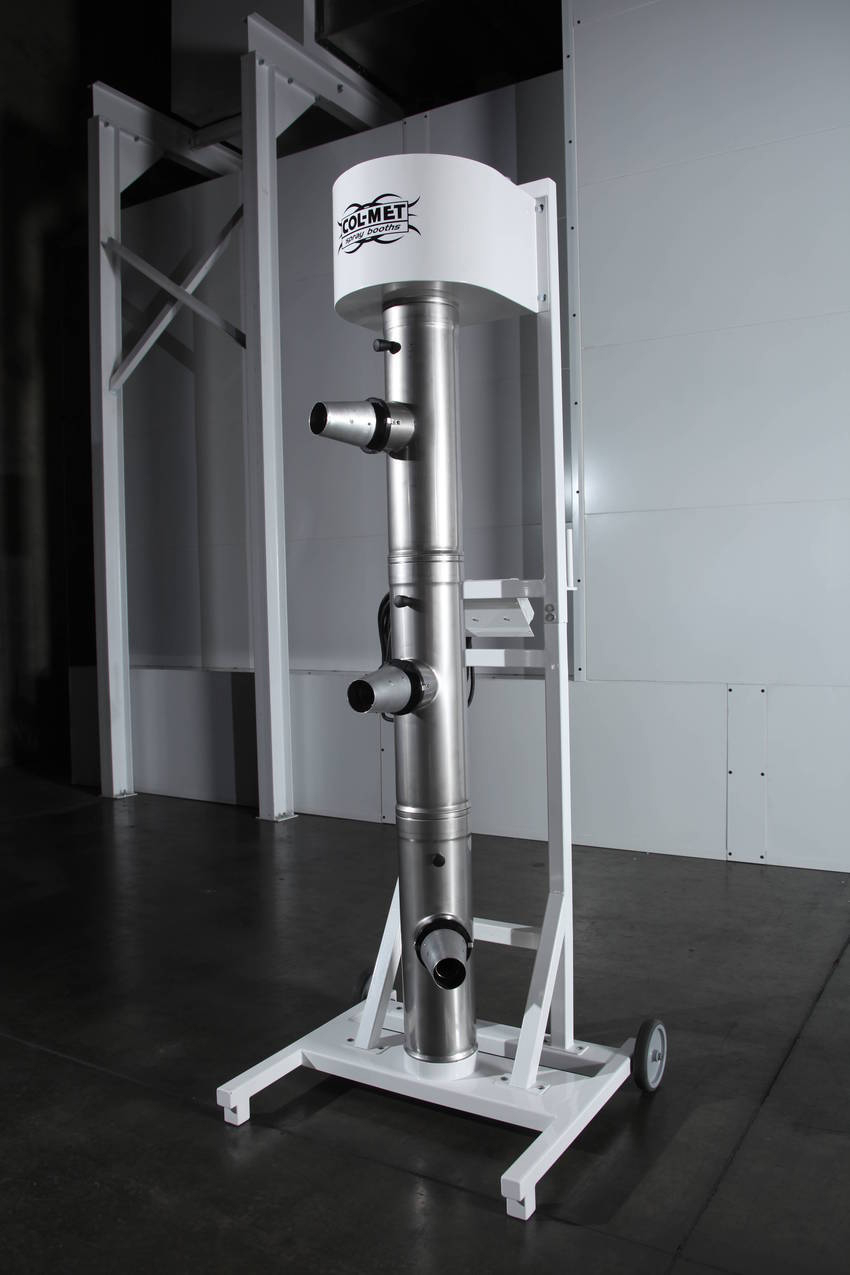

Aug 03, 2009 Portable COL-MET EVO-1 tower stand is suited for waterborne-based primer and basecoat applications in prep station setting. It includes 3 Venturu nozzles that create turbulence to disrupt laminar airflow during flash-off and 3 SS pipes with rotating air outlets that position nozzles for optimal airflow settings. Air speed is adjustable with multidirectional velocity cones, while manual timer lets user choose cycle time length. Unit includes 8 ft cord to plug into power source.

Paine Electronics, LLC    East Wenatchee, WA 98802
Aug 03, 2009 Available in 2.47 in. in length by 0.82 in. diameter package and weighing only 4.0 oz, Miniature S-Class Transducer Series (Mini S-Class) provides accurate and reliable measurements at pressure ranges from 0-500 to 0-5,000 psis. Unit features radiation hardening up to 100 KRad (Si) total dose, immunity to Single Event Latchup to high-level signal amplification, 0-5 Vdc output, and built-in Class S QML-V/ELDRS free electronics.

Industrial Conveying (Aust) Pty Ltd    Victoria 3552  Australia
Aug 03, 2009 Suitable for both rural and urban plants, self-contained waste handling units are developed based upon throughput of end user and can function as standalone piece of equipment when required. Applications include manufacturing and process industries, council recycling and waste handling, agricultural processes, mills, or any applications involving product reclamation. Supplied as turnkey recycling solution, system can handle throughput ranging from 1-30 ton/hr.

Crystek Corp.    Fort Myers, FL 33913

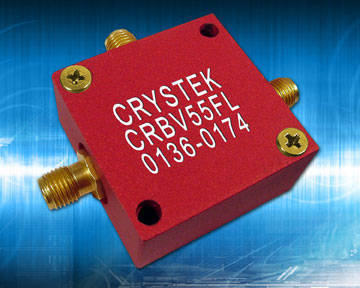

Aug 03, 2009 Operating from 136-174 MHz with control voltage range of 0.5-4.5 V, CRBV55FL-0136-0174 Red Box VCO features phase noise of -123 dBc/Hz at 10 kHz offset. It is enclosed in 1.25 x 1.25 x 0.58 in. aluminum enclosure with SMA connectors. Input voltage is 5 V, with maximum current consumption of 25 mA, second harmonic suppression is -20 dBc, while pulling and pushing are minimized to 1.0 MHz and 1.0 MHz/V, respectively. VCO suits computers, radio equipment, and base stations.

Electromatic Equipment Co., Inc.    Cedarhurst, NY 11516
Aug 03, 2009 Featuring 7 super bright LEDs mounted in precision-machined aluminum head with optimized optics, CHECKoLINE® DS-2000LED delivers flash brightness of 1,500 lx at 6,000 fpm. It can operate continuously at maximum flash rates for up to 11 hr using 3 AA batteries. User-programmable settings include flash duration, phase shift, delay, and units (fpm or Hz). Housed in high-impact plastic case, rugged handheld unit suits speed, motion, and vibration analysis on rotating shafts, fans, or cams.

Time Mark Corp.    Tulsa, OK 74116 2019

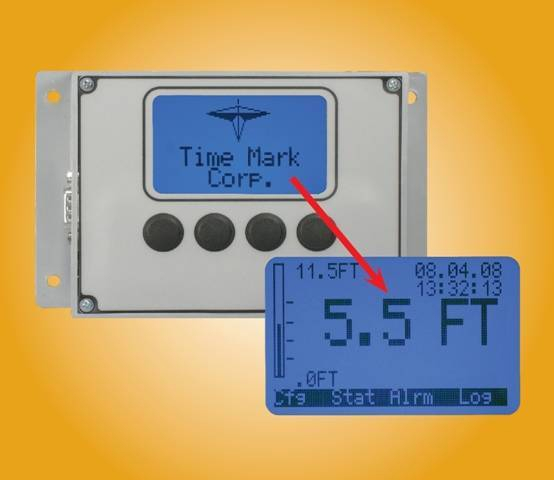

Aug 03, 2009 Capable of controling up to 3 pumps with 4-20 mA input or 2 pumps with 4-20 mA input and backup floats, Model 42A features alarm inputs for seal failure, over temp, contactor fail and spare, and one alarm output relay. Graphic display shows current depth, liquid level graph with set-points, date/time, and alarm status. Unit has 4 buttons that allow access to configuration settings (password protectable), pump status with run time meters, alarm status, and real-time alarm event logs.

Advantech Automation Corp.    Cincinnati, OH 45240

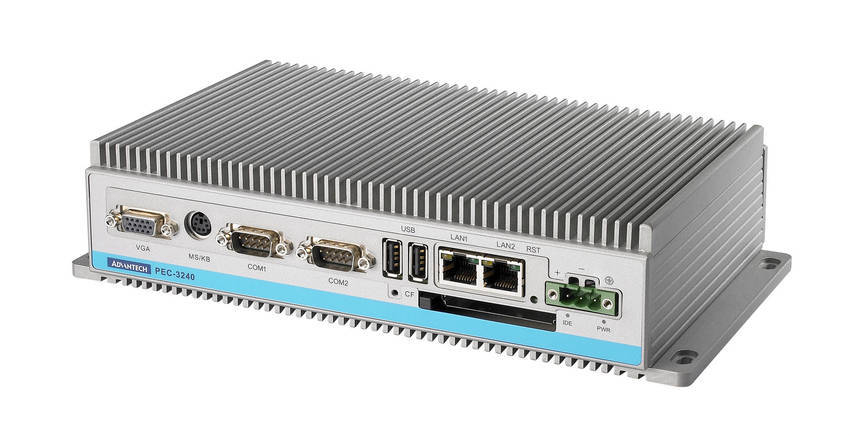

Aug 03, 2009 Suited for general machine automation and testing, PEC-3240 offers variety of motion control functions, such as 2/3-axis linear, 2-axis circular interpolation, continuous interpolation, T/S-curve speed profile, and position limit detection. It features 4-axis motion control, 32-channel isolated digital I/O, and operates in temperatures from -10 to 65°C. Fanless and diskless with no internal cabling, compact device is vibration resistant and measures only 244 x 152 x 59 mm.

Resec Systems, Inc.    Bergenfield, NJ 07621
Aug 03, 2009 Sorting ¼-2 in. parts according to dimensional tolerances, Gravity Track Sorter performs 100% inspection of screw-machine, cast, or molded parts, with accuracy of ±0.0001 in. It employs vibratory bowl feeder, high speed camera, proprietary gauging technology, and digital processor to automatically place inspected parts into accept or reject bin. Sorter can be programmed for multiple parts, and measurement data is collected via serial port.

BYK Gardner USA    Columbia, MD 21046 2729

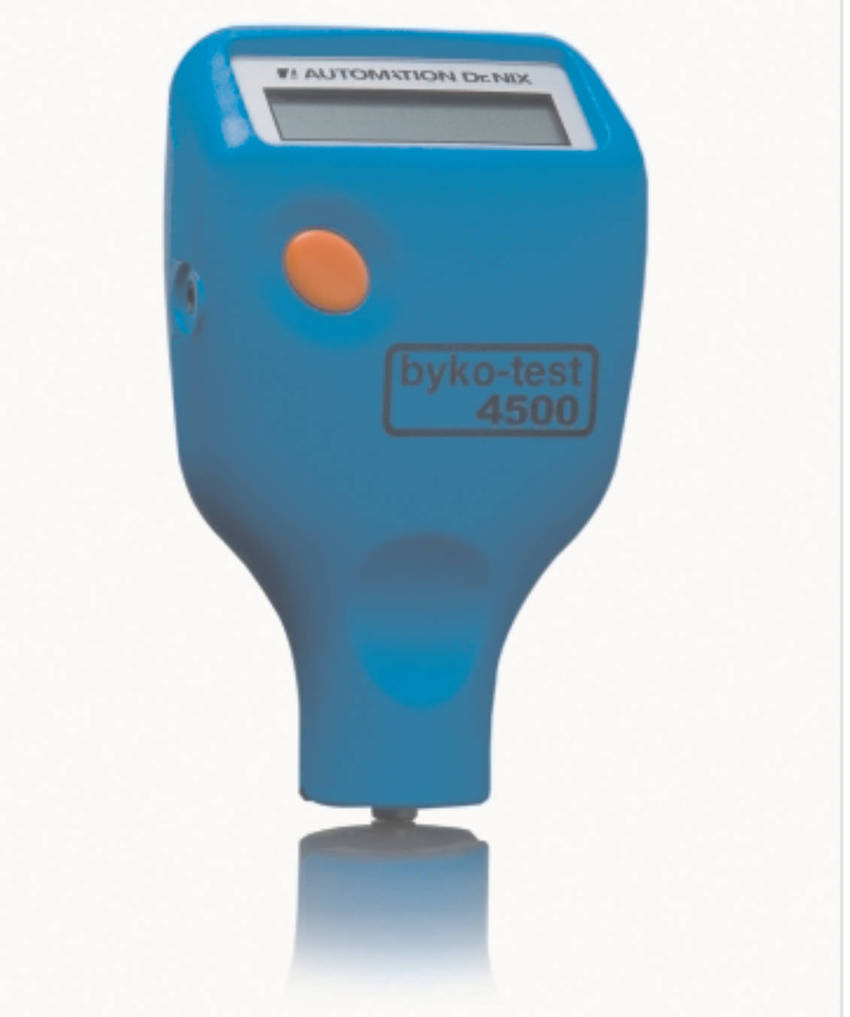

Aug 03, 2009 Offering measuring range to 120 mil for Fe and NFe substrates, one-handed byko-test 4500 requires no cable or calibration when changing from ferrous to non-ferrous substrates. It has integrated, non-wearing ruby probe tip to protect probe and surface of measured area. Ready to use instrument comes with carrying case with zero plates, calibration certificate, operating instructions, and batteries.

Vicor Corp.    Andover, MA 01810 5424
Aug 03, 2009 Utilizing Sine Amplitude Converter (SAC)(TM) technology, VTM(TM) VIV0005TFJ operates with upstream PRM(TM) regulator to drive low voltage, high current processor, and memory arrays. It attains current density of 117 A/in.² in 32.5 x 22.0 x 6.7 mm VoI Chip package and enables thermal management through low thermal resistance. Compatible with standard pick-and-place and surface-mount assembly processes, device has impedance of less than 1 mW from DC to 1 MHz and K factor of 1/40.
