Larson Electronics, LLC    Kemp, TX 75143
Dec 16, 2011 Supplied in IP68 housing with polycarbonate lenses and stainless steel mounting hardware, Magnalight LEDP3W-12X2C produces light beam in red, blue, green, or amber. LED drivers, with pulse width modulation technology, let operators connect external controller to dim lights or cause them to flash/strobe as desired. Drawing 36 W at 3 A from 12 V electrical system, LED fixture is offered as standard in spotlight configuration (10° beam) and as optional flood configuration (35° beam).

Schunk    Morrisville, NC 27560
Dec 16, 2011 Directly clamping small tool shanks consistently along entire axis, TRIBOS-Mini eliminates collets, collet nuts, and inconsistent tool clamping for medical, dental, and micro level parts machining. Run-out accuracy is less than 3 microns, and balance grade is G2.5 at 25,000 rpm. Offering direct clamping via material elasticity, product utilizes polygon form in clamping bore to generate clamping. Holder is inserted into TRIBOS press, and cutting tool is released in less than 30 sec.

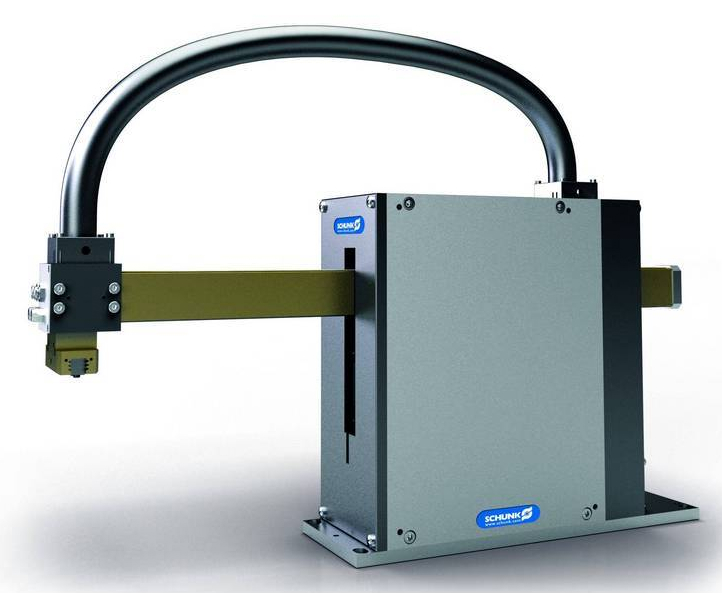

Schunk    Morrisville, NC 27560
Dec 16, 2011 Able to carry out high-speed assembly tasks with precision, freely programmable PPU-E30 is designed for vertical stroke of up to 100 mm, horizontal stroke of 270 mm, and moving mass of 3 kg. Cycle time is 0.58 sec, including switching and gripping times at 40 mm vertical stroke, 120 mm horizontal stroke, and moving mass of 2 kg. All utility lines for power supply, sensor, and pneumatic systems are plugged into rearward stationary connection, eliminating cable breaks and disturbances.

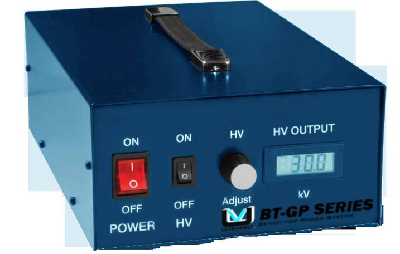

UltraVolt Inc.    Ronkonkoma, NY 11779
Dec 16, 2011 With universal input voltage of 90-260 Vac or 24 Vdc, BT-GP Series delivers output voltage up to 30 kV at 0-30 W of output power. General-purpose units feature adjustable output from 0-100% via front panel control, along with output meter and protection from output overload, arcing, and short circuits. Applications include electrostatics, air purification, process fluid cleaning, hi pot testing, and laboratory research.

Phihong USA    Fremont, CA 94539
Dec 16, 2011 Featuring pocket-sized 64 x 36.5 x 24 mm design, Model POE-CIT-R acts as redirect for power and data flow between camera and Power-over-Ethernet power supply for local access to camera output for troubleshooting. Device has 3 RJ45 ports: one for network input from PoE-enabled switch or midspan; another for Ethernet connection to PoE camera, and third for Ethernet connection to laptop or netbook. Diagnostic LEDs will illuminate to verify connection to valid PoE load.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Dec 16, 2011 Available in 5 case sizes, VJ HVArc Guard® X7R MLCCs feature voltage range of 250-1,000 V with minimum capacitance values of 470 pF in 0805 case size and 220 pF in 1206, 1210, 1808, and 1812 case sizes. Multilayer ceramic chip capacitors have internal design structure that prevents surface arc-over at high voltages. Available with optional polymer terminations that resist board flex cracking, RoHS-compliant MLCCs are suited for buck and boost dc-to-dc converters and voltage multipliers.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Dec 16, 2011 Supplied with 304 SS housings and 316 SS wetted parts for chemical compatibility, 1.5 in. Series SG3 and 2.5 in. Series SGZ feature dual psi and bar (x100 kPa) scales with respective ±2.5% and ±1.5% FS accuracy. Series SG3 covers ranges from full vacuum to 300 psi and can withstand ambient temperatures to 140°F. Bottom or back 1/8" NPT connection options are available. Equipped with breather plug, Series SGZ also covers diverse ranges and offers bottom or back connection configurations.

Logic Supply    South Burlington, VT 05403
Dec 16, 2011 Utilizing Intel® Core(TM) i5-520M processor, supported by QM57 chipset and up to 4 GB of DDR3 RAM, Extreme Environment PT912 consumes less than 60 W of power and operates from -40 to 70°C. Rugged industrial system features up to 4 RS-232 COM ports, DisplayPort, digital I/O, dual gigabit LAN, and PCI Express x16 and x1 expansion below board. Covered front panel slot provides access to SIM card and CFast slot for embedded operating system installation and hot-swappable storage.

CA, Inc.    Islandia, NY 11749
Dec 16, 2011 As unified solution, CA Application Performance Management (CA APM) v9.1 promotes control over end-user experience by providing complete, 360° view across hybrid-cloud infrastructure. Functionality helps increase understanding of how application, network, and infrastructure components affect service quality; how effective the network is at delivering applications to users; and how well hybrid-cloud infrastructure is delivering against business objectives and SLAs.

ConteXtream, Inc.    Palo Alto, CA 94303
Dec 16, 2011 Intended for cloud and hosting providers, ConteXtream Grid addresses elasticity, multi-tenancy, and scale challenges. Based on principles of Software-Defined Networking, program provides distributed virtual L4-7 switch that works as overlay on existing networks to connect unlimited number of endpoints to flat network. Software simplifies network build-up, administration, and management, and eliminates scalability challenges associated with VLANs, Spanning Tree, and flooding-based address learning.

JetBrains, Inc.    14700 Prague   Czech Republic
Dec 16, 2011 To address needs of Python Web developers who go beyond standard Django technology stack, PyCharm 2.0 provides advanced code editor features for Mako and Jinja2 template languages. Release features Cython and editing CoffeeScript support, built-in analysis of code coverage by unit tests, and JavaScript debugger based on Mozilla Firefox and Google Chrome browsers. In addition, program offers variety of code inspections and ability to open multiple projects inside one IDE window.

K-micro    San Jose,, CA 95131
Dec 16, 2011 Frame Rate Converter LCD Timing Controller product (FRC T-Con), VFRC-A1, enables large LCD TV makers to offer end-users optimal motion picture performance with reduced artifacts such as blur and judder. Integrating components - FRC, frame memory, and T-Con - in one QFP for 100/120 Hz Full HDTV LCD panels, controller supports both VA and IPS LCD panels and is also available for integration into ASICs.

Exar Corp.    Fremont, CA 94538
Dec 16, 2011 Supporting single 1.8-6 V input voltage rail, XRP6272 provides 2 A point-of-load with adjustable output voltage. Product is equally capable of delivering power from as low as 0.7 V for core voltage to 5 V for RF circuitry. Output noise level of 24 µV(RMS), combined with Power Supply Rejection Ratio (PSRR) of 70 dB, makes LDO suited for noise-sensitive applications, while quiescent current of 30 µA addresses portable equipment requirements. Output voltage accuracy is better than ±2%.

Microsemi Corp.    Scottsdale, AZ 85251
Dec 16, 2011 Offering fully integrated embedded design flow for SmartFusion® customizable SoC customers, Libero® SoC v10.0 also supports IGLOO®, ProASIC®3, and Fusion® product families. Pushbutton capability enables single touch operation through entire design flow process, from synthesis to programming connected target device. Additions to integrated SmartDesign graphical block-level platform include drag and drop configuration of peripherals and auto-connection of bus-based IP.

MultiDimension Technology    San Jose, CA 95138
Dec 16, 2011 Based on Tunneling Magnetoresistance technology, Models MMLD47F, MMLP57F, and MMLP57H feature ultra-low hysteresis below 0.1% of full-scale range, magnetic field sensitivity from 3-6 mV/V/Oe, and typical current consumption between 5-12.5 µA with 1 V voltage supply. Units are available in 6 x 5 x 1.7 mm SOP8 and 3 x 3 x 0.75 mm DFN8 packages, suited for industrial and consumer applications under diverse operating conditions, including magnetic field, current, and position sensing.

Novell, Inc.    Provo, UT 84606-6194
Dec 16, 2011 Built on SUSE® Linux Enterprise Server 11 SP1, Novell® Open Enterprise Server 11 workgroup OS with enterprise-class services simplifies and streamlines management of file and print networks. Flexibility of SUSE Linux Enterprise 11 SP1 enables choice of support options, driver tools, and modules. Along with cross-platform client support, solution offers centralized server deployment, data tiering capability, and Microsoft® Active Directory authentication.

Wedge Networks    Calgary, Alberta T2L 2K7  Canada
Dec 16, 2011 Open Service Bus (OSB) architecture lets third-party vendors install services onto WedgeOS platform and utilize Deep Content Inspection technologies. Using OSB, vendors can deploy SDKs onto network layer through WedgeOS platform. This immediately grants full visibility into network content and provides developers with ability to understand and manipulate content in real-time - regardless of device, platform, or OS - while deploying into any network.

Essemtec Ag      Switzerland
Dec 16, 2011 Producing X-ray pulse using high-voltage peak of 60-70 k, Stingray Digital Table-Top Inspection System obtains images from sample in seconds. X-ray film measures 36.5 x 25.8 mm and resolution is specified at 1916 x 1358 pixels. Providing onscreen measurement of distances and angles, Stingray software enables important details to be highlighted via selective enlargement, contrast optimization, or grayscale-to-color conversion. Universal, swivel mount PCB holder allows vertical and tilted images.

Amphenol Pcd    Beverly, MA 01915-1065
Dec 16, 2011 Enabling USB connections in harsh environments, USBAP products are specifically suited for such application as access points on telecom equipment, video controls, robotics, and industrial process automation. Product range features encapsulated rugged USB wires, receptacles with protective automatic cap, and waterproof USB Memory key with 2-8 GB capacity. Protected to IP67, series operates from -40 to +85°C.

Larson Electronics, LLC    Kemp, TX 75143
Dec 16, 2011 Suitable for confined spaces and areas where flammable vapors, gases, and chemicals are normally present, EPL-SL-10-FL1524-LED String Lights consist of ten 2 ft long lamps connected in series along 100 ft of explosion proof cord. Each lamp assembly is constructed with non-sparking aluminum casing, molded rubber bumper guards, and annealed glass tube shield. Operating with 120-240 Vac 50/60 Hz current, 15 W lamps are Class 1 Division 1 and 2 approved for hazardous areas.
