Miller Electric Mfg. Co.    Appleton, WI 54912 1079

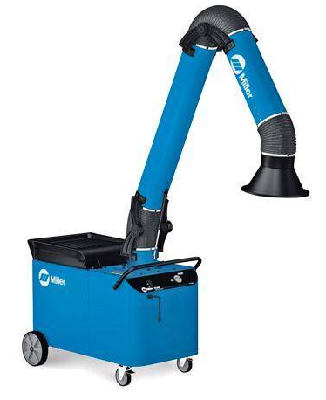

Aug 06, 2009 Designed specifically for welding applications, FILTAIR MWX-D features 875 cfm airflow at hood and captures up to 95% of small welding fume particulates. MERV 15 rating means filter is 90% effective at filtering 0.3-1 micron sized particles found in welding fume. Extraction arm, available in 7, 10, and 12 ft lengths, is supported externally, so air flows through unobstructed. Additional features include filter pressure gauge and metal base with large rear wheels for mobility.

Delcam USA    Salt Lake City, UT 84111
Aug 06, 2009 FeatureCAM offers programming option of combined drilling and milling to provide hole creation efficiency on machines fitted with automatic tool changing. In addition to roughing and finishing toolpath generation capabilities, features include support for multi-threading when generating 3D toolpaths. Algorithms in UI accelerate editing of features and reduce time needed to switch between machine-tool set-ups, while post-processor support includes 5-axis and mill-turn equipment.

Delkin Devices, Inc.    Poway, CA 92064
Aug 06, 2009 Fat Gecko Mini attaches on almost any surface and features universal ¼ x 20 in. tripod mounting screw to accommodate any standard camera or camcorder weighing up to 4 lb. Removable single suction cup mount features adjustable knuckle and 3 in. extender allowing for 360° tilt, turn, and rotation. Featuring ruggedized lightweight construction, mount is resistant to salt/fresh water, snow, dirt, sand, and mud.

GF Piping Systems    Tustin, CA 92780-7258

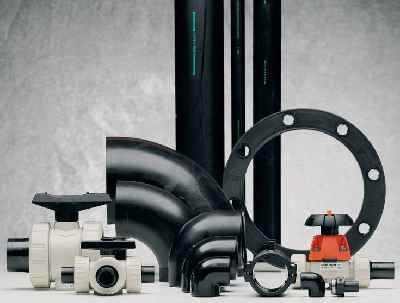

Aug 06, 2009 Offered with complete range of pipe, fittings, and valves, PE100 Industrial Polyethylene Piping System exhibits resistance to chemicals as well as impact and works in temperatures down to -58°F. It is available in pipe sizes from 2-36 in. with molded fittings from 2-12 in. and fabricated fittings from 14-36 in. Installation is performed via one of 3 GF Piping System fusion joining technologies, depending on pipe diameter: IR Butt Fusion, Contact Butt Fusion, or Electrofusion.

Graphite Metallizing Corporation    Yonkers, NY 10703

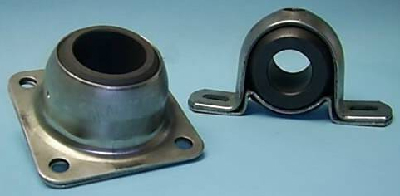

Aug 06, 2009 GRAPHALLOY® Stainless Steel Pillow Blocks are available fitted with self-lubricating GRAPHALLOY bushings, which resist attack from water and water-soluble chemicals, do not require lubrication, and are corrosion-resistant. GRAPHALLOY graphite-metal alloy exhibits chemical, mechanical, and tribological properties that provide constant, low coefficient of friction. In addition to being self-lubricating, material withstands temperatures to 1,000°F and can survive dry running pumps.

Trident - An ITW Co.    Brookfield, CT 06804 1140
Aug 06, 2009 As 256-nozzle printhead with serviceable design and stainless steel construction, 256Jet-S(TM) allows for non-contact printing of various acid and alkaline etchants and conductive metal inks for direct write, printable solar photovoltaic (PV) production. Jet viscosity range is 6-30 cps, and 4 models are available for precision dispensing of 5, 30, 50, or 80 pl drops. Applications include direct write, precision dispensing of etchants with pH from 2-14.

Dwyer Instruments, Inc.    Michigan City, IN 46361

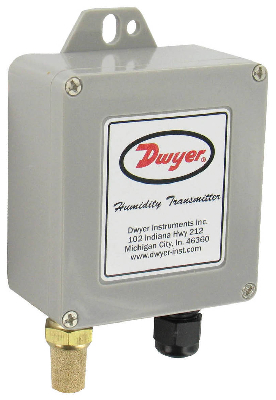

Aug 06, 2009 Supplied in NEMA 3S housing with sintered filter to protect sensor, Series WHT is available with 4-20 mA, 0-5 V, or 0-10 Vdc outputs for humidity and temperature. Passive RTD and thermistor outputs are available to monitor temperature. Able to recover fully from saturation, transmitter is designed to withstand elements and suited for measuring outside air temperature and humidity for building automation applications.

Sherwin-Williams    Cleveland, OH 44115

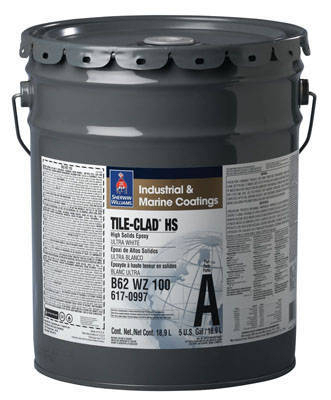

Aug 06, 2009 Supplied as 2-package industrial coating, Tile-Clad® High Solids Mildew Resistant epoxy protects against mildew growth on exterior surfaces where dampness and humidity are of concern. It features gloss finish and is offered in variety of safety colors. Applications include clean rooms, laboratories, institutional kitchens, and chemical processing equipment where mildew growth must be guarded against in order to maintain operations.

Inkcups Now    Danvers, MA 01923
Aug 06, 2009 PromoJET - Rotary Inkjet digital printer features quick-change rotary fixture that can print on cylindrical SIGG SS water bottles, metal and plastic pens, flashlights, and other white/light-colored substrates. Assembled onto machine in 5-10 min, fixture prints on cylinders with 3/8-5 in. dia and 1.5-11.5 in. lengths. Flatbed/cylinder printer features 8-color inkjet head and 11 x 18 in. DC-driven tooling table. Color reproduction and ink volume is controlled via RIP software.

Saelig Co., Inc.    Pittsford, NY 14534

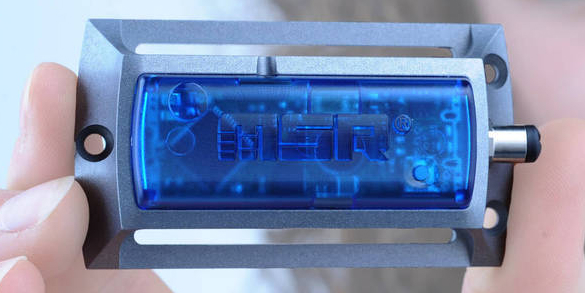

Aug 06, 2009 Model MSR165 triaxial digital accelerometer mini datalogger allows for simultaneous temperature, humidity, pressure, light, and analog input voltage recording. It can store over 2 million measurement parameters and continuously record for 32 msec before main shock event. At 39 x 23 x 72 mm and 69 g, it operates on 150 mA at 13-bit resolution, and has rechargeable 900 mAh lithium-polymer battery. Memory can be expanded with microSD card and data transferred to PC via USB interface.

Smalley Steel Ring Co.    Lake Zurich, IL 60047
Aug 06, 2009 Hoopster® Retaining Rings offer low radial profile which will not twist or deform under load. Suitable for thin wall tubes and light to heavy loads, units install without special tools. They are available in standard sizes from 3/8-3 in. and offered in carbon and 302 SS.

Z-Communications, Inc.    San Diego, CA 92126
Aug 06, 2009 Model CRO3562A-LF in S-band operates at 3,560-3,564 MHz with tuning voltage range of 1.5-4.5 Vdc. Typical phase noise is -112 dBc/Hz at 10 kHz offset while typical tuning sensitivity is 8 MHz/V. Operating over temperature range of -40º to 85ºC, unit provides output power of 3.5 dBm at 5 Vdc supply while drawing 17 mA. It is available in standard MINI-16-SM package measuring 0.5 x 0.5 x 0.22 in.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055

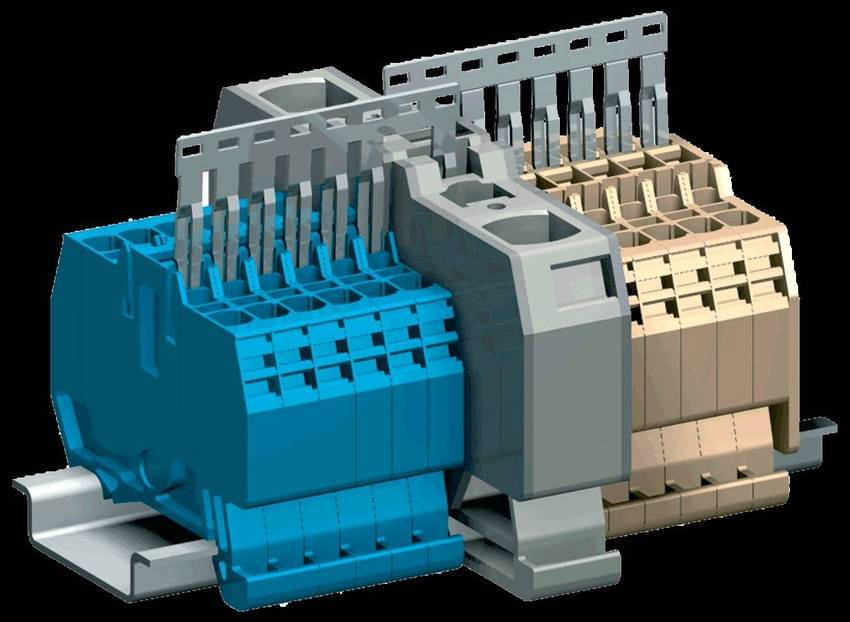

Aug 06, 2009 Din rail mounted H Series is designed with spring clamp connection technology to facilitate installation. Power is distributed to smaller terminal blocks by using push in PTC jumpers. Jumpers are available in 2-47 positions, and main power feed terminal block is also available in version that allows for distributing 2 different voltages. Power can be distributed to a wide variety of terminal blocks including fuse blocks, circuit disconnect blocks, and multiple wire terminal blocks.

Elma Electronic Inc.    Fremont, CA 94538

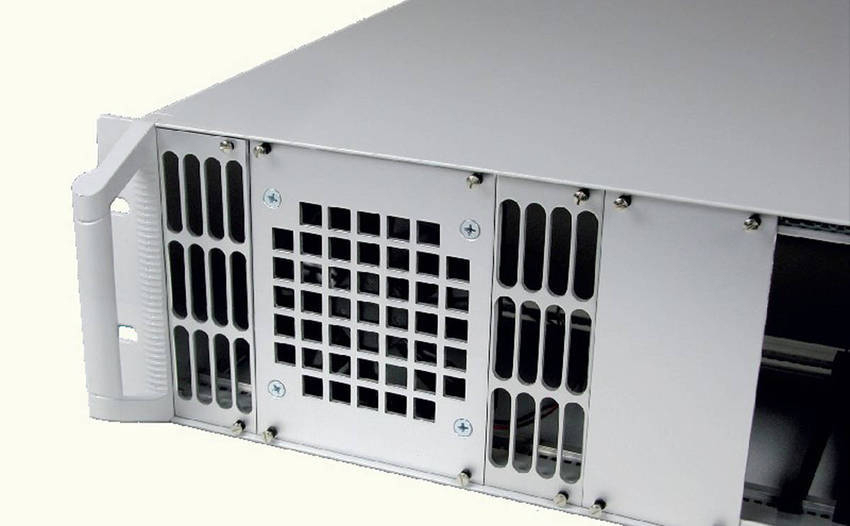

Aug 06, 2009 Available in oval, square, or custom shapes, perforated aluminum front panels for fan air intake come with clear anodized scratch-resistant and non-conductive coating. They are offered in 3U, 4U, and 6U heights and with various width options, and are cut with precision milling 0.3 radius bit. Panels are offered with or without cutout for optional on-off fan switch, and other options include countersunk screws or milled-edge screws.

CAS Data Loggers    Chesterland, OH 44026
Aug 06, 2009 Featuring RTD probes along with ambient temperature sensor, Accsense A1-13 can monitor up to 3 temperatures from -200 to +200°C. Measured data is sent over wireless mesh network to model B1-01 basestation, which uploads over standard Ethernet connection to managed server. Data can be sampled from every 30 sec to once day. System also incorporates alarm capabilities that allow email, pager, or voicemail alarms to be sent to multiple users when out of tolerance conditions are detected.

Multiquip Inc.    Carson, CA 90746
Aug 06, 2009 Easily attached to skid steer loader or forklift, EZ Grout Hog Crusher can recycle most job site materials such as brick, block, stone, rock, asphalt, and non-reinforced concrete. Machine has 1½ yd hopper capacity, can process 10 tons of material per hr, and features replaceable carbide bits, hardened breaker, cleaner and cheek plates. features

Tornado® Industries, Inc.    West Chicago, IL 60185

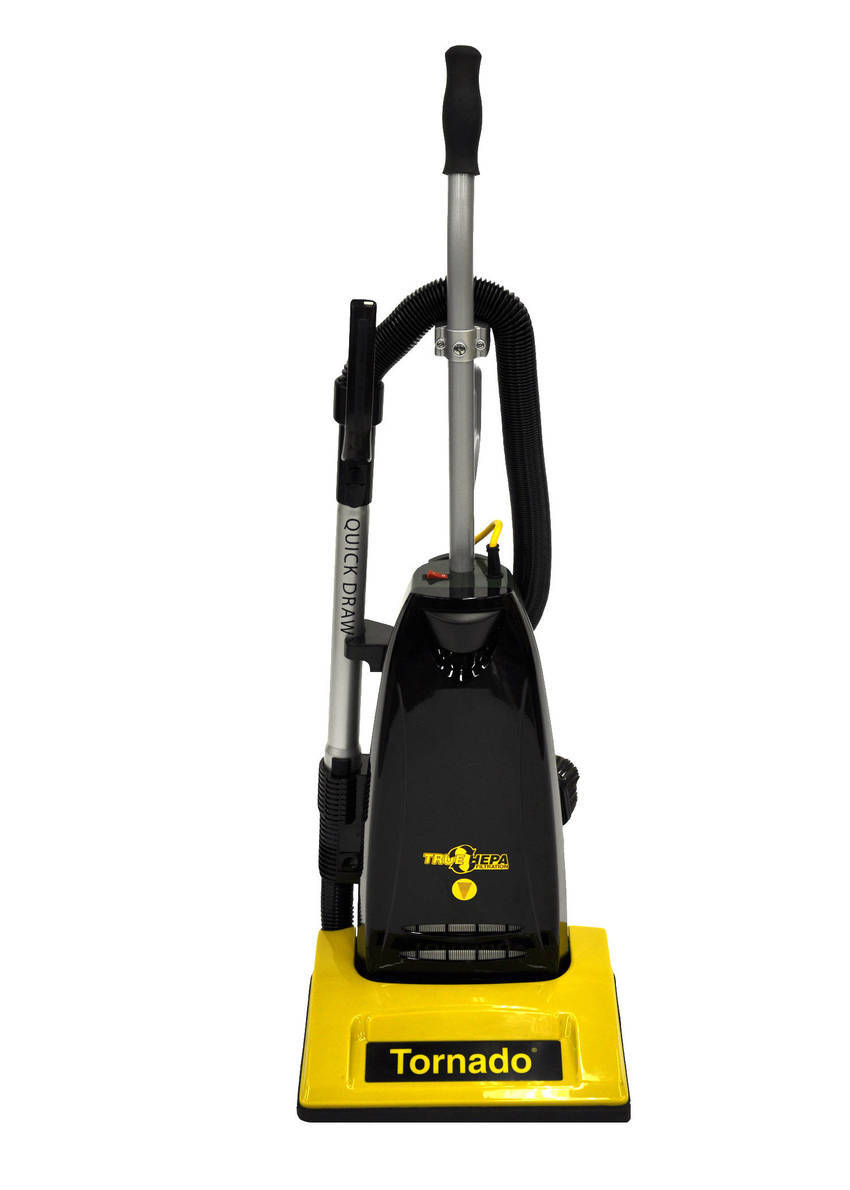

Aug 06, 2009 Made of polypropylene and metal materials, 14 in. wide commercial class Model CK 14/1 QD upright vacuum cleaner includes Quick Draw system that allows users to quickly and easily access variety of onboard tools and attachments. Machine also comes with automatic, self-adjusting nozzle that accommodates varying carpet heights.

Altech Corp.    Flemington, NJ 08822

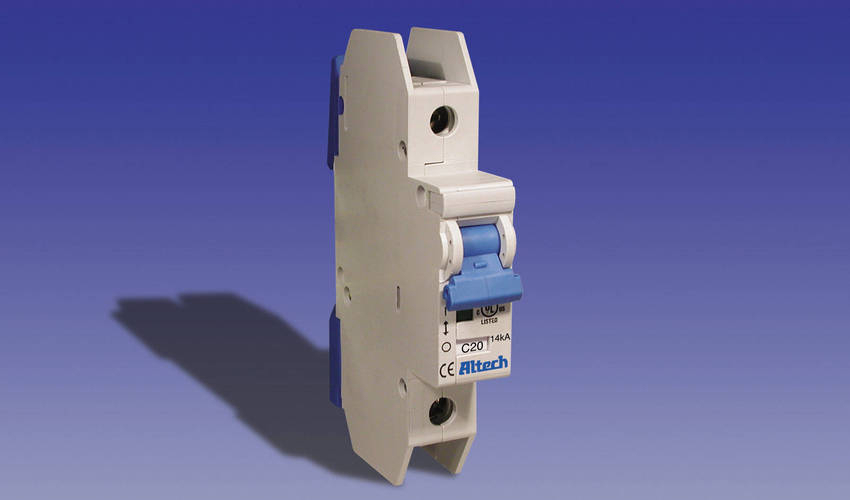

Aug 06, 2009 Available up to 20 A in C trip curve, 17.5 mm wide Altech® UL489 AC miniature molded case circuit breakers suit applications in low inrush motors, appliances, lighting, wiring protection, transformers, power supplies, and industrial controls. Units come in 1 pole versions, are designed for DIN rail mounting, and feature user-friendly positive trip indicator (green/red). Products are HVACR 40ºC rated, CE certified and RoHS compliant.

Linear Technology Corp.    Milpitas, CA 95035
Aug 06, 2009 LT3757 DC/DC controller features 2 voltage feedback error amplifiers and reference voltages: 1 for positive output voltages, with 1.60 V reference voltage, and other for negative outputs, with -0.80 V reference. Input voltage range is 2.9-40 V, and LT3757 drives an external N-channel MOSFET from internally regulated 7.2V supply. Features include programmable soft-start, input undervoltage lockout with hysteresis, overvoltage/overcurrent protection, and operating range of -40 to +125°C.

Linear Technology Corp.    Milpitas, CA 95035
Aug 06, 2009 Providing 4 ADCs in 7 x 8 mm QFN package, quad-channel Series LTC2175 features 14-bit resolution from 25-125 MSps, SNR of 73.4 dB, and SFDR of 88 dB at baseband. Data is output in serial LVDS format to minimize number of data lines. SPI-compatible interface allows users to choose between variety of data settings that minimize digital feedback. Operating from 1.8 V analog and digital supplies, devices include sleep mode that reduces power dissipation to 1 mW.
