Curtiss-Wright Controls Embedded Computing    Leesburg, VA 20175
Aug 11, 2009 Available in air-cooled and conduction-cooled configurations, Sentric2 records and plays up to 4 channels of 1,080p HD video and audio in real-time at full frame rate. Unit features composite and RGB analog and digital DVI video input and supports hardware-accelerated JPEG2000 or MPEG4 compression. Support for metadata enables integration of GPS and timing data as well as creation of event tags for use as chapter points for navigation within captured and compressed video.

Maxim Integrated Products    Sunnyvale, CA 94086
Aug 11, 2009 Models MAX3627 and MAX3629 utilize low-noise XO and PLL architecture to generate high-frequency (312.5 MHz), low-jitter (0.14 psecRMS) clock signals from 25 MHz crystal or reference clock input. While MAX3627 offers 7 LVDS outputs and one LVCMOS output, MAX3629 has 5 LVDS outputs and 3 LVCMOS outputs. Both simultaneously generate 2 pin-selectable frequencies for Ethernet port clocking and MAC clocking, eliminating need for high-frequency oscillator and fanout buffer.

Novotechnik U.S., Inc.    Southborough, MA 01772
Aug 11, 2009 Computer-controlled MUP400 features 16-bit resolution and accuracy of ±0.01 of range +1 digit. It converts potentiometric input signals into standard voltage or current signals, with sample rate of up to 5 kHz, and allows span to be limited to 80% of total input range. At 90.5 x 79 x 25 mm, unit is designed for DIN EN 50022 mounting rail fixture. It features temperature range is 0-60°C, with drift of 25 ppm/K, and operates from 18 to 30 Vdc supply.

Keyence Corporation of America    Elmwood Park, NJ 07407
Aug 11, 2009 Able to measure IR from distances up to 10 ft, FT Series provides non-contact detection of surface temperature from 32-2,462°F. Analog output can be scaled to user-defined range, and up to 4 sets of discrete upper and lower-limit outputs and emissivities can be stored. With 1.5 mm field of view, Model FT-H10 is suited for thin, fast moving targets including heat seals, hot melts, and heat-treated or hot formed parts. Optional air purge enclosure eliminates dust buildup.

Mid-West Instrument    Sterling Heights, MI 48314
Aug 11, 2009 Constructed with aluminum housing, acrylic lens, and silicone diaphragm, Series 6000 features DP ranges from 0-0.25 in. H₂O to 0-20 psid. Bi-directional models are available in 0.25-0-0.25 in. H₂O to 15-0-15 in. H₂O. SWP is -20 in. Hg to 15 psig with 35 psig rating for 0-10, 0-15, and 0-20 psid ranges. Operating from -20 to 140°F, gauges offer accuracy from ±2-4%, depending on DP range.

Aremco Products, Inc.    Valley Cottage, NY 10989
Aug 11, 2009 Formulated using waterborne silicate binder system filled with blend of stainless steel and ceramic corrosion inhibiting pigments, Corr-Paint(TM) CP3015-SS is suited for coating carbon steel and cast iron heat exchangers, boiler components, and exhaust headers. Single part coating system is supplied in ready-to-use viscosity of 500-1,000 cP, is applied using conventional spray equipment, and dries to typical film thickness of 2-3 mils.

Sentry Protection Products    Lakewood, OH 44107
Aug 11, 2009 Specifically engineered to absorb collision impacts in environments down to -30°F, Rack Sentry® LT protects racks, inventory, lift trucks, and workers operating in cold room or freezer room environments. Unit is available in 3, 3.25, 3.5, and 4 in. widths, and in End and Cut-out varieties configured for use on uprights with low horizontal beams.

Dedicated Computing    Waukesha, WI 53188

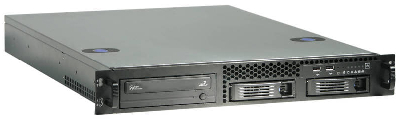

Aug 11, 2009 Leveraging Intel® Xeon® processor 5500 series, embedded SBC systems deliver video and 3D rendering capabilities that support requirements of military simulations, healthcare imaging, and video surveillance applications. PCIe 2.0 support addresses industry requirements to leverage latest GP/GPU and Cell processing technology, and Intel QuickPath Technology lets users design applications that capitalize on system's optimized memory bandwidth and minimized latency.

QC Industries    Batavia, OH 45103
Aug 11, 2009 Available on all standard Automation Series conveyor widths ranging from 2-24 in., nosebar tail offers 11 mm outer belt diameter, that, when placed end to end, minimizes gap between conveyors, enabling small parts to pass without becoming trapped. Tail is compatible with both pushing and pulling applications and is capable of speeds up to 125 fpm.

Yasda Precision America Corporation    Elk Grove Village, IL 60007
Aug 11, 2009 Able to machine hard materials in complicated shapes, 5-axis YBM-Vi40 Jig borer can tilt work pieces and features cutting feed rates of 2,000 mm/min with surface roughness of Ra 0.25 µm. Device integrates rotary B/C-axis on Y-axis, maximizing control, rigid worm gear mechanism providing high reduction ratio for tilting axis, and Thermal Distortion Stabilized System. Borer features spindle speeds up to 24,000 rpm and offers 3+2 axes, 4+1 axes, and all axes simultaneous machining options.

Murata Power Solutions, Inc.    Mansfield, MA 02048

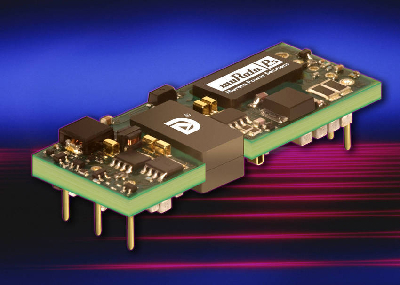

Aug 11, 2009 With input range of 18-75 and 9-36 Vdc, Models UWE-5/15-Q48N-C and UWE-15/5-Q12P-C offer fixed outputs of 15 A at 5 V and 5 A at 15 V, respectively. Units feature 1,500 Vdc isolation and synchronous rectifier design for typical efficiency of 90%. Operating from -40 to +85°C with derating, both include remote On/Off control, trim, and remote sense functions to provide compensation for line drop errors. Eighth-brick, through-hole package has overall dimensions of 0.9 x 2.3 x 0.36 in.

LOCKOUT TECH    Huntington Beach, CA 92648

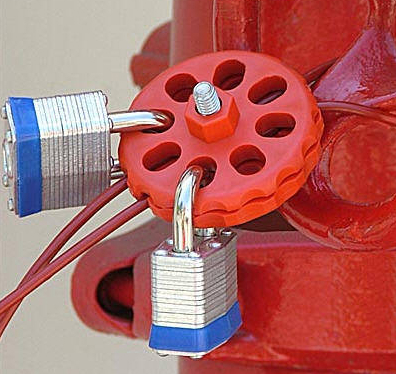

Aug 11, 2009 Able to fit range of valve types and sizes, The Cable Lock is made of UV-resistant polypropylene plastic and incorporates hasp features directly into design. Adjustable safety cable lockout system, suited for isolation of various types of valves and other industrial applications, is OSHA-Compliant and allows up to 6 operators to have individual control without compromising company safety standards. It accommodates flexible, looped, 6 ft, PVC-coated, multi-stranded galvanized cable.

Colortronic, Inc.    Runnemede, NJ 08078
Aug 11, 2009 Offering leaving coolant temperature range of 20-80°F, GP Series features chlorine-free refrigerant R410a that meets EPA's new regulatory requirements. With 20 character x 8 line display, LCD shows operating status, set point and to-process temperature on multiple screen. Electronic modulating capacity control maintains leaving fluid temperature to within 0.1°F, while optional web access to controller enables remote alarm diagnosis.

E Instruments International LLC    Langhorne, PA 19047
Aug 11, 2009 Capable of simulating voltage and thermocouple readings, compact, light weight, and rugged SignalCal 2 T/C comes with NIST Traceable calibration certificate. Unit can measure 8 types of thermocouples (R, S, B, E, K, J, T, and N) with accuracy of ±0.05%. Features include ability to select temperature output range in °C and °F, 9 V battery with estimated life of 25 hr, DC voltage output range of 100 mV or 1 V, measuring function that allows input range of -10 to 110 mV, and LCD display.

Raltron Electronics Corp.    Miami, FL 33172
Aug 11, 2009 Incorporating low frequency crystal with low jitter synthesis, CSMF series clock oscillators and VSMF series VCOs are based on advanced Digital PLL Platform that can be pre-programmed for up to 2 different output frequencies within 10-1,200 MHz range. Operating voltage for both units is from 2.5-3.3 V at 35-45 mA within their frequency range, with rms phase jitter at 0.8 ps typical within operating temperature range of -40 to +85ºC. Units are offered in 5 X 7 mm ceramic package.

NEi Software, Inc    Westminster, CA 92683

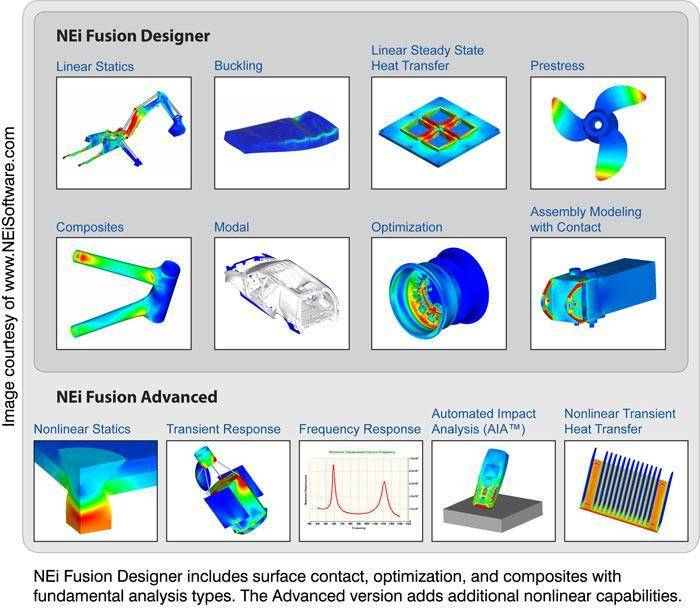

Aug 11, 2009 Combining Nastran FEA solvers and 3D modeler powered by SolidWorks®, NEi Fusion v2.0 features several advanced modal and heat transfer analyses, and support for hyperelastic and orthotropic composite materials. It provides comprehensive 3D CAD environment for model creation, professional level FEA capabilities with high accuracy solvers, surface contact, optimization, composites, and Automated Impact Analysis (AIA(TM)).

Vent-A-Fume, A Div. of Vent-A-Kiln Corp.    Buffalo, NY 14207
Aug 11, 2009 Place-A-Vent Model PFE can remove/ventilate fumes produced by welding, brazing, soldering, laser cutting, and plasma cutting. Product comes in ½ hp model, PFE-350 and 1 hp version, PFE-750. Model PFE-350 has standard 4 x 8 in. hood and inlet/outlet dia of 4 in., while PFE-750 has standard 8 x 8 in. hood and inlet/outlet dia of 6 in. Features included are high pressure fan unit fabricated with 14 Ga steel housing, self-cleaning radial wheel, 25 ft of discharge hose, and 10 ft of intake hose.

Analog Devices, Inc.    Norwood, MA 02062-9106
Aug 11, 2009 Compact clock buffers include 12-channel ADCLK954 LVPECL, with 2 selectable differential inputs via IN_SEL control pin, and 6-channel ADCLK946 LVPECL clock fanout buffers, both with jitter as low as 75 fsec and skew of 9 psec. Model ADCLK854 LVDS/CMOS is 12-channel chip with 2 selectable inputs and sleep-mode feature, which along with 6-channel ADCLK846 LVDS, offer 100 fsec jitter. All operate at 12 mW/channel at 100 MHz and are suited for clocking high-speed ADCs.

Analog Devices, Inc.    Norwood, MA 02062-9106
Aug 11, 2009 Leveraging AD9548, system designers can use standard 1 pps (pulse-per-second) signal of GPS satellite transmitters to generate and synchronize clock signals for communications infrastructure equipment. Clock distribution section provides 4 output drivers, each programmable as single differential LVPECL/LVDS output or pairs of single-ended CMOS outputs. Other features include reference clock multiplier, digitally-controlled loop filter, and manual/automatic holdover circuitry.

Analog Devices, Inc.    Norwood, MA 02062-9106
Aug 11, 2009 Available with active impedance matching, Model AD8432 is suited for high channel count communications and medical applications that require up to 200 MHz of bandwidth. Single-ended-input amplifier operates on single 5 V supply and provides differential output optimized to drive I/Q demodulators and phase shifters. Housed in 4 x 4 mm package, amplifier operates from -40 to +85°C and offers selectable gains of 4, 8, 12, or 16 via pin-strapping options.
