Bosch Security Systems    Fairport, NY 14450 9199
Sep 07, 2009 Capable of operating without DVR or PC, IP Camera 200 Series uses H.264 compression and can store several days of video footage on SD memory card. Single cable connection handles power, viewing, and recorded video. Camera features built-in motion, tamper, and audio detection that can be used to trigger action, such as setting off alarm or increasing recording quality. Included dedicated surveillance software allows for viewing video from up to 8 cameras on single remote PC monitor.

Edmund Optics    Barrington, NJ 08007
Sep 07, 2009 Constructed from low auto-fluorescence substrates with hard ion-beam sputtered coating, Dichroic Laser Beam Combiners combine or separate multiple laser beams at 45° angle of incidence. They are available at 6 cut-off wavelengths and are suited for use with 375-785 Nm lasers. Combiners suit variety of multi-laser fluorescence imaging and measurement applications, including laser microscopy and flow cytometry.

Gam Gear    Mount Prospect, IL 60056
Sep 07, 2009 Available in both metric (50-118 mm) and NEMA (NEMA 17 to 42) output face, PE Series of planetary gear reducers offers maximum torque output from 10-135 Nm and reduction ratios from 3:1 to 1000:1. Ready-to-mount, lubricated for life series comes in 5 standard frame sizes, and requires no maintenance.

Advantech Co. Ltd    Irvine, CA 92618

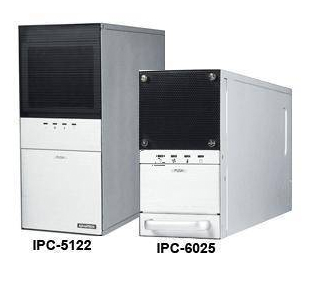

Sep 07, 2009 Adopting 1U 270 W power supply, IPC-6025 supports 5-slot PICMG 1.3/1.0 full-size passive backplane and up to Intel Quad Core Xeon CPU, and features optional rackmount carrier for Quad-system solution. MicroATX Motherboard chassis IPC-5122 supports up to LGA775 Intel® Core(TM) 2 Quad processor with suggested CPU cooler, up to 4 expansion slots, and single PS/2 300 or 400 W power supply. Compact and rugged chassis feature LED indicators and alarm notification for system fault detection.

VEGA Controls Ltd    West Sussex RH15 9NF  United Kingdom
Sep 07, 2009 Using ultra-fast microprocessors, plics®plus radar sensor delivers level output changes down to 250 m/sec. It features temperature range up to 450°C, tantalum and titanium antenna options, optimized in-head programmer/display, and plug-in terminal connectors. Offered with additional housings in stainless steel and plastic dual chamber format, unit is backward compatible with current software, housings, and antennas.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Sep 07, 2009 Designed for electronic manufacturers, Medalist i3070 Series 5 in-circuit test platform combines analog measurement technology with 12 MHz hybrid pin card. Infrastructure lets manufacturers incorporate external circuits for added test coverage while providing better control of those circuits, and external circuits can be put in testhead. Solution addresses in-circuit and functional test needs, including IEEE1149.6 boundary-scan standard testing and limited-access test applications.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Sep 07, 2009 With more than 2 GHz analog bandwidth, SVM3500 builds on modular U1083A VME/VXS base card with analog digitizer mezzanine featuring four 12-bit, 500 MS/s ADCs. Mezzanine incorporates clock distribution circuit and finite impulse response filter is implemented in Xilinx Virtex-5 FPGA that includes externally accessible LUT. Analog performance attributes include SFDR up to 80 dBc @ 500 MS/s (70 dBc @ 2 GS/s), THD of 80 dBc at 500 MS/s (79 dBc @ 2 GS/s), and SNR over 62 dBc.

Neverfail, Inc.    Austin, TX 78746
Sep 07, 2009 Continuously monitoring and analyzing health and state of Tier-1 applications running within VMs, vAppHA integrates with VMware vSphere(TM) 4 to provide extended, application-aware protection against outages caused by failures. Availability framework integrates with VMware High Availability and VMware VMotion(TM) components of VMware vSphere(TM) 4. If availability or performance issues with applications are detected, VMware vSphere 4 APIs are used to restart VM or migrate it to different host.

Abanaki Corp., Oil Skimmer Div.    Chagrin Falls, OH 44023
Sep 04, 2009 Used for metering dry granular materials in manufacturing processes, Rhino H Rotary Airlock Valve is available with 4, 6, or 8 vanes, which are always sealing, preserving negative or positive pressure under which rotary airlocks operate. Standard sizes are 8, 10, 12, and 15 in. with capacities ranging from 0.19-1.75 cu-ft/revolution. Featuring welded carbon or stainless steel body, valve is suited for processes that handle cement, sugar, grains, plastic resins, and lime.

Industrial Conveying (Aust) Pty Ltd    Victoria 3552  Australia
Sep 04, 2009 ICA Chain Docks can be integrated into palletizing and conveyor system or operate standalone for loading by single forklift truck. Loading time for trailers is reduced to less than 3 minutes. Used in conjunction with powered chain floor systems, docks optimize turnaround times and general transport.

SICK STEGMANN, INC.    Dayton, OH 45413

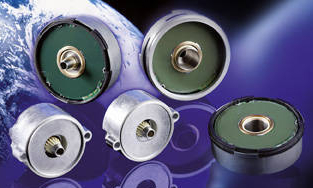

Sep 04, 2009 Measuring 36 mm in diameter, SEK/SEL37 Capacitive Motor Feedback Systems feature HIPERFACE® interface and are available in single-turn and multi-turn versions with radial or axial plug outlet. Units provide 16 sine/cosine periods, resolution of 512 steps/rev, and operating temperature of -40 to +115°C for single-turn models and -20 to +115°C for multi-turn models. Mounted directly onto tapered shafts, systems utilize holistic scanning, which almost fully compensates for eccentricity errors.

OSRAM Opto Semiconductor    San Jose, CA 95134

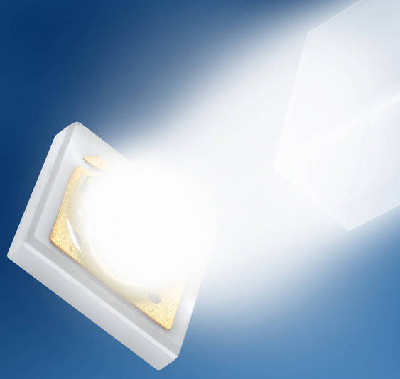

Sep 04, 2009 Measuring 3 x 3 x 1.6 mm, OSLON LX LEDs come in High Color Gamut White (75 lm) and ultra-white (90 lm) versions that respectively cover 100% and 80% of sRGB color space. Output is sufficient to inject light from 2 edges, or from one side only, to provide uniform backlighting for up to 65 in. diagonal computer monitors and TVs. Suited for side injection into light guides 2-4 mm thick, 1 W LEDs have polynomial lens with beam angle of 125° that achieves near 80% injection efficiency.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
Sep 04, 2009 Operating on Lithium-Ion battery, Model 2410-22 M12 Cordless 3/8 in. Drill/Driver delivers 250 lb-in. torque, 0-1,500 rpm at high speed, and 0-400 rpm at low speed. Unit weighs 2.5 lb and is small enough to carry in tool belt throughout day. Tool is suited for applications in HVAC, MRO, and woodworking involving screw driving and small hole drilling.

Mate Precision Tooling    Anoka, MN 55303
Sep 04, 2009 Designed to extend tool life and promote quality punching, AMX(TM) punches and strippers are 100% compatible with Amada ABS assemblies and holders. Operating benefits, which include internal lubrication within punch guide and external lubrication between punch guide and turret bore, help prevent galling, slivering, and slug pulling. Precision machined of M2 high speed steel, AMX punches combine with hardened and ground stripper guides to reduce galling, wear, and heat.

Bulbrite    Moonachie, NJ 07074

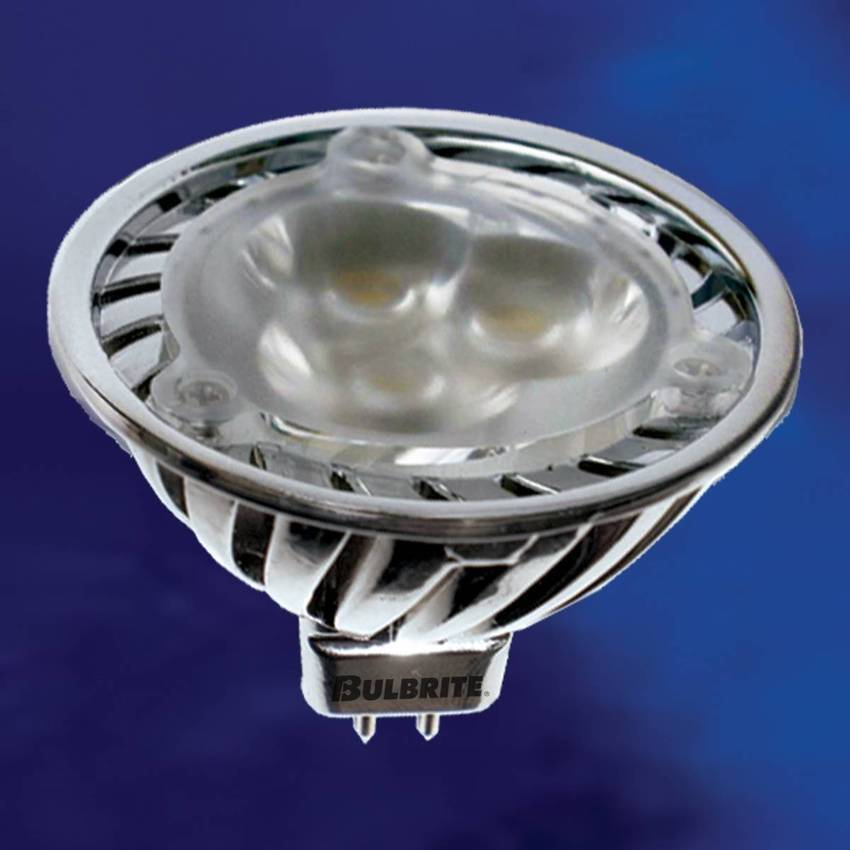

Sep 04, 2009 Suited for 12 and 120 V lighting systems, Super High Power LED MR16 bulbs can be used with magnetic or electronic transformers. Also, 1 W Super High Power LED MR16 in GU10 Base is available. Products are offered in both Warm White and Daylight finishes and feature life up to 25,000 hours.

Electro-Chemical Devices, Inc.    Yorba Linda, CA 92887
Sep 04, 2009 Immersion/insertion S10 and valve retractable S17 sensors are fully re-buildable and feature 316 SS body that incorporates sensing element, temperature module, and signal conditioner with cabling. Replaceable pIon electrode cartridge measures activity of free Ammonium ions in solution with concentrations from 0.5-18,000 ppm over pH range of 2-10 and temperatures from 0 to +40°C. Sensors support integration with C22 Analyzer for automatic pH compensation.

Tapco, Inc.    Bridgeton, MO 63044
Sep 04, 2009 Available in polyethylene, nylon, and urethane, CC-XD (Xtreme Duty) buckets have prime virgin resins throughout entire bucket, not just critical wear points, to enhance durability/strength. Manufacturing molds used for 12 x 7, 13 x 7, 14 x 7, and 16 x 7 in. sizes ensure identical, consistent bucket profiles with no variance in critical specifications such as dimensions, proportions, and wall thicknesses. Also, smooth and rounded front lip allows bucket to cut through grain.

Thermo Fisher Scientific, Air Quality Instruments    Franklin, MA 02038

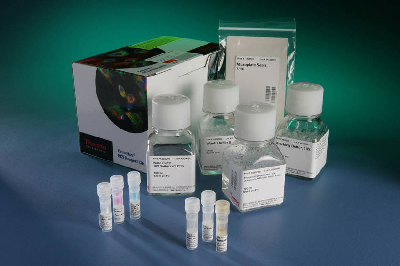

Sep 04, 2009 Specifically designed for drug discovery, Cellomics Synaptogenesis High Content Screening Reagent Kit enables simultaneous detection of neuronal population, neurite, pre-synaptic vesicle, post-synaptic puncta, and synapse using fixed end-point assay that is based on immunofluorescence detection in cells grown on standard high-density microplates. In addition to HCS instruments, cells labeled by kit reagents can be viewed and analyzed by other fluorescence microscopes.

SICK STEGMANN, INC.    Dayton, OH 45413
Sep 04, 2009 Designed for mounting directly onto tapered shafts, 36 mm dia SEK/SEL37 are available in single-turn and multi-turn versions with radial or axial plug outlet and HIPERFACE® interface. Holistic scanning almost fully compensates for eccentricity errors, and operating ranges are available from -40 to +115°C (single-turn) or -20 to +115°C (multi-turn). Systems provide 16 sine/cosine periods, resolution of 512 steps/rev, and one (single-turn) or 4,096 (multi-turn) steps/rev.

Maxim Integrated Products    Sunnyvale, CA 94086
Sep 04, 2009 Model MAX4950A dual-channel buffer and equalizer re-drives PCIe® 1.0 and PCIe 2.0 signals at data rates up to 5.0 Gbps. Contained in 6.0 x 6.0 mm, 36-pin TQFN package, it includes 2 identical signal-amplitude buffers with idle/receive detection to eliminate noise at output. Programmable input equalization and output de-emphasis compensate for circuit board losses. Operating from 3.3 V supply, it is specified over 0-70°C temperature range and features power-save mode.
