Cermetek, Inc.    Sunnyvale, CA 94089
Aug 20, 2009 As full-featured 2,400 bps modem, CH1724 accommodates POS, process control, access security, telemedicine, and remote DAQ applications. Error correction ensures accurate transactions, and Fast Connect algorithm accelerates completion of short messages. Also, line status monitor prevents interference with voice calls when modem shares telephone line with handset. Leadless SMT attachment and 1.6 x 0.8 x 0.22 in. size maximize space utilization in embedded system design.

Server Technology, Inc.    Reno, NV 89511
Aug 20, 2009 Operating on Linux, Sentry Power Manager v4.1.0 monitors and manages multiple Sentry devices in IP-based enterprise networks. Program provides global view of all Sentry Power Distribution Units with ability to view devices based on their temperature, humidity, current, and device status. It can also provide reporting and trending information. View display size has scrolling capability, which allows user to import larger images and maps for visual PDU layout.

Robert Bosch GmbH    Waiblingen D-71332  Germany
Aug 20, 2009 Suited for variety of food and non-food applications, intermittent SVI Series produces bags with corner seal and doy style bags with optional zippers. Production of doy style bag can be performed by turning machine cross seal jaws to 90° position. With outputs from 10-120 bags/min, SVI 4020 packages bags with max width of 400 mm, while SVI 2620 forms bags with max width of 260 mm. There is no need to adapt machine height or dosing platform when package style is changed.

Molex Inc.    Lisle, IL 60532-1682
Aug 20, 2009 Built in accordance with PROFINET specification, RJ-45 Ethernet plugs and jacks are industrial data interconnect products that deliver Category 5 (100 Mbps Fast Ethernet) performance. Featuring standard grid of .551 in., IP20 data plug enables connection to 22 AWG cables for support of Insulation Displacement Technology. Each IP67/IP20-rated connector has durability rating of 750 mating cycles, with hybrid jacks rated at 500 mating cycles, and working voltage of 48 V.

BASF Corp.    Wyandotte, MI 48192
Aug 20, 2009 Suited for use in automotive powertrain components, such as cylinder head covers, Ultramid® A3WG7 HP consists of 35% glass-reinforced polyamide 66, offering black, glossy, resin-rich surface appearance. Optimized flow rates allow components to be manufactured on small equipment and thin wall sections to be achieved. When Ultramid® A3WG7 HP is exposed to hot air and multiple engine oils heated to 150°C for up to 5,000 hours, it exhibits optimized property retention.

Coyote Point Systems Inc.    Santa Clara, CA 95054
Aug 20, 2009 Suited for small/medium enterprises, Equalizer E250GX provides entry-level load balancing and application acceleration for intranet and other moderate-traffic applications. It features cookie based application persistence, SSL offload and certificate sharing, and Web-based GUI with real-time traffic management tools. Appliance supports VLB(TM) Basic management toolkit for VMware(TM) Infrastructure, EQ/OS 8.5 OS, and web based management interface.

Raflatac, Inc.    Fletcher, NC 28732
Aug 20, 2009 Offering up to 240-bit EPC memory, Dogbone Freeze features extra thin non-sandwich type structure and printable, white, synthetic surface. It offers locked 64-bit tag identifier (TID) including 32-bit unique serial number. Designed for frozen FMCG supply chain applications, tag can be directly applied on items, cases, and pallets.

GAO Instruments Inc.,    Toronto   Canada
Aug 20, 2009 Featuring output power of 1.8 mW, 650 Nm visible laser source model A0680001 detects breaks and micro-bends for jacketed fibers, and locates faults at distance of up to 5 km from source. It has FC adapter compatible with SC and ST connectors, works continuously for 25 hr on single charge, and has auto-off timer. Handheld device is suited for testing fiber optic, telecom and CATV networks, and for fiber identification in ribbon or bundled fiber optic pigtails during installation.

Maxim Integrated Products    Sunnyvale, CA 94086
Aug 19, 2009 Operating from 500 kHz to 2 MHz switching frequency, MAX15038 and MAX15039 deliver up to 4 and 6 A output current, respectively, and enable implementation of all-ceramic capacitor designs. User-selectable, fixed-frequency PWM and pulse-skipping modes ensure optimal efficiency during light loads. Housed in 4 x 4 mm TQFN package, synchronous converters operate from 2.9-5.5 V supply and provide ±1% output voltage accuracy over line, load, and temperature variations.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 19, 2009 Available in 2 versions tailored for 3.3 or 5 V controllers, Model SiC769 integrates high-side and low-side n-channel MOSFETs, plus MOSFET driver IC in single PowerPAK® MLF6x6 package. Device is fully compliant with DrMOS specification for voltage regulators in CPU-based systems. Operating from input voltage of 3-16 V, unit delivers up to 35 A continuous output current. Integrated power MOSFETs are optimized for output voltages of 0.8-2.0 V, with nominal input voltage of 12 V.

Altera Corporation    San Jose, CA 95134

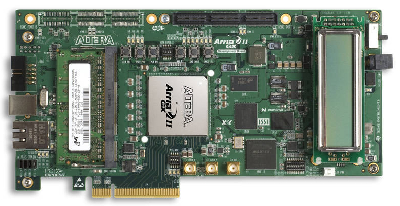

Aug 19, 2009 Offering complete system of pre-verified components and supporting hardware reference designs, Arria® II GX FPGA Development Kit provides hardware and software resources needed to evaluate and adopt Arria II GX 40 nm FPGAs. Entire PCIe Gen1 end-point design package features PCI-SIG-compliant Arria II GX FPGA-based development board with embedded PCIe Gen1 hard IP core. Users also get one-year license for Quartus® II Design Software and access to MegaCore® IP library.

SEICA Inc.    Salem, NH 03079

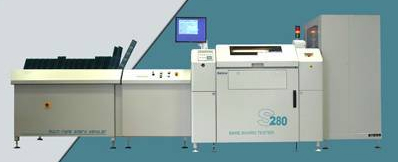

Aug 19, 2009 S280 is equipped with 8 independent mobile probes, 4 probes on each board side. Pass-through conveyor and multi-type-board-handler enable it to work operator-free, and up to 100 different PCBs can be loaded and tested automatically. Pneumatic board handler stretches large panels and thin PCBs and includes motorized width adjustment. Each test head moves independently, allowing different tests without probe change. Viva software simplifies calibration and diagnostics.

Eltima Software    Bellevue, WA 98004
Aug 19, 2009 Serial Splitter v4.0 can split any hardware serial port into as many virtual serial ports as needed, all of which fully emulate original port's behavior and properties and even have same name. Designed to help manage COM ports according to demands, multifunctional tool provides full access to real and virtual serial ports alike. Program can also join any number of COM ports into one virtual COM port and lets users redirect all serial traffic from one hardware COM port to another.

RADIALL Inc    Chandler, AZ 85226
Aug 19, 2009 Field installable on most analog and digital coaxial cables using hand crimping tools, BNC 75 W HDTV Connectors feature gold-plated center and outer contacts, which provide electrical performance up to 6 GHz. Units can handle data rates up to 3 Gbps or higher to support SMTPE292 and SMTPE424 standards. Connectors are suited for cameras, video recorders, and routers, as well as satellite transceivers, aircraft audio systems, and test instrumentation.

SEICA Inc.    Salem, NH 03079
Aug 19, 2009 Designed for 1st level functional test with stimuli/measurement capabilities, Model PTE-100 combines features of voltage generator, current generator, waveform generator, voltmeter, amperometer, frequency meter, and oscilloscope, with features of automatic test system. Unit also includes mid-range power relay matrix with switching and interrupt functions of up to 256 I/O channels. Portable device is suited for identifying faults in electronic systems aboard helicopters, trains, and planes.

CTI Electronics    Stratford, CT 06615
Aug 19, 2009 Built to withstand harsh or wet environments, M20U1-N54 Series features one extra-large button that lets operator perform all mouse functions - even while wearing gloves - and Industrial Mouse(TM) joystick. Low-profile N54 joystick knob is sealed in NEMA 4X (IP66) stainless steel enclosure, complete with gasket-sealed bottom plate and rubber feet. Sized to accommodate limited-space applications, pointer is also offered with bulkhead waterproof cable assembly.

SOURIAU    York, PA 17402
Aug 19, 2009 Available to meet electrical power demands up to 60 or 80 A continuous in external environment at 260°C, aircraft engine connectors are derived from MIL-C-83723 standard and qualified to EN 2997 and ESC10 standards. Each has bracelet optimizing area of contact between pin and socket, and contacts can be used in various EN 2997 connector configurations - 2, 4, or 6 power contacts per connector - for optimal density.

Jeio Tech, Inc.    Des Plaines, IL 60018

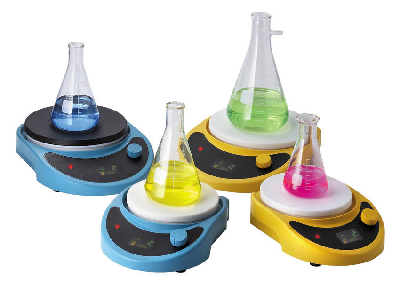

Aug 19, 2009 Supplied with 2 non-slip silicon plate pads, Digital Magnetic Stirrers are available in 2 models, one with 6.25 in. plate and 4 liter load capacity and another with 8.25 in. plate and 5 liter load capacity. Units feature chemical resistant polypropylene bodies, BLDC motors, and VFD readout for monitoring of stirring speed.

Misumi USA    Schaumburg, IL 60173
Aug 19, 2009 Able to be utilized in various automated machine applications requiring precise motion control, RS Series is CE-compliant and includes 6 stepper motor-driven small sizes (RS) as well as 6 AC servo motor-driven large sizes (RSH). Clean Room Class 10 versions are also available, and all versions have life span rated to 10,000 km and above. Stroke is configurable from 50-1,050 mm, with constant load capacity regardless of speed, and range of accessory options are available.

Flexicon Corporation    Bethlehem, PA 18020 8006
Aug 19, 2009 Accommodating drums from 30-55 gal, TIP-TITE(TM) seals drums against discharge cone, tips drum, mates cone against gasketed connection, and discharges bulk material dust-free through slide gate valve. Hydraulic cylinder tips platform-hood assembly and drum, stopping at dump angles of 45, 60, or 90°. System is constructed of mild steel, with material contact surfaces of stainless steel, or in all-stainless steel finished to food, dairy, pharmaceutical, or industrial standards.
