Yageo Corporation    Taipei   Taiwan
Sep 08, 2009 Measuring only 3.2 x 1.6 mm, 3216 PIFA ceramic antenna comes with omni-directional system that supports central frequency of 2.45 GHz with maximum gain of 2.84 dBi and working temperature of -25 to 85ºC. Planar inverted-F antenna is designed to achieve transmission optimization in miniaturized electronics applications such as Bluetooth headsets, ultra-slim handsets, or wireless mouse.

SynQor    Boxborough, MA 01719 1316
Sep 08, 2009 Available in open frame (SMA), open frame low profile (SML), and encased (SMC) configurations, PowerQor® Mega series PQ60xxxSMx converters have operating temperature range of -40 to +100°C and wide input voltage range from 35-75 V. All parts can withstand input transients up to 100 V for 100 msec, while power and current levels range from 30-50 W and 3-25 A, respectively. Other features include 2,250 V input to output isolation, remote sense, and continuous short-circuit protection.

Binder-USA, LP    Camarillo, CA 93012
Sep 08, 2009 Featuring potted rear termination, pre-wired M12 male panel connectors are sealed to IP68, which can withstand depths of water up to 18 m for 24 hr. Metal housing is made of nickel plated brass and offered with 3, 4, and 8 gold-plated contacts. Available with M20 x 1.5 and PG 13.5 mounting threads, devices are mating compatible with M12 series 713 field-attachable connectors and series 763 cordsets.

Omron Electronics, LLC    Schaumburg, IL 60173
Sep 08, 2009 Featuring EtherNet/IP, CompoNet, and PROFINET support, CX-One v3.2 integrates PLC programming software with support software for setting up networks, HMIs, servo systems, inverters, and temperature controllers. Users never enter same information twice and can manage entire projects without leaving operating environment. Along with tag-based programming using CJ2H-CPU, support covers IEC61131-3 programming languages, traceability, and other quality/safety/environmental requirements.

QNAP Systems, Inc.    Taiwan   China
Sep 08, 2009 Used for corporate security/surveillance, VioStor(TM) NVRs come with embedded v3.1.0 firmware that offers features such as generic IP camera integration by CGI command, digital watermarking, and SMS alerts. Intelligent Video Analytics (IVA), also included, leverages 5 parameters - motion detection, missing object, foreign object, camera out of focus, and camera obstruction - to improve quality of surveillance and automate detection of critical events.

Vaisala, Inc.    Woburn, MA 01801 1008
Sep 08, 2009 Targeting meteorological institutions and other weather-dependent users, real-time GLD360 Global Lightning Dataset provides information on rapidly evolving severe weather situations. Network detects over 2/3 of all lightning strikes coming to surface of earth and provides peak current information for cloud-to-ground lightning events. Additionally, dataset can provide information over oceanic regions where there is shortage of real-time weather observations.

Neverfail, Inc.    Austin, TX 78746
Sep 08, 2009 Neverfail v6.0 protects mission-critical applications across any combination of physical, virtual, and cloud-based servers. Neverfail Tertiary(TM) module enables trio of servers to be configured to ensure that localized failures, such as application issues, as well as site-wide issues, such as floods, hurricanes, or power outages, will not bring business down. By minimizing amount of data that is replicated across network, WANSmart(TM) optimizes WAN performance.

PHD Technologies Inc.    Stroudsburg, PA 18360
Sep 08, 2009 Used for VM data protection and recovery, esXpress v4.0 uses virtual environment itself to perform backups and thusly eliminates need for added hardware or software resources. Changed block tracking reduces time as well as network and SAN resources required to create backups, while unified central restore GUI facilitates and accelerates data restoration. Solution also offers ability to initiate VM restores from within Configuration and Deployment Virtual Appliance GUI.

Raytheon Co.    Waltham, MA 02451-1449
Sep 08, 2009 With peak performance rated at 5 Gb/sec, High-Speed Guard v3.0 distributes data between varied security classification environments. It sustains full transfer rate on 2 processor COTS servers running Red Hat Enterprise Linux 5 with strict Security Enhanced Linux policy and offers various transfer mechanisms to facilitate integration. Suited for government organizations, solution has built-in support for Web services utilizing HTTP and enables real-time video streaming.

Thomson Reuters    Southfield, MI 48034-1095
Sep 08, 2009 Using ONESOURCE(TM) Income Tax - International Data Management, U.S. corporate tax departments can collect and manage data from international subsidiaries for preparation of domestic income tax returns. Users can enter data into front-end templates in Microsoft Excel format, set security restrictions limiting or granting access to edit data area, and manage data collection process through workflow automation, document management, calendar management, and e-mail communication.

Reel-O-Matic By Reel-Neat Systems, Inc.    Oklahoma City, OK 73143
Sep 08, 2009 Operated with wireless radio remote control, Cat-Walk FMPT4/FMP8 is powered by AC Vector variable-speed torque controlled drive system and accommodates respooling speeds from 0-115 rpm. Shaftless FMPT4 handles reel diameters up to 60 in. OD and up to 4,000 lb, while FMP8 is engineered to support same reel diameters but up to 8,000 lb. Latter also includes hydraulically powered pay-off and rewind assist benefit which feeds and rewinds cable to and from FMPT4.

GAO Research Inc.    Toronto M1B 2K4  Canada
Sep 08, 2009 V.34 fax modem software conforms to ITU-T V.34 standard for dial up modems of up to 33,600 bps, supports half-duplex mode of operation for fax applications, and is also available for Super Group 3 (Super G3) fax applications. Software supports processors such as TI C5000 and C6000 series DSPs, ARM processors, and ADI DSPs and OS such as Windows, VxWorks, and Linux. With trellis coding and shell mapping, software is suited for heavily impaired channels.

Maxim Integrated Products    Sunnyvale, CA 94086
Sep 07, 2009 Supplied in 20-pin TSSOP, MAX13223E overvoltage-protected, dual-channel RS-232 transceiver provides EIA/TIA-232 and V.28/V.24 communications interface with automatic shutdown and ESD protection. Fault protection on RS-232 interface pins eliminates need for external fault-protection circuitry. Specified over -40 to +85°C range, product operates from +3.0 to +5.5 V and is designed for automotive, base station, utility meter, POS terminal, and telecom equipment.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Sep 07, 2009 Housed in thermally enhanced PowerPAK® SC-75 package measuring 1.6 x 1.6 x 0.8 mm, 30 V Model SiB408DK and 20 V Model SiB412DK feature on-resistance as low as 40 mW at 10 V and 34 mW at 4.5 V, respectively. RoHS-compliant n-channel TrenchFET® power MOSFETs are suitable for load, PA, and battery switches in portable electronics. Model SiB408DK can also be used for load switching in notebook computers and netbooks.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Sep 07, 2009 With stable film and performance characteristics of 1,000 ppm at +70°C for 10,000 hr, PNM series is suited for medical imaging/measurement, sensing, and audio equipment. Products, offered in 12 case sizes from 0402-2512, feature standard TCR of ±25 ppm/°C and laser-trimmed tolerances down to ±0.1%. Alumina substrate and non-magnetic materials eliminate effects of stray magnetic fields on circuit performance. Resistance ranges from 10 W to 3 MW, and power ranges from 50 mW to 1 W.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Sep 07, 2009 Offering power rating of 0.25 W at 70°C, VCS1610 Bulk Metal® Foil Resistor features current noise of less than -42 dB, tolerances to ±0.5%, and load-life stability of ±0.02% at 70°C for 2,000 hours at rated power. Device has non-inductive, non-capacitive design and 4 Kelvin terminal connection. Providing resistance range of 0.1 W to 1 W, surface mount current sensing resistor delivers less than 1 s thermal stabilization.

CyberResearch, Inc.    Branford, CT 06405 2932
Sep 07, 2009 Measuring 7.56 in. long with PISA bus connector, half-length Model CZMD accepts Pentium® 4, Core(TM) 2 Duo, or Core 2 Quad CPUs. It features Intel's Q35 chipset, which supports FSB speeds up to 1,333 MHz, and 3.0 Gb/s SATA ports, which can be configured for RAID 0, 1, 5, or 10 arrays. Other features include 12 MB of Level 2 cache, dual DVI and VGA video, Gigabit Ethernet, RS-232/422/485, PS/2 keyboard and mouse ports, 8 DIO ports, and 4 USB 2.0 ports.

NephSystem Technologies    Delta V4L 2A6  Canada

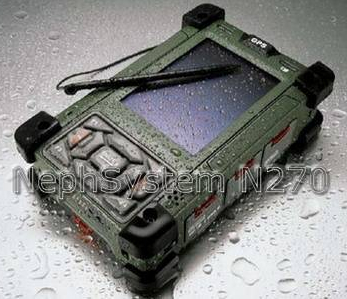

Sep 07, 2009 Powered by 624 MHz Marvell PXA270 CPU, IP67-rated N270 measures 155 x 96 x 42 mm and offers diverse range of I/O options. Anti-shock and waterproof unit complies with MIL-STD-810F/461F-compliant (5 feet drop test on concrete) as well as CE, FCC, and CCC. Along with 3.7 in. TFT QVGA touchscreen LCD, system integrates 256 MB SDRA on-board RAM and 256 MB Flash for storage. Various built-in wireless features are also available, and power is supplied by rechargeable Li-ion smart battery.

NephSystem Technologies    Delta V4L 2A6  Canada

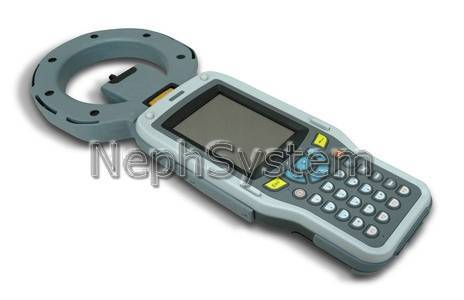

Sep 07, 2009 Operating from 860-960 MHz, Model N240U combines handheld computer, Intel PXA270 624 MHz CPU, Microsoft Windows CE 5.0 based OS, and EPC Gen 2 RFID reader/writer. Unit incorporates 3.5 in. trans-reflective LCD with touch screen, keypad, WiFi, and Bluetooth communication capability. Featuring IP65 rating, MIL-STD-810F compliant terminal offers read/write distance of 0-2 m/0-1 m and is suited for access control, asset tracking, warehouse management, and livestock tagging.

Cheese Software Inc.    Nanning   China
Sep 07, 2009 Utilizing multithreading technology, Advanced Defrag v3.4 helps completely defragment computer HDDs to maximize system performance and improve working efficiency. Features include real-time defragment with automatic detection and minimal CPU usage as well as Web-style reports for every analysis and defrag action. Users can schedule tasks to keep computer optimized on daily basis, and one-click defragment facilitates operation. External USB device defrag support is also included.
