PAS    Houston, TX 77062
Aug 24, 2009 Offering dynamic alarm management capability, Plant State Suite v6.3 helps to improve plant safety and productivity. It provides detailed analysis of real-time alarming including, suppression of alarm floods, state-based alarming, alarm configuration auditing and enforcement, and shelved alarms. Software also allows for integrating alarms and events from multiple, disparate systems into common real-time view.

GAO Instruments Inc.,    Toronto   Canada
Aug 24, 2009 Utilizing Time Domain Reflection technology along with analysis software, Model A0500007 tests underground cables to discover impedance break points in HFC systems and then locate/reveal cable damages, tie-in dampness, and terminal impedance failure. It can accurately test 25, 50, 75, and 100 W impedance cables at lengths of up to 2 km. Electronic map relevant to time domain picture aids in easy detection of faults and LCD screen displays time domain reflection.

Maxim Integrated Products    Sunnyvale, CA 94086
Aug 21, 2009 Designed for AMD® serial VID interface (SVI) CPU, MAX17480 comes in 5 x 5 mm, 40-pin TQFN package with exposed pad. There are 2 SMPSs for CPU cores and one 4 A internal switch SMPS for Northbridge (NB) core. SMPS feedback-adjustment amplifiers allow for programmable AC and DC droop, and all 3 SMPSs can be independently programmed to any voltage using AMD's SVI. IC provides adjustable switching-frequency range of 100-600 kHz for CPU cores and 200 kHz to 1.2 MHz for NB core.

Maxim Integrated Products    Sunnyvale, CA 94086
Aug 21, 2009 Supplied in 4 x 4 mm, 24-pin TQFN package, MAX17075 integrates all functions required to power source drivers, gate drivers, and VCOM backplane in LCDs. Switching frequency of 1.2 MHz allows use of low-profile inductors and ceramic capacitors, while power MOSFET and digital soft-start reduce number of external components required to control inrush currents. This step-up DC-DC converter also includes switch for gate-driver-supply modulation.

Maxim Integrated Products    Sunnyvale, CA 94086
Aug 21, 2009 Housed in 6 x 6 mm, 36-pin TQFN package, Model MAX17088 integrates boost regulator, programmable VCOM calibrator with non-volatile memory, op amp, and level-shifting scan driver. Equipped with 20 V, 150mW power MOSFET, boost regulator has 1.2 MHz switching frequency and delivers output voltages up to 18 V from 1.8-5.5 V input while achieving greater than 85% efficiency. Op amp drives VCOM backplane and features ±150 mA short-circuit current with 40 V/µs slew rate.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 21, 2009 Supplied in PowerPAK® SO-8 package, Siliconix Si7145DP may be used as adaptor switch and for load switching applications in notebook computers and industrial/general systems. This 30 V p-channel power MOSFET offers max on-resistance down to 2.6 mW at 10 V gate drive and 3.75 mW at 4.5 V. On-resistance values help lower conduction losses, promoting power conservation and prolonging battery life between charges. Featuring halogen-free construction, device is 100% Rg- and UIS-tested.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 21, 2009 Delivered as co-packaged, asymmetric power MOSFET pair, SiZ700DT reduces space required for high- and low-side power MOSFETs in DC/DC converters. Halogen-free solution combines low-side and high-side MOSFET in one 6 x 3.7 x 0.75 mm PowerPAIR(TM) package while obtaining low on-resistance (5.8 mX at 10 V) and high max current (13.9 A at 70°C). Packaging facilitates layouts and minimizes parasitic inductance from PCB traces, increasing efficiency.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 21, 2009 Housed in PowerPAK® 1212-8 type package with 3.3 x 3.3 mm footprint, Si7615DN 20 V p-channel TrenchFET Gen III Power MOSFET offers ultra-low on-resistance of 3.9 mW at 10 V, 5.5 mW at 4.5 V, and 9.8 mW at 2.5 V. Device can be used as adaptor switch and for load switching applications in notebook computers, netbooks, and industrial/general systems. It is 100% Rg-tested and halogen-free in accordance with IEC 61249-2-21.

RIDGID    Elyria, OH 44035

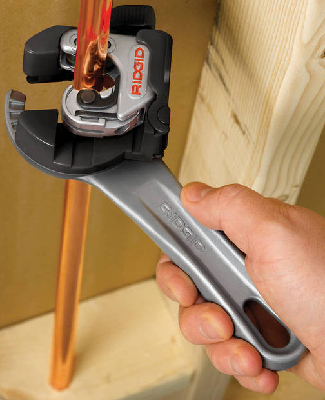

Aug 21, 2009 Designed to facilitate cutting in tight/restricted spaces, 2-in-1 Close Quarters AUTOFEED(TM) Cutter combines Model 118 Close Quarters AUTOFEED Cutter with ratchet handle that can be attached to cutter and operated in ratchet steps as small as 10°. This permits fine indexing of cutter and allows for operation in tight spaces where rotation by hand is impossible. Adjustable from ¼-1⅛ in. OD, spring-loaded cutter wheel is designed for use on copper, aluminum, brass, and plastic tubing.

ON Semiconductor, LLC    Phoenix, AZ 85008
Aug 21, 2009 Series CAT8900 combines initial accuracy of 0.02% max, supply current consumption of 800 nA, and stable temperature coefficient of 20 ppm/°C to enable precision performance in test equipment and portable, battery-powered DAQ systems. There are 9 voltage reference choices from 1.024-3.300 V, and each is available in 4 accuracy grades: ±0.5, ±1.0, ±2.5, and ±5.0 mV. Also, series can source or sink up to 10 mA load current with as little as 50 mV of dropout.

Carl Zeiss Microimaging, Inc.    Thornwood, NY 10594-1939
Aug 21, 2009 Featuring GEMINI® column and variable pressure technology, SIGMA VP FE-SEM is compatible with Carl Zeiss BSD and VPSE G3 detectors, which provide imaging of non-conducting specimens. Chamber includes provision for all WDS variants as well as geometry suitable for co-planar EDS and EBSD analysis. System control is by means of SmartSEM® software package with intuitive interface and GEMINI column.

Carl Zeiss Microimaging, Inc.    Thornwood, NY 10594-1939
Aug 21, 2009 Based on GEMINI II column, MERLIN(TM) FE-SEM achieves image resolution of 0.8 nm. Sample current up to 300 nA is available for analytical purposes such as EDS and WDS, EBSD, or generation of cathodoluminescence. Complete Detection System consists of in-lens SE detector for surface imaging, in-lens EsB detector for material contrast, and AsB detector for dispersed backscattered electrons. For high-resolution imaging of non-conductive samples, unit includes charge compensation system.

Grote Industries    Madison, IN 47250

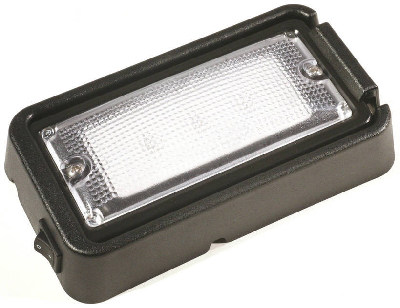

Aug 21, 2009 Available for all LED WhiteLight Interior Dome Lamps, Surface-Mount Bracket features on-off switch switch that lets operator turn lamp on/off directly at source of light. Bracket promotes flexibility and convenience to emergency/military vehicle operators and can be engineered into new vehicles or retrofitted into existing ones. Design eliminates need to cut holes into interior infrastructure, fish wires, and other steps associated with installing traditional interior dome lamps.

Grote Industries    Madison, IN 47250
Aug 21, 2009 Designed for use as auxiliary lighting, 12 V Trilliant® Mini Flush-Mount LED WhiteLight(TM) Work Lamp features die-cast aluminum housing, polycarbonate lens, and stainless steel bezel with rubber gasket. Unit's flood pattern casts wide beam that is also suitable as driving light for off-road utility vehicles such as golf carts. Constructed of stainless steel, flush mount bracket allows lamp to be located at positions most advantageous to vehicle operator.

Grote Industries    Madison, IN 47250

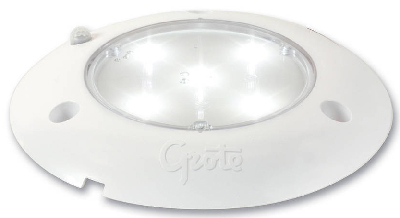

Aug 21, 2009 Offered in 12 V version, S100 LED WhiteLight SMT dome lamp offers optional, built-in IR motion activation that completely eliminates need for on/off switch and all associated parts. IR motion sensor is calibrated to recognize human heat signatures moving within 6 ft. It will turn on immediately upon sensing motion and remain on for 3 min after last motion is detected. Engineered for impact resistance, light utilizes SMT LED technology and produces 300 lm output.

Bayer MaterialScience LLC - Polycarbonate Resins    Pittsburgh, PA 15205
Aug 21, 2009 Developed as UV-stabilized material for LED lighting applications, Makrolon® LED2243 is resistant to UV light and exhibits optimal clarity for optic and lens applications. Material is also optimized for light transmission, thermal stability, as well as stability under LED flux.

Devlin Electronics Ltd    Basingstoke Hampsh RG22 6HZ  United Kingdom
Aug 21, 2009 Featuring 420 x 165 mm footprint, KSM-096 stainless steel kiosk keyboard is suited for kiosk users who require function keys and separate number pad but must work within strict space confinements. It is sealed to IP65 and incorporates vandal protection. Keyboard keys and trackball feature over-travel protection, and keys are designed to last up to 3 million individual operations. Supplied standard with USB connectivity, keyboard comes in choice of 27 languages.

Tridak    Torrington, CT 06790

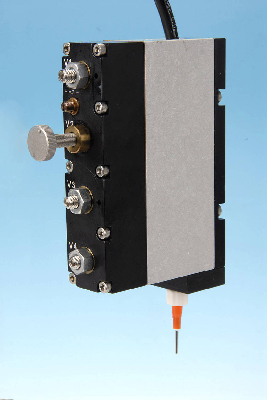

Aug 21, 2009 Utilizing sequenced piston actuation, positive-displacement Models 340PS and 340PSL dispense consistent shot-to-shot volume regardless of material viscosity or viscosity fluctuation. Model 340PS is suited for shot volumes from 0.004-0.180 mL, while Model 340PSL provides shot sizes up to 1,200 mL. Both are available with polyurethane, flexible polyethylene, or Teflon® tubing. Over-stroke adjustment prevents premature tubing wear, allowing millions of cycles before tubing replacement.

Spintek Filtration    Los Alamitos, CA 90720
Aug 21, 2009 Featuring anti-fouling technology, Sparklefilter(TM) Drinking Water System uses outside-in hollow fiber membranes to allow rigorous backflushing, and dual non-resilient collapsible chamber to generate greater backflush pressure than feed pressure. Automatic or manual backflushing capability provides removal of all bacteria and bio-solids with virtually no water wasted. Other filters or absorbers can be added for specific contaminant removal such as arsenic, chlorine, and mercury.

Moyno Inc. Unit Of Robbins & Myers, Inc.    Springfield, OH 45501 0960
Aug 21, 2009 Featuring progressing cavity design, Moyno® Metering Pump provides smooth flow, free from pulsations and variations in velocity and volume to prevent material waste or mixture imbalance. Unit offers capacities from 0.1-400 gph and pressures to 300 psi. Available in bare-shaft and close-coupled configurations, pump handles variety of fluids from clean, clear liquids to abrasive, corrosive fluids, solids in suspension, and viscous materials.
