Millipore Corp.    Bedford, MA 01730

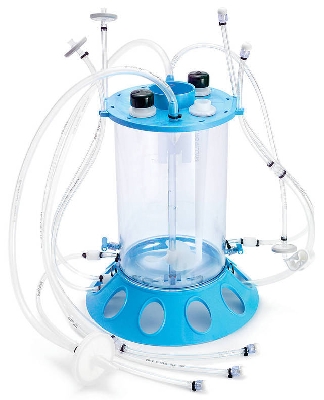

Aug 25, 2009 Able to increase throughput for process development scientists, Mobius CellReady 3L Bioreactor has stirred-tank format suited for use in development and optimization of cell culture processes. Vessel design promotes predictability during process scale-up, and universal design ensures compatibility with most benchtop bioreactor control systems. While able to mimic characteristics of autoclavable bioreactors, system eliminates steps associated with cleaning, assembly, and sterilization.

COMMELL    Taipei Hsien   Taiwan

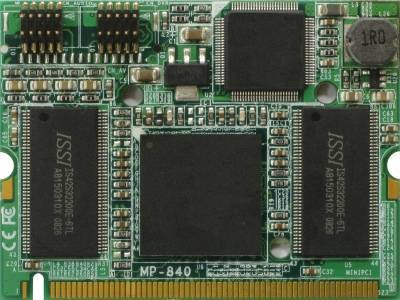

Aug 25, 2009 Designed to promote system integration, MP-840 RDK includes mini PCI add-in card based on AH-840 processor with H.264 hardware encode. Video capture card includes 4 NTSC/PAL video decoders that convert analog composite video signals to digital data as well as four 10 bit ADCs, proprietary clamp, gain controllers, and 4H comb filters for separating luminance and chrominance to reduce cross noise artifacts. Four audio ADCs and 4 channels of ADPCM audio encode are also included.

Emerson Process Management    Austin, TX 78754
Aug 25, 2009 Intended for SIL 2 safety instrumented systems, Rosemount® 5300 Guided Wave Radar (GWR) level transmitters come with required Failure Modes, Effects, and Diagnostic Analysis (FMEDA) report. Latter shows Safe Failure Fraction (SFF) over 90% and SIL 2 suitability. Two-wire GWR technology meets challenging level and interface measurements on liquids, slurries, and solids, while additional features facilitate integration into new/existing control systems.

SMAC Inc.    Carlsbad, CA 92008

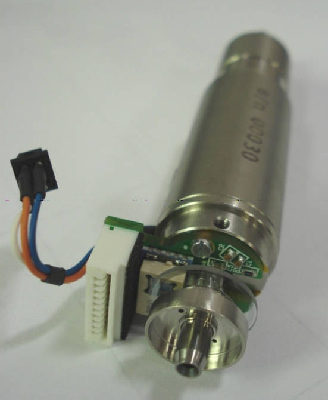

Aug 25, 2009 Measuring 140 x 77.25 x 35 mm with stroke length of 30 mm or 180 x 77.25 x 35 mm with 50 mm stroke length, LAR31 Series features vacuum built in shaft through rotary motor, which assures that external objects are ejected through other end, preventing dust build-up in unit. Standard encoder resolution is 5 µm, with options of 1, 0.5, and 0.1 µm. Backlash-free unit can be programmed to control force/torque, position, and velocity in all axes simultaneously.

Caltron Industries, Inc.    Fremont, CA 94538
Aug 25, 2009 Designed for MP-1080A HD player, Model MP-RB1080 adds user-controlled, interactive push button option to signage and kiosk solutions. Relay board accessory uses RJ10 connector, allowing system design to offer dynamic interface as opposed to passive signage. Measuring 2.06 x 2.56 x 0.62 in., board features max operating voltage of 5.5 V and baud rate of 4,800 bits/sec. It offers option of hardware or ribbon cable for integrating keypad, actuators, push buttons, and/or input keys.

CRAIC Technologies Inc.    San Dimas, CA 91773

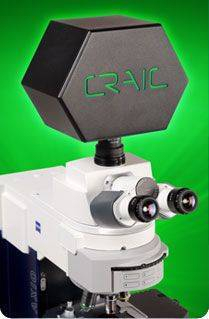

Aug 25, 2009 When added to photoport, Microspectra 1(TM) enables microscope users to conduct non-destructive photometric and radiometric analysis of samples. Configuration-specific functionality lets analysis be performed by absorbance, reflectance, or luminescent emission. Applications include, but are not limited to, biology, medical research, and vitrinite reflectance.

KORENIX Technologies    Taipei 231  Taiwan

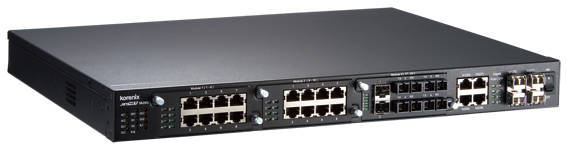

Aug 25, 2009 JetNet 5628G, compliant with IEC61850-3 and IEEE1613 certifications, is equipped with 3 modular slots and provides Ethernet modules allowing up to 24 copper and 18 fiber ports. It includes 4 gigabit combo ports, allowing users to trunk up to 8G uplink bandwidth, and dual gigabit rings to perform as access-level switch. Unit also can recover any link failure in 5 msec, regardless of number of nodes in ring. JetView Pro software enables management of network performance.

Measurement Computing Corp.    Norton, MA 02766

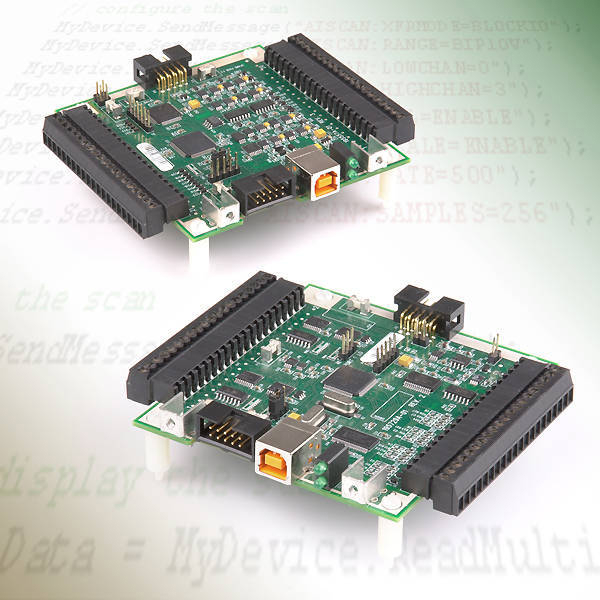

Aug 25, 2009 Bus-Powered USB-7202, with 8 analog input channels, and USB-7204 boards, with 8 single-ended or 4 differential analog inputs, include Message-Based DAQ OS-independent protocol that allows devices to be programmed with text-based messages. Software framework can be ported to multiple OSs and allows DAQ operations to be programmed through common command interface. Primarily intended for use with protocol, boards are multifunction measurement and control devices.

Industrial Scientific Corp.    Oakdale, PA 15071 1500

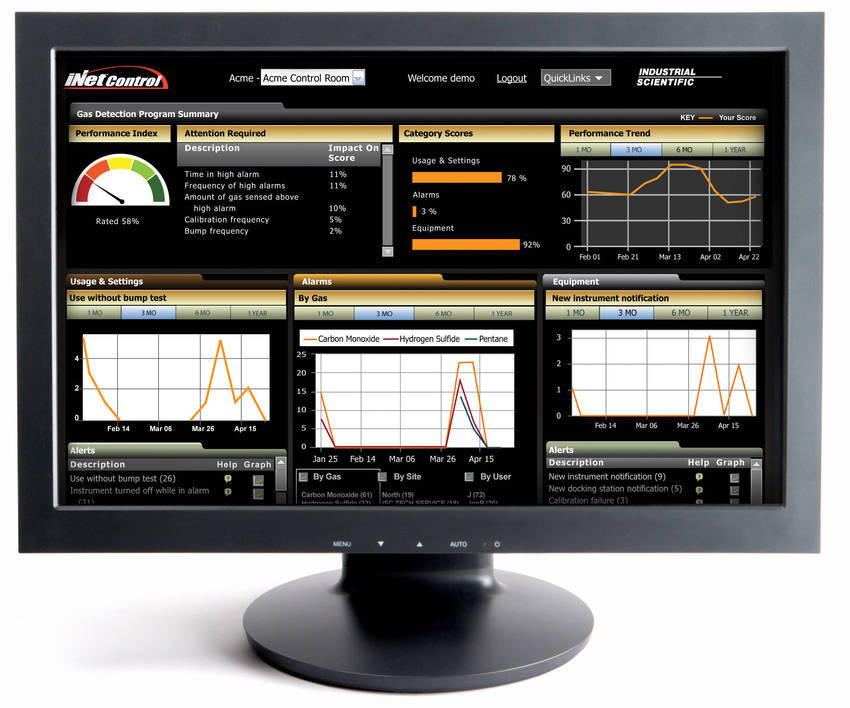

Aug 25, 2009 iNet Control(TM) provides visibility into alarms, maintenance, and usage and shows which gas detectors have alarm when it occurs as well as which gas and how much is present. It uses DS2 Docking Stations to automatically perform gas detector testing, calibration, and bump testing. Visibility into equipment usage is provided while trend graphs enable overview of program or sensor-level detail for each detector.

Octagon Systems Corp.    Westminster, CO 80021

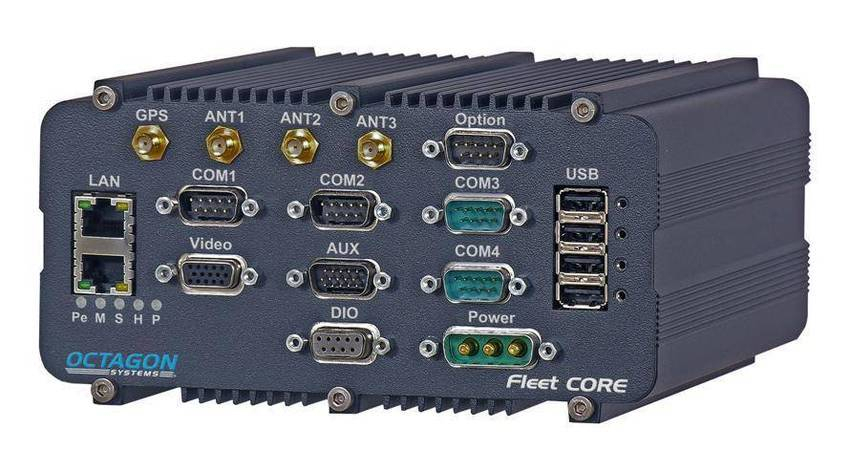

Aug 25, 2009 Fleet CORE(TM) is rugged mobile computer with 1.6 GHz Intel® ATOM(TM) N270 CPU and thermal design allowing fanless operation over -25 to +70°C temperature range. Device integrates gigabit Ethernet, that handles up to 4 security cameras while performing communication functions, as well as 4 USB 2.0, 3 RS-232 and 1 RS-232/485, VGA, 4 digital I/O, and stereo line in/out ports. Internal connectors support various drive types and panel-mounted DB-9 connector is reserved for user defined signals.

L.J. Star, Inc.    Twinsburg, OH 44087
Aug 25, 2009 Made of soda-lime glass, RD300 sight window has outside ring diameter of 295 mm and viewing area diameter of 220 mm. Expanding tubular rubber gasket around perimeter, sandwiched between rings, conforms to irregularities in cement walls and ports to create gas-tight seal. Several options - motorized wiper, manual wiper, washer assembly, Lumiglas® light, Lumiglas VISULEX video camera - are available and facilitate remote operation.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
Aug 25, 2009 Measuring 4.7 in. long x 2.2 in. high, Model PCIe-COM232-8 complies with MD1 Low Profile Form Factor specifications, and is suited for embedded PCs, thin-clients, and high-density rack-mount servers. Each RS-232 port is capable of supporting data rates up to 921.6 kbps and implements full modem control signals to ensure compatibility with variety of serial devices. Card includes x1 lane PCIe connector, 16C950 class UARTs with 128-byte FIFO for each TX and RX, and ±15 kV ESD protection.

Detroit Precision Hommel    Rochester Hills, MI 48309

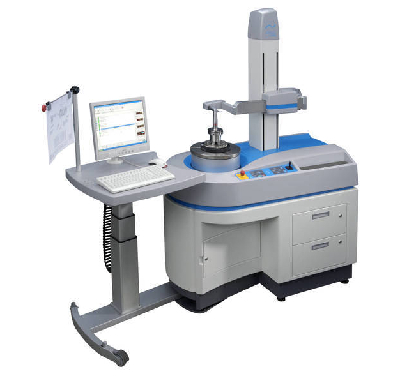

Aug 25, 2009 Featuring dual-tip scanning system and ±1,500 µm measuring stroke, Hommel-Etamic Roundscan permits automatic measurement of form and roughness in one pass. System can handle parts up to 540 mm dia, 900 mm in height, and up to 100 kg. Positioning probe tip anywhere on workpiece, CNC-controlled rotation and tilt module guarantees measurements can be made automatically at any measurement position. Low friction guides on measuring axes also enable profile and waviness parameters to be evaluated.

Linear Technology Corp.    Milpitas, CA 95035

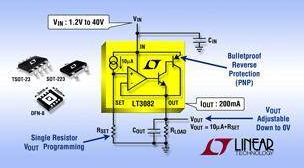

Aug 25, 2009 Adjustable down to 0 V with one resistor, LT3082 linear PNP low dropout regulator (LDO) offers regulation independent of output voltage and operates up to 40 V with output noise of 40 µVrms over 10 Hz to 100 kHz bandwidth. Architecture, using current reference and voltage follower, permits paralleling of multiple regulators and sharing of output current using minimal amounts of PCB trace as ballast resistors. Use of 2.2 µF ceramic/electrolytic capacitor on output promotes stability.

Linear Technology Corp.    Milpitas, CA 95035

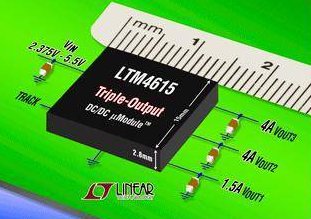

Aug 25, 2009 Housed in 15 x 15 x 2.8 mm surface mount package, µModule® LTM4615 contains two 4 A switch mode regulators and one 1.5 A VLDO linear regulator. Output voltage for each of 2 switching regulators is adjustable from 0.8-5 V, and third output is adjustable from 0.4-2.6 V, making device suitable for powering multiple-rail 65 nm and 45 nm digital ICs. With internal operating temperature range of -40 to 125ºC, RoHS-compliant regulator offers efficiencies greater than 90%.

LEDtronics, Inc.    Torrance, CA 90505

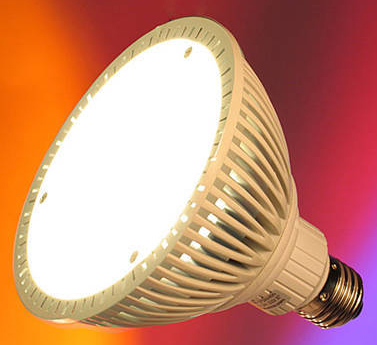

Aug 25, 2009 Comprised of warm-white and pure-white frosted soft-flood bulbs, PAR38-12X2WF series can run from 85-265 Vac without special adapters and consume less than 18 W. They directly replace halogens and metal halides up to 90 W and have wide-focused beam of 90°. Offering 661 and 808 lm brightness ratings, these PAR38 light bulb replacements provide drop-in installation for 26 mm Edison/E27 European base sockets. Each has typ lifespan of 50,000+ hr and produces no harmful UV/IR radiation.

Linear Technology Corp.    Milpitas, CA 95035
Aug 25, 2009 Housed in 3 x 3 mm package, Model LT3652 features input voltage regulation loop, which controls charge current to hold input voltage at programmed level. When unit is connected to solar panel, input regulation loop maintains panel at peak output power. Accepting inputs from 4.95-32 V with 40 V absolute max rating, Model LT3652 features programmable charge current up to 2 A. Unit can charge 1-3 Li-Ion/Polymer cells in series, 1-4 LiFePO4 cells in series, and SLA batteries up to 14.4 V.

Dataforth Corp.    Tucson, AZ 85706

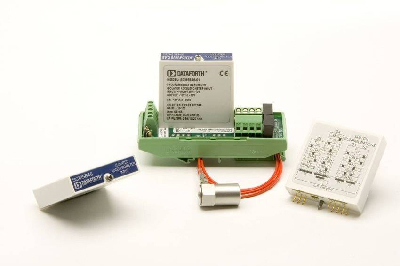

Aug 25, 2009 Suited for aircraft and aerospace R/D and automotive noise reduction applications, 5 V Model SCM5B48 features 0.2% accuracy across all gain and excitation settings. Isolated and field-configurable accelerometer input module provides constant current excitation to piezoelectric sensors, then isolates, filters, and amplifies sensor output. Six poles of signal filtering result in greater than 100 dB of normal-mode rejection for signal frequencies above cutoff frequency.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Aug 25, 2009 Commonly used for Ethernet connections, RAP10-1-45CS and RAP6-45CS Through Panel Remote Access Interface Connectors provide means for passing RJ45 connector equipped with cable to inside of panel or piece of equipment without shutting down or opening door of equipment. Units come with hinged dust cover and can be equipped with protection components such as fuses and circuit breakers. With dust cover closed and latched, interfaces have IP67 rating, providing water-tight seal.

Grieve Corporation, The    Round Lake, IL 60073-2898

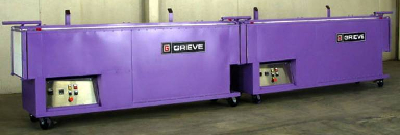

Aug 25, 2009 Employing 24 kW (12 kW per load) in Incoloy-sheathed tubular heating elements, electrically heated No. 1012 features two 96 x 12 x 12 in. zones that can be separated for use as independent ovens. Dual 1/3 hp recirculating blowers provide total horizontal airflow of 1,200 cfm to workload, and reinforced flooring accommodates loads to 500 lb. Constructed with 4 in. insulated walls and aluminized steel interior/exterior, oven features swivel casters as well as range of onboard controls.
