Geometric Limited    Santa Clara, CA 95050
Aug 28, 2009 Used for repurposing and creating digital content, 3DPaintBrush(TM) v2.0 helps create near-photo-realistic images, animations, and videos from 3D models in real-time. Ray Tracing feature supports export of realistic images, and users can export to GIF as well as 3D PDF and executable files. Tools are also provided to visualize and position lights in scene, modify light properties, and store camera views/orientation. Support for Google SketchUp v7.0 is also included.

Star Industries    Fort Worth, TX 76117 1706
Aug 28, 2009 Heavy Duty Crane Trash Skip, Model 1450, has rated capacity of 12,000 lb to handle trash or bulk material. Designed to be hoisted with set of 10 ft or longer cable or strap slings, product has sloped end that facilitates safe load discharge. Unit measures 10 x 4 x 2 ft and is suited for removing tear-off or other construction refuse from roofs and elevated decks. It is constructed of heavy steel and reinforced at all stress points for extended life.

Elma Electronic Inc.    Fremont, CA 94538

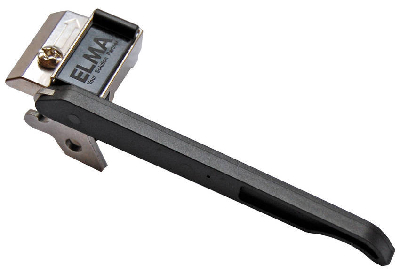

Aug 28, 2009 Constructed with plastic over specially molded internal core, ATCA injector/ejector handle helps manage high insertion force with its degree of leverage. Integrated slide-motion button allows handle to be latched shut and activate optional micro-switch. Ergonomics of intuitive, 2-step latching feature also reduce force required to disengage handle. Supplied as one-piece assembly, product is flush against panel in closed position and produces solid click when shut.

Siemon Co., The    Watertown, CT 06795
Aug 28, 2009 Based on 10 Gb/s capable Z-MAX 6A platform, unshielded Category 6 Z-MAX System utilizes linear termination module, which allows conductors to be laced into position without crossing pairs. Outlet's noise resistance enables ultra-high density patching, allowing Z-MAX 6 modular patch panels to support up to 48 ports in 1U of rack or cabinet space. Available in flat and angled configurations, Z-MAX 6 patch panels feature modular Quick-Snap panel design.

ROHM Semiconductor USA LLC    San Diego, CA 92121
Aug 28, 2009 Offered in 9 models with fixed output voltages from 1.2-3.3 V, BHxxPB1 Series CMOS LDO Regulators feature built-in shutdown function, 8 kV ESD protection, and foldback over-current and thermal protection. Low-voltage reference source enables stable operation from 1.7 V inputs. During high-speed operation, with operating current of 20 µA, output voltage is regulated to ±1% over step load changes. In power-save mode, operating current is reduced to 2 µA.

VTI Instruments Corporation    Irvine, CA 92614

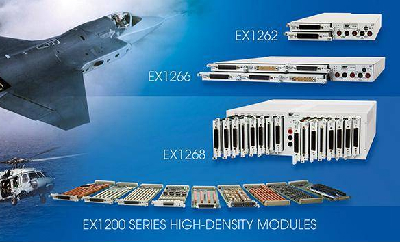

Aug 28, 2009 Comprised of 3 models, EX1200 Series includes 6.5-digit DMM, analog and digital I/O modules, and internal analog expansion bus. EX1200-3164 provides 16 independent multiplexers that can be reconfigured under software control to build up to single 64-channel multiplexer. EX1200-4128 is 4 x 128 crosspoint multiplexer that allows multiple resources to be shared by multiple output channels. EX1200-6216 enables high-density RF switching capable of supporting two 16-channel 1 GHz multiplexers.

WIN Enterprises    North Andover, MA 01845

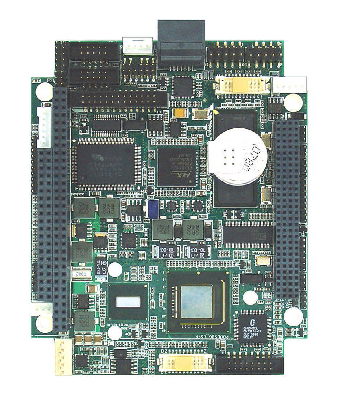

Aug 28, 2009 Available with 1.1 or 1.6 GHz ULV Embedded Intel® Atom(TM) Z5xx processor, Model MB-73200 features 2 serial ports, 4 USB 2.0 ports, 2 SATA II interfaces, and 1 CompactFlash(TM) type I/II socket. Intel System Controller Hub US15W supports 2D, 3D, and advanced 3D graphics, as well as HD video encode and image processing. One DDR2 SO-DIMM socket supports 533/400 MHz up to 1 GB memory. Supporting 2 simultaneous displays, SBC is suited for medical, kiosk, HMI, infotainment, and industrial control.

California Micro Devices    Milpitas, CA 95035
Aug 28, 2009 Models CM1457-04CP/-06CP/-08CP are 4-, 6-, and 8-channel EMI filters, respectively, supplied in 1.56 x 1.05 mm, 2.36 x 1.05 mm, 3.16 x 1.05 mm RoHS-compliant packages. Each employ Praetorian III inductor based filter architecture and provide -30 dB attenuation starting at 700 MHz and greater than -40 dB attenuation from 800-3,000 MHz. Typical cutoff frequency is 400 MHz, promoting signal integrity for clock frequencies as high as 125 MHz.

Eaton Corp.    Cleveland, OH 44114
Aug 28, 2009 LOFMEM(TM) membrane filter; LOFPLEAT(TM) pleated filter; LOFTREX(TM) depth filter; as well as LOFSORB(TM), LOFMET(TM), and LOFCLEAN(TM) specialty filters handle range of liquid process applications. Absolute-rated LOFMEM provides sub-micron level filtration, while LOFPLEAT offers optimized surface area. Cylindrical LOFTREX has path designed to capture various particle sizes and gelatinous contaminants. Specialty models are constructed of extruded carbon, porous metal, and resin bonded materials.

LSI Computer Systems, Inc.    Melville, NY 11747
Aug 28, 2009 Supplied in 8-pin DIP and SOIC packages, LS7636/LS7636FO/LS7637/LS7637FO are lighting control ICs turn on drive transistors at zero-crossover point of each half cycle to enable slow current rise. Current is terminated later during half-cycle, depending on desired dimming level, and RFI generation is minimized since power to load is not turned on abruptly. Able to drive any Electronic Transformer, ICs offer 3 selectable operating modes and support local or remote pushbutton control.

Acer America Corp.    San Jose, CA 95110

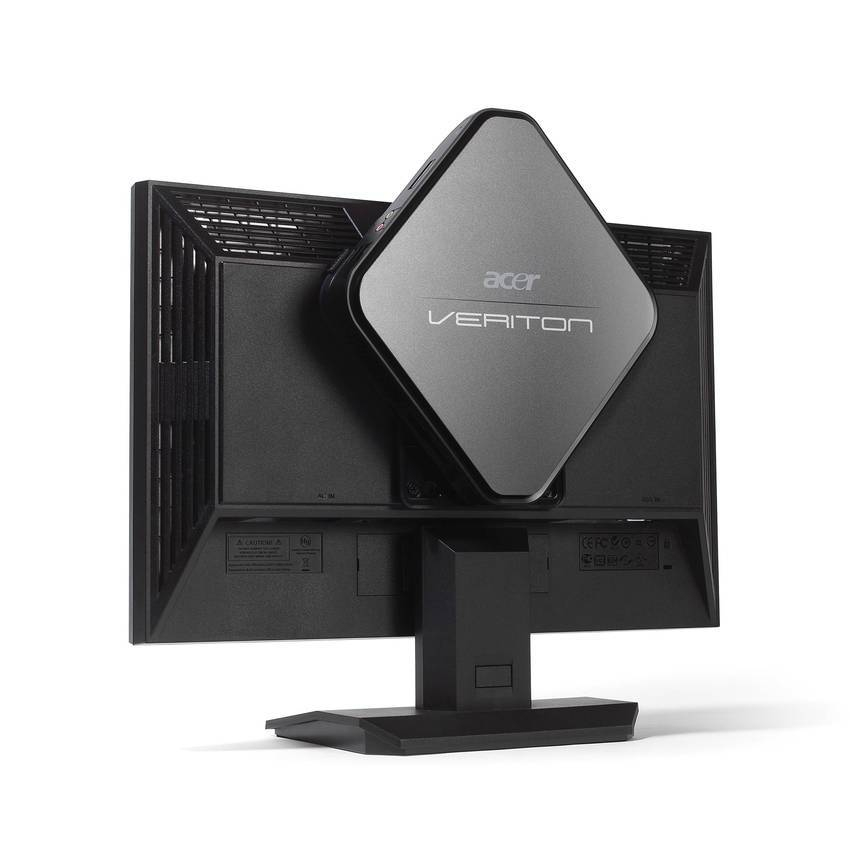

Aug 28, 2009 Combining Intel® Atom Processor N280 with Intel® GN40 Express chipset, Veriton N260G-U2802CP suits applications in small offices, reception areas, classrooms, libraries, showrooms, and call centers. It can store and playback HD videos and display sharp images with 2 GB DDR2 SDRAM, 160 GB SATA hard drive, and Intel® Graphics Media Accelerator 4500M. Ports available are HDMI for high quality images, multi-in-1 card reader, 6 USB 2.0 ports, HD headphone and microphone jacks and PS/2 slot.

Advantech Automation Corp.    Cincinnati, OH 45240
Aug 28, 2009 PWS-8033M handheld computer features XScale PXA270 624 MHz processor with 3.7 in. transflective VGA TFT LCD, GPS, 802.11 WiFi, and built-in Bluetooth. It provides GPS communication support using u-blox technology and A-GPS online and offline services. MIL-STD-810F and MIL-STD-461E standard certified unit is constructed with IP67 rating for total protection against dirt, dust, and complete immersion in under 1.2 m of water. It supports both Windows® CE 5.0 and Mobile 6.1.

RheoSense, Inc.    San Ramon, CA 94583

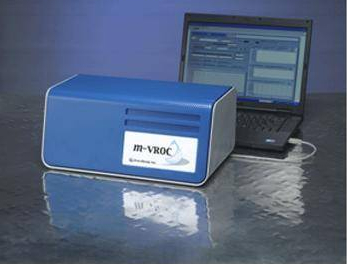

Aug 28, 2009 Designed for protein and other biological formulations, m VROC has measurement range from 0.1-100k cp viscosity. Ergonomically designed device includes is enclosed system complete with all required hardware, external circulating water bath for temperature-control, and optional purge air supply that prevents condensation inside chamber. Portable product can be implemented on or off process line.

ITT Industries - A-C Pump    Seneca Falls, NY 13148
Aug 28, 2009 Designed for use with submersible well and above ground centrifugal pumps, variable speed pump controller S-Drive(TM) is cUL listed to meet Canadian CSA safety standards. It controls standard 4 in. and 6 in. submersible motors, turbine pumps, and surface centrifugal pumps up to 30 hp in irrigation, and can be used for single-phase 230 V input in rural water applications. Unit provides supplemental pressure in commercial buildings up to 10 floors, and has temperature range of -22 to 122°F.

Digital Power Corp.    Fremont, CA 94538

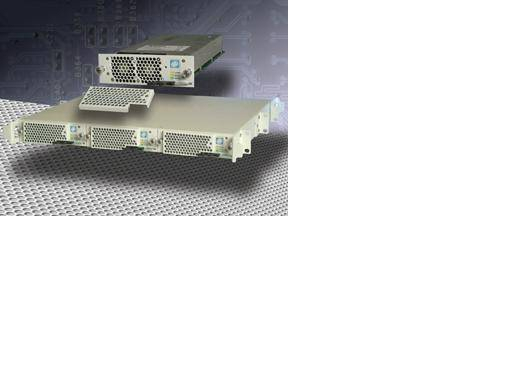

Aug 28, 2009 Consisting of 1 U/19 in. rack-mount 3-bay power shelf and mating power modules, ATCA Power Systems offer 12/24/48 V outputs and optional I2C/IPMI digital interface. System features universal ac input of 85-264 Vac with active power factor correction, over voltage/current/temperature protection circuits, hot-swap/redundant operation, ATCA compliant LED indicators, and auxiliary 3.3 VSB power. All models are CE marked, certified to EN60950, UL60950, and meet EN55022 class A emissions.

Griswold Pump Company    Thomasville, GA 31792
Aug 28, 2009 With design that offers circular concentric volute casing in conjunction with radial vane impeller, Model 811LF pumps feature flow capacities as low as 4 gpm with heads as high as 920 ft. Class 150 raised-face(RF) flanges are standard on models LF1.5x1-8AA and LF2x1-10A05, while class 300 RF flanges are standard on model LF3x1.5-13A20. ANSI-dimensional pumps can be installed without piping or base changes to existing equipment.

Ludeca Inc.    Miami, FL 33172
Aug 28, 2009 VIBXPERT Balancer and Analyzer addresses challenges of wind turbines, which turn at very slow rotational speeds. With its built-in wind balancing program, software, accelerometers linear to 0.1 Hz, speed sensor, and balance grade tolerance chart (G16), portable system is suitable for use in situations of mass unbalance of wind turbine rotor blades.

Intalio, Inc.    San Mateo, CA 94403-1164
Aug 28, 2009 Intalio|BPM v6.0 provides integrated platform for managing complex business processes while optimizing deployment in cloud computing environment. Several included application engines - which can be deployed on top of virtualization infrastructures such as VMware, vSphere, or Microsoft Hyper-V - facilitate creation of complex processes and workflows. Also, business users can create complex business rules using Decision Tables that rely on spreadsheet metaphor.

JDSU    San Jose, CA 95131
Aug 28, 2009 Comprised of JDSU ONT 100G Module, JDSU Hydra, and JDSU MAP-200, JDSU suite helps service providers ensure reliable performance on new network builds as well as evaluate and verify components, subassemblies, and network equipment. All 100 Gigabit Ethernet (100GE) test solutions help unlock performance of 100GE technology and support 100GE physical layer test, including photonic and electrical signal testing as well as protocol testing for layers 1, 2 and 3.

R.A.K. CERAMICS    RAS AL KHAIMAH   United Arab
Aug 28, 2009 Weighing less than conventional tiling, RAKSLIM 4.5 mm-thick tile has minimum breaking strength of 700 N and minimum modulus of rupture of 40 N/mm². Tiles may be cut and drilled and offer flexibility for usage on any existing flat surface. While initially offered in 30 x 60 cm sizes in some models of Gres Porcellanato tiles, including Lounge and New Port series, larger sizes and wider range of models will be available.
