Calex Instrumentation Ltd    Leighton Buzzard Be LU7 8TE  United Kingdom
Sep 03, 2009 With 20 x 1 mm mounting thread, Model LSTL is compatible with PyroUSB sensors, while model LSTS has 16 x 1 mm thread for PyroCouple and PyroEpsilon non-contact infrared temperature sensors. Made of anodized aluminum, lightweight tools screw onto front of sensor for precise indication of where sensor is aiming. Laser is activated by means of push button on front of tool which has latching mechanism. Tools are powered by single lithium 1/2 AA 3.6 V battery.

DMP    Springfield, MO 65803
Sep 03, 2009 Compatible with all DMP burglary panels and 1100 Series receivers, Model 1119 Wireless Sounder provides audible tone while sending signal to panel, and can be used as alternative to crash bars in retail/commercial applications. Single-zone module is equipped with long-life battery-powered sounder. Unit can also be used to augment keypad chime with additional annunciation that can provide notification of side or back door openings.

Crydom    San Diego, CA 92154
Sep 03, 2009 Rated to 10 A at 100 Vdc and 40°C ambient temperature, CMX100D10 suits heating, lighting and motion control applications in industrial, medical, aerospace, rail and automotive applications. Units feature outputs with low on-state resistance FETs for efficient dc load control, 2,500 Vac optical isolation, logic compatible dc control input in epoxy package.

American Industrial Systems, Inc.    Irvine, CA 92614
Sep 03, 2009 Available in 12.1, 15, 17, 19, and 20.1 in. sizes, Rack Mount LCD Monitors feature all steel construction with robust rack mountable aluminum bezel and attached carrying handles. Optional add-on features include touchscreen integration, wide voltage inputs, enhanced brightness, shock/vibration resistance enhancements, and VGA, DVI, SDI, and other video inputs. Custom paint color, logo, modification, and hard coated vandal shield options are also available.

Westfalia Technologies, Inc.    York, PA 17402
Sep 03, 2009 Equipped with 3-strand conveyor for transferring pallets on and off, Vertical Lift is capable of handling either 1 or 2 pallets simultaneously, with maximum vertical speed of 200 ft/min. It uses 2 gear motors mounted on floor level, mechanically linked with drive shaft and driven with AB PowerFlex 700 drive. Lift offers cycle time of 20 sec for 8 ft 9 in. travel distance, including time for pallets to move and off lift, and for lift to move back to its original position.

Columbia Research Labs., Inc.    Woodlyn, PA 19094

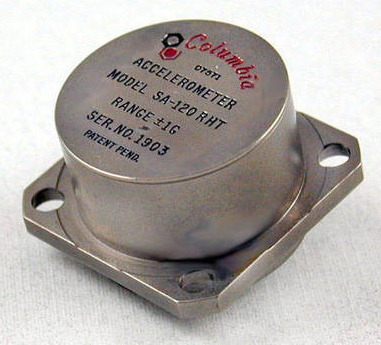

Sep 03, 2009 Designed as measurement while drilling (MWD) sensor for use in downhole well service applications, force balance accelerometer model SA-120RHT operates in temperatures from -40 to 200°C. Self-contained unit provides high level, low impedance output, eliminating need for additional high temperature signal conditioning. Measuring 1.0 in. dia and 0.73 in. high, device weighs only 1.5 oz, and offers shock survival of 500 G, 0.5 msec and vibration survival of 25 Grms, 0.5 in. disp. D.A.

E Instruments International LLC    Langhorne, PA 19047

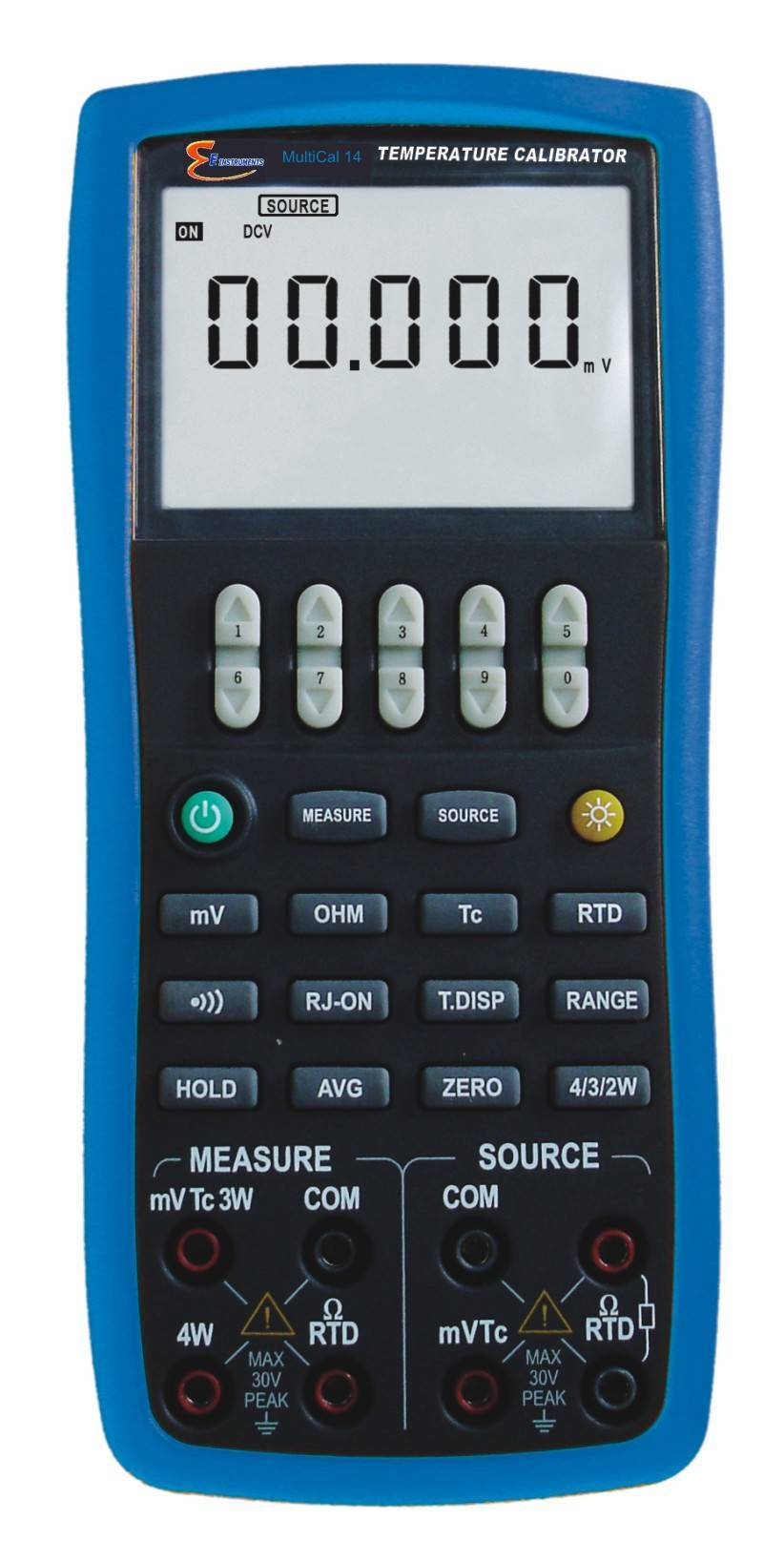

Sep 03, 2009 Compact, light weight, hand-held MulitCal 14 measures and simulates DC voltage, resistance, 10 types of thermocouples, and 6 types of RTDs, offering DC voltage output range of 100 mV to 1 V and measurement range of 50-500 mV. It features dual LCD with white LED backlight, and can display 5 digits for measurements and 6 digits for source values. Other features include auto power off, low battery indication, and automatic cold-end temperature offset.

Linear Technology Corp.    Milpitas, CA 95035
Sep 03, 2009 Housed in 15 x 15 x 2.8 mm surface mount LGA package, LTM4614 DC/DC µModule® can regulate either 2 voltages from 0.8-5 V at up to 4 A each, or 1 output voltage at up to 8 A by sharing current from both outputs. Device operates from 2 different supply rails ranging from 2.375-5.5 V or from 1 input supply by tying input pins together. Offering efficiency up to 94%, Model LTM4614 supports output voltage tracking and is guaranteed to have ±1.5% total dc output error.

Fluke Corp.    Everett, WA 98203
Sep 03, 2009 Multimeter-clamp kits combine Fluke 289 Industrial Logging Multimeter, Fluke 87V True RMS Industrial Digital Multimeter, or Fluke 179 True RMS Multimeter with Fluke clamp meter for measuring current without interrupting live circuit. While Fluke 289/87V Industrial Multimeter Service Kits (IMSK) include Fluke i400 Clamp Meter, Fluke 179 IMSK includes Fluke 322 Clamp Meter. All tools are safety rated for CAT III 1000 V or CAT IV 600 V environments, except CAT III 600 V-rated Fluke 322.

Fluke Corp.    Everett, WA 98203
Sep 03, 2009 Designed to measure 4-20 mA signals that flow through control system circuits, Fluke 772 and 773 eliminate need to break circuit, interrupt operations, or insert test instrument. Units provide simultaneous mA and % Span readings with 0.01 mA resolution on 20 mA applications. Featuring detachable jaw and built-in flashlight, IP40-rated meters are suited for technicians in process plants, industrial plants, and commercial buildings, as well as automation commissioning teams.

Kraton Polymers    Houston, TX 77002
Sep 03, 2009 Applied as single- or multi-laminate process, NEXAR(TM) nonporous membranes and coatings maintain strength in wet/dry environments and exhibit constant performance over extended period of time. Permselectivity allows for flow of moisture in one direction while blocking other substances, such as potentially harmful chemicals. Products are compatible with athletic apparel, outdoor survival equipment, military uniforms, and biochemical garments.

Solarflare Communications, Inc.    Irvine, CA 92618
Sep 03, 2009 Comprised of Solarstorm® SFL9022 dual-port LOM, SFL9021 single-port LOM, and SFC9020 dual-port controller, SFC9000 series has fully virtualized architecture and sub-6 µsec latency. Fully integrated 10GBASE-T LAN-on-motherboard (LOM) enables backwards compatibility with 1000BASE-T Ethernet and support for installed cabling. Able to provision and manage IP flows, series also delivers 37 Gbps aggregate bandwidth and full array of stateless offloads.

Tensilica, Inc.    Santa Clara, CA 95054
Sep 03, 2009 Offering computational throughput of 16 18-bit MACs per cycle, ConnX Baseband Engine enables baseband processing for 3G, LTE, and 4G wireless equipment. Unit offers automatic vectorization for ANSI C programs and optimized instructions for FFT, FIR filters, and complex matrix operations. Designed for 8-way SIMD and 3-way VLIW, engine has 160-byte vector register files supporting 20bx8 and 40bx4 vector types, and provides basic data memory bandwidth of 32 bytes/cycle.

Emerson Network Power    St. Louis, MO 63136
Sep 03, 2009 As 12 V sixteenth brick open-loop bus converter, AED/ALD13B50 operates from 38-60 V input range and delivers up to 150 W of high-efficiency (95% typ) output power. It measures 1.3 x 0.9 in. and is available in low-profile open-frame design or with integrated heatplate construction, both with through-hole and SMT configurations. With power density up to 383 W/in.³, this fixed-ratio IBC is designed to drive converters and discrete solutions and estimated MTBF exceeds one million hr.

Sage Software Inc.    St. Petersburg, FL 33702
Sep 03, 2009 Sage MAS 90 and 200 Extended Enterprise Suite v1.3 combines aspects of Sage ERP, CRM, fixed assets, and BI applications with delivery on Applianz technology. Configured to reduce or eliminate need for ongoing IT support, business application leverages virtualization technology as well as features of on-premise and hosted solutions. Systems also include one year of Applianz CompleteAssurance(TM) 24/7 remote monitoring, fully automatic daily back-up, and disaster recovery services.

IPG Photonics Corp.    Oxford, MA 01540
Sep 03, 2009 Dedicated to replacing older production lasers with energy-efficient fiber lasers, retrofit services allows companies to utilize existing motion system or transfer line while obtaining optimal technology with minimal risk and downtime. Services are provided by team familiar with system integration and can be utilized to replace CO2 and YAG laser sources on existing production lines for applications such as cutting, welding, or cladding.

Real Intent Inc.    Santa Clara, CA 95054
Sep 03, 2009 Including PureTime Constraints and PureTime Exceptions, PureTime(TM) v3.2 helps electronic designers prevent faulty circuits and avoid re-spins. PureTime Constraints checks for correctness and completeness of design constraints, while PureTime Exceptions verifies false and multi-cycle path exceptions. Software features built-in checks to validate constraints (SDC/TCL) against RTL/gate-level design sources, and debugging capabilities with cross probing to TCL/SDC, schematic and design sources.

Linear Technology Corp.    Milpitas, CA 95035
Sep 03, 2009 Including inductors and MOSFETs, LTM4619, dual step-down DC/DC uModule® regulator regulates 2 output voltages ranging from 0.8-5 V at up to 4 A each from input supply of 4.5-26.5 V (28 V abs max). Outputs are regulated with 180º out-of-phase operation to minimize input ripple current. Unit has dc output error of only ±1.5%, and is designed for systems requiring localized multirail regulation from input supplies such as 5, 12, or 24 V.

Coleman Cable, Inc.    Waukegan, IL 60085
Sep 03, 2009 Disaster Recovery and Restoration Cords allow emergency response teams and contractors to convert dryer, range, or generator outlets into usable power for large equipment or temporary power distribution boxes during disaster clean-up, rebuilds, and restoration projects. NEMA 14-30P (30 A dryer outlet), NEMA 14-50P (50 A range outlet), and NEMA L14-30P (30 A generator) cords offer either NEMA L14-30R (receptacle) or 50 A twist receptacle to energize temporary power distribution boxes.

OmniVision Technologies, Inc.    Sunnyvale, CA 94089
Sep 02, 2009 Offering 1,920 x 1,080 array using 3 micron OmniPixel3-HS(TM) pixel, 1/3 in. Model OV2710 enables video conferencing and recording for camcorders, notebooks, netbooks, and other mobile applications. Sensor delivers low-light performance of 3,300 mV/lux-sec, dark current of 6 mV/sec, and peak dynamic range of 69 dB. Operating at 30 frames/sec, sensor supports multiple platform architectures and controllers with both parallel and MIPI interfaces.
