Strategic Test Corporation    Woburn, MA 01801-1915

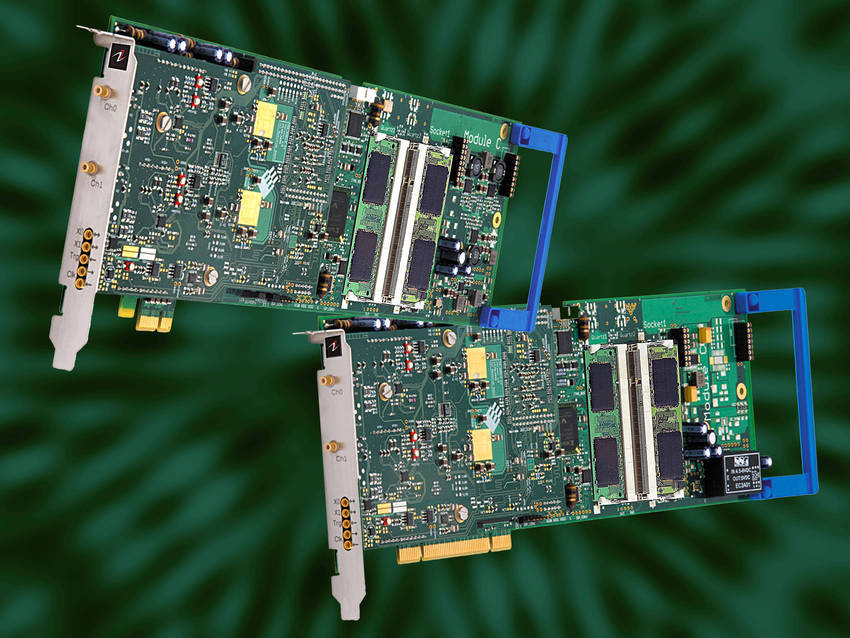

Sep 03, 2009 Featuring 2 analog inputs, UF3-3242 can sample at 500 MS/sec on 1 channel or 250 MS/sec on both channels simultaneously, while Model UF3-3240 is single-channel card that samples at up to 500 MS/sec. Both 12-bit cards include 128 MS memory, expandable to 2 GS, allowing measurement time of 5 sec on 1 channel at 500 MS/sec. Featuring 5 multi-purpose connectors, units have digital I/O lines programmable as digital inputs that are synchronous with analog channels or as synchronous digital I/O lines.

Titan Trailers Inc.    Ontario N4B 2W6  Canada
Sep 03, 2009 Constructed of wear-resistant aluminum, Titan Kicker Plate(TM) expedites offloading of non-flowing or compressed material out of trailers, while keeping drivers out of back of trailer. Unit is hinged at top of rear of trailer and kicks compressed bulk material away from walls as it is being offloaded. Plate changes flow of material from falling backward to falling forward, ensuring material is unloaded cleanly and with minimal operator clean-up.

Titan Trailers Inc.    Ontario N4B 2W6  Canada
Sep 03, 2009 Intended for demanding applications such as demolition and abrasive materials, V-18 aluminum V-Floor unloading system is constructed with 18 aluminum slats and offers payload capacity up to 130 yd³. This 48 ft live floor trailer features sub-deck that provides resistance to leaks and heat without floor seals. Offered to fit trailers with inside width of 98.5 in., self-unloading system maintains sure footing for trailer while it walks off load.

ifm efector, Inc.    Exton, PA 19341
Sep 03, 2009 Available in heights from 160-1,510 mm in intervals of 150 mm, Safety Light Curtains offer 30, 40, 50, and 90 mm resolution options, and can be mounted vertically or horizontally along floor to detect foot traffic. Light Grids are available in pairs in 2, 3, and 4-beam versions. Both include emitter/receiver pair that create multi-beam barrier of IR light, protecting operator from hazards associated with mechanical and hydraulic power presses, molding presses, and automated assembly machines.

Walls & Forms Inc.    Dallas, TX 75374
Sep 03, 2009 CornerForms(TM) reconfigurable 2-part fastening system can be used to construct perimeter walls, privacy rooms, floor fixtures, and counters/booths. It consists of 3-dozen angles and .25, .5, and .75 in. PVC profiles, which are 8 ft long and can be cut in field. System connects ¼, ½, and ¾ in. panels without bolts, screws, or clips and results in lasting assembly with no sliding required. Components, panels, and angles are interchangeable, snapping together without tools or loose parts.

Green Absorbents    Bohemia, NY 11716
Sep 03, 2009 Compatible with over 300 different chemicals, Green Stuff® consists of non-mineral phenolic foam granules that absorb up to 15 times their weight. Non-toxic and non-biodegradable, product is used for cleanup of spills and leaks as well as for removal of processing waste. It is also usable as fuel blend with content capacity up to 13,000 BTUs/lb. EPA Certified, Green Stuff passes test for hazardous material waste disposal at approved landfills and incineration operations.

Linear Technology Corp.    Milpitas, CA 95035

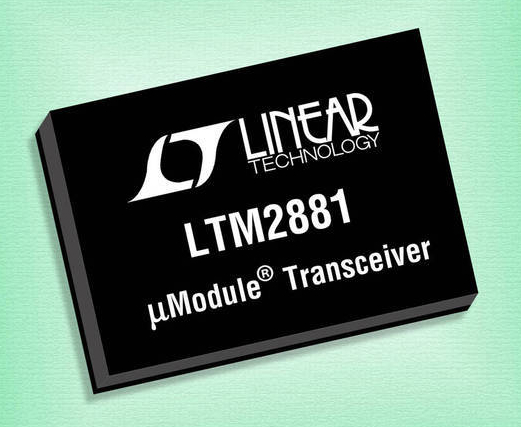

Sep 03, 2009 Model LTM2881 isolated RS485 µModule® transceiver breaks ground loops by isolating logic level interface and line transceiver using internal inductive signal isolation, providing common mode rejection of greater than 30 kV/µS. Powered by low-EMI DC-DC converter, ±15 kV ESD-protected unit features 2,500 Vrms galvanic isolation, onboard secondary power, and thermal shutdown protection. Incorporating RS485 transmitter and receiver, it is available in 3.3 and 5 V input supply voltages.

Michell Instruments    Rowley, MA 01969
Sep 03, 2009 Operating at temperatures up to 1,500°C, Model XZR-500 features semi-in-situ design that may be installed close to radiation zone, making it suitable for boiler combustion and industrial waste incinerators. MSRS technology is based on sealed metallic reference, allowing air to be used as calibration gas. When operated in extremely dirty applications, such as coal-fired power stations, MSRS cell of XZR-500 can be combined with particle blow-back mechanism to maximize reliability.

PPT Vision, Inc.    Eden Prairie, MN 55344

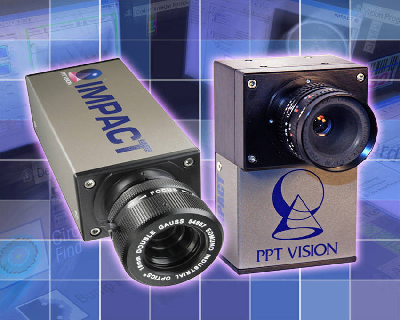

Sep 03, 2009 Paired with IMPACT software suite, IMPACT(TM) T-Series Cameras suit industrial vision applications such as feature inspection, location, and identification. Units are available in right-angle housings, as well as in-line and remote-head housings. With 1,600 MIPs rated processor, cameras can inspect up to 6,000 parts/min. IMPACT Vision Program Manager provides 120 image analysis tools, while IMPACT Control Program Manager creates custom operator HMIs for controlling IMPACT cameras.

Nu-Star, Inc.    Shakopee, MN 55379
Sep 03, 2009 Power Tug(TM) is pedestrian-operated pusher with telescopic front legs and mono-drive wheel design with stabilizing castors allowing smooth operation on uneven surfaces. Electric actuator enables adjustment of single or dual legs to various heights. System also includes automatic braking and emergency reverse and onboard battery charging. Its programmable control system with butterfly speed control lets user set acceleration/deceleration limits.

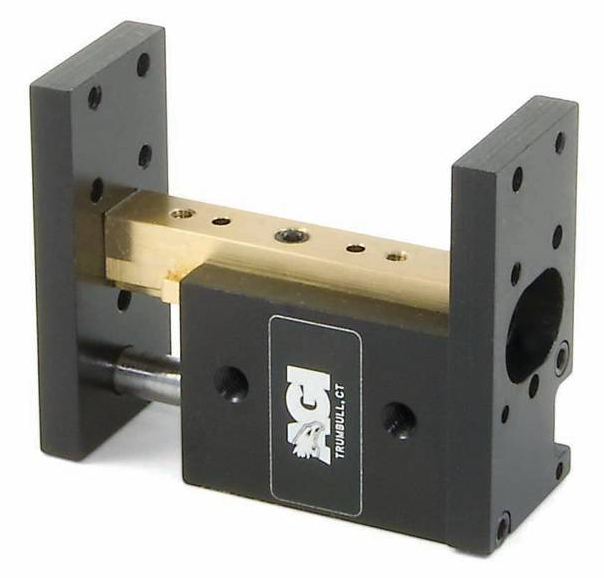

AGI - American Grippers Inc.    Trumbull, CT 06611
Sep 03, 2009 Featuring height of 0.813 in., AGPS parallel gripper features 1-piece body and stationary jaw design, integrated with precision T-slot bearing design supported full length of body. It features aluminum base and carriage bearing manufactured from Ampco 18 aluminum-bronze. Providing grip force of 15-25 lb, mini-linear actuator gripper is offered with bore sizes of .5 and .75 in. available in .5, 1.0, 1.5, and 2.0 in. strokes.

Meggitt (Maryland), Inc.    Germantown, MD 20876

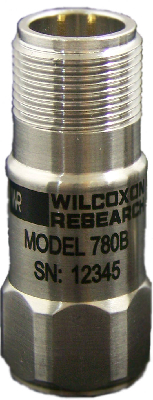

Sep 03, 2009 Offered as 100 mV/g general-purpose vibration sensors, industrial accelerometers 780A, 780B, and 780C respectively feature sensitivity tolerance ratings of +5%, +10%, and +15%. Each has 80 g acceleration range and +3 dB frequency response from 0.4 Hz to 14 kHz. Able to be used in locations where narrow diameter (less than 0.7 in.) is required, products are encased in 316L SS and have 2-pin, MIL-C-5015 connector. ESD protection and EMI-/RFI-shielding are also standard.

Clore Automotive    Lenexa, KS 66215
Sep 03, 2009 Model PI5000X SOLAR Power Inverter delivers power from 12 V source to variety of equipment, electronics, and appliances. SOLAR Sonic Compression technology utilizes modified sine wave design to provide stable power throughout operating range. Rugged device includes clamp set and cord with 12 V male plug, 2 AC outlets, and USB outlet to power small electronics. Temperature-activated fan control eliminates draining of power source when in standby mode.

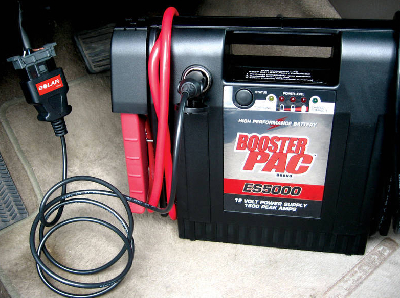

Clore Automotive    Lenexa, KS 66215
Sep 03, 2009 SOLAR ESA30 can be used in conjunction with jump starter to preserve vehicle codes and electronic presets while vehicle's battery is disconnected. Compatible with any jump starter featuring 12 V power port, product acts as interface connector between jump starter and vehicle's OBD II port. It prevents any electronic memory loss when disconnecting vehicle's battery and confirms proper connection via built-in LED.

Permabond    Somerset, NJ 08873

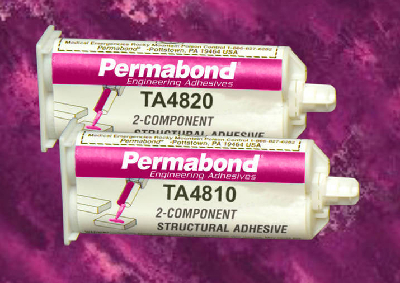

Sep 03, 2009 Able to support structural load when fully cured, Permabond TA4810 and TA4820 withstand stresses of bonding plastics to metal by absorbing stresses of expansion and contraction of substrates with varying coefficients of thermal expansion. Two-component methacrylate-based adhesives feature thixotropic, non-sag properties, which allow dispensing on unlevel or vertical surfaces. Permabond TA4810 can achieve fixture strength in 10 min, while Permabond TA4820 reaches fixture strength in 30 min.

Calex Instrumentation Ltd    Leighton Buzzard Be LU7 8TE  United Kingdom

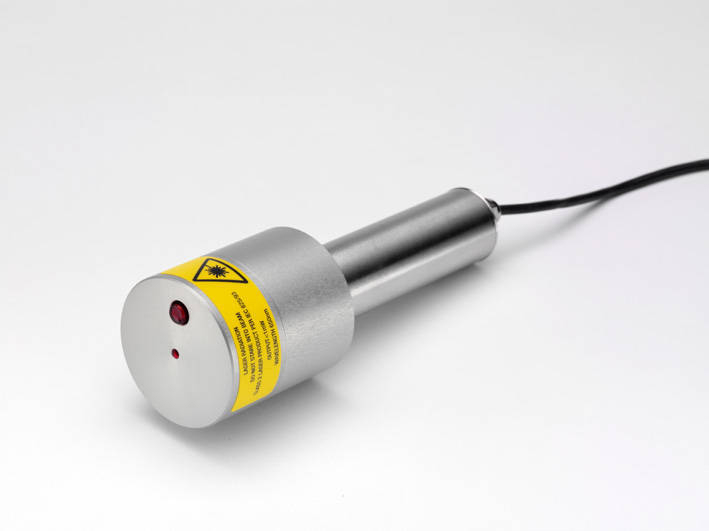

Sep 03, 2009 With 20 x 1 mm mounting thread, Model LSTL is compatible with PyroUSB sensors, while model LSTS has 16 x 1 mm thread for PyroCouple and PyroEpsilon non-contact infrared temperature sensors. Made of anodized aluminum, lightweight tools screw onto front of sensor for precise indication of where sensor is aiming. Laser is activated by means of push button on front of tool which has latching mechanism. Tools are powered by single lithium 1/2 AA 3.6 V battery.

DMP    Springfield, MO 65803

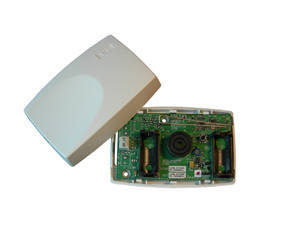

Sep 03, 2009 Compatible with all DMP burglary panels and 1100 Series receivers, Model 1119 Wireless Sounder provides audible tone while sending signal to panel, and can be used as alternative to crash bars in retail/commercial applications. Single-zone module is equipped with long-life battery-powered sounder. Unit can also be used to augment keypad chime with additional annunciation that can provide notification of side or back door openings.

Crydom    San Diego, CA 92154
Sep 03, 2009 Rated to 10 A at 100 Vdc and 40°C ambient temperature, CMX100D10 suits heating, lighting and motion control applications in industrial, medical, aerospace, rail and automotive applications. Units feature outputs with low on-state resistance FETs for efficient dc load control, 2,500 Vac optical isolation, logic compatible dc control input in epoxy package.

American Industrial Systems, Inc.    Irvine, CA 92614
Sep 03, 2009 Available in 12.1, 15, 17, 19, and 20.1 in. sizes, Rack Mount LCD Monitors feature all steel construction with robust rack mountable aluminum bezel and attached carrying handles. Optional add-on features include touchscreen integration, wide voltage inputs, enhanced brightness, shock/vibration resistance enhancements, and VGA, DVI, SDI, and other video inputs. Custom paint color, logo, modification, and hard coated vandal shield options are also available.

Westfalia Technologies, Inc.    York, PA 17402

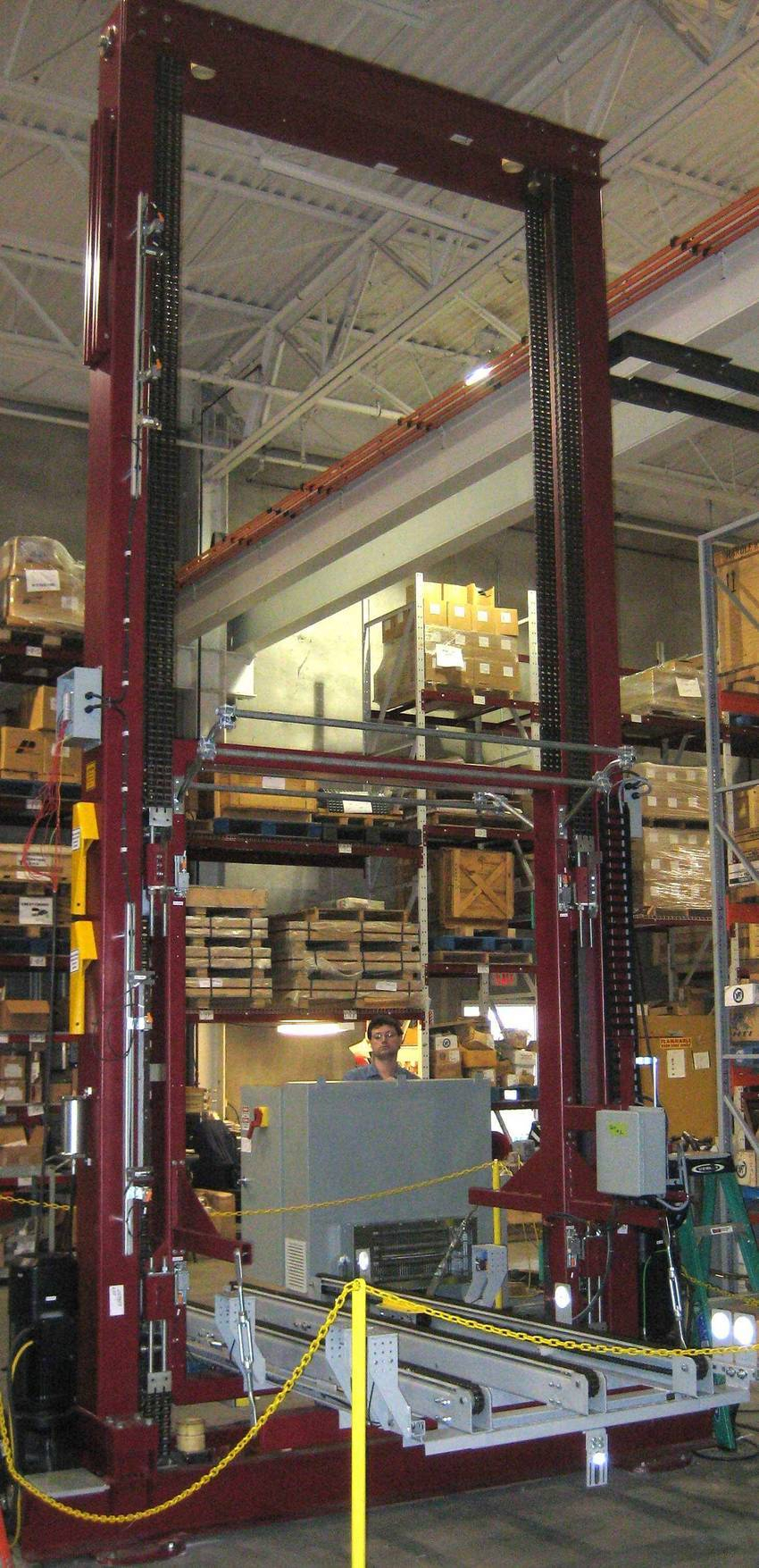

Sep 03, 2009 Equipped with 3-strand conveyor for transferring pallets on and off, Vertical Lift is capable of handling either 1 or 2 pallets simultaneously, with maximum vertical speed of 200 ft/min. It uses 2 gear motors mounted on floor level, mechanically linked with drive shaft and driven with AB PowerFlex 700 drive. Lift offers cycle time of 20 sec for 8 ft 9 in. travel distance, including time for pallets to move and off lift, and for lift to move back to its original position.
