Creative Safety Supply    Beaverton, OR 97008
Dec 20, 2012 Measuring 22 x 28 in. with high resolution printing, 8 Wastes of Lean Poster defines waste as Defects, Waiting Time, Extra Motion, Excess Inventory, Over Production, Extra Processing, Unnecessary Transportation, and Unutilized Talents. Poster can be placed in various parts of facility to remind employees of goals set to create more efficient, less wasteful workflow. For outdoor scenarios such as shipping yards, UV lamination, and plastic poster hangers are available.

MaxLite    West Caldwell, NJ 07006
Dec 19, 2012 Damp- and wet-listed with integral trim, MaxLED® LED Downlight Retrofits are designed with E26 medium screw base; GU24 adapter is also available. Universal 120–277 V power supply range allows use in residential/commercial applications, and full dimming is possible when used on 120 V circuit. MaxLED RR40930W can be used to replace 50 W equivalent halogen light source, and RR61430W is ENERGY STAR®-rated at 3000K and also available in 5000K color temperature.

Rotronic Instrument Corp.    Hauppauge, NY 11788
Dec 19, 2012 Equipped with ROTRONIC HYGROMER® IN-1 humidity sensor, Model CP11 simultaneously measures and records CO2, humidity, and temperature. Unit also calculates dew point and wet bulb temperature. In addition to 18,000 data point memory, instrument provides Max/Min/Avg value display, adjustable audible CO2 alarm, adjustable auto power off function, and mini USB interface. Using included ROTRONIC HW4-Light software, data can be downloaded, saved, and analyzed.

STMicroelectronics    Lexington, MA 02421
Dec 19, 2012 Supplied in 2 x 1.25 mm SC-70 package, TS881 is suitable for use in front-end detection and measurement circuitry. Supply compatibility (1.1–5 V over -40 to +125°C range) promotes extended operating times with smaller batteries. Typ operating current is 210 nA at 25°C, and push-pull output circuitry minimizes power consumption when driving any capacitive or resistive load. Other features include 8 ns response time, 2 µsec typ propagation delay, and rail-to-rail input.

IC-Haus GmbH      Germany
Dec 19, 2012 Supplied in 16-pin, 5 x 5 mm DFN package, iC-MU is suited for scanning magnetic pole wheels and tapes for motion control applications. Position data is generated in real-time and provided via serial interfaces (BiSS, SSI, and SPI) and as incremental signal without processing delay. FlexCount interpolation enables any pulse count to be configured, and magnetic target has 2 incremental tracks with pole widths of ~1.28 mm. Typical operating distance of 4/10 mm is sufficient for sensor.

Microscan Systems, Inc.    Renton, WA 98057
Dec 19, 2012 Suited for use in automation environments, MINI HAWK Xi and MS-4Xi employ decode algorithms to read nearly any 1D/2D symbol. X-Mode decode algorithms enable reading of damaged, distorted, or difficult low-contrast codes, including direct part marks (DPM) such as dot peen and laser/chemical etch. In addition to 10–30 Vdc power requirements, optoisolated I/O, and RJ45 and M12 connectors, MINI HAWK Xi adds autofocus as well as high-speed and high-resolution configurations.

Aston Foods AG    Rotkreuz   Switzerland
Dec 19, 2012 Available for industrial food production, fully automatic Continua provides large-scale bakeries with continuous vacuum cooling. Optical identification is used to directly and automatically convey baked goods from tunnel or shelf oven to correct chamber. Vacuum cooling unit is loaded on one side and unloaded simultaneously from opposite side, and cooling process for baked goods can be reduced to ~3 min. Process also helps eliminate risk of food contamination.

Allegro MicroSystems Inc.    Worcester, MA 01615
Dec 19, 2012 Utilizing chopper-stabilization technique to eliminate offset inherent in single-element devices, Model A1128 is suitable for high-temperature applications in automotive/industrial markets. Wide range of programmability is available on magnetic operate point, BOP, while hysteresis remains fixed. Offered in 3-lead ultra-mini SIP for through-hole mounting, unipolar device also uses dynamic offset cancellation technique, with internal high-frequency clock, which minimizes residual offset voltage.

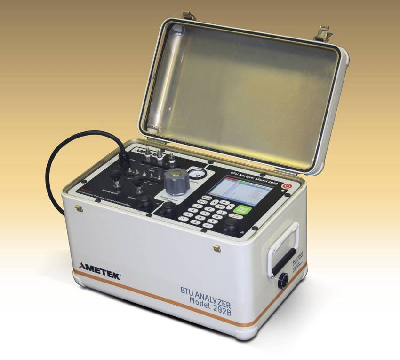

AMETEK Process Instruments    Newark, DE 19702
Dec 19, 2012 Combining integrated sample handling system, gas chromatograph module, and data processing/handling capabilities, Chandler Engineering Model 292B determines energy content, relative density, and compressibility based on industry-standard calculation methods. Sample transport, signal integration, and system diagnostics are handled within unit to ensure accurate, repeatable analysis. Sample results can be viewed on LCD and reports can be retrieved via USB port.

INDEX Corporation    Noblesville, IN 46060
Dec 19, 2012 Featuring open work area, vertical cast iron machine bed, and simultaneous machining by upper and lower turrets, Model IT600 turns parts up to 600 mm long and 380 mm in diameter. System is equipped with 65 mm spindle providing up to 352 Nm torque and speeds to 4,000 rpm. Controlled by FANUC 32i model B with 10.4 in. TFT color display, machine includes Intelligent Y axis that permits surface milling, off-center drilling, and off-center deep hole drilling.

AVX Corp.    Raleigh, NC 27604
Dec 19, 2012 Available in 2–6 positions, 9159-500 SMT, bottom entry, board-to-board, card edge connector eliminates process of hand soldering wires to top side of PCB in Edison-replacement LED bulb assemblies. Design lets perpendicular PCB be mated to top-mounted main FR4 or metal core PCB from bottom side using standard pick and place equipment and reflow soldering. Functionality also promotes performance in designs regarding color control and specific line control.

Methods Machine Tools, Inc.    Sudbury, MA 01776
Dec 19, 2012 FANUC D21 RoboDrill models feature FANUC 31iB control, which provides ergonomic display and reduces downtime via VMC troubleshooting and maintenance capabilities. Equipped with 14- or 21-tool rotary ATC that can index up to 5 million cycles without maintenance, automotive-duty VMCs offer torque to 56 lb-ft; rigid tapping to 5,000 rpm (8,000 rpm optional); accelerations in X, Y, and Z axes to 1.5 G; rapid traverses to 2,125 ipm; and feed rates to 1,181 ipm (2,362 ipm optional).

WAGO Corp.    Germantown, WI 53022
Dec 19, 2012 Intrinsically Safe 750-586 Module carries Ex [ia] Safety Approvals and provides signal current of 4–20 mA, linking WAGO Ethernet Controllers with actuators in hazardous location Zones 0, 1, and 2. ATEX and IECEx certified galvanically isolates field and system levels while providing short circuit-resistant outputs. Features promote safety in such atmospheres where gas and dust accumulate as well as hazardous location applications, such as oil/gas.

J. W. Winco, Inc.    New Berlin, WI 53151
Dec 19, 2012 Offered in metric sizes, GN 333.8 Angled Handle Support Legs and GN 333.9 Straight Handle Support Legs are typically used with GN 333 or GN 333.1 Tubular Handles. Products secure to handle with self-tapping screws mounted from bottom, utilizing blind tapped hole. Made of die-cast zinc, RoHS-compliant legs are available with black powder coated finish or silver powder coated finish. Typical use is on double winged swinging doors and sliding doors on machines.

Hamilton Company    Reno, NV 89520
Dec 19, 2012 Able to replace 3–4 manual or electronic pipettes, handheld Microlab 300 Series uses one probe and 2 tip sizes while enabling users to dispense 0.5–1,000 µL without exchanging pipettes. Users can fine-tune pipetting parameters for each liquid, and Linked Methods serve as electronic standard operating procedures. Optimizing QA for laboratories, sample volumes are automatically set by system, and log files of all pipetting activities are generated and stored for traceability.

Marshall Electronics    El Segundo, CA 90245
Dec 19, 2012 Featuring built-in Intel® Atom processor, Model DP-1203K eliminates need for separate player and can run most operating systems and content management systems. Model DV-1202K monitor, offering HDMI and VGA inputs, can be integrated into existing digital signage network. RS232 control port enables on/off control from any location. Available in surface and flush mount versions, both LED backlit LCD panels feature 12.1 in. display, all metal locking cabinet, and 6–30 Vdc input with variable power.

NTE Electronics, Inc.    Bloomfield, NJ 07003
Dec 19, 2012 Featuring .250 in. quick connect terminals, R51 Series is suitable for use in automotive, marine, tractor, lawn mower, and recreational vehicles. Flange mount units offer SPST-NO and SPDT contact arrangements and 12 and 24 Vdc coil voltages. Available in 4- and 5-pin versions with 12 in. wire leads, socket Models R95-190 and R95-191 contain rubber seal to guarantee full weatherproof assembly.

Merritt, J. R., Controls, Inc.    Stratford, CT 06615
Dec 19, 2012 Featuring heavy-duty mechanical construction, single-axis PRO-6H has standard proportional 0.5–4.5 Vdc output with optional custom-engineered PWM circuits. Handle shaft, measuring 10 mm in diameter, allows for variety of handle configurations, including triggers, rocker switches, pushbuttons, and thumb wheels. Equipped with field-adjustable friction brake with positive center detent, joystick is suitable for applications where speed must remain constant under continuous shock and vibration.

Airflow Systems, Inc.    Dallas, TX 75243 8314
Dec 19, 2012 Equipped with dynamically balanced, non-sparking, all-aluminum motor, PCH Series provides source-point collection of airborne contaminants such as dust, fumes, weld smoke, odors, and oil mists. E-Z Arm® external arm support eliminates air flow resistance common with internally supported arms. PCH-1 model, available with 0.5, 1.0, or 1.5 hp motor, is capable of air flow rates up to 800 cfm, while PCH-2 model comes with 1.0, 1.5, or 3.0 hp motor and supports up to 1,200 cfm.

Teknor Apex Co.    Pawtucket, RI 02861
Dec 19, 2012 Able to be extruded, injection molded, and blow molded, Medalist® MD-200 Series includes 87 Shore A compound MD-240 and 43 Shore D (~93 Shore A) grade MD-245. Both thermoplastic vulcanizate (TPV) elastomers, suited for replacing rubber in medical applications, exhibit prolonged flex life, stability at elevated temperatures, long-term sealability, and resistance to fatigue and abrasion. Suggested applications include peristaltic, collection, and drainage tubes; stoppers; and seals/gaskets.
