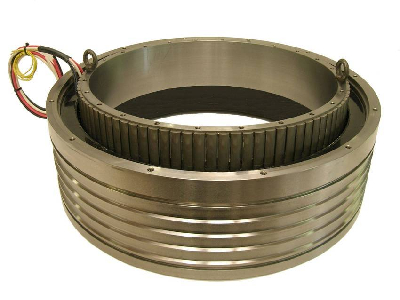

Parker Hannifin Corp.    Oxford, MI 48371
Sep 15, 2009 Delivered as kits with separate stator and rotor elements, TK Series is directly integrated into mechanical structure of machine. Motors deliver continuous output torques from 100-7,000 Nm with nominal speeds to 1,000 rpm. Naturally ventilated or water cooled, units offer temperature resistance up to 150°C and immunity to lubricants. Since there are no wear-prone transmission elements such as gearboxes or worm gears, backlash and looseness are suppressed and lifetime is maximized.

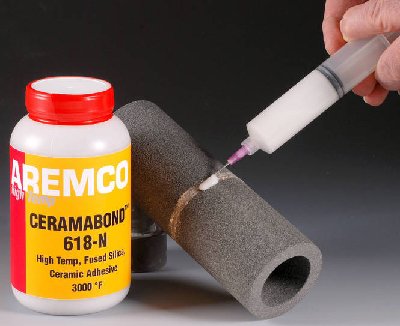

Aremco Products, Inc.    Valley Cottage, NY 10989
Sep 15, 2009 Dispensed by brush or syringe, Ceramabond(TM) 618-N adheres to low-expansion ceramics, quartz, and glass as well as molybdenum and tungsten metals. This single part, phosphate-bonded, silica-filled ceramic compound offers temperature resistance to 3,000°F, dielectric strength of 250 V/mil, and volume resistivity of 109 ohm-cm. Achieving full cures in 1-2 hr @ 700°F, inorganic and water-dispersible system exhibits resistance to oxidation as well as most acids and alkalis.

SE Relays LLC - Magnecraft Brand    Northfield, IL 60093
Sep 15, 2009 Available with flange, DIN, panel, and plug-in mounting options, 725 Power Relay Series offers choice of quick-connect or screw terminals as well as features such as push-to-test buttons, LEDs, and flag indicators. Compatible socket enables development of customized plug-in solution complete with protection modules. RoHS-compliant relays are suited for process and motor controls, lighting panels, HVAC compressor and blower controls, packaging machinery, appliances, and power supplies.

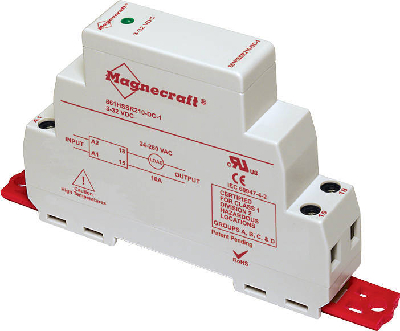

SE Relays LLC - Magnecraft Brand    Northfield, IL 60093
Sep 15, 2009 With current switching capabilities up to 15 A DC and 10 A AC, intrinsically safe Magnecraft 861H features Class 1, Division 2 rating from UL for approved use in Groups A/B/C/D hazardous locations. Integrated heat sink and sealing technology eliminate need to compute complex thermal calculations, while installation flexibility is fostered via DIN rail and panel mounting options. This 17.5 mm-wide relay has no moving parts and is suited for mining as well as oil and gas industries.

VersaLogic Corp.    Eugene, OR 97402
Sep 15, 2009 Ocelot is fanless SBC that features SUMIT(TM) expansion interface supporting high-speed PCIe lanes and USB, SPI, and LPC signals. Unit includes Z5xx Atom processor with up to 1.6 GHz and US15WP(T) chipset. It also features 2 GB DDR2 RAM, GbE port, up to 7 USB 2.0 interfaces, IDE port, 4 RS-232/422/485 COM ports, and integrated LVDS in 3.55 x 3.78 footprint. Drawing 7 W, it has field-programmable Embedded BIOS® and is available for operating temperatures of 0-60ºC and -40 to +85ºC.

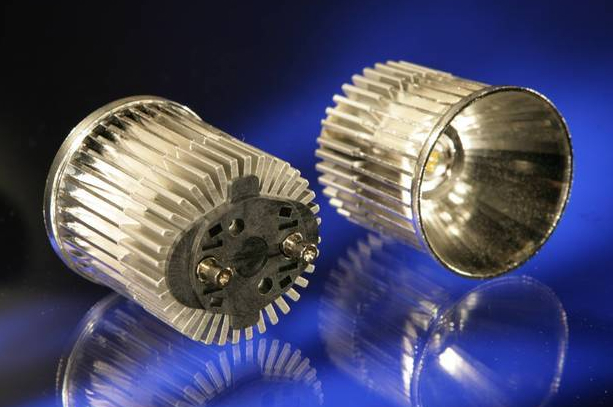

Molex Inc.    Lisle, IL 60532-1682
Sep 15, 2009 Transcend(TM) Series allows contractors on residential and commercial sites to use LED lights in existing fixtures while meeting code requirements. RM2 2-in. reflector module provides efficient LED directional light with various beam intensities and angular distribution. PM3 is 3 in. surface puck module that provides diffused optic for ambient or decorative light. They can be plugged into AC line of 120, 230, or 277 V, are dimmable, and are available with GU24 base or direct wire attachment.

GAO FiberOptics Inc.    Toronto   Canada
Sep 15, 2009 Capable of performing absolute and relative power tests and optical loss tests, compact optical power multimeter includes laser source operating at dual wavelengths of 1,310 and 1,550 Nm, and optical power meter module that works at 800-1,600 Nm. Unit supports multi-wavelength precision measurement and automatic bi-directional tests, and can store up to 50 data items. Various options of light sources and power meters are available for integration into meter to meet custom requirements.

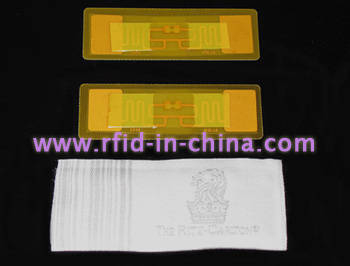

DAILY RFID CO.,LIMITED    Guangzhou, 510403  China
Sep 15, 2009 Compliant to ISO18000-6C EPC Gen2, tag-06 is made of PET and copper and can be reused for 100-200 times under harsh industrial laundry conditions, including high temperatures, pressure, and aggressive chemicals. It operates at frequencies of 860-960 MHz, and offers contactless read and write. Measuring 25 x 76 mm, tag is only 0.7 mm thick, and attaches to linen, such as garment, towel, and bed sheet.

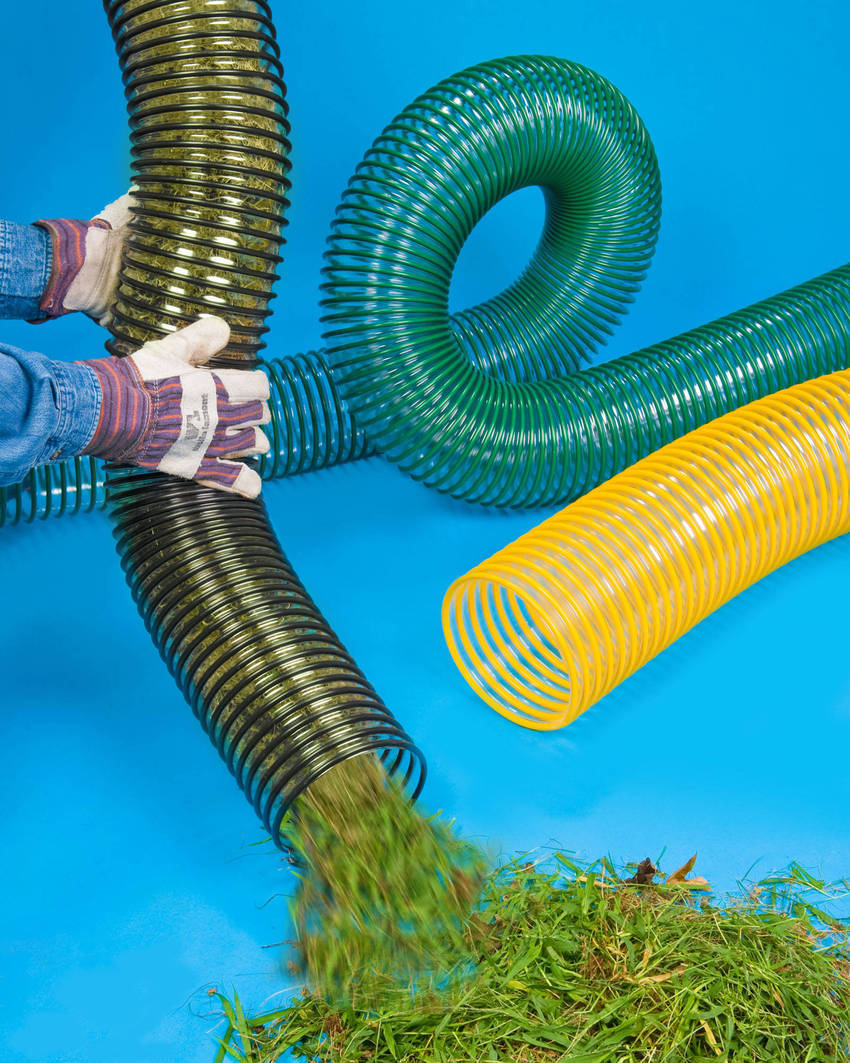

Flexaust    Warsaw, IN 46580
Sep 15, 2009 Designed for lawn, leaf, refuse collection, and mulch blowing applications, flexible clear Flextube(TM) PU hose features all plastic co-extruded spiral construction with rigid ABS helix wear strip, and smooth urethane interior that provides puncture- and tear-resistance. Hose is offered in 4-8 in. sizes with plain ends and in 10, 25, and 50 ft lengths, with custom OEM color matching. Product can also be made from PVC (Flextube PV) or thermoplastic rubber (TR) in varying thickness.

Del City    Menomonee Falls, WI 53051
Sep 15, 2009 Accepting all standard on-off toggles with 15/32 in. mounting stem, spring-loaded toggle safety covers are made of colored urea plastic and prevent accidental actuation in variety of applications from racing to agriculture. Black steel faceplate base facilitates installation. To easily identify accessories, covers are available in red, bright red, black, chrome red, chrome blue, and chrome silver.

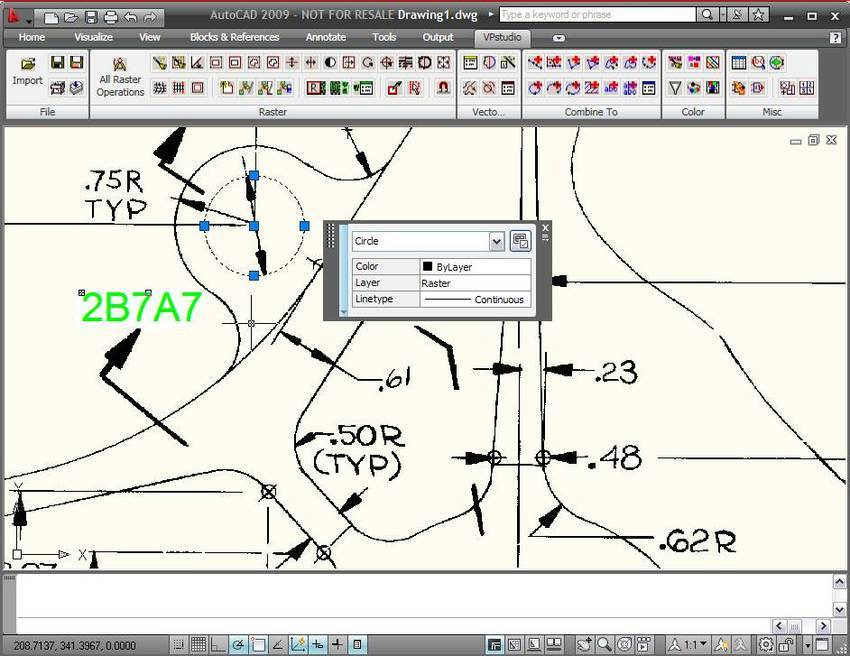

Softelec    Munich D-80995  Germany
Sep 15, 2009 Supporting all AutoCAD platforms from 2004 to 2010, VPHybridCAD and VPmap series software facilitates editing and conversion of scanned technical and geographical documents. Software offers choice of stand-alone Windows or AutoCAD-based operation during installation. Complying with AutoCAD's ribbon style interface, software also allows users to make use of CUI file support in former AutoCAD versions, allowing for seamless toolbar handling inside AutoCAD.

JVL USA/Motion Control Sales Ltd.    Morrow, OH 45152
Sep 15, 2009 Providing option to run mesh networks with ZigBee protocol on top of IEEE 802.15.4 radio technology, MAC00-FZ4 interface module offers capability to address large number of motors from one master computer. Module can be used with all JVL integrated servo motors MAC050-140, MAC400, and MAC800 from 50-750 W.

Reznor    Mercer, PA 16137
Sep 15, 2009 Available with staged heating from 75-400 MBH to provide right amount of heat depending on outside temperature, Model CAUA helps save on energy usage. Unit can handle up to 100% outside air and has multiple options for air mixing boxes, filter boxes, and discharge arrangements. With optional separated combustion and outside supply air capability, unit suits buildings requiring indoor air quality control. It can be coupled with M Series condensing unit to provide staged cooling as well.

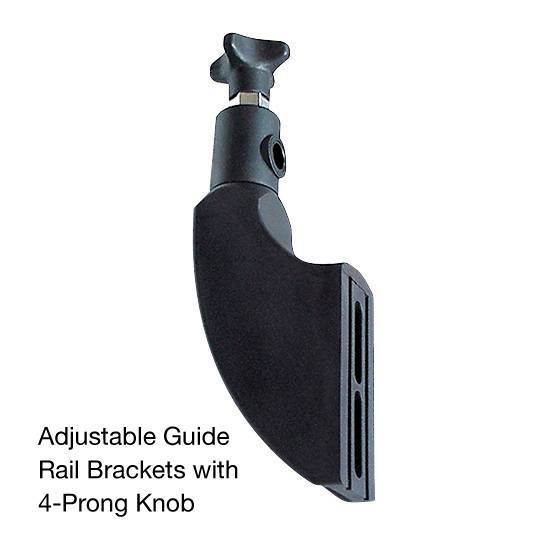

J. W. Winco, Inc.    New Berlin, WI 53151
Sep 15, 2009 Available in metric sizes, RoHS compliant Series AN 410 brackets are intended for use with adjusting rods and other guide rail holding components. Clamp is black reinforced polyamide, with eye bolt and bushing of nickel-plated brass, and 4-prong knob is black reinforced polyamide with brass, nickel-plated bushing molded in.

Brown Machine LLC    Beaverton, MI 48612-0434
Sep 15, 2009 B-Series Hot Sheet Thermoformer integrates sheet extruder close to machine and roll stack at entrance end, allowing material to be extruded directly onto conditioning rolls within it, helping save energy. Sheet with high core temperature creates forming conditions that enable precise material distribution, allowing use of 2-stop oven instead of 4 or 5-stop oven, which also saves energy. Available in sizes up to 50 x 60 in., system is configurable for production with wide variety of materials.

Bayer MaterialScience, LLC - Coatings, Adhesives & Sealants    Pittsburgh, PA 15205
Sep 15, 2009 Bayblend® W90 XG is opaque, UV-stabilized polycarbonate/acrylonitrile styrene acrylate resin formulated for injection molding parts used in outdoor applications. High-heat variant, Bayblend® W100 XG, is also available. Makroblend® WT203 PC/polyester resin is optimized for weatherability, chemical resistance, impact strength, heat resistance, and flow. All 3 resins are designed to withstand prolonged outdoor exposure while maintaining mechanical properties and appearance.

AllenPort Co.    Princeton, NJ 08540
Sep 15, 2009 In addition to file management tools for SMBs, Virtual File Cabinet v2.2 offers subscription services for Microsoft Office Standard, Microsoft Office Professional, and Hosted Exchange as well as Cloud Printing. Program includes optimized functionality for account administrators and MSPs, including remembering login information, optimized primary interface screen, and reduced download times. With Virtual Recycle Bin, users can recover deleted files no matter which computer they are working from.

Autodesk, Inc.    San Rafael, CA 94903
Sep 15, 2009 AutoCAD Plant 3D 2010 Software is intended for design, modeling, and documentation of process plants. Suited for project teams of all sizes, program optimizes accuracy and coordination of shared information. It utilizes .dwg file format, minimizes setup time, and also ensures minimal impact when changing project information.

Avineon, Inc.    Alexandria, VA 22311
Sep 15, 2009 Avineonics v2.0 enables organizations to integrate emergency preparedness with daily operations and create efficient incident management processes. It includes features for measuring emergency preparedness, managing incidents as they occur, and producing after action reports. It also enables damage assessment, resource planning, transfer of command, and demobilization, and supports integration with GISs to map resources and events during incident.

Advanced Analogic Technologies Inc.    Sunnyvale, CA 94085
Sep 15, 2009 Model AAT4702 P-channel MOSFET power switch features LDO regulator with auto restart, reverse current blocking, and fault flag that indicates overcurrent/overtemperature condition. Default current limit is set at 150 mA, but is programmable up to 1 A via external set resistor. Unit consumes 15 mA quiescent current and delivers regulated 1.8 V supply voltage with ±2% accuracy at up to 100 mA. Offering shutdown current of under 1 mA, switch operates in -40 to +85°C temperature range.
